Electrical Symbols

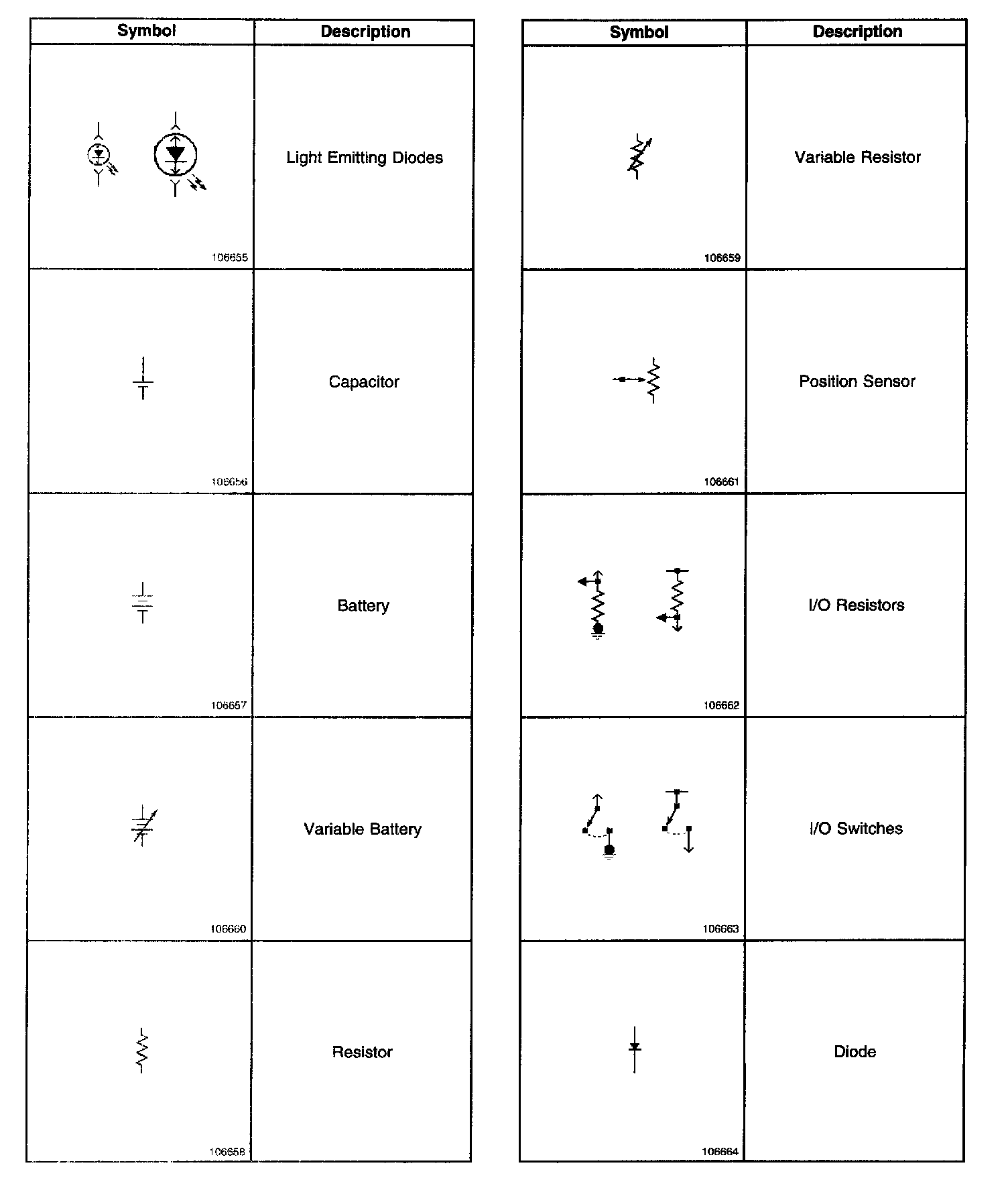

Electrical Symbols (Part 1 Of 4):

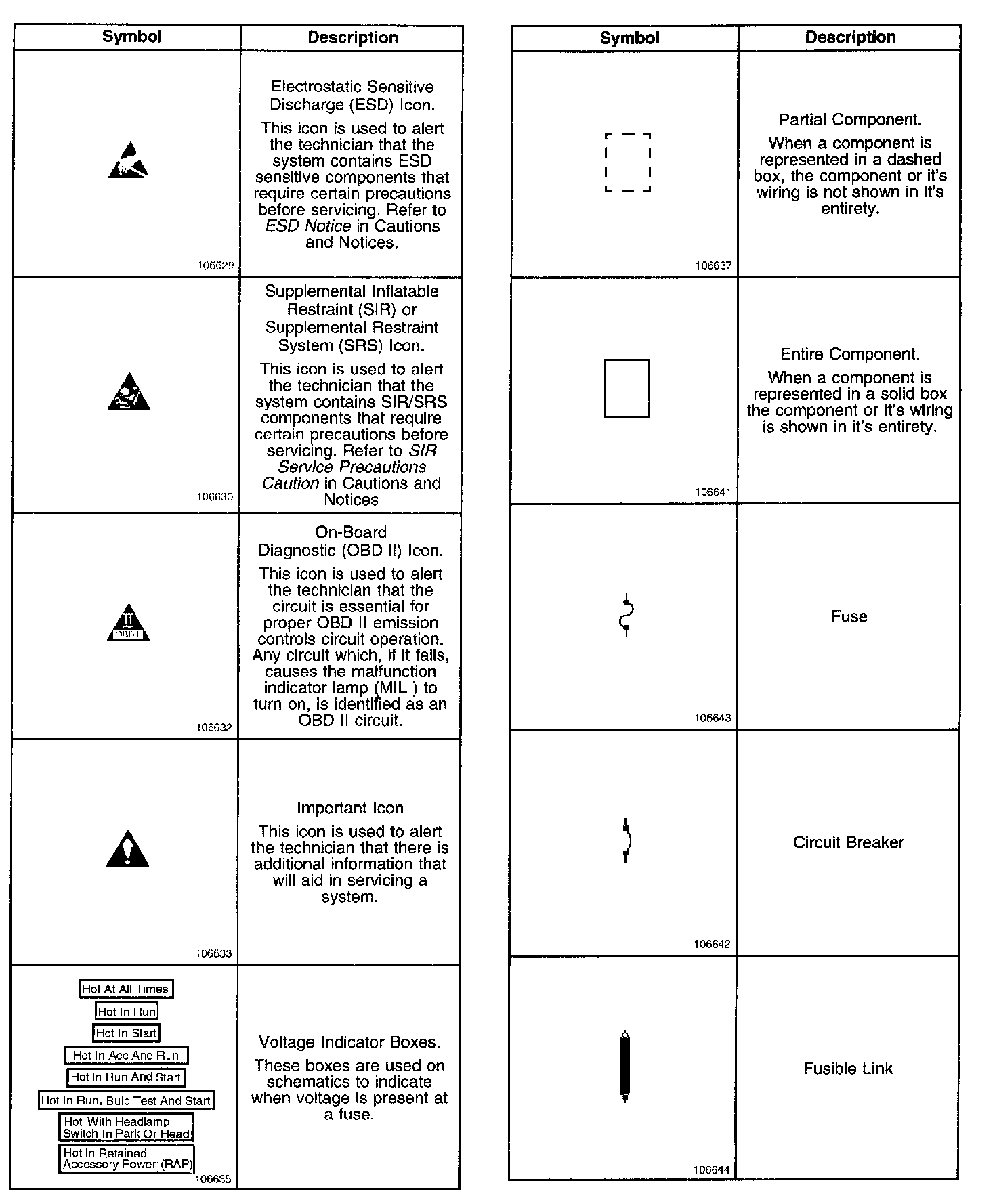

Electrical Symbols (Part 2 of 4):

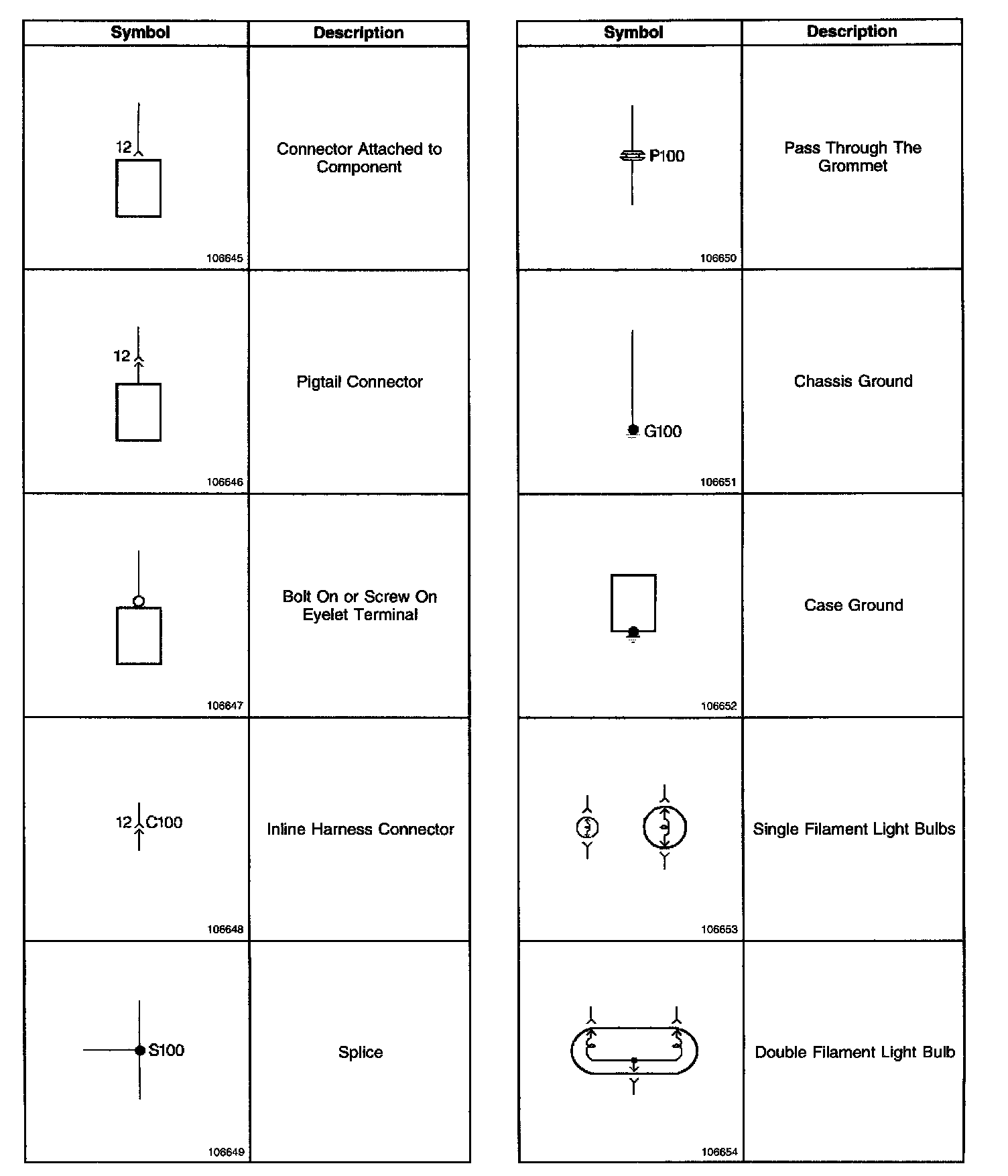

Electrical Symbols (Part 3 Of 4):

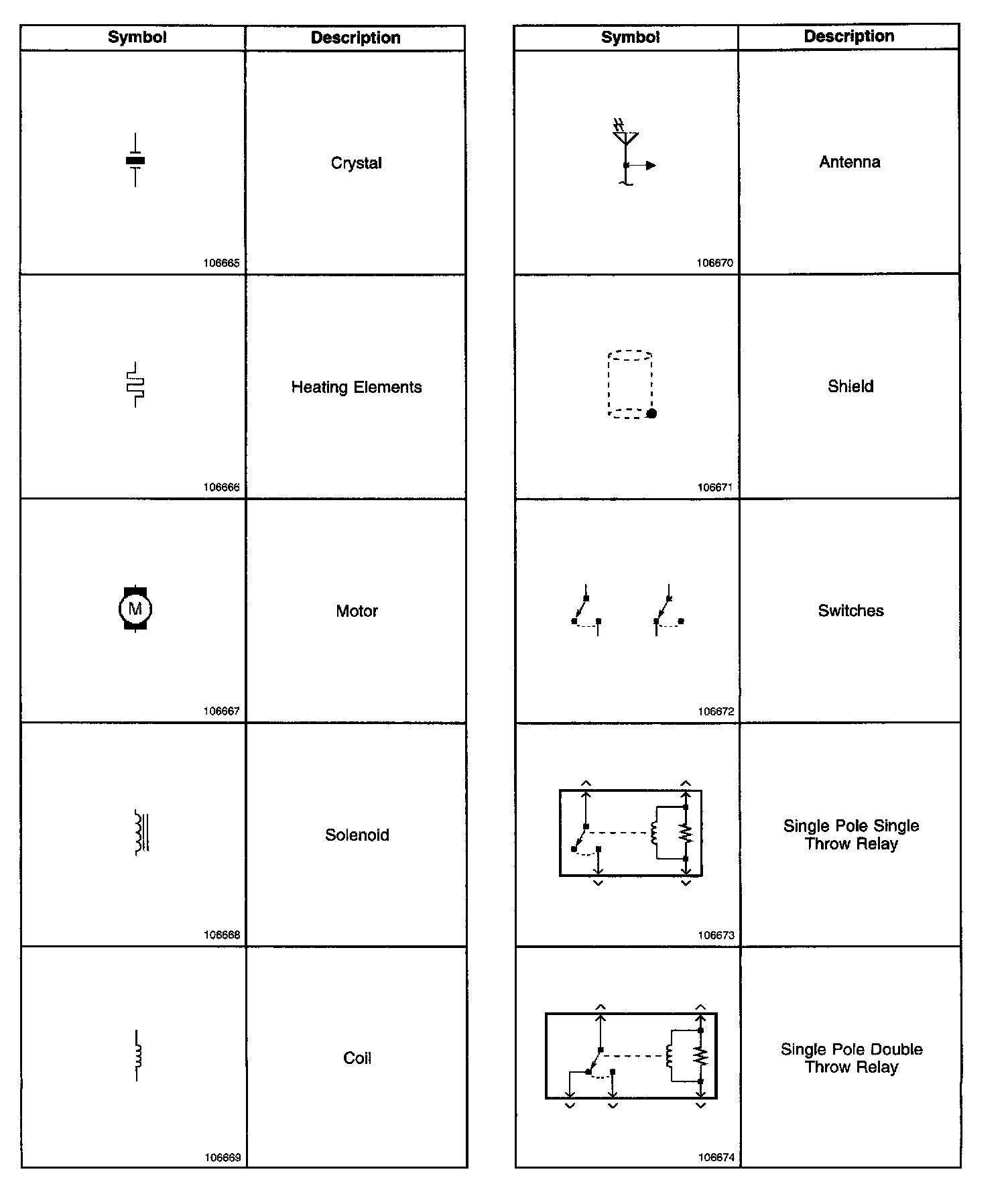

Electrical Symbols (Part 4 Of 4):
