Scan Tool Data List - Powertrain System

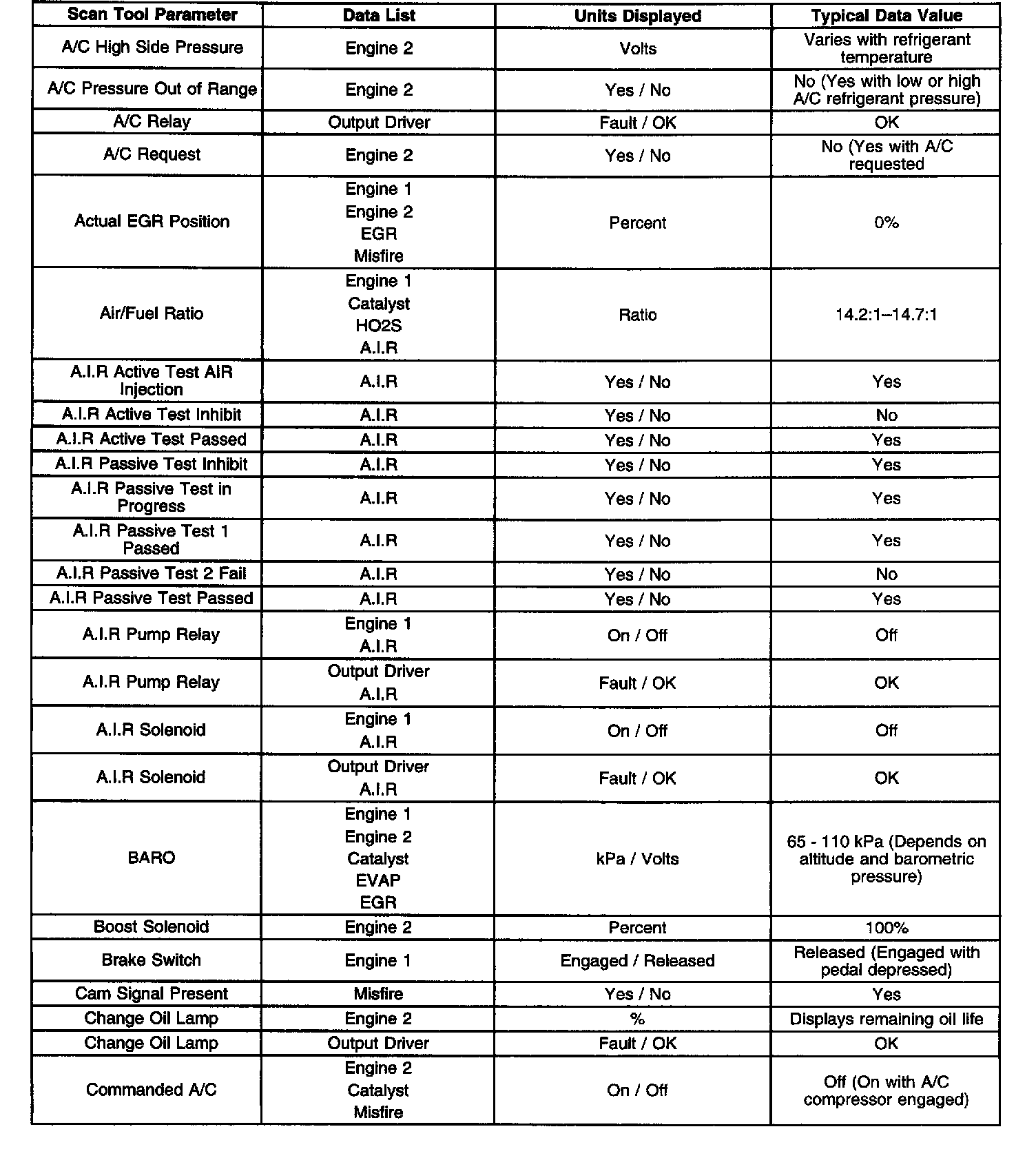

Scan Tool Data List (Part 1 Of 5):

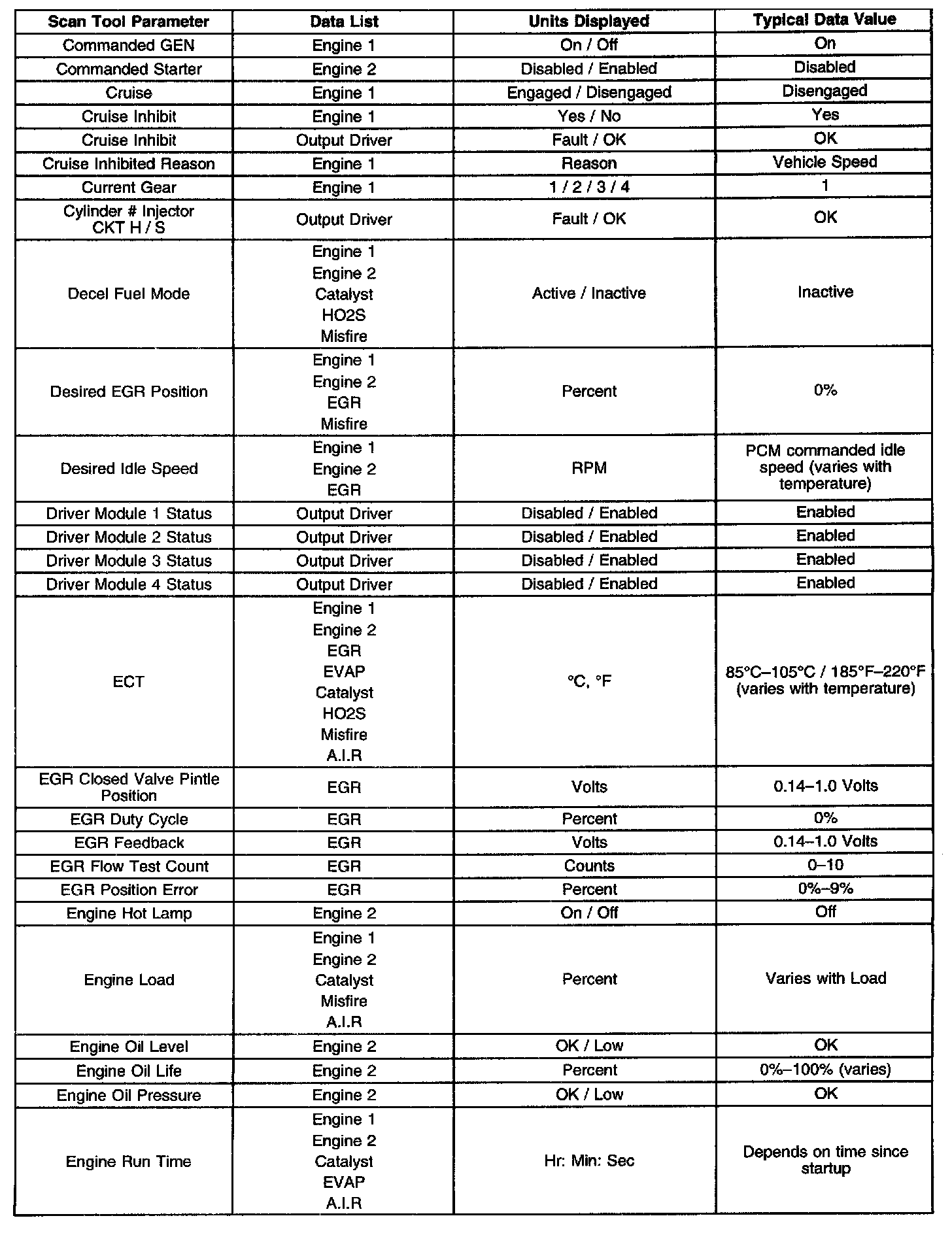

Scan Tool Data List (Part 2 Of 5):

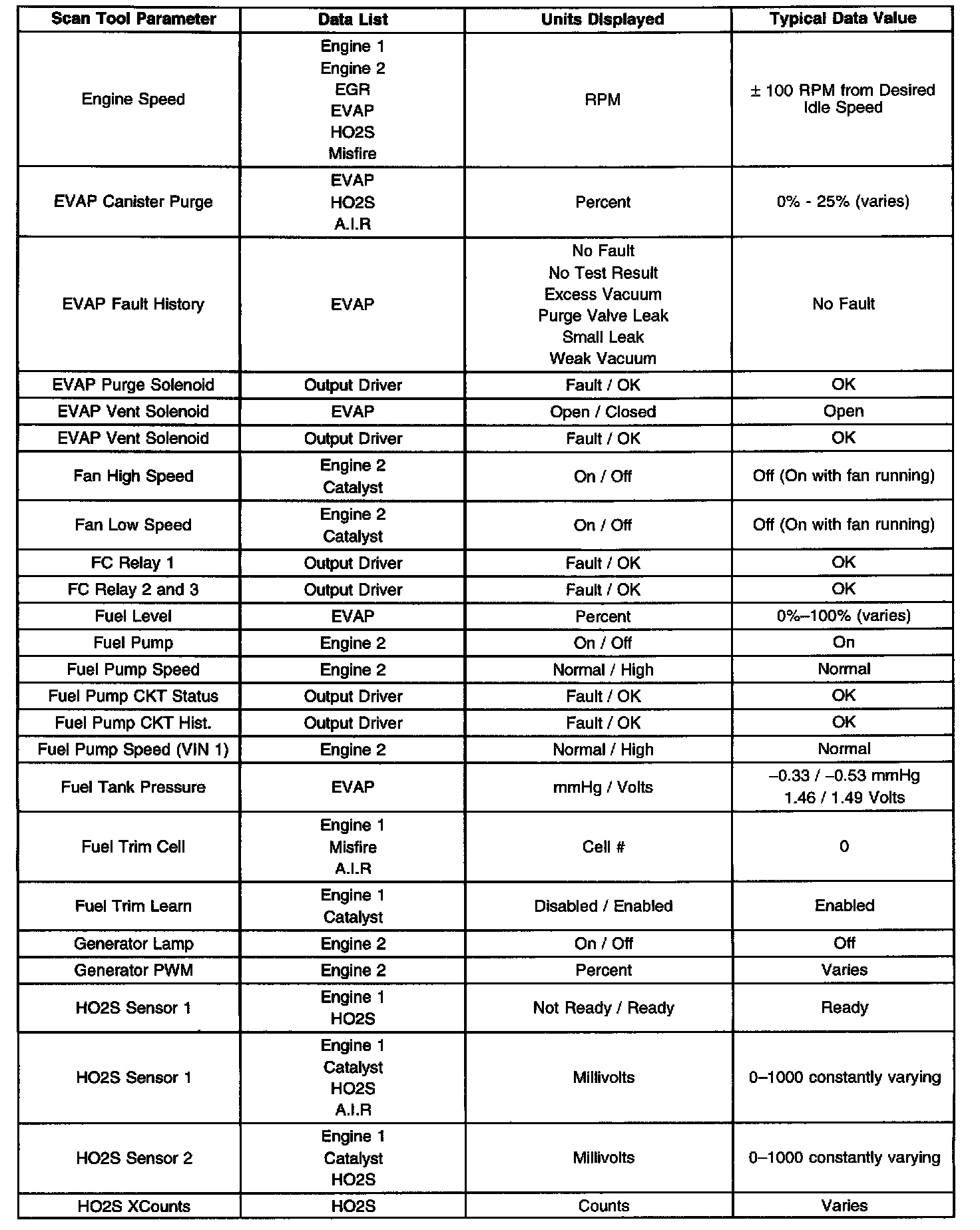

Scan Tool Data List (Part 3 Of 5):

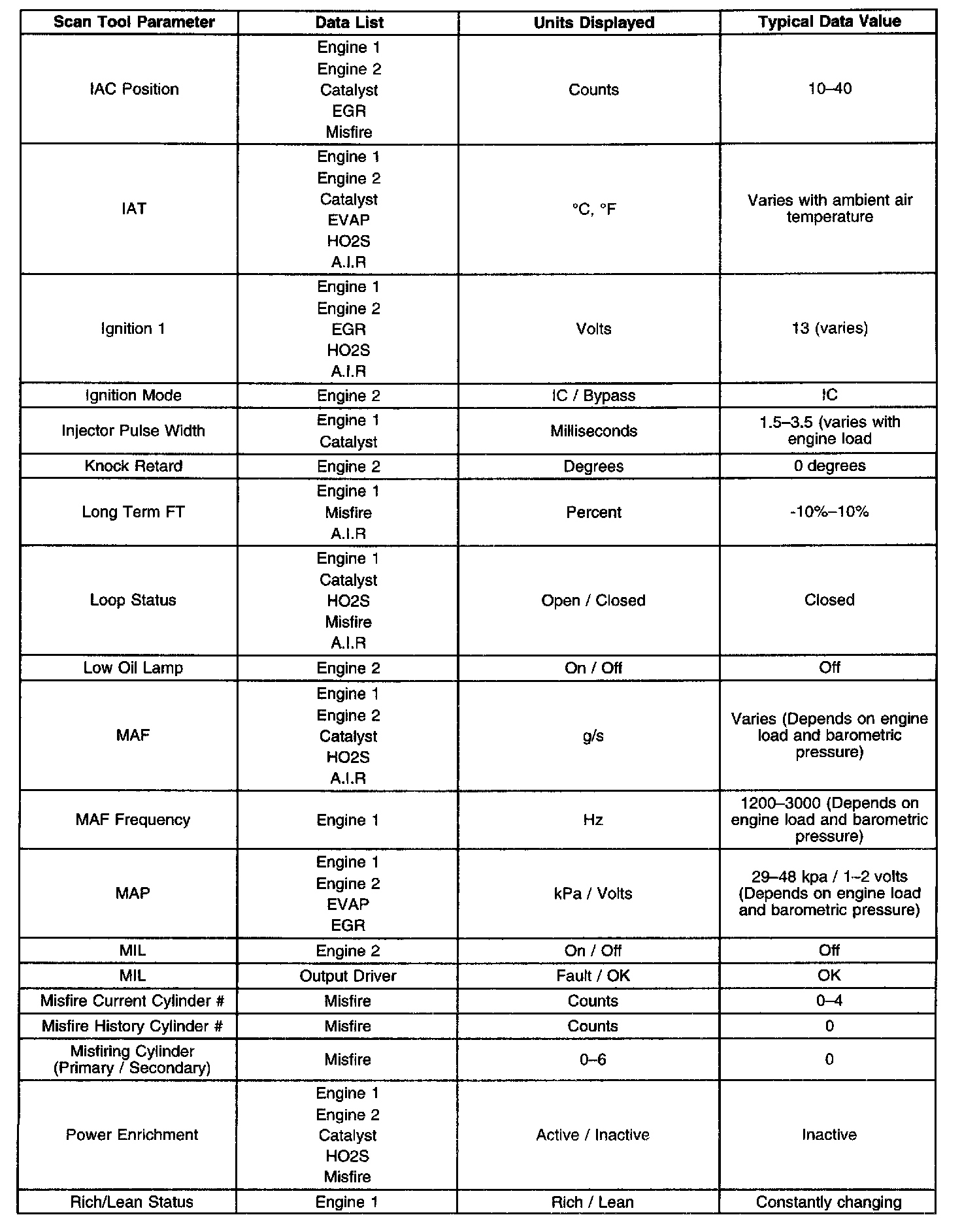

Scan Tool Data List (Part 4 Of 5):

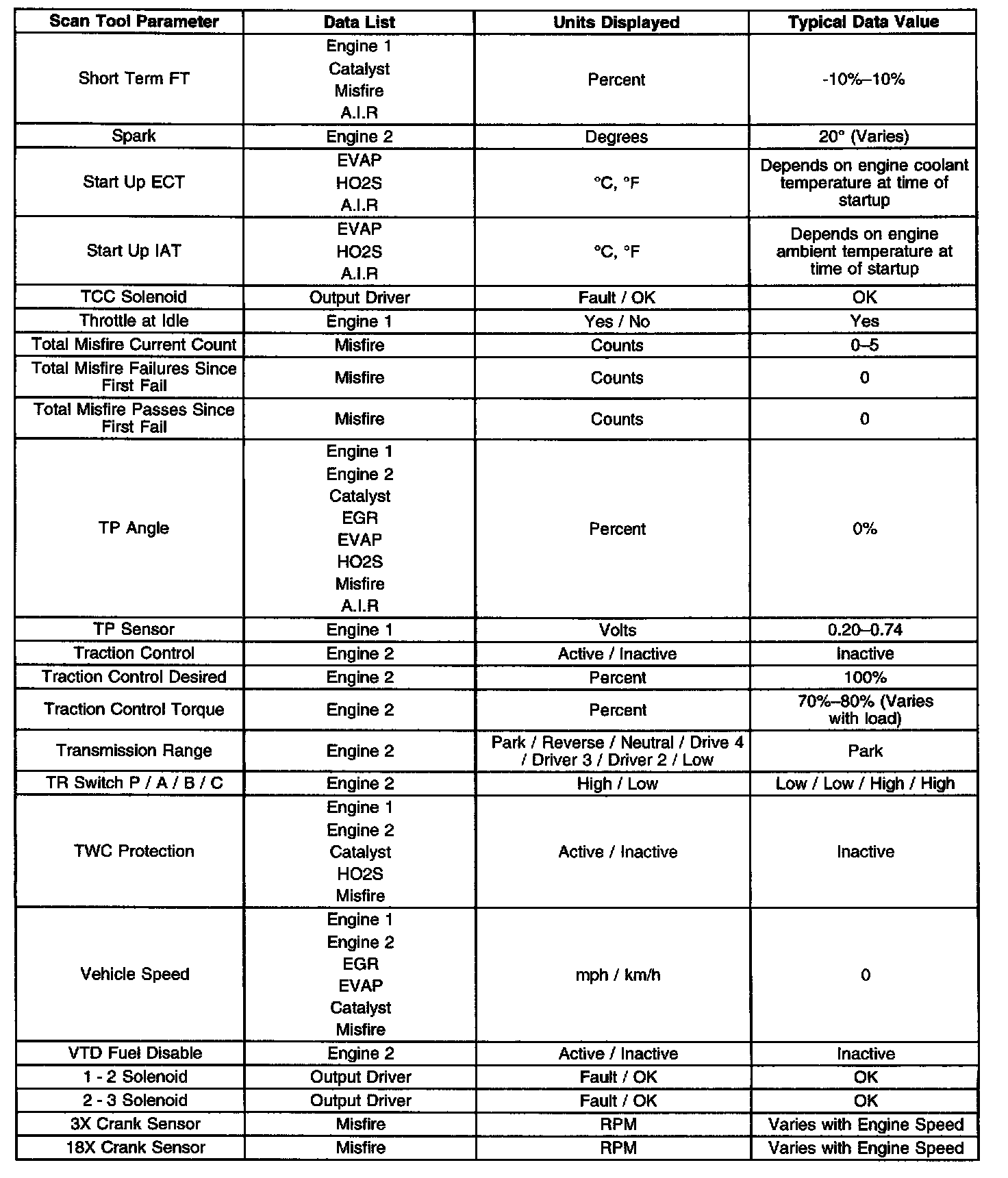

Scan Tool Data List (Part 5 Of 5):

IMPORTANT: Use the Typical Scan Data Values only after the following conditions are met:
^ The Powertrain On Board Diagnostic (OBD) System Check has been completed.
^ The engine is idling, unless checking a value at a specified RPM.
^ The throttle is closed, unless checking a value at a specified RPM.
^ The vehicle is In PARK or NEUTRAL.
^ The vehicle is operating in Closed Loop.
^ The vehicle accessories are turned OFF.
