Door Lock Inputs and Headlamp Switch Input

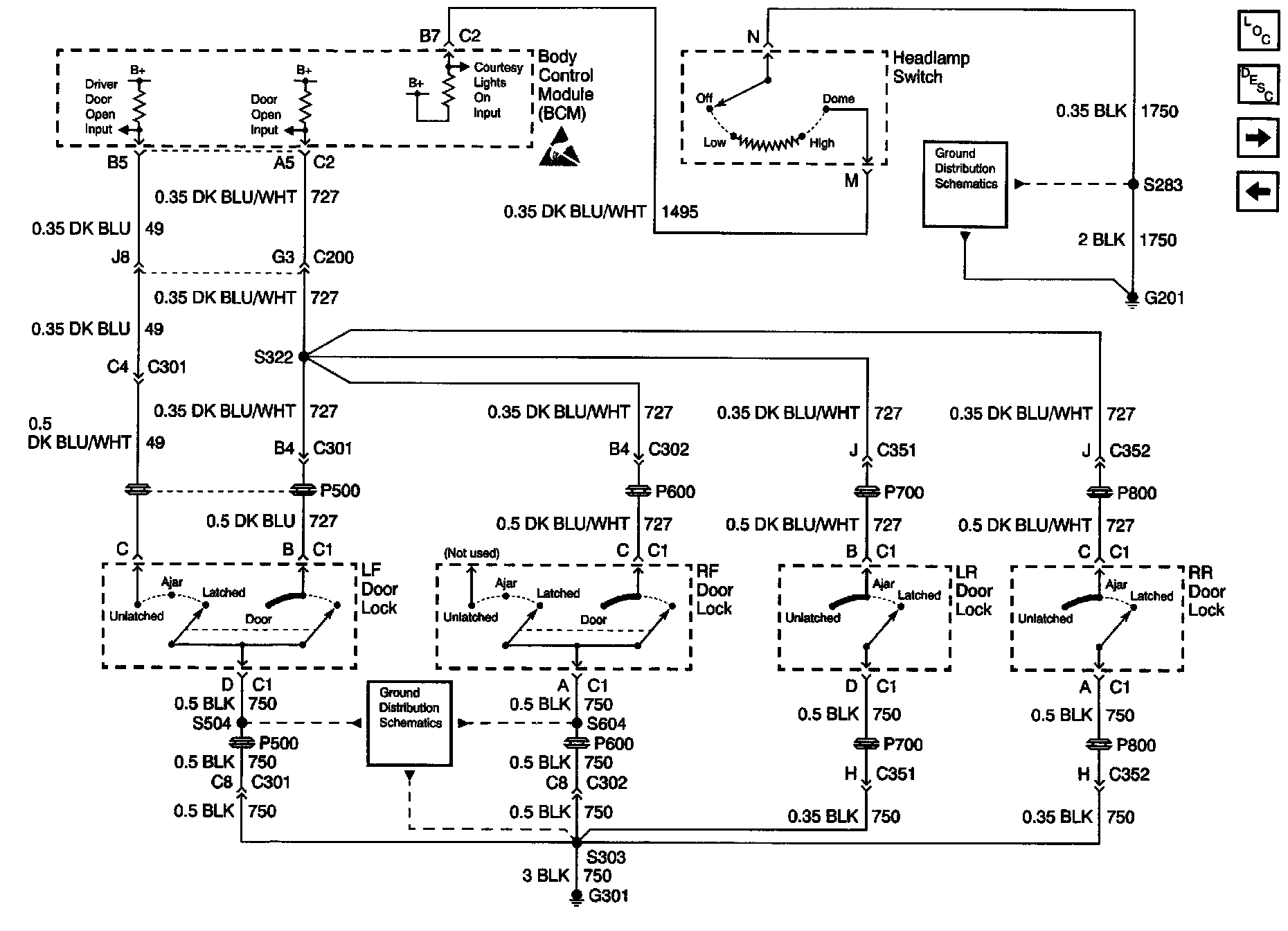

Body Control Module Schematics : Door Lock Inputs And Headlamp Switch Input:
