Component Locations
NOTE:

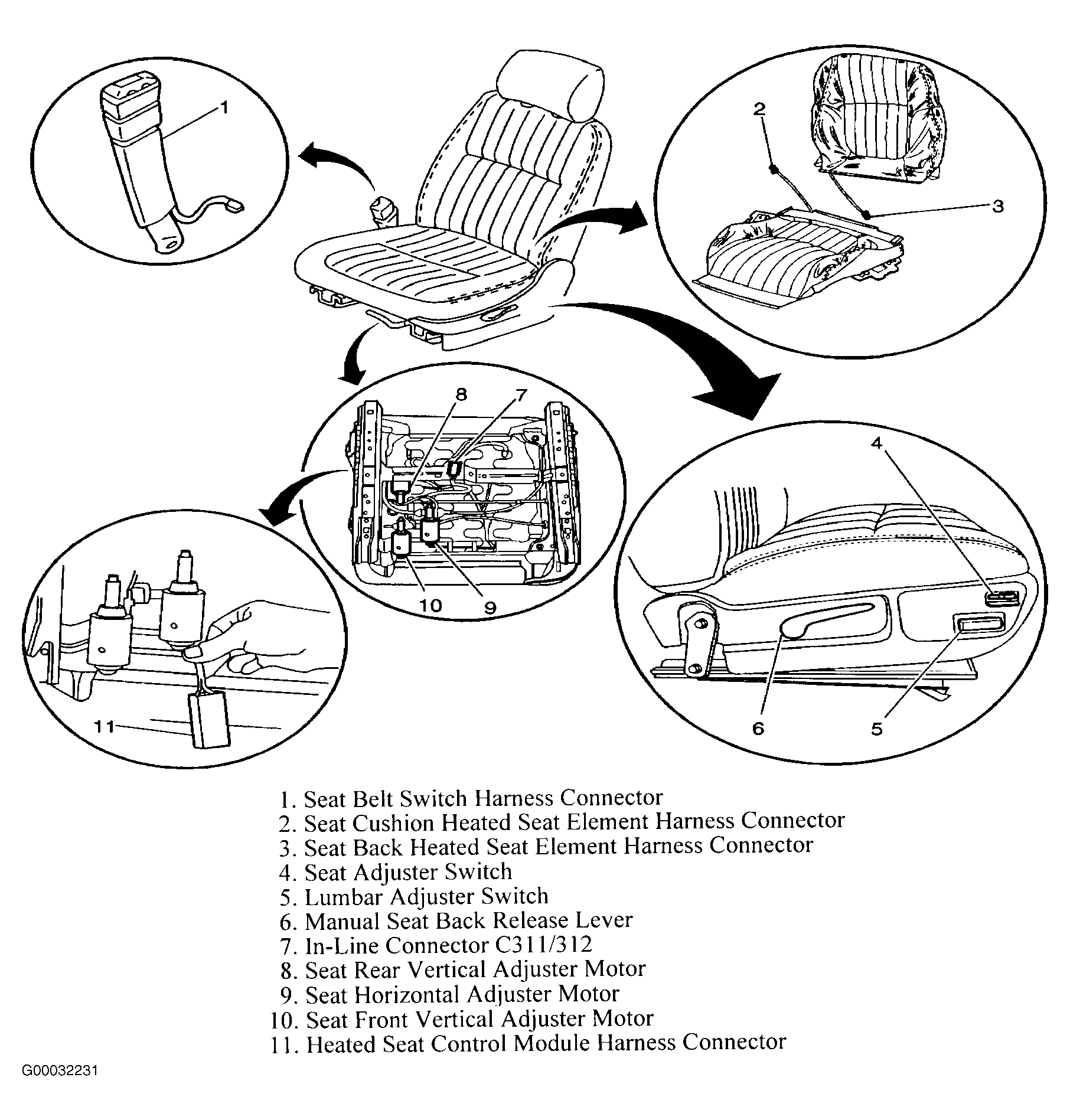

For component locations, see Fig 1
.
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Heated Seat Control Module | Under Seat |
| Heated Seat Elements | In Respective Seat Back Or Cushion Cover |
| Heated Seat Switch | In Center Console |
| Instrument Panel Fuse Block | Behind Right Side Instrument Panel Endcap |
| Lumbar Adjuster Motor | In Driver Seat Back |
| Lumbar Relays | Under Driver Seat |
| Seat Adjuster Motors | Under Respective Front Seat |
| Seat Adjuster Switch | Outboard Side Of Respective Front Seat |
| Seat Belt Switch | Inboard Side Of Driver Seat |
