Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue, 2001 Oldsmobile Intrigue, and 2000 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the coolant level sensor.
  2. Install the surge tank. Refer to Surge Tank Replacement .
  3. Fill the cooling system. Refer to Draining and Filling Cooling System .
  4. Connect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Engine Electrical.

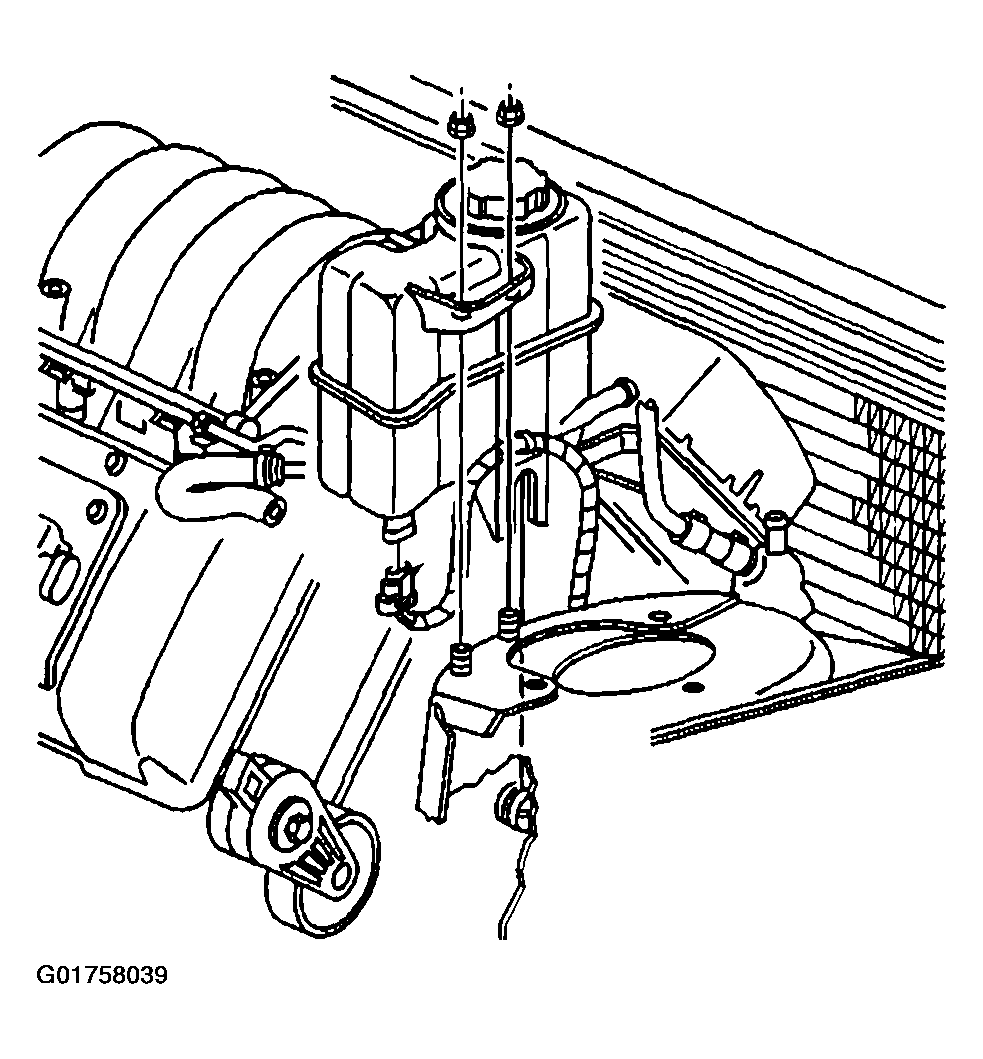

    Fig 1: Install Surge Tank
    G01758039Courtesy of GENERAL MOTORS CORP.
