Vehicle Communications Interface Module (VCIM) C2 Connector End View

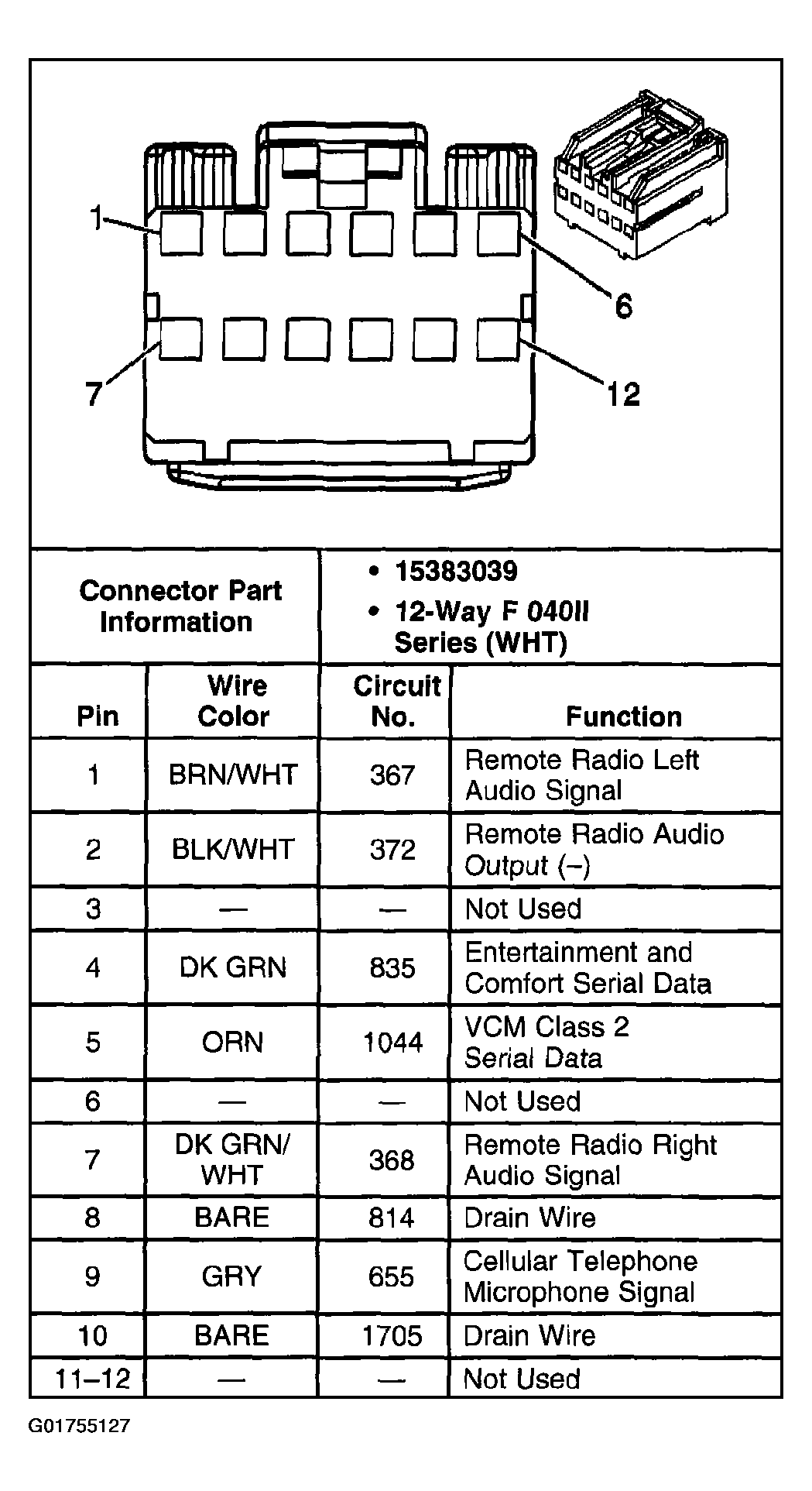

Fig 1: Vehicle Communications Interface Module (VCIM) C2
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
