Turn Signal/Hazard Flasher Module Connector End View

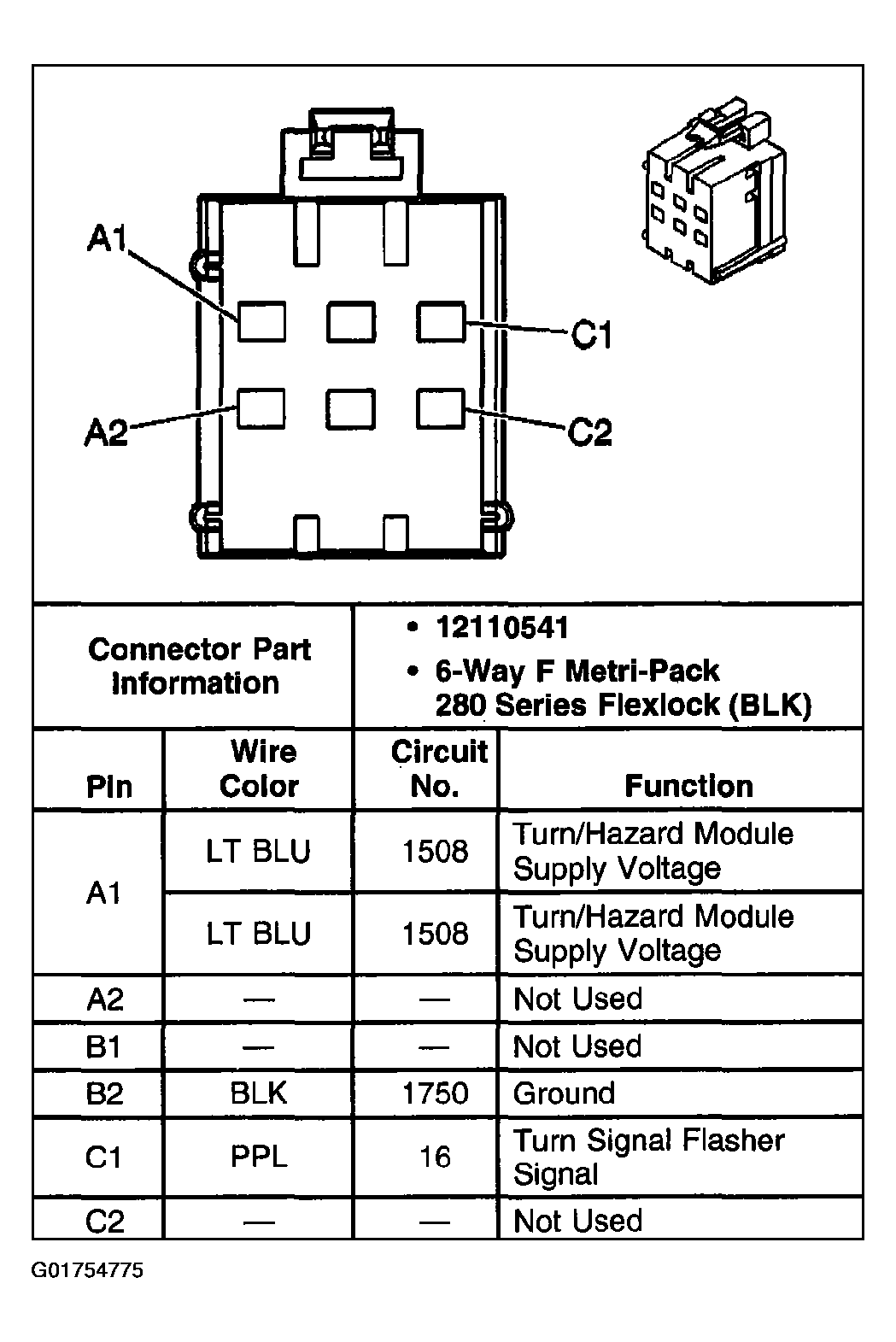

Fig 1: Turn Signal/Hazard Flasher Module
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
