Heated Seat Control Module Connector End View - Driver

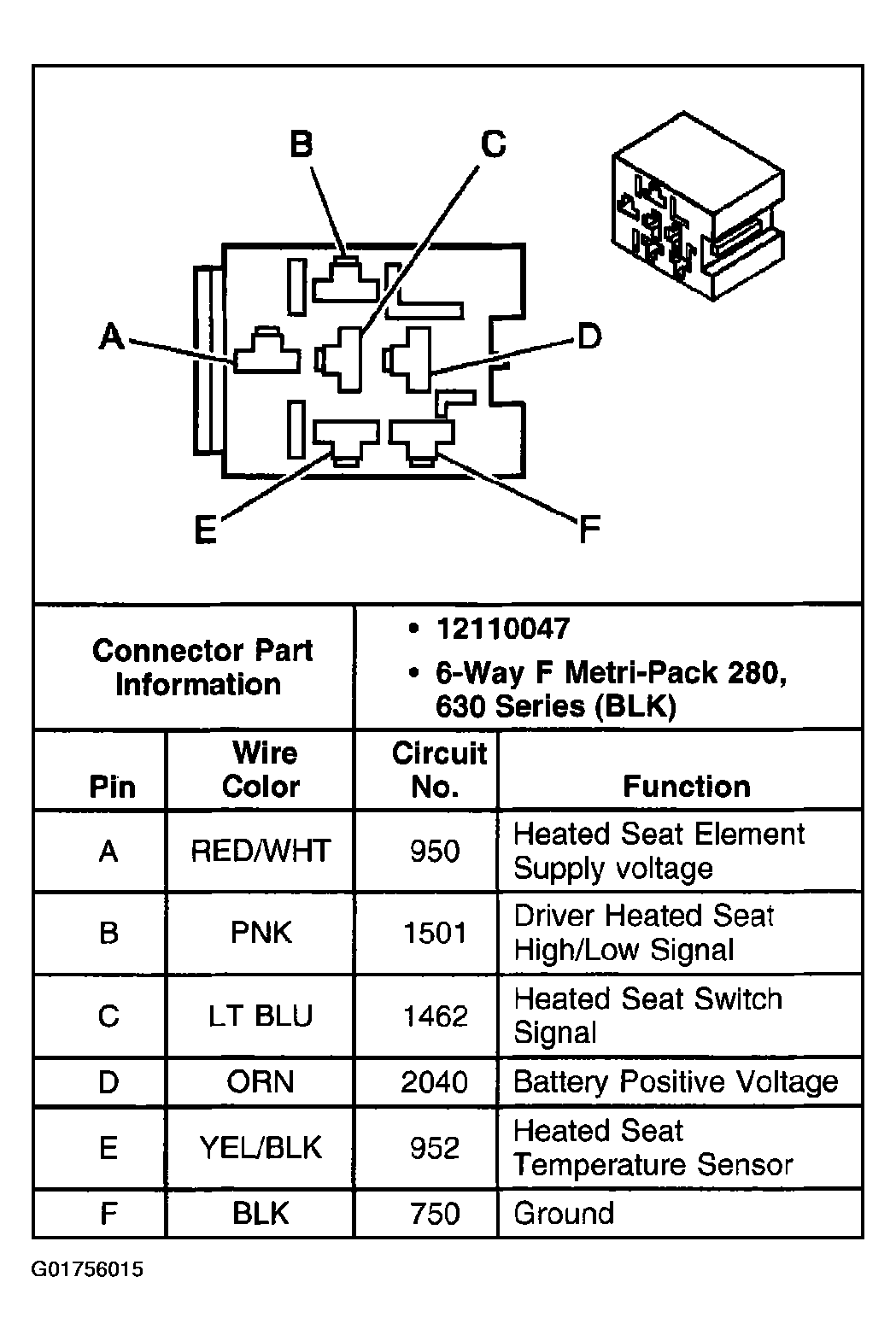

Fig 1: Heated Seat Control Module - Driver
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
