Heated Seat Control Module Connector End View - Front Passenger

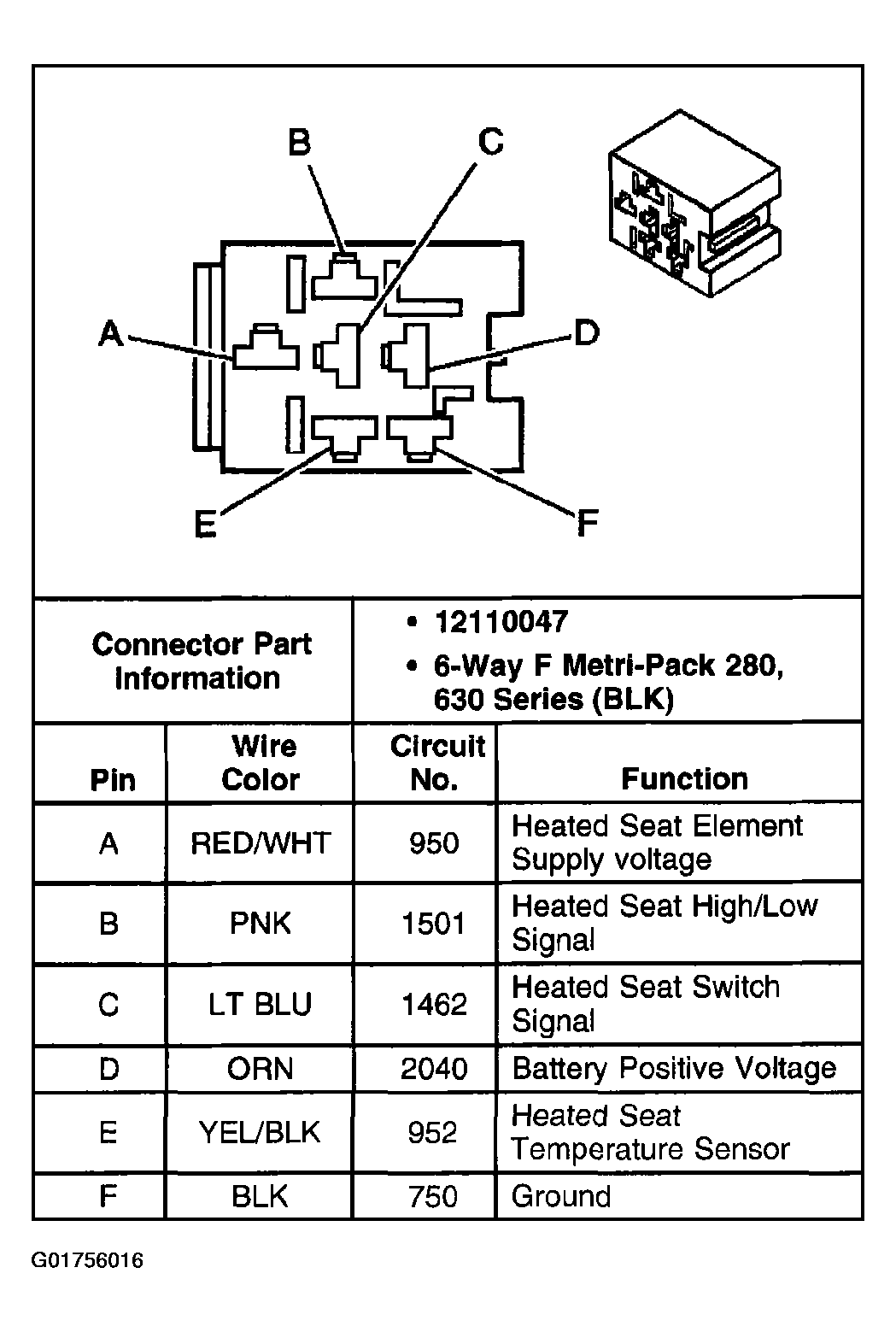

Fig 1: Heated Seat Control Module - Front Passenger
G01756016Courtesy of GENERAL MOTORS CORP.
