Removal Procedure

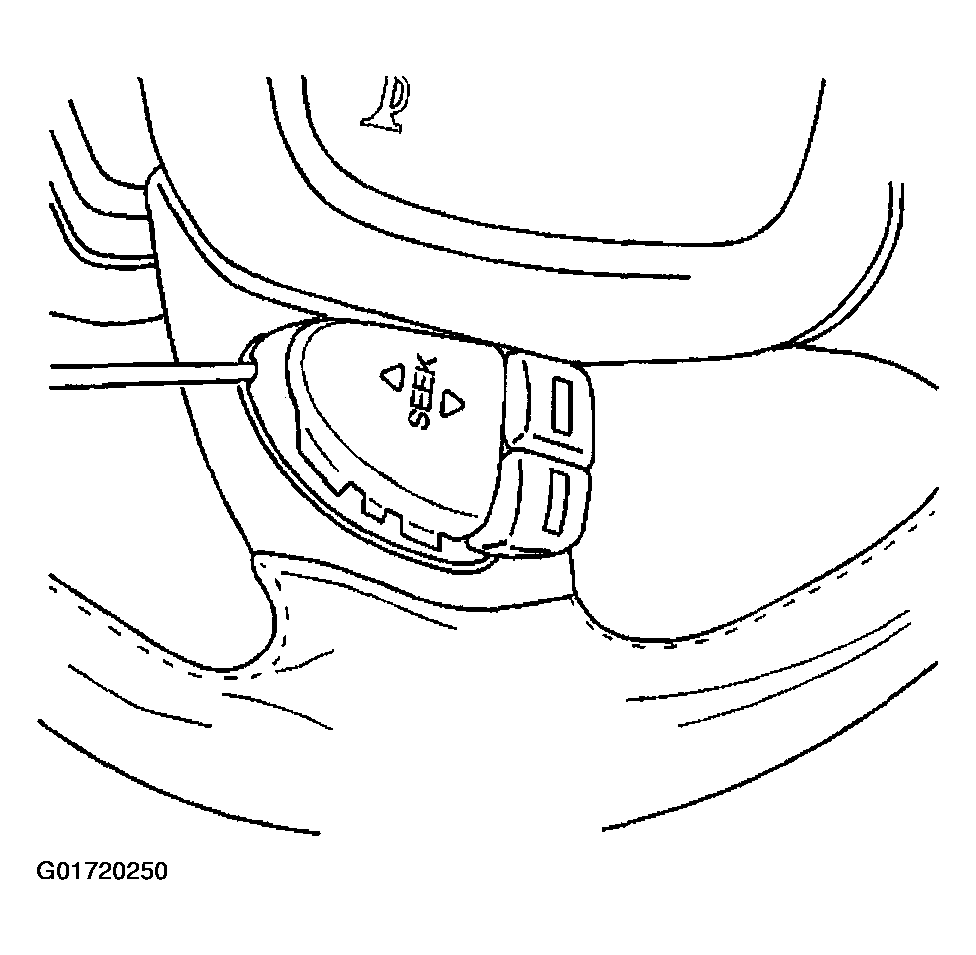

  1. Remove the steering wheel control switches using a small flat bladed tool.
    Fig 1: Steering Wheel Control Switches
    G01720250Courtesy of GENERAL MOTORS CORP.

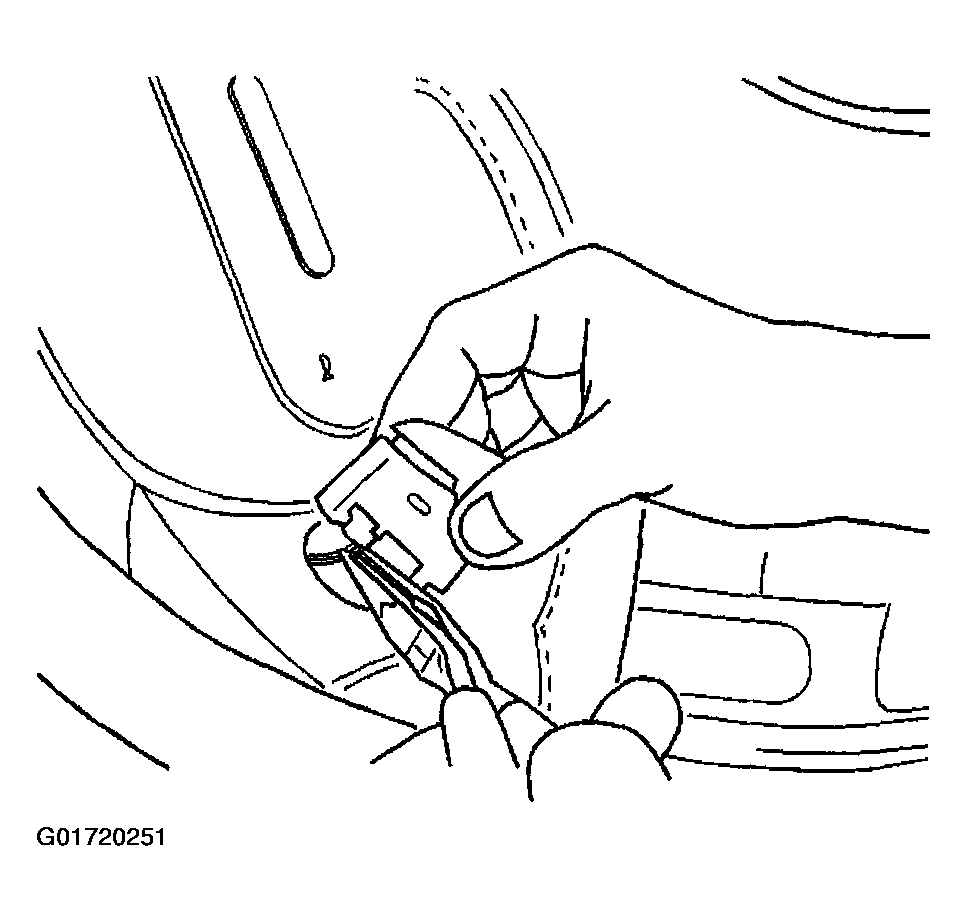

  2. Disconnect the electrical connectors.
    Fig 2: Electrical Connectors
    G01720251Courtesy of GENERAL MOTORS CORP.
