Body Control Module Component Views

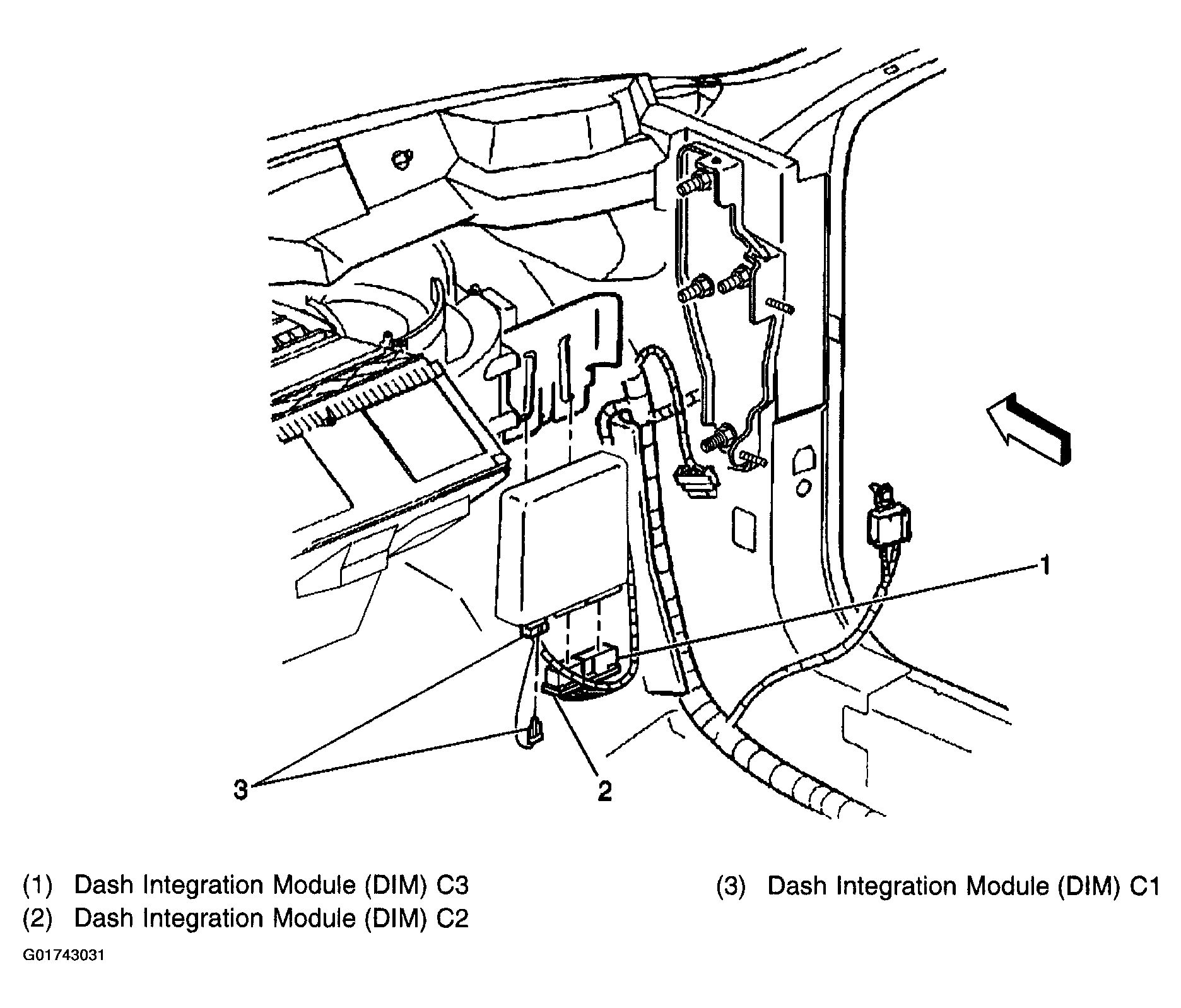

Fig 1: Dash Integration Module (DIM) Component Locations
G01743031Courtesy of GENERAL MOTORS CORP.

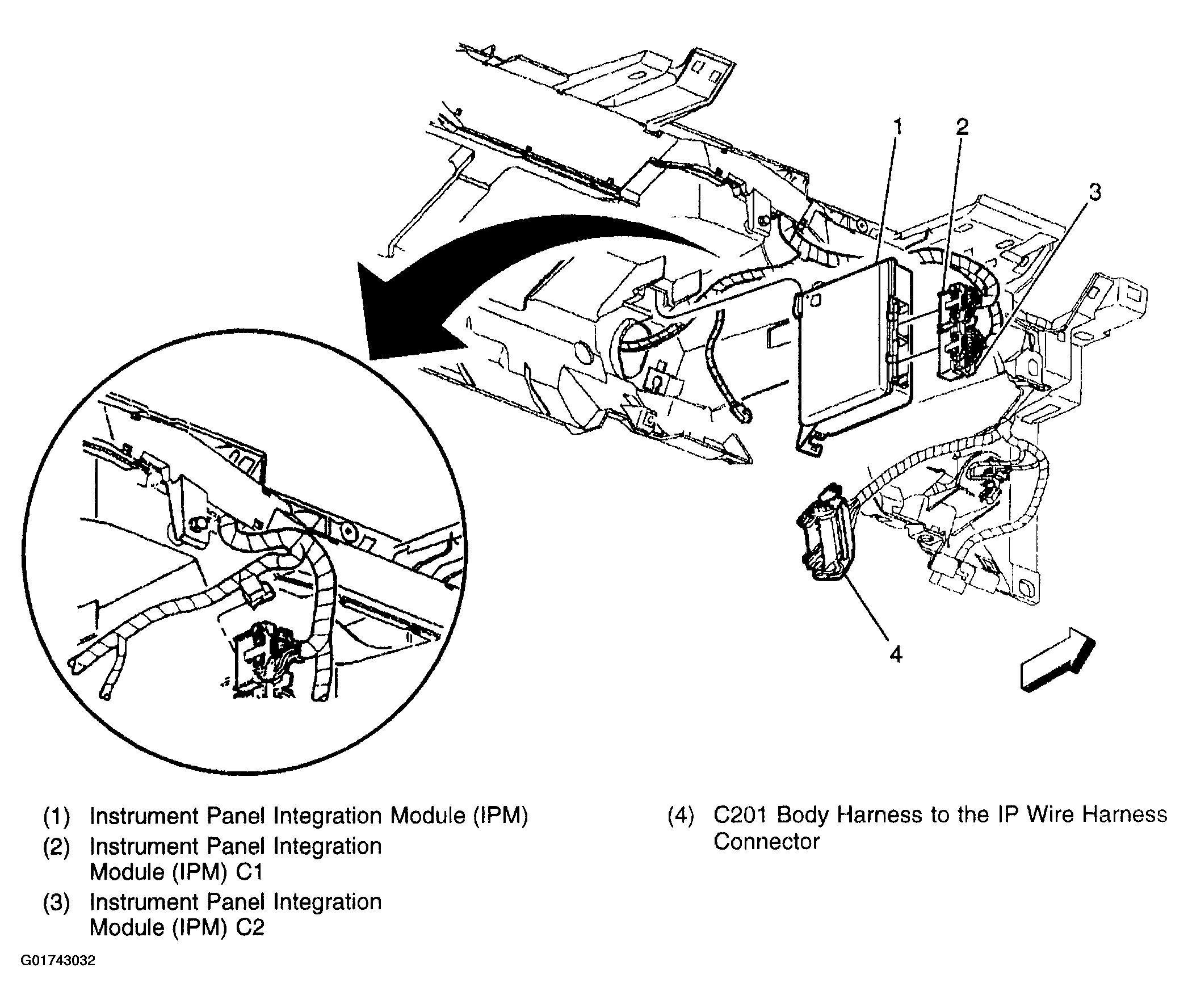

Fig 2: Instrument Panel Integration Module (IPM) Component Locations
G01743032Courtesy of GENERAL MOTORS CORP.

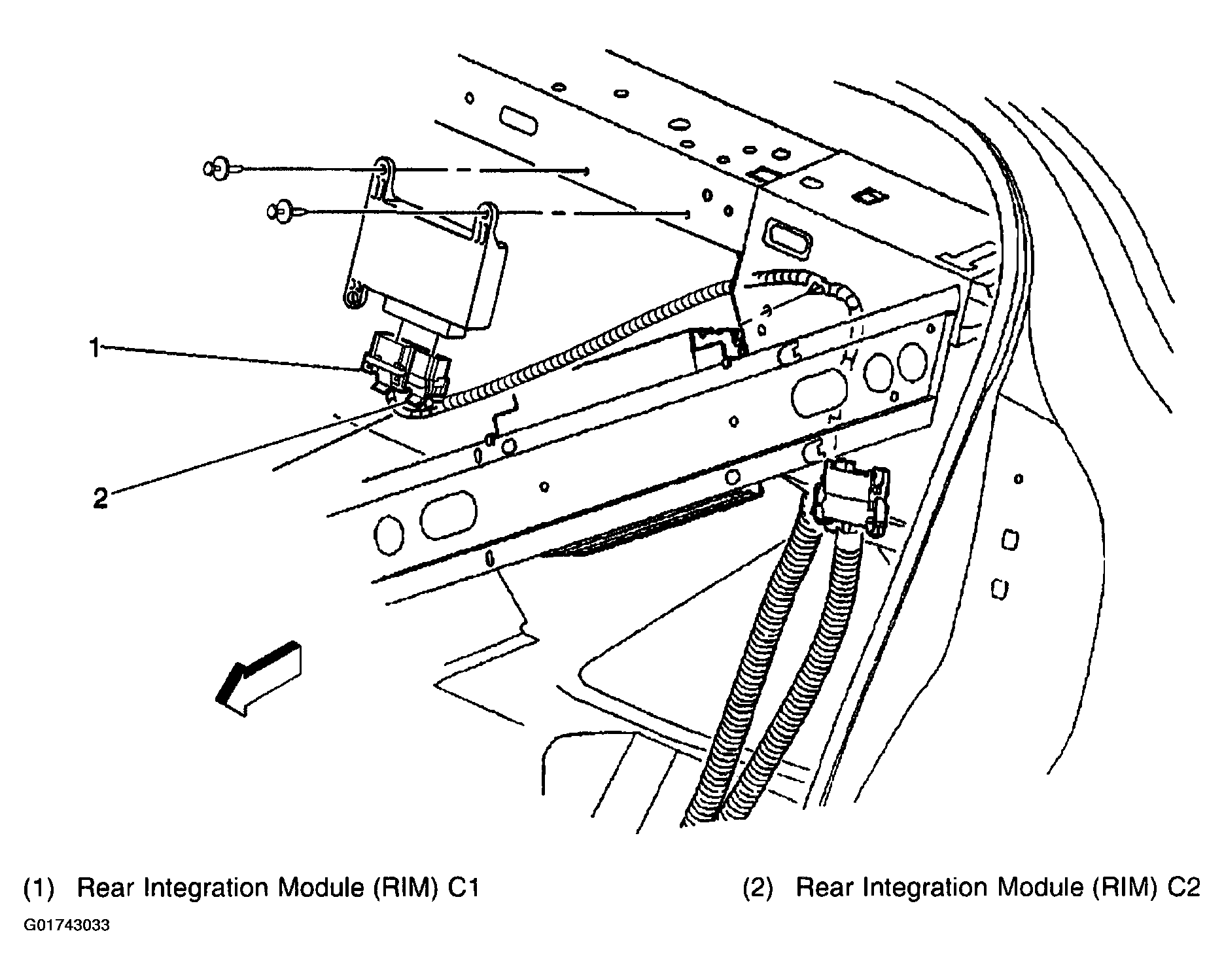

Fig 3: Rear Integration Module (RIM) Component Locations
G01743033Courtesy of GENERAL MOTORS CORP.
