Body Control Module Connector End Views

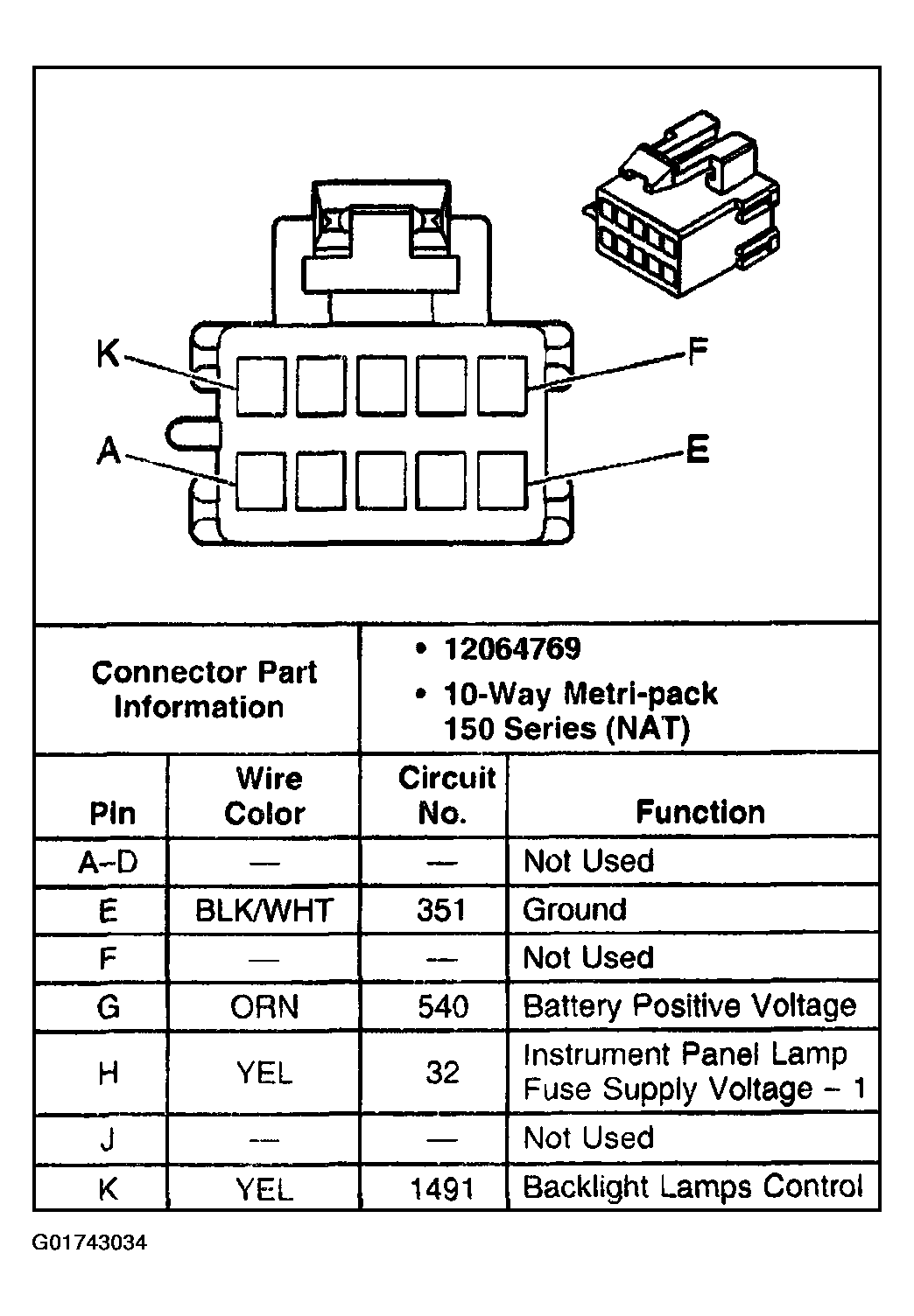

Fig 1: Dash Integration Module (DIM) C1
G01743034Courtesy of GENERAL MOTORS CORP.

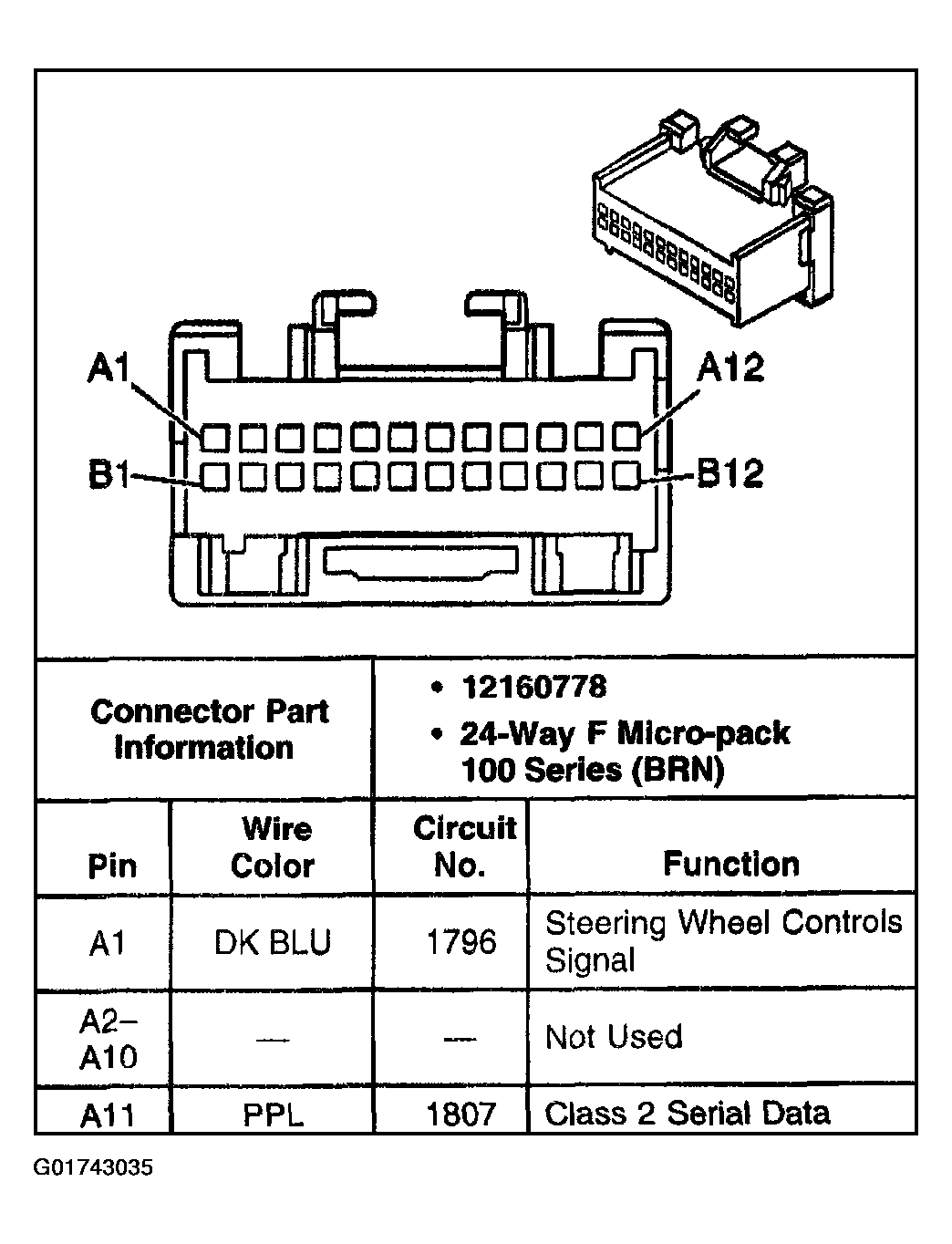

Fig 2: Dash Integration Module (DIM) C2 (1 of 2)
G01743035Courtesy of GENERAL MOTORS CORP.

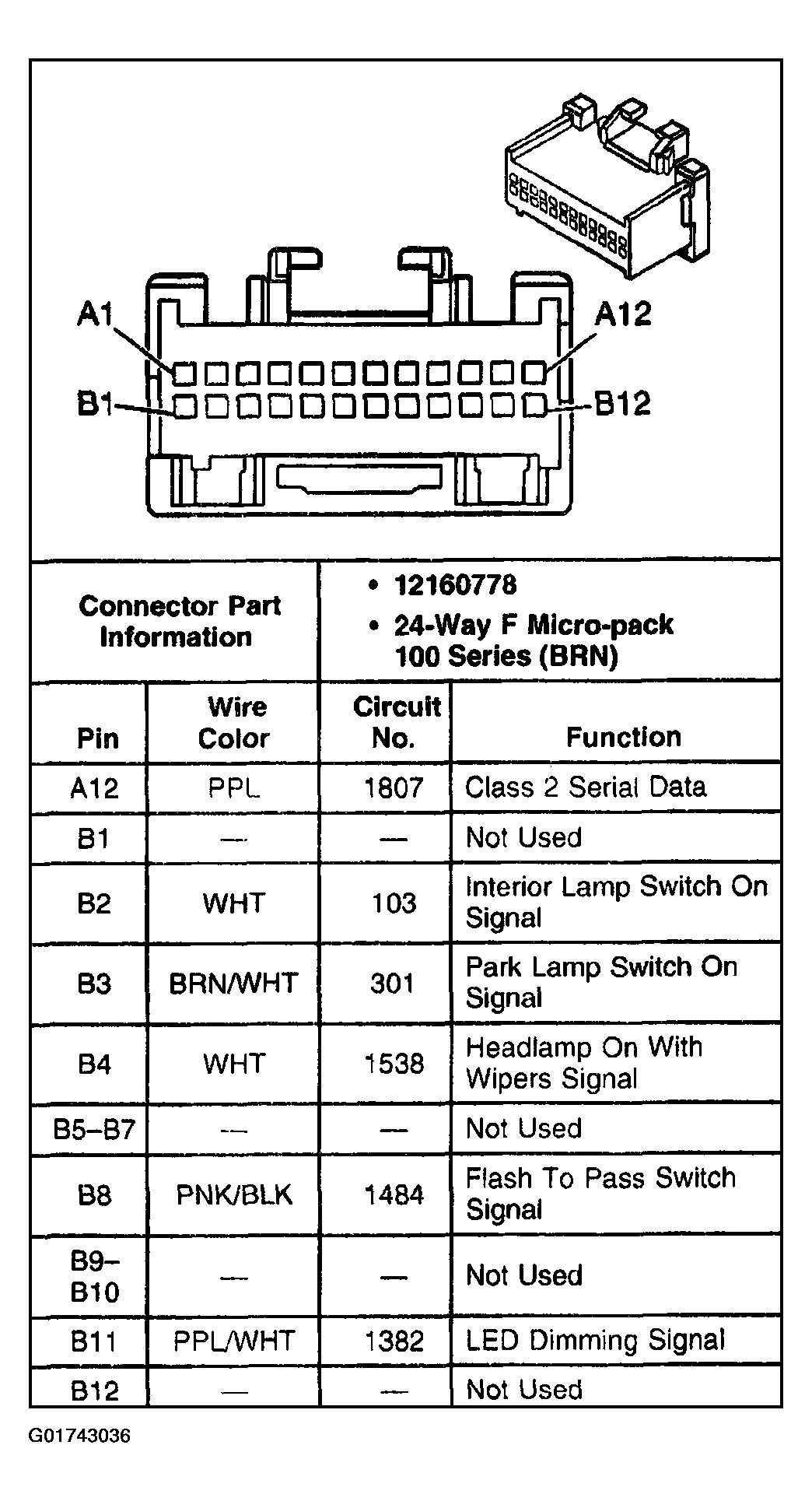

Fig 3: Dash Integration Module (DIM) C2 (2 of 2)
G01743036Courtesy of GENERAL MOTORS CORP.

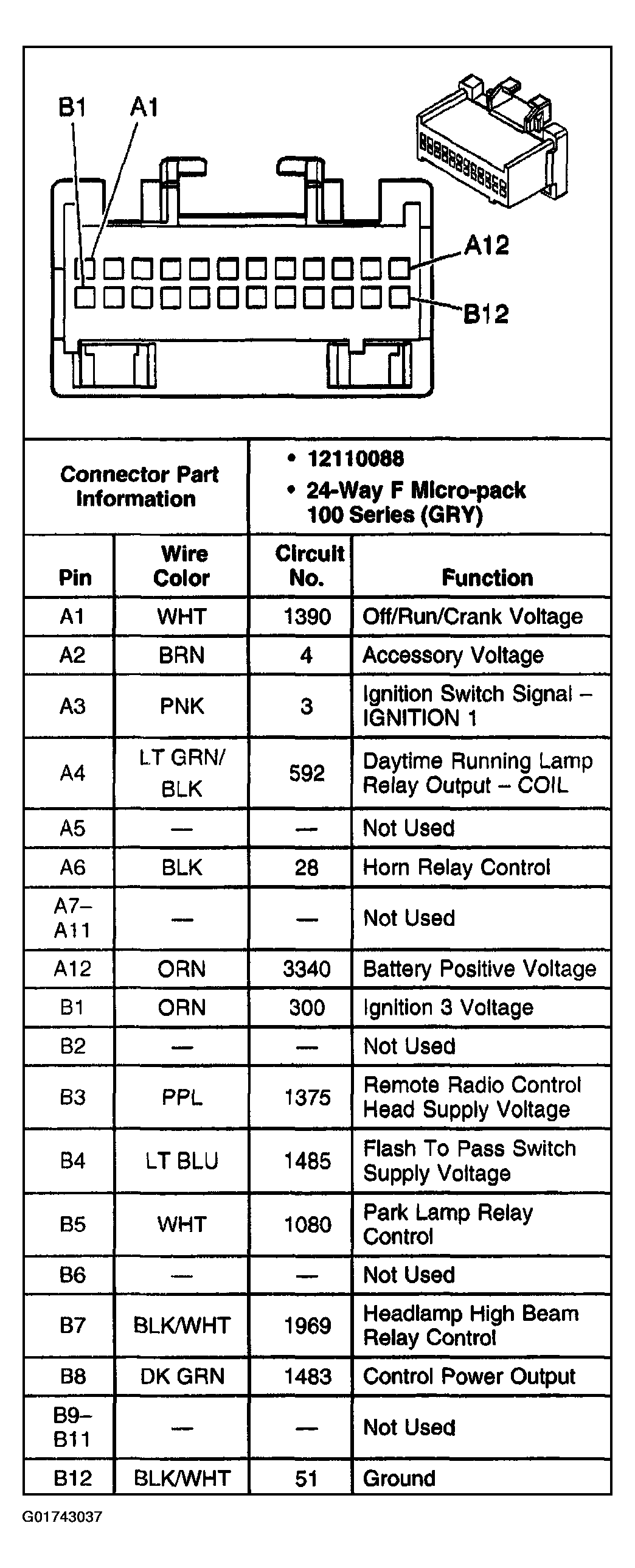

Fig 4: Dash Integration Module (DIM) C3
G01743037Courtesy of GENERAL MOTORS CORP.

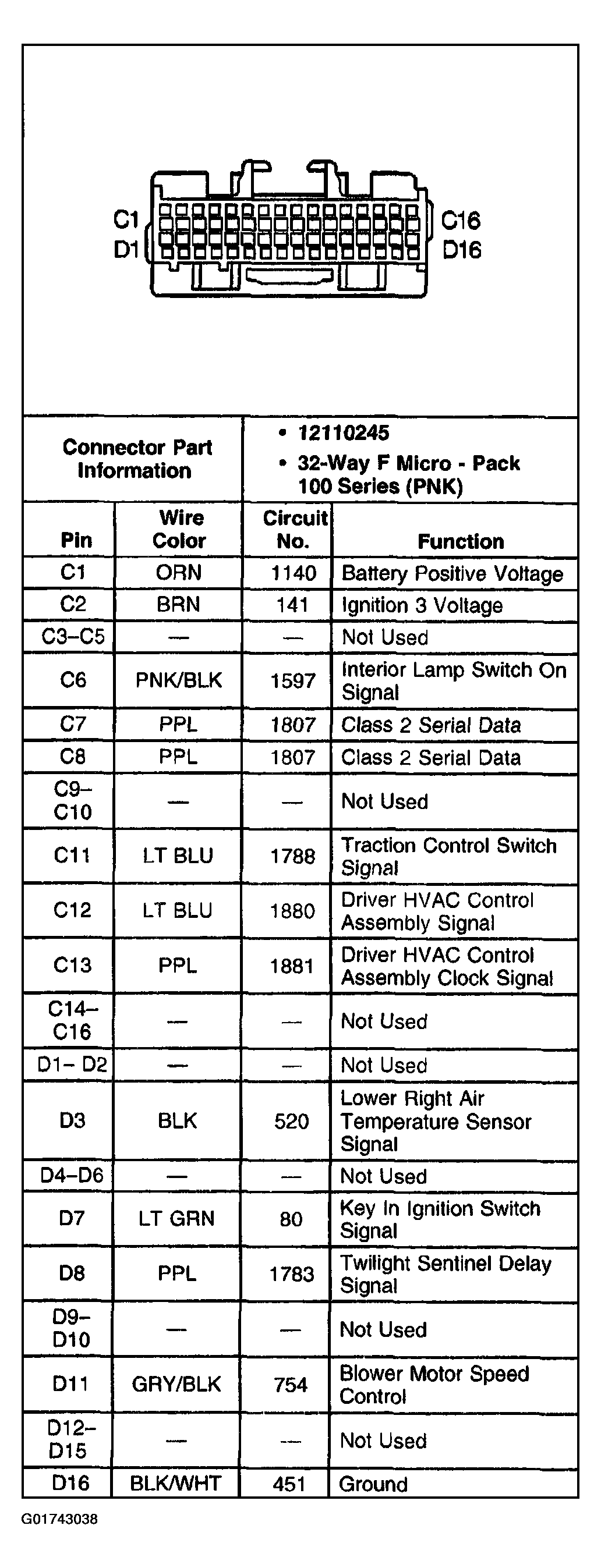

Fig 5: Instrument Panel Integration Module (IPM) C1
G01743038Courtesy of GENERAL MOTORS CORP.

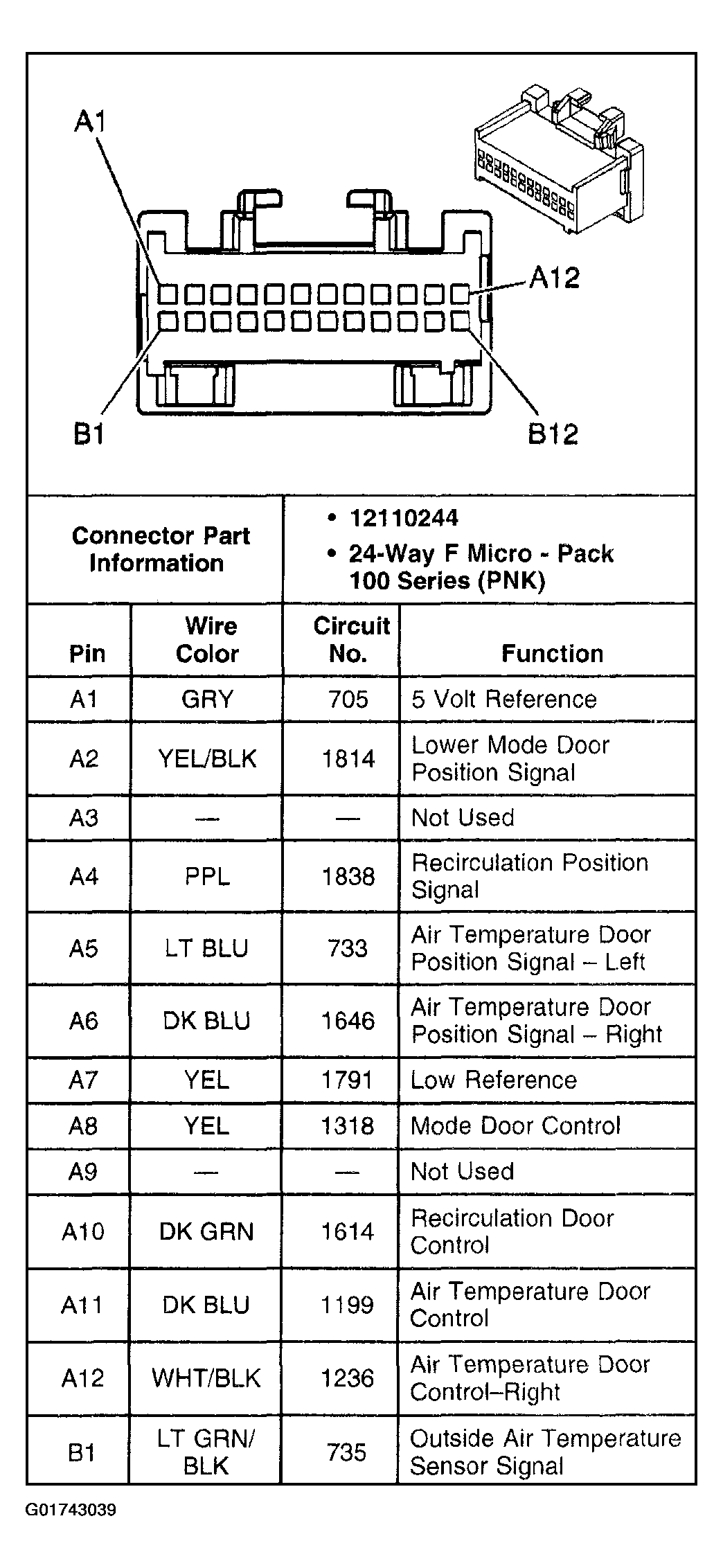

Fig 6: Instrument Panel Integration Module (IPM) C2 (1 of 2)
G01743039Courtesy of GENERAL MOTORS CORP.

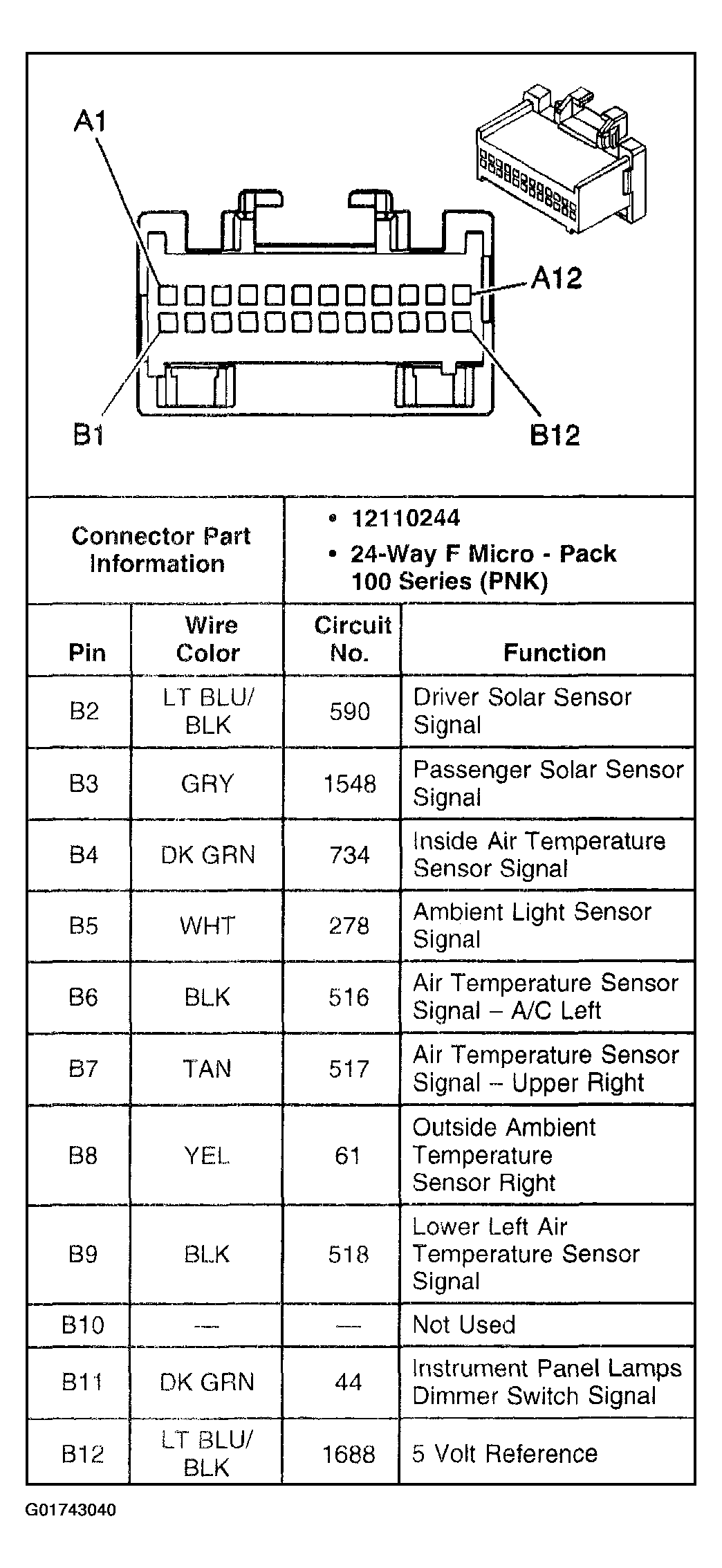

Fig 7: Instrument Panel Integration Module (IPM) C2 (2 of 2)
G01743040Courtesy of GENERAL MOTORS CORP.

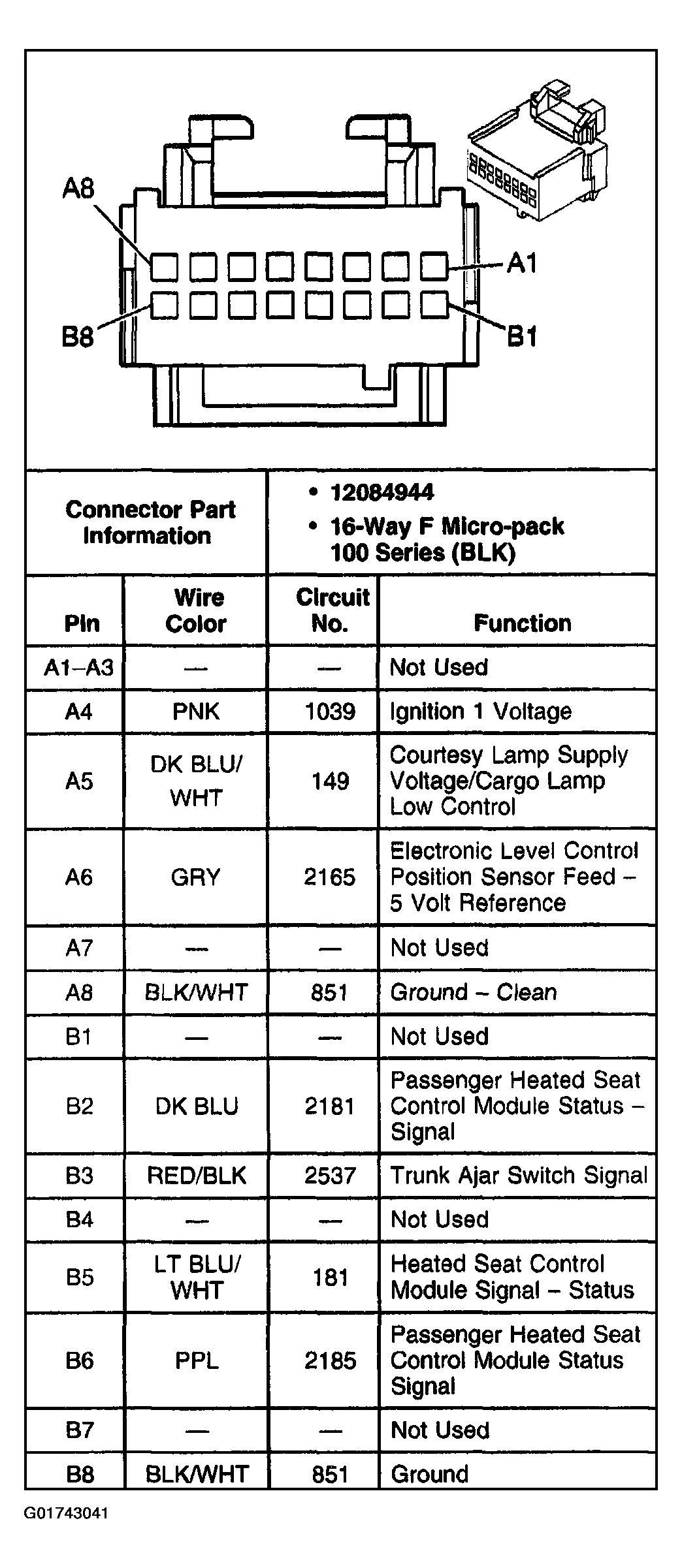

Fig 8: Rear Integration Module (RIM) C1
G01743041Courtesy of GENERAL MOTORS CORP.

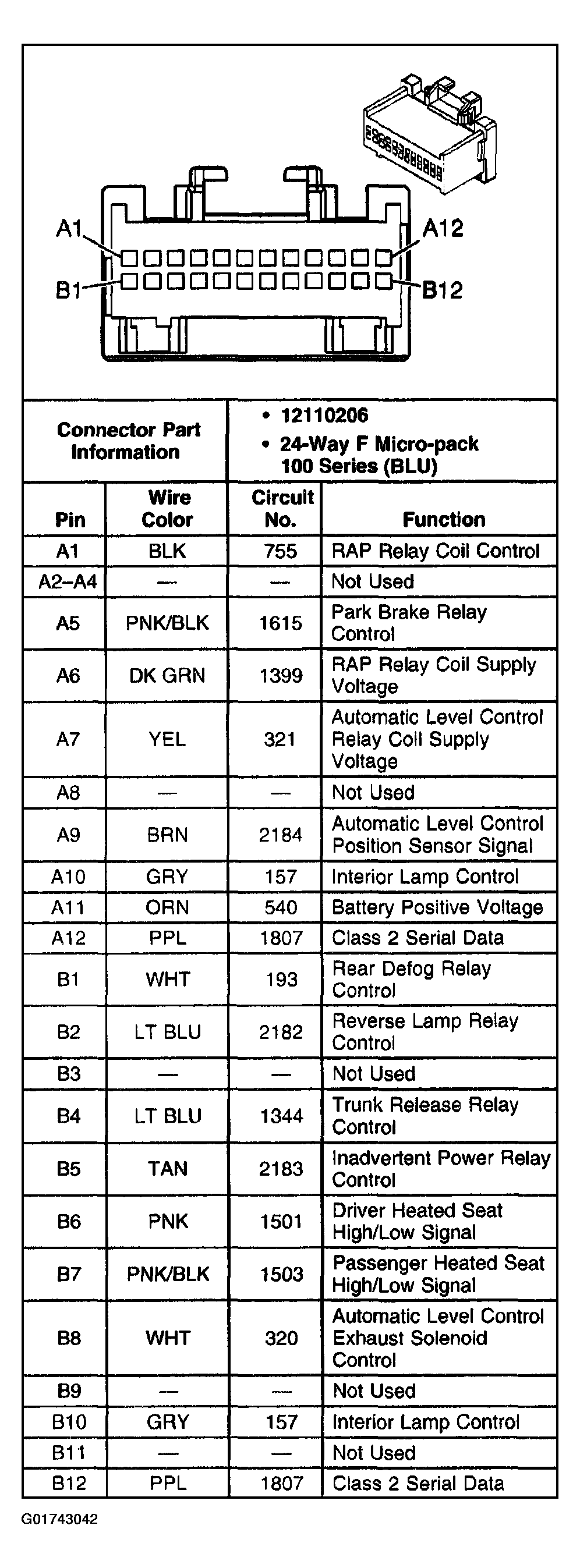

Fig 9: Rear Integration Module (RIM) C2
G01743042Courtesy of GENERAL MOTORS CORP.
