Installation Procedure

  1. Connect the electrical connectors (1).
  2. Install the DIM into the bracket.

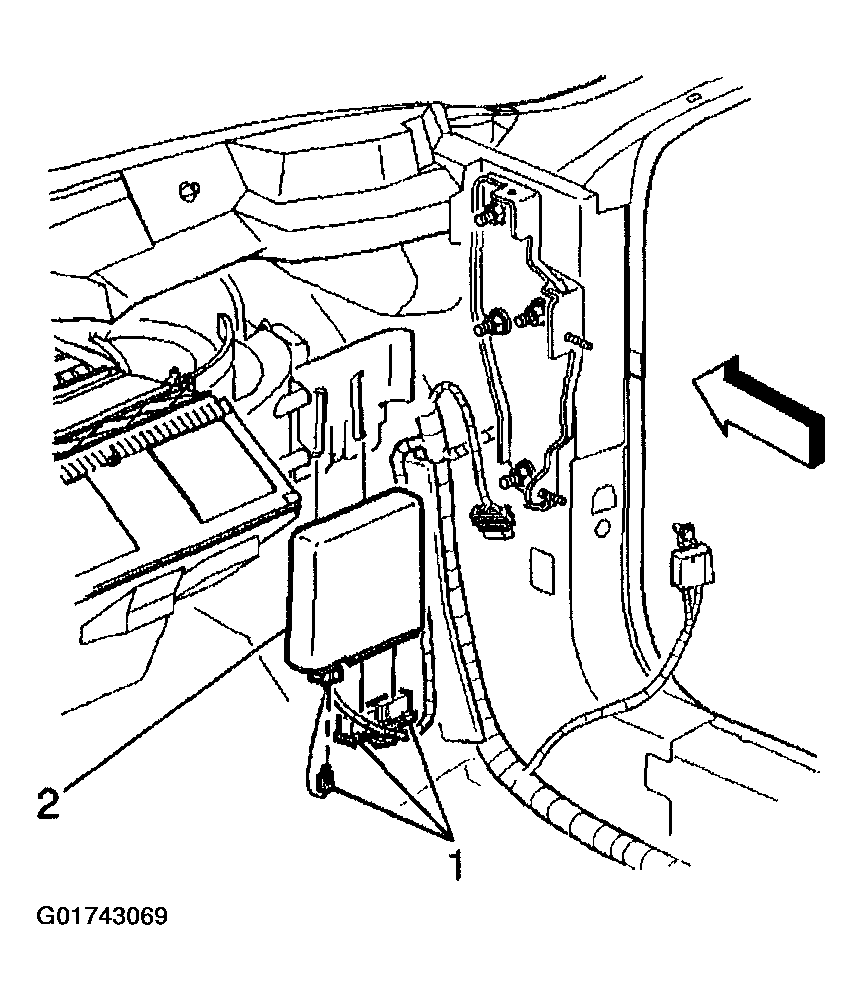

    Fig 1: DIM And Electrical Connectors
    G01743069Courtesy of GENERAL MOTORS CORP.
  3. Install the right sound insulator.
  4. Reprogram the DIM. Refer to Body Control Module (BCM) Programming/RPO Configuration (DIM) , Body Control Module (BCM) Programming/RPO Configuration (IPM)  or Body Control Module (BCM) Programming/RPO Configuration (RIM)  .
