Installation Procedure

  1. Install the RIM (2).
  2. Connect the RIM electrical connectors (3).
  3. Install the RIM (2) with the push pin retainers (1).

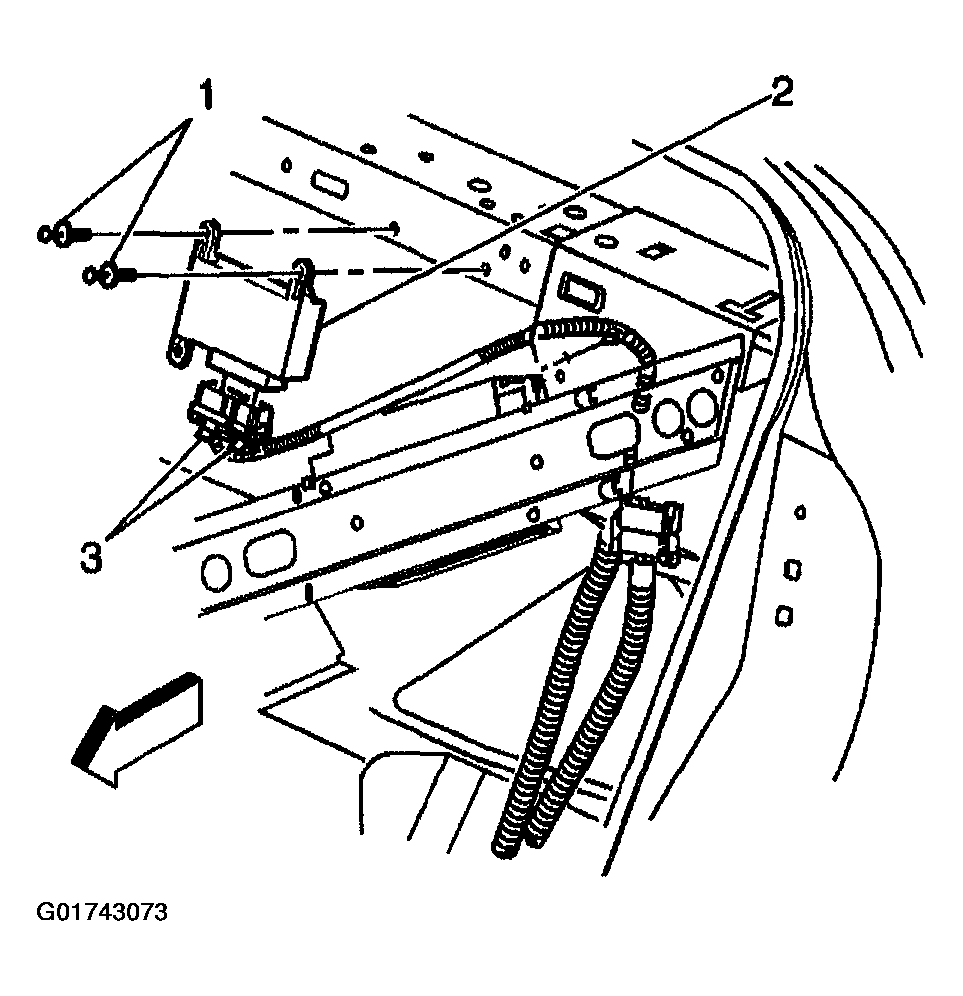

    Fig 1: RIM And Electrical Connectors
    G01743073Courtesy of GENERAL MOTORS CORP.
  4. Reposition the rear seat back insulator.
  5. Install the rear seat back.
  6. Install the rear seat cushion.
  7. Reprogram, the RIM. Refer to Body Control Module (BCM) Programming/RPO Configuration (DIM) , Body Control Module (BCM) Programming/RPO Configuration (IPM)  or Body Control Module (BCM) Programming/RPO Configuration (RIM)  .
