Power Door Systems Connector End Views

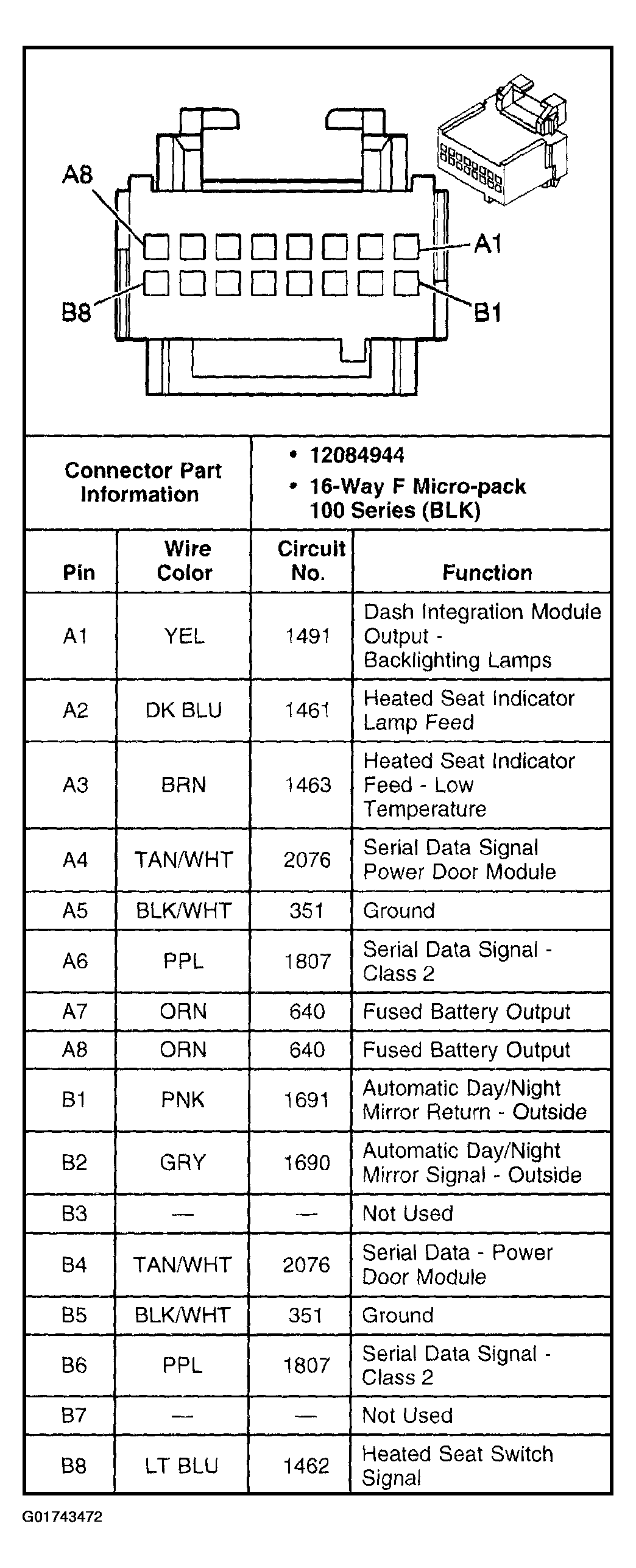

Fig 1: Driver Door Module (DDM) C1

G01743472

Courtesy of GENERAL MOTORS CORP.

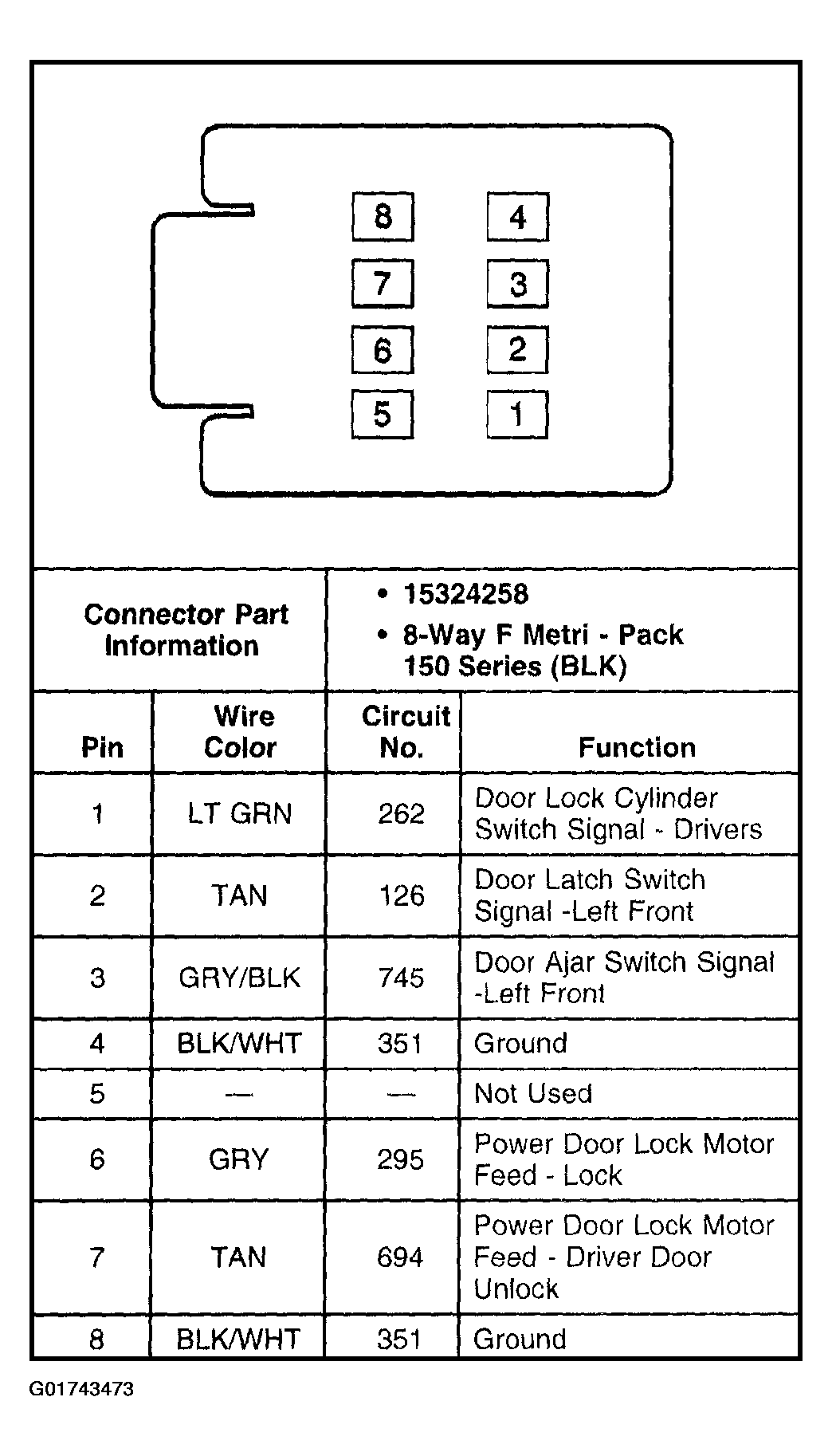

Fig 2: Drivers Door Module (DDM) C2

G01743473

Courtesy of GENERAL MOTORS CORP.

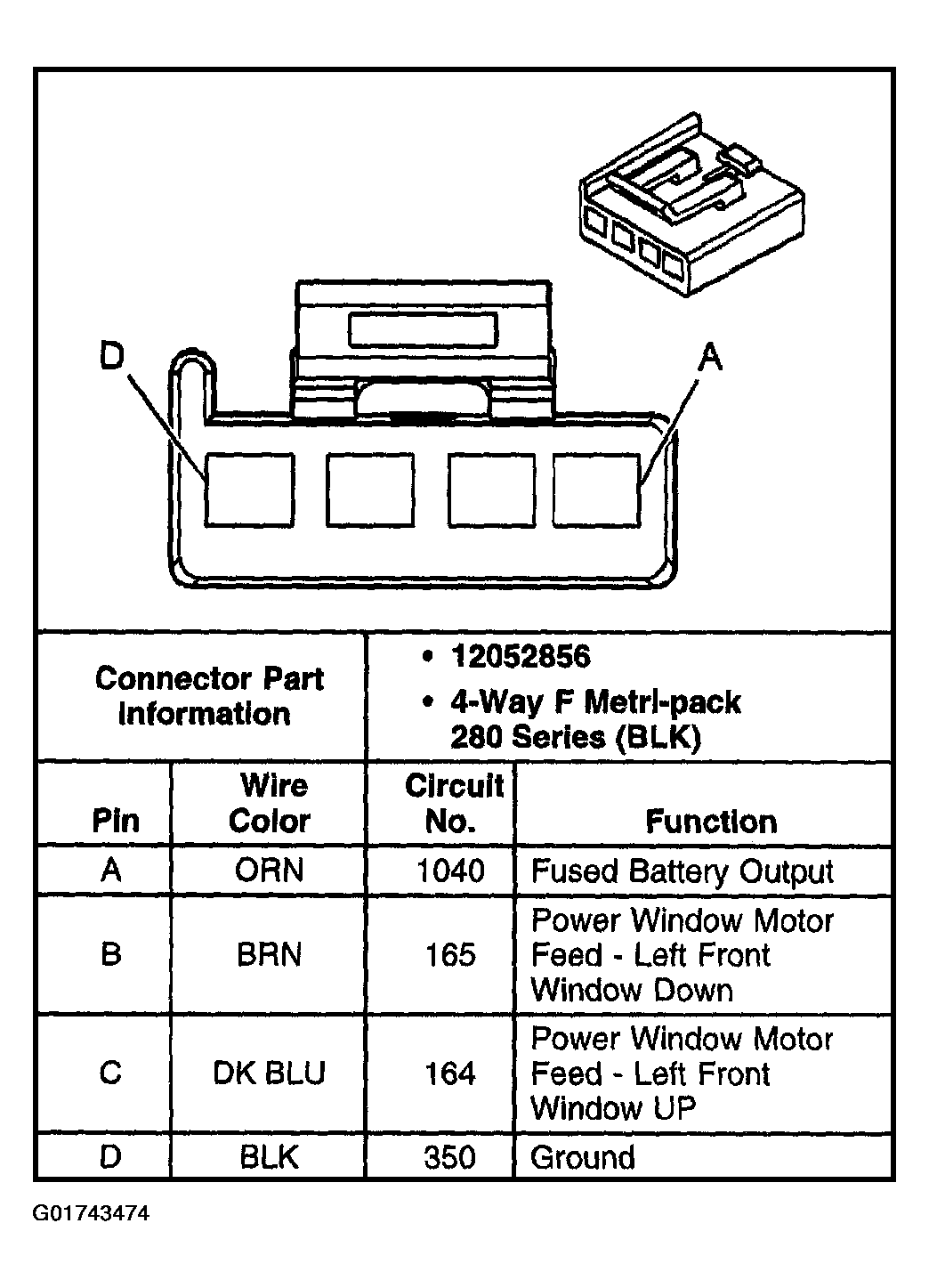

Fig 3: Driver Door Module (DDM) C3

G01743474

Courtesy of GENERAL MOTORS CORP.

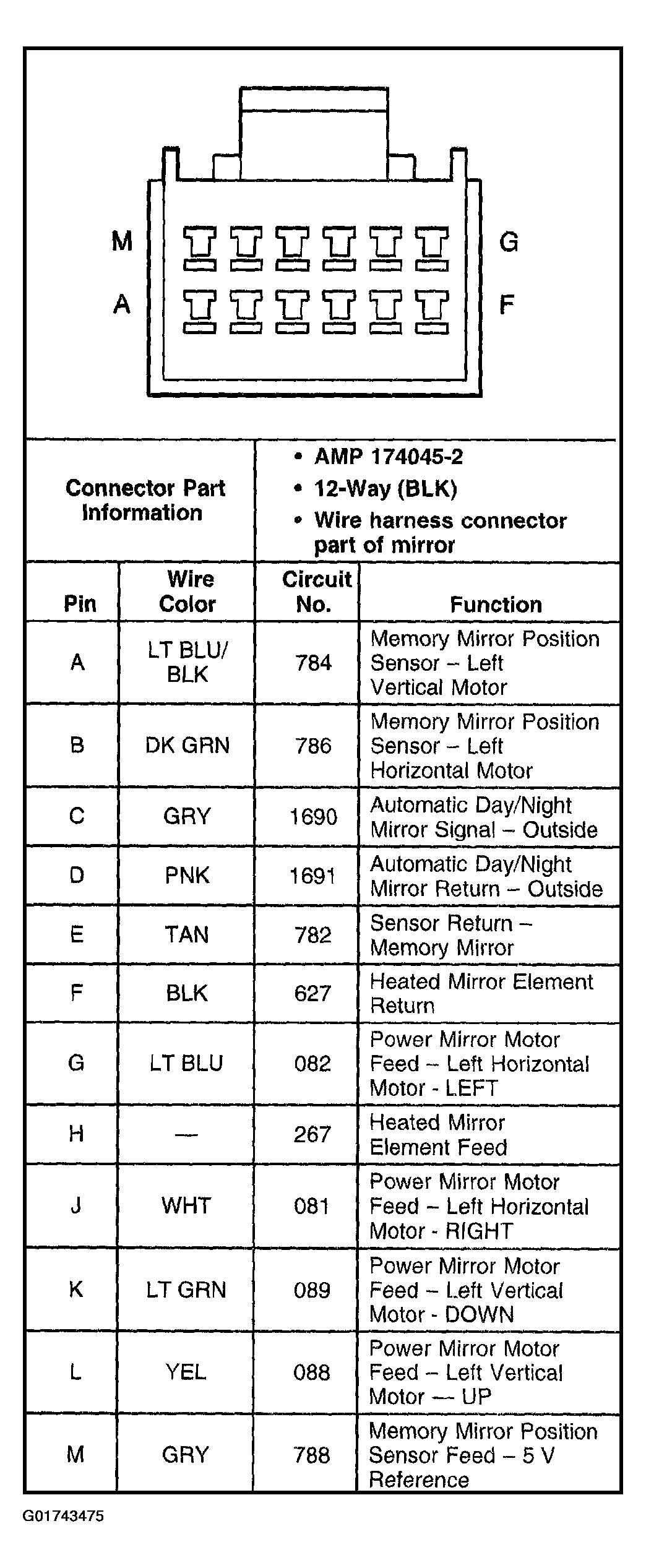

Fig 4: Driver Door Module (DDM) C4

G01743475

Courtesy of GENERAL MOTORS CORP.

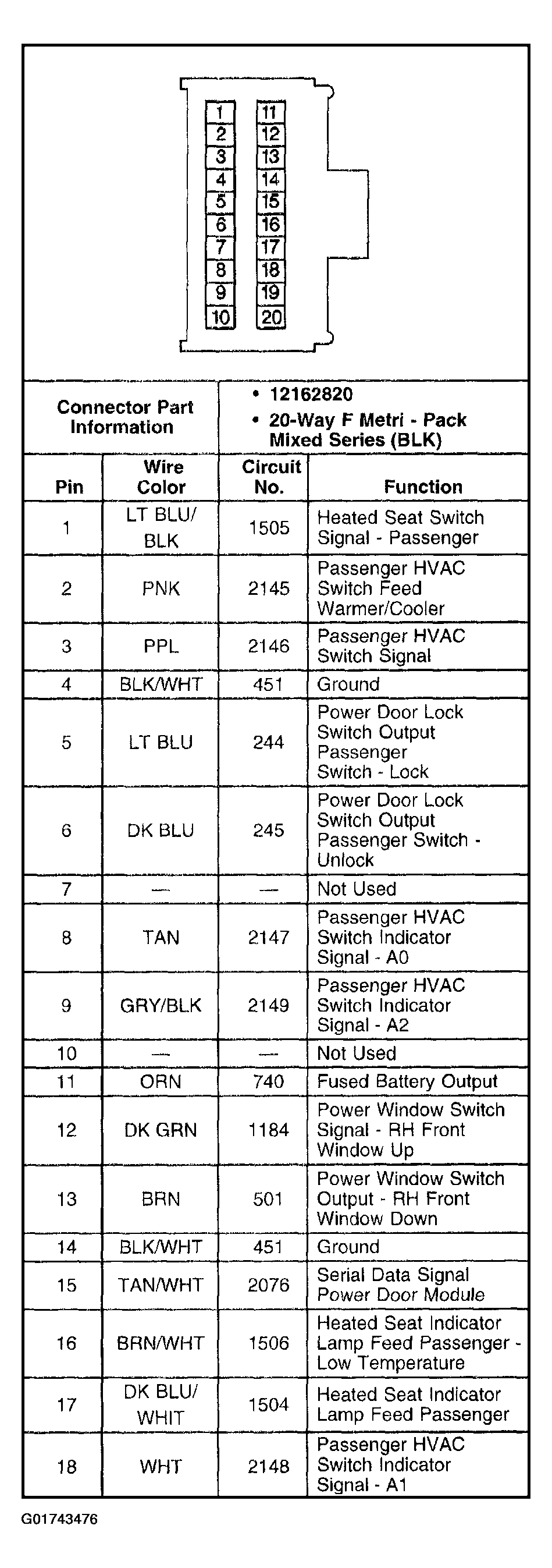

Fig 5: Front Passenger Door Module (FPDM) C1 (1 Of 2)

G01743476

Courtesy of GENERAL MOTORS CORP.

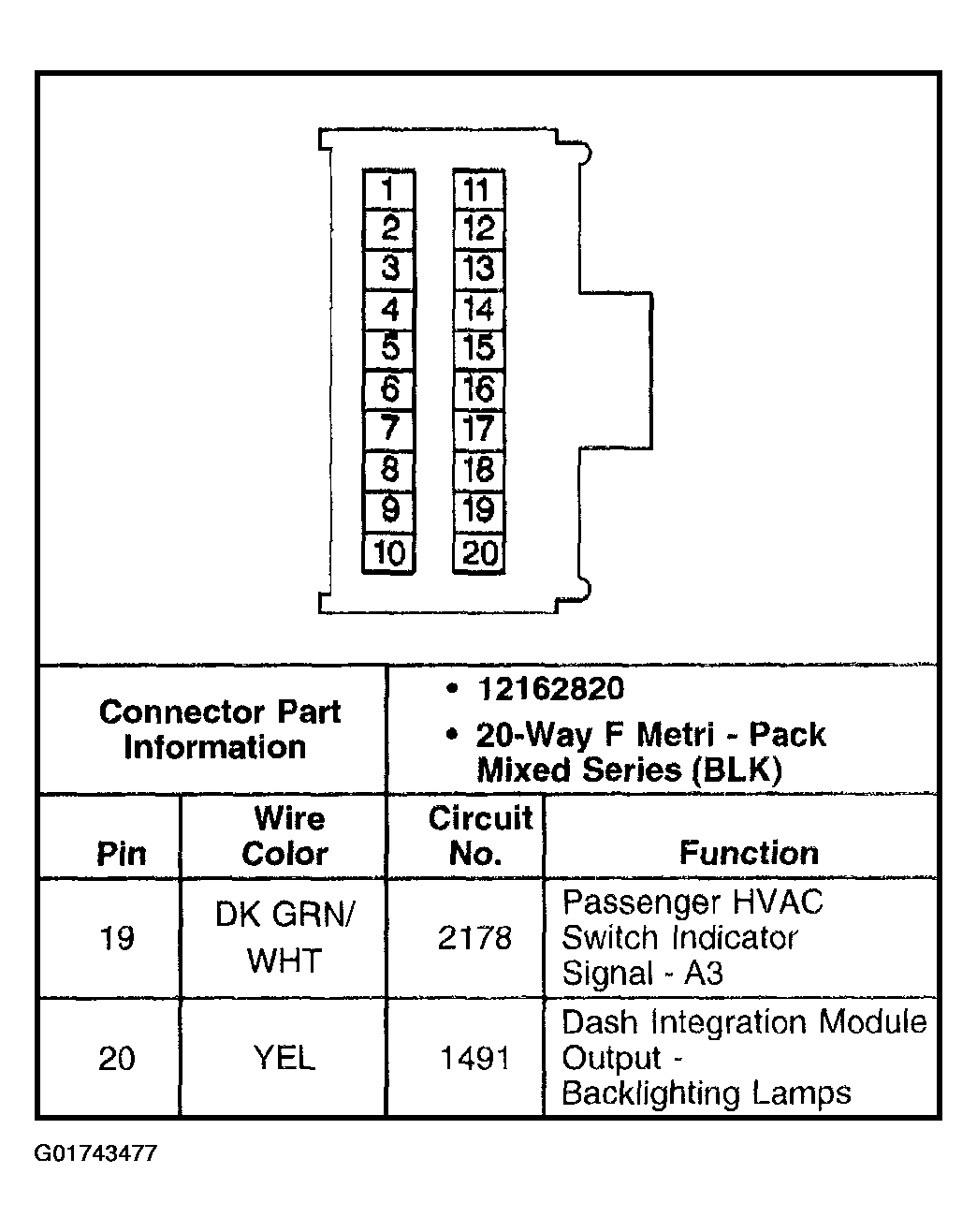

Fig 6: Front Passenger Door Module (FPDM) C1 (2 Of 2)

G01743477

Courtesy of GENERAL MOTORS CORP.

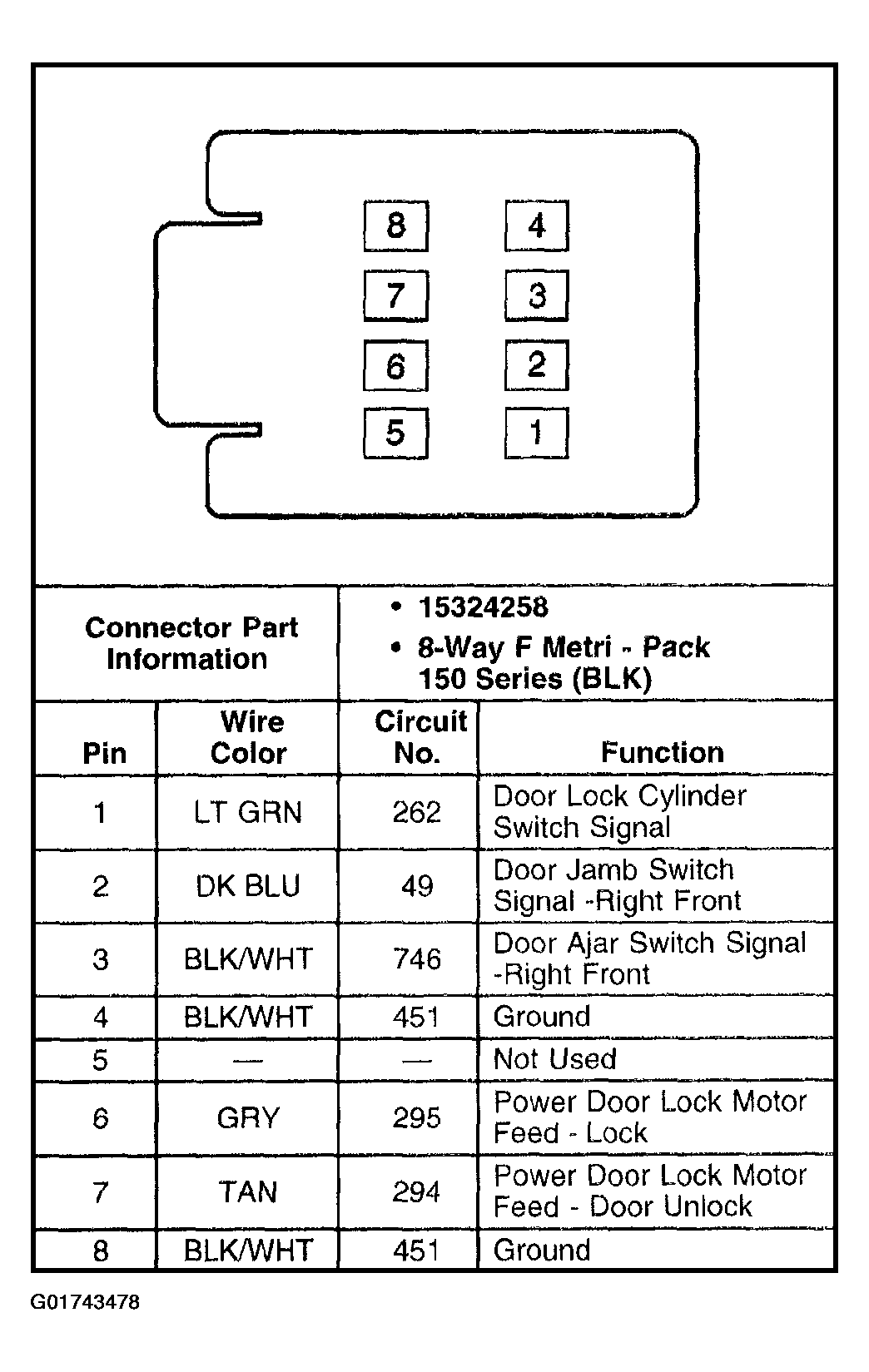

Fig 7: Front Passenger Door Module (FPDM) C2

G01743478

Courtesy of GENERAL MOTORS CORP.

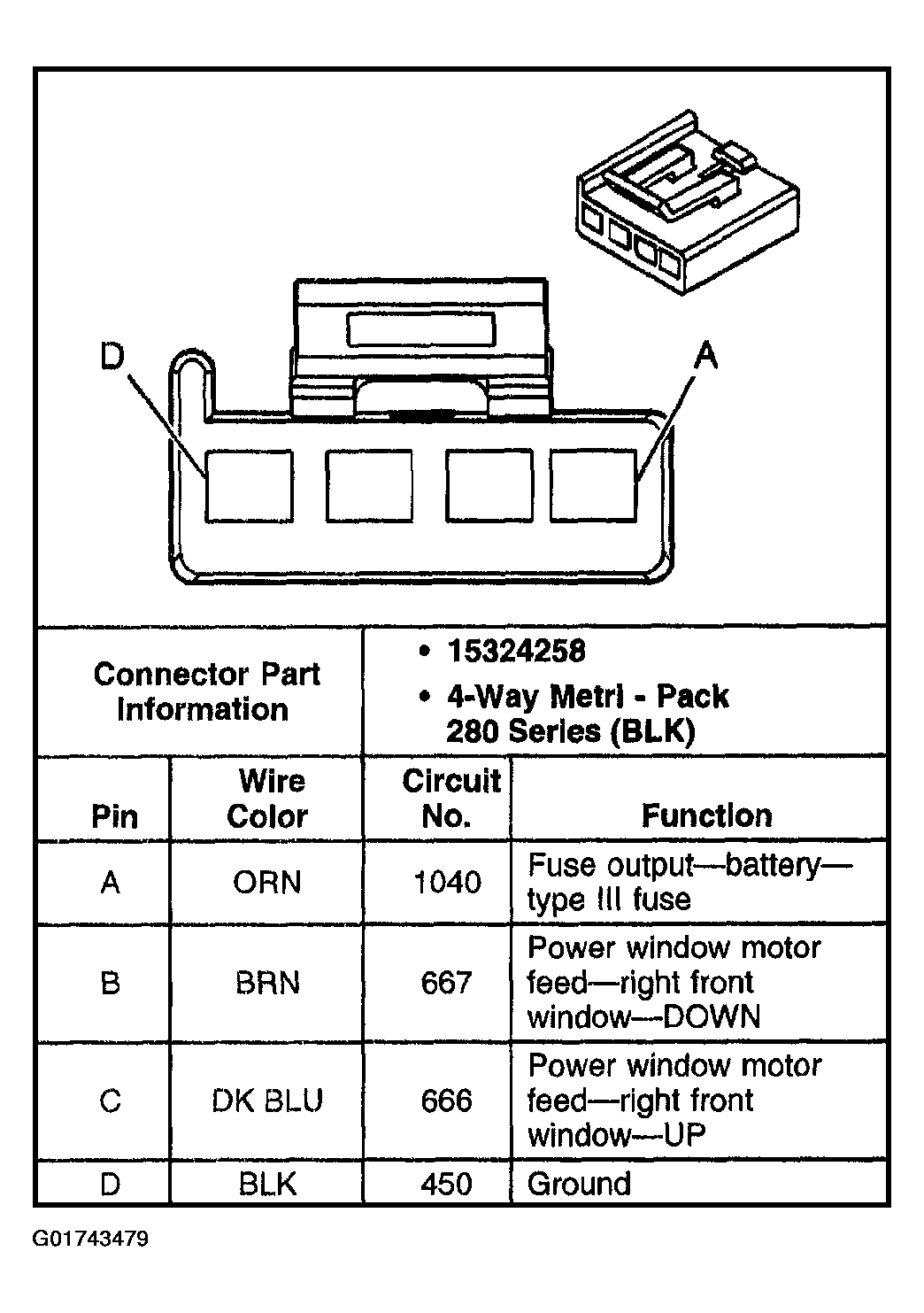

Fig 8: Front Passenger Door Module (FPDM) C3

G01743479

Courtesy of GENERAL MOTORS CORP.

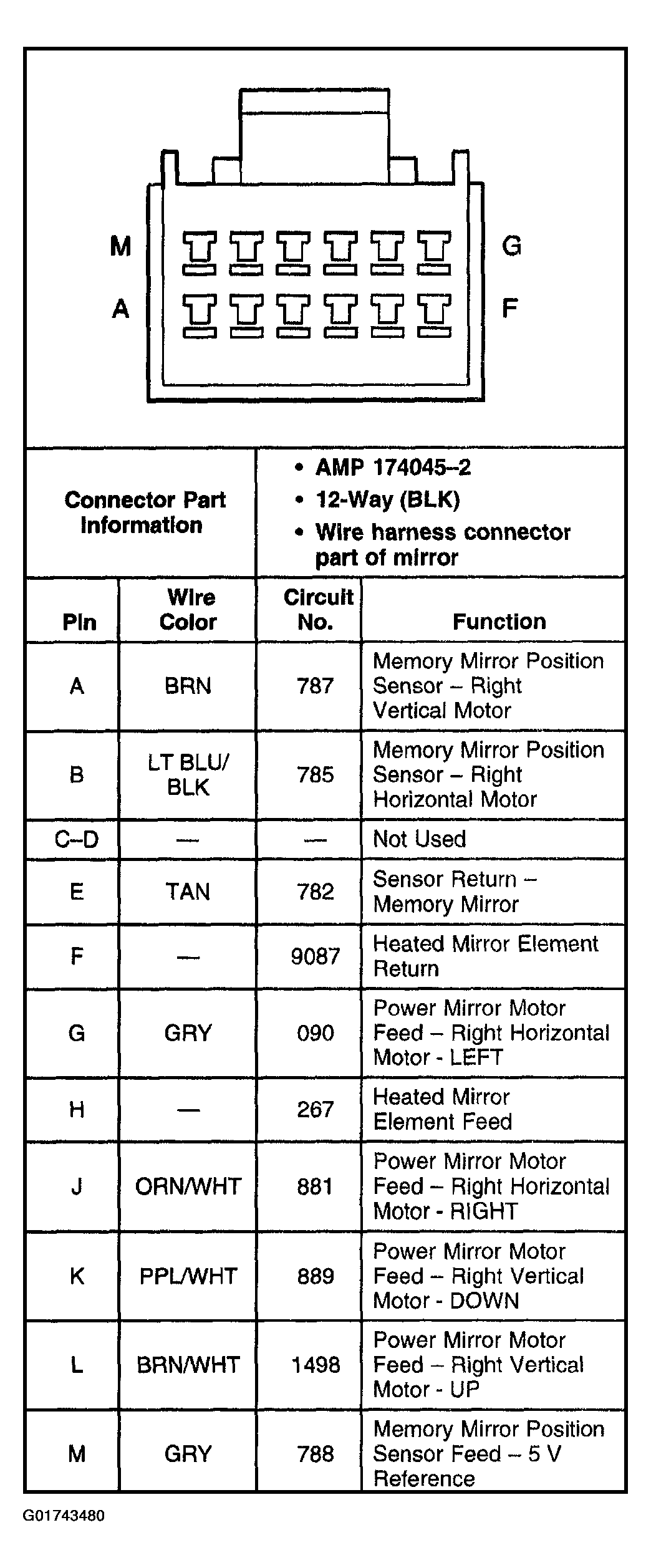

Fig 9: Passenger Door Module C4

G01743480

Courtesy of GENERAL MOTORS CORP.

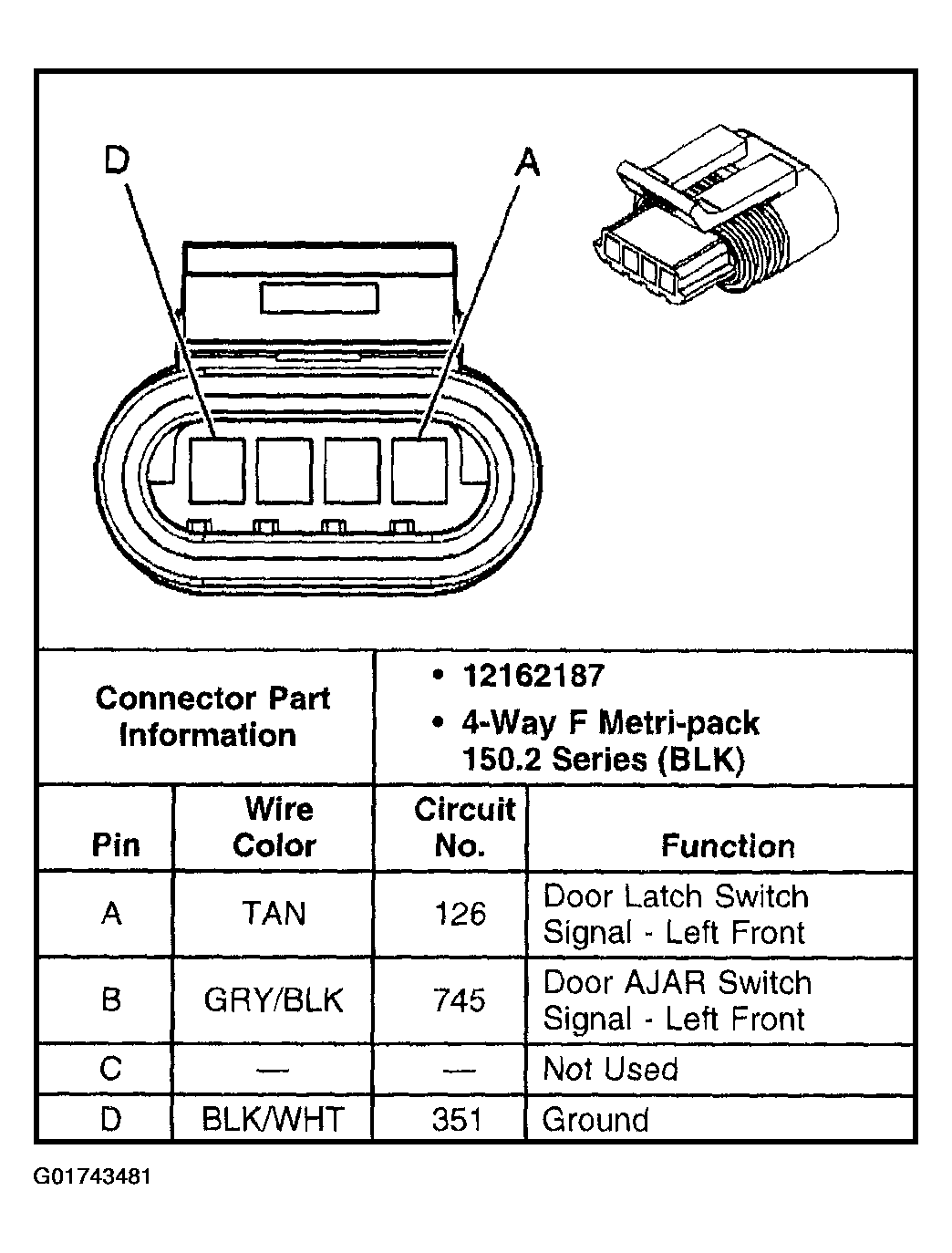

Fig 10: Door Lock Actuator - Driver C1

G01743481

Courtesy of GENERAL MOTORS CORP.

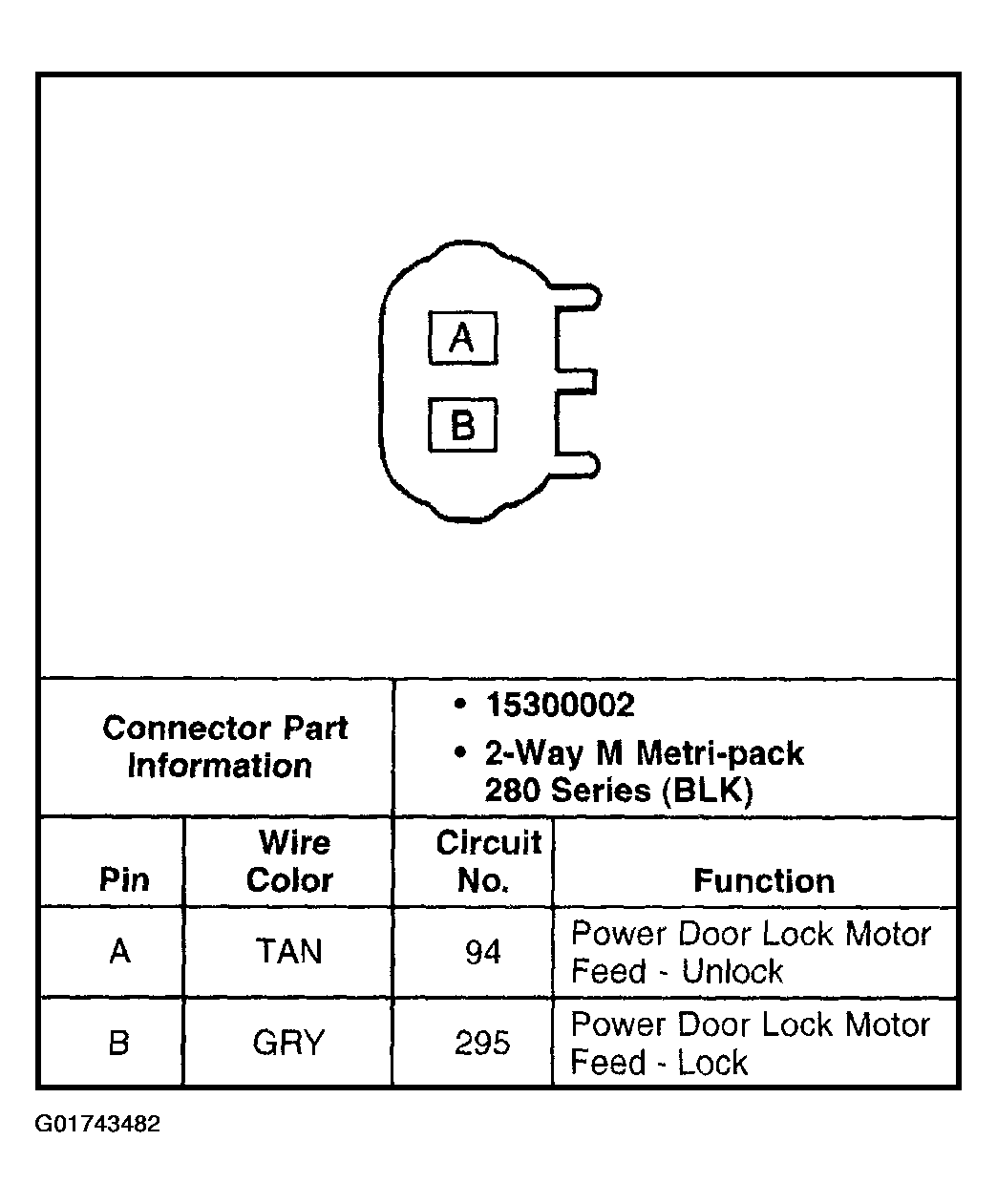

Fig 11: Door Lock Actuator - Driver C2

G01743482

Courtesy of GENERAL MOTORS CORP.

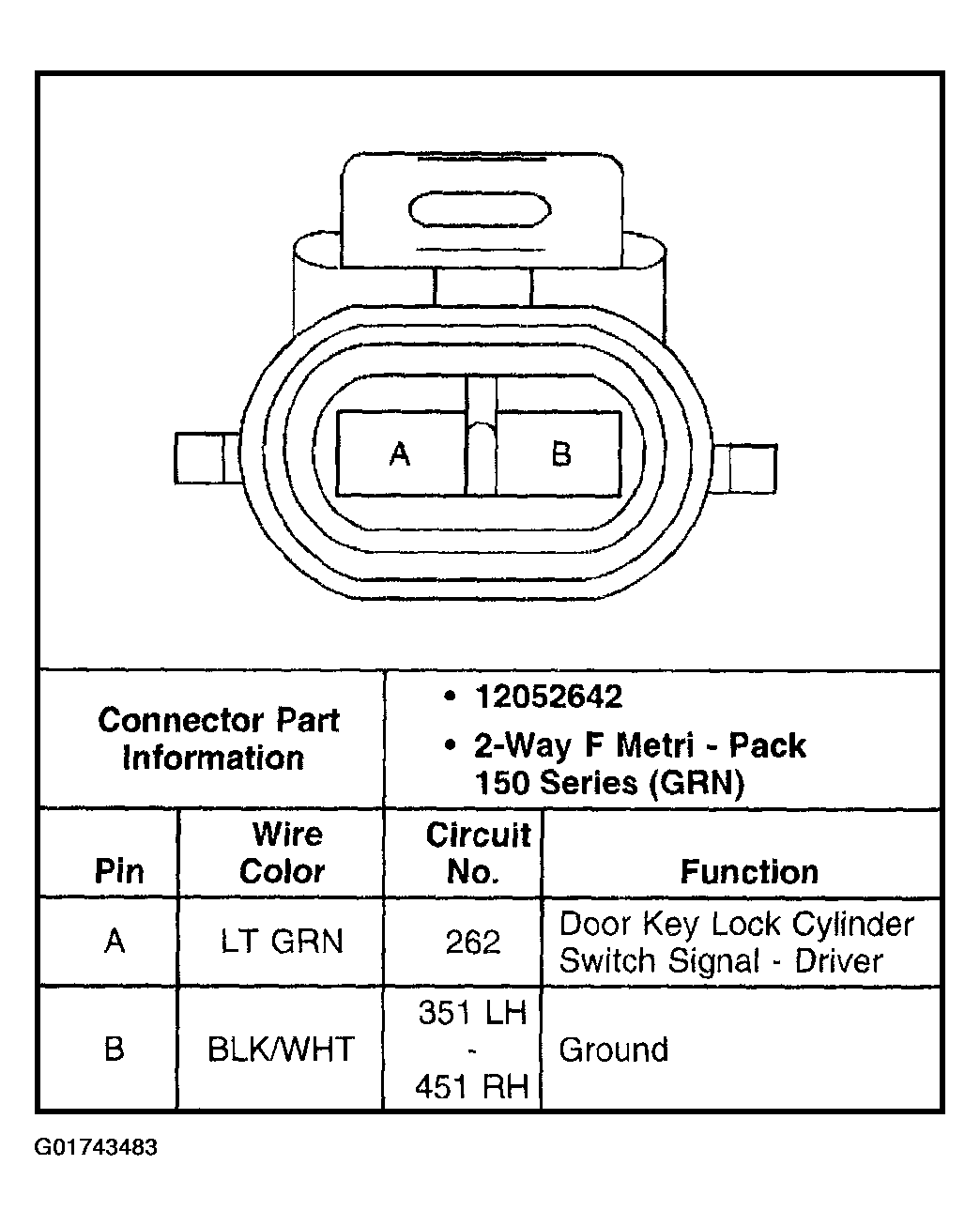

Fig 12: Door Lock Cylinder Switch - Driver - Front Passenger - W/UA6

G01743483

Courtesy of GENERAL MOTORS CORP.

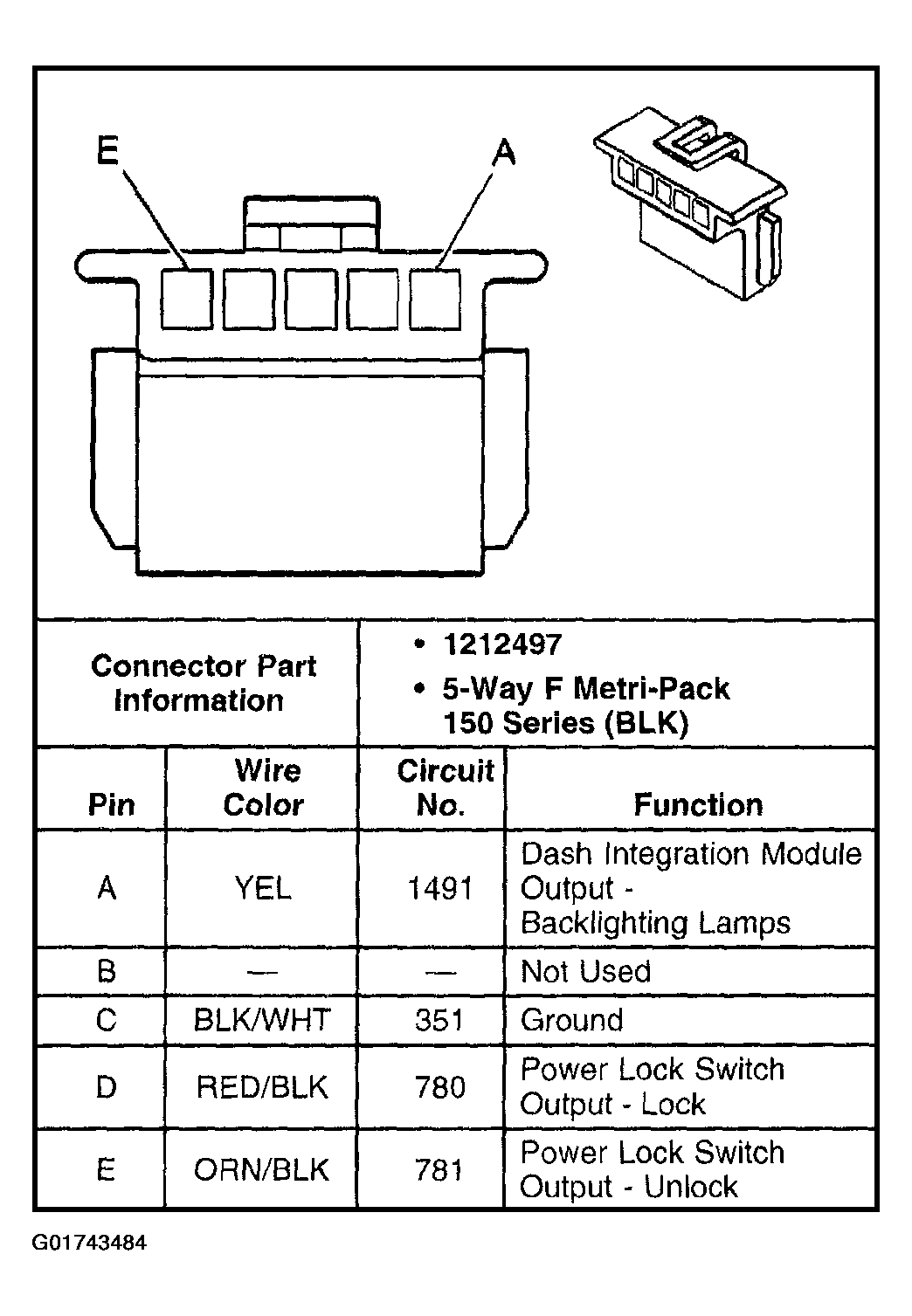

Fig 13: Door Lock Switch - Driver

G01743484

Courtesy of GENERAL MOTORS CORP.

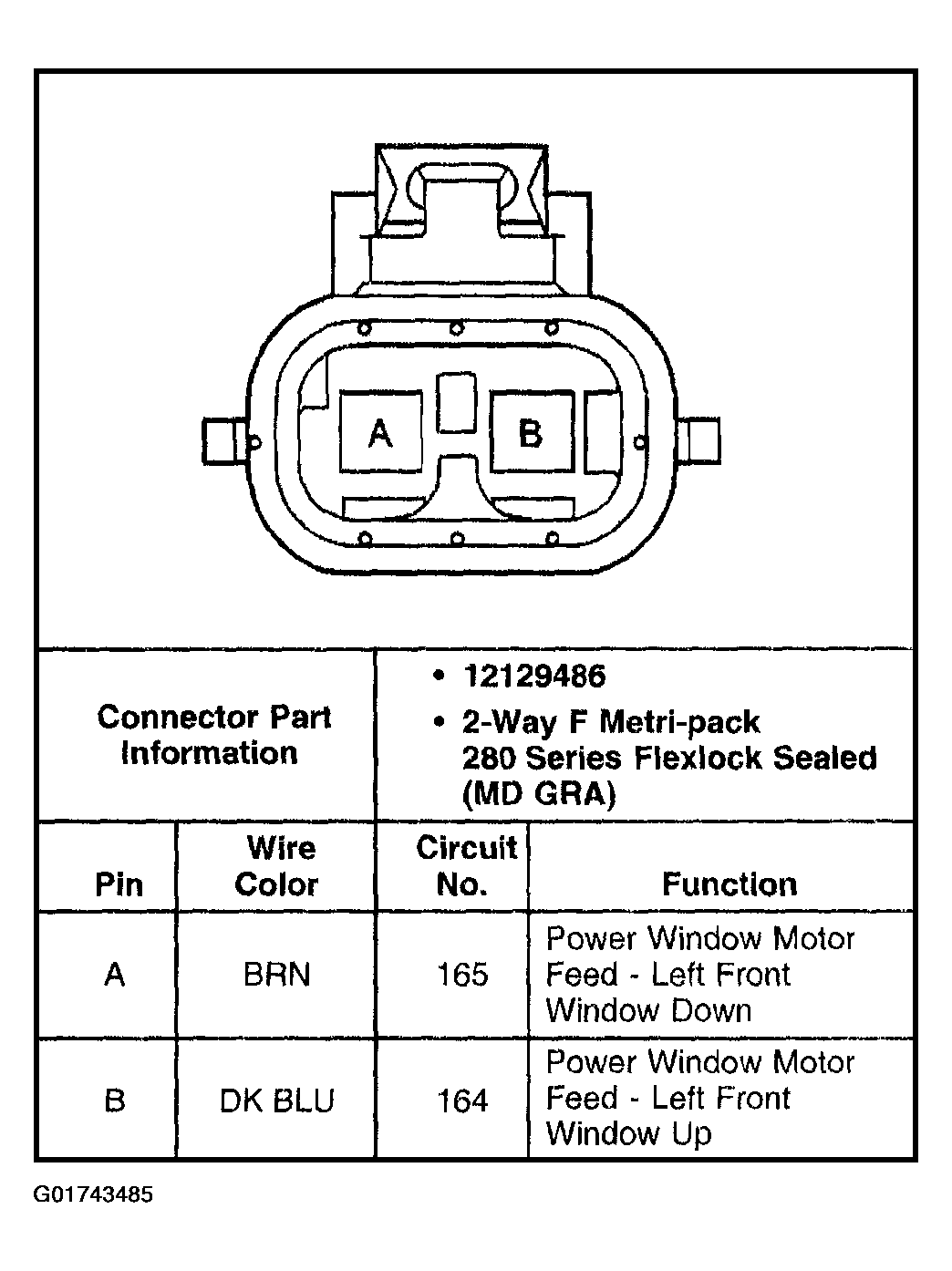

Fig 14: Window Motor - Driver

G01743485

Courtesy of GENERAL MOTORS CORP.

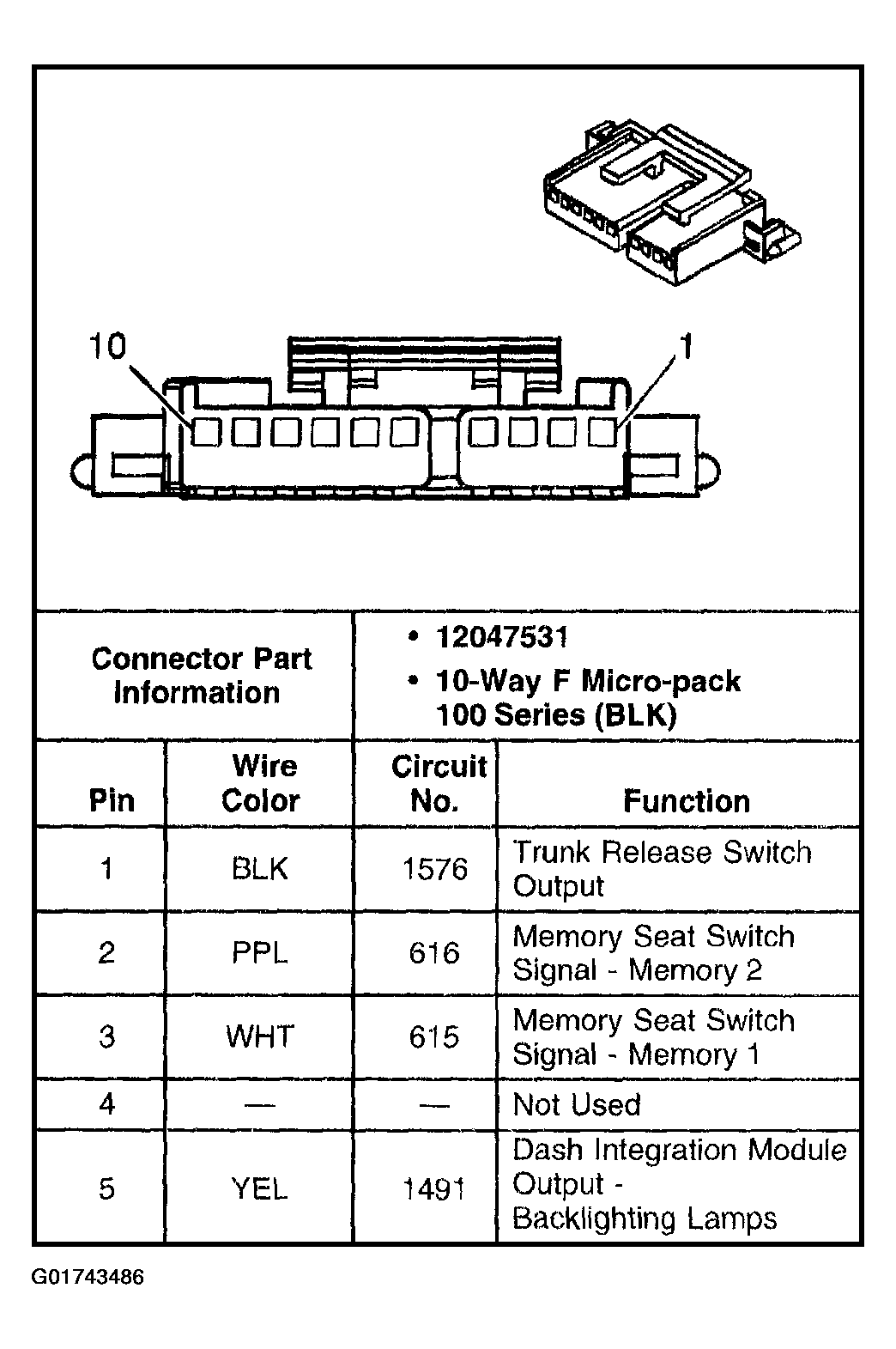

Fig 15: Window Switch - Driver (1 Of 2)

G01743486

Courtesy of GENERAL MOTORS CORP.

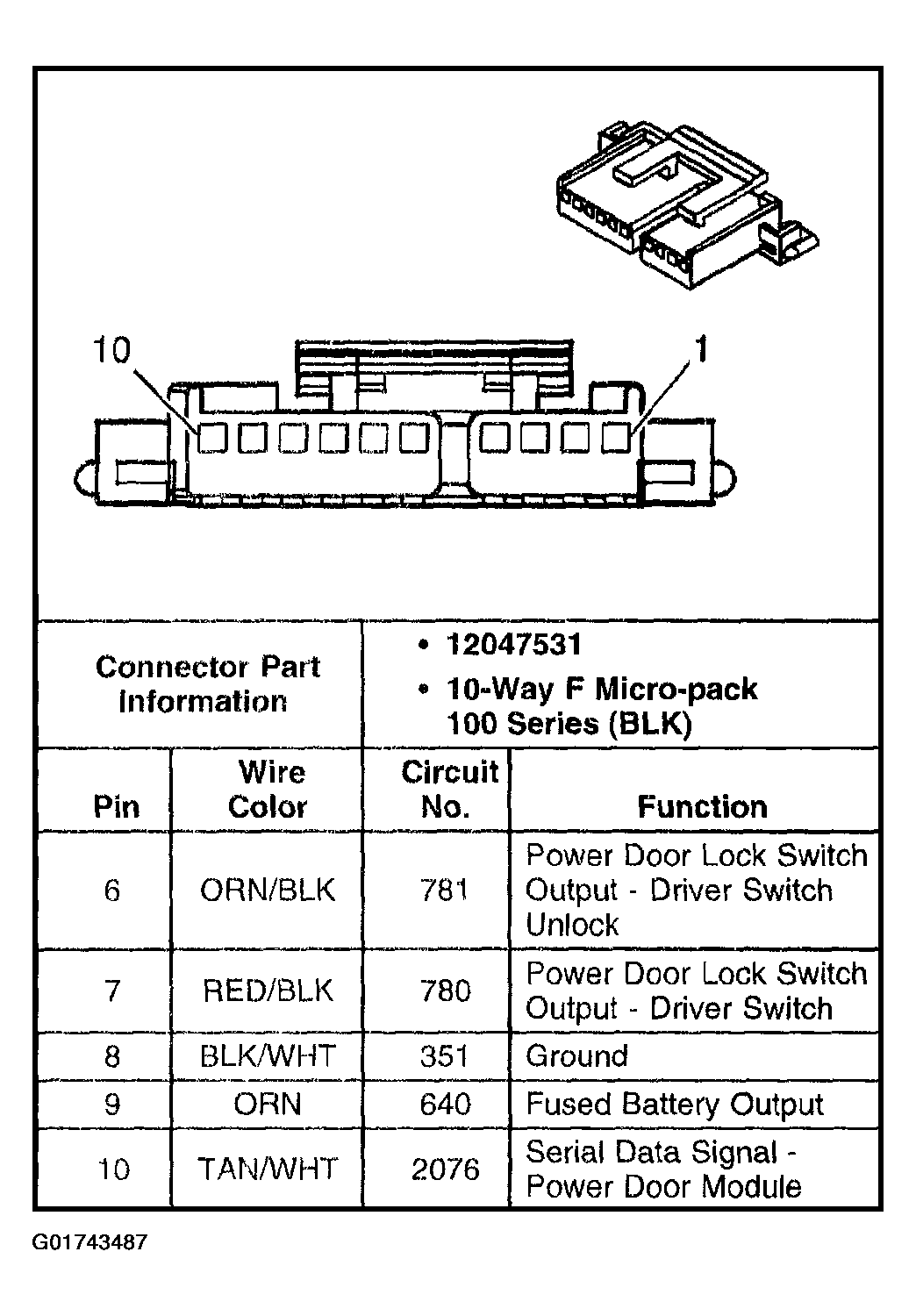

Fig 16: Window Switch - Driver (2 Of 2)

G01743487

Courtesy of GENERAL MOTORS CORP.

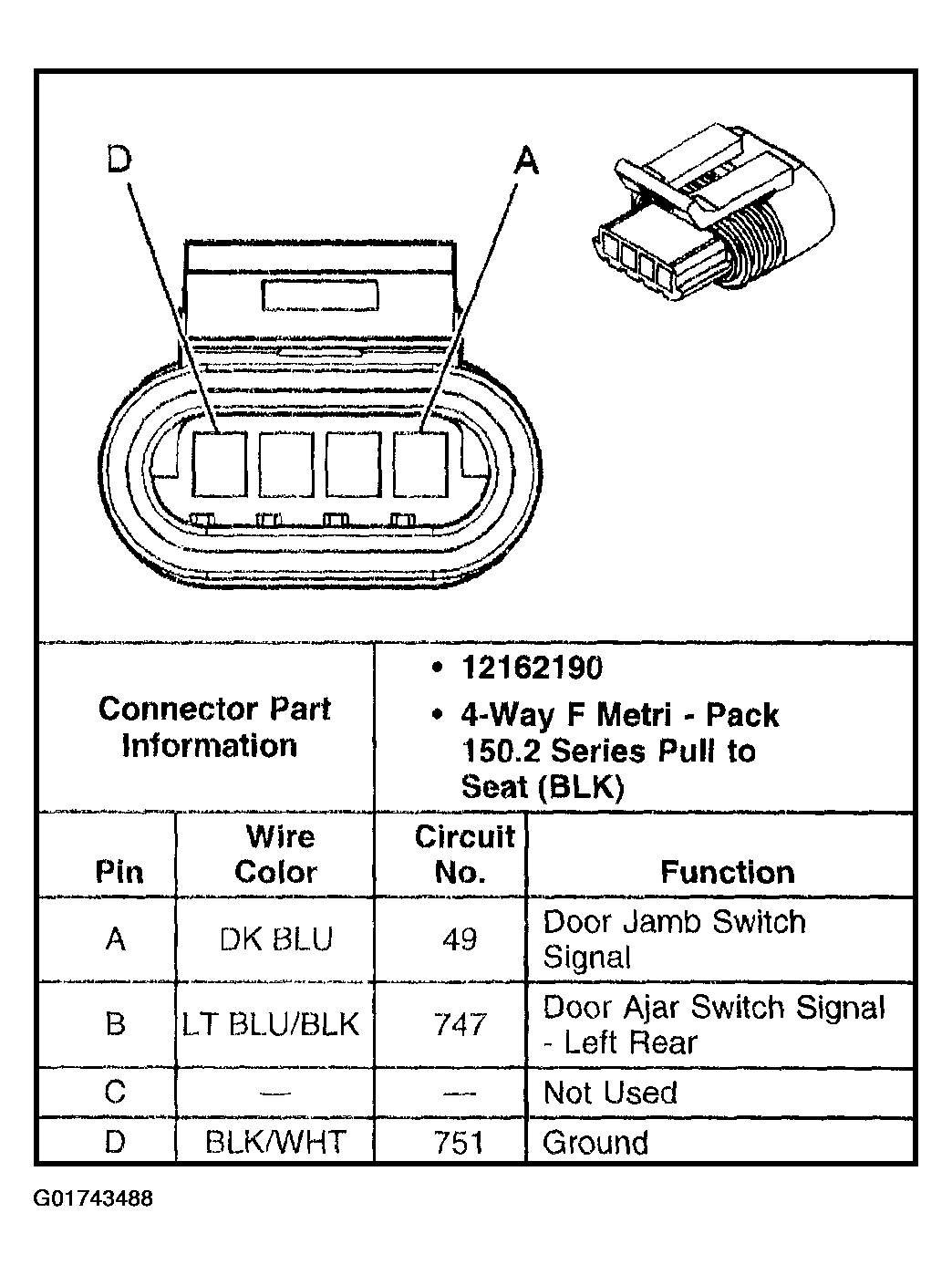

Fig 17: Door Lock Actuator - LR C1

G01743488

Courtesy of GENERAL MOTORS CORP.

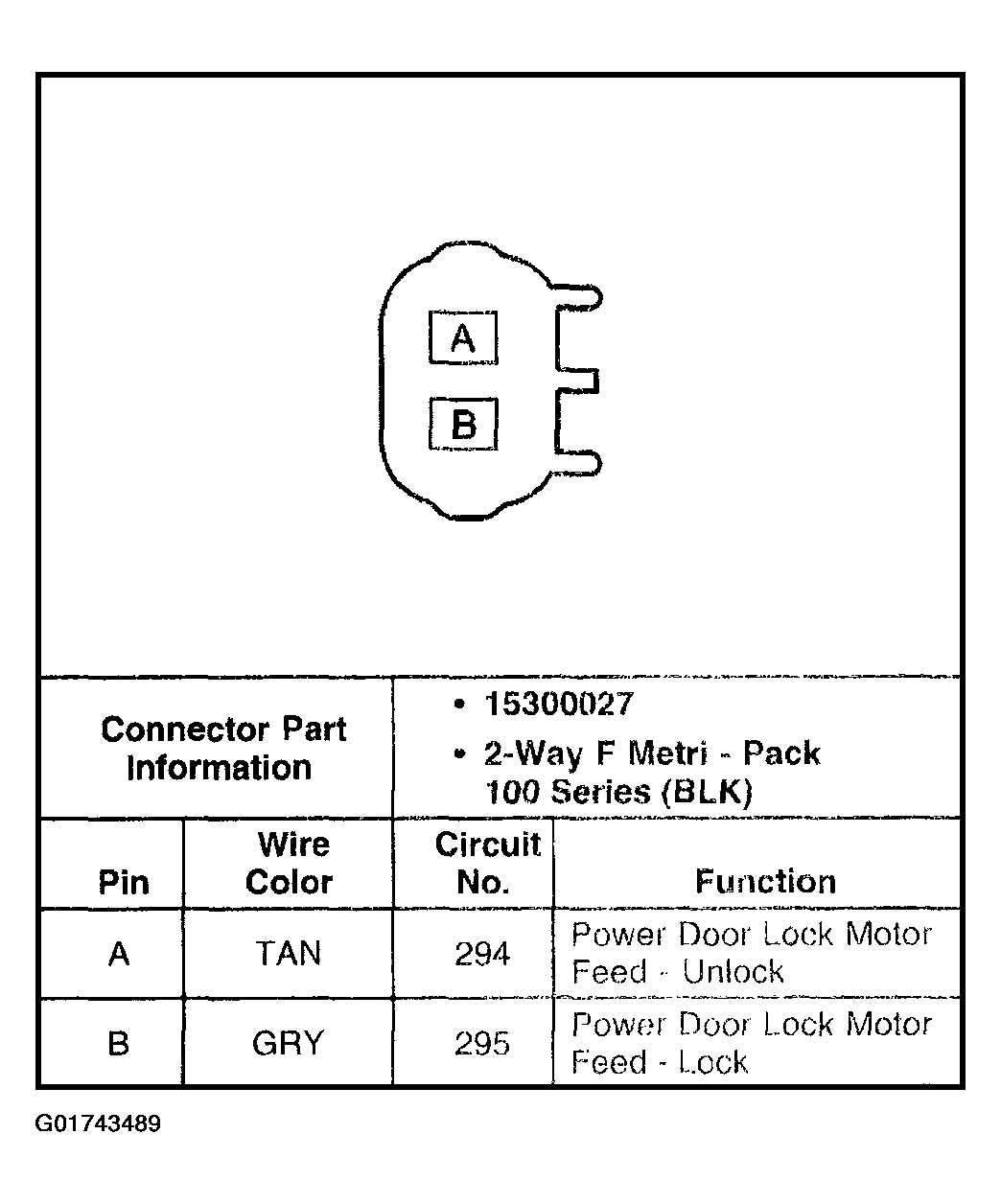

Fig 18: Door Lock Actuator - LR C2

G01743489

Courtesy of GENERAL MOTORS CORP.

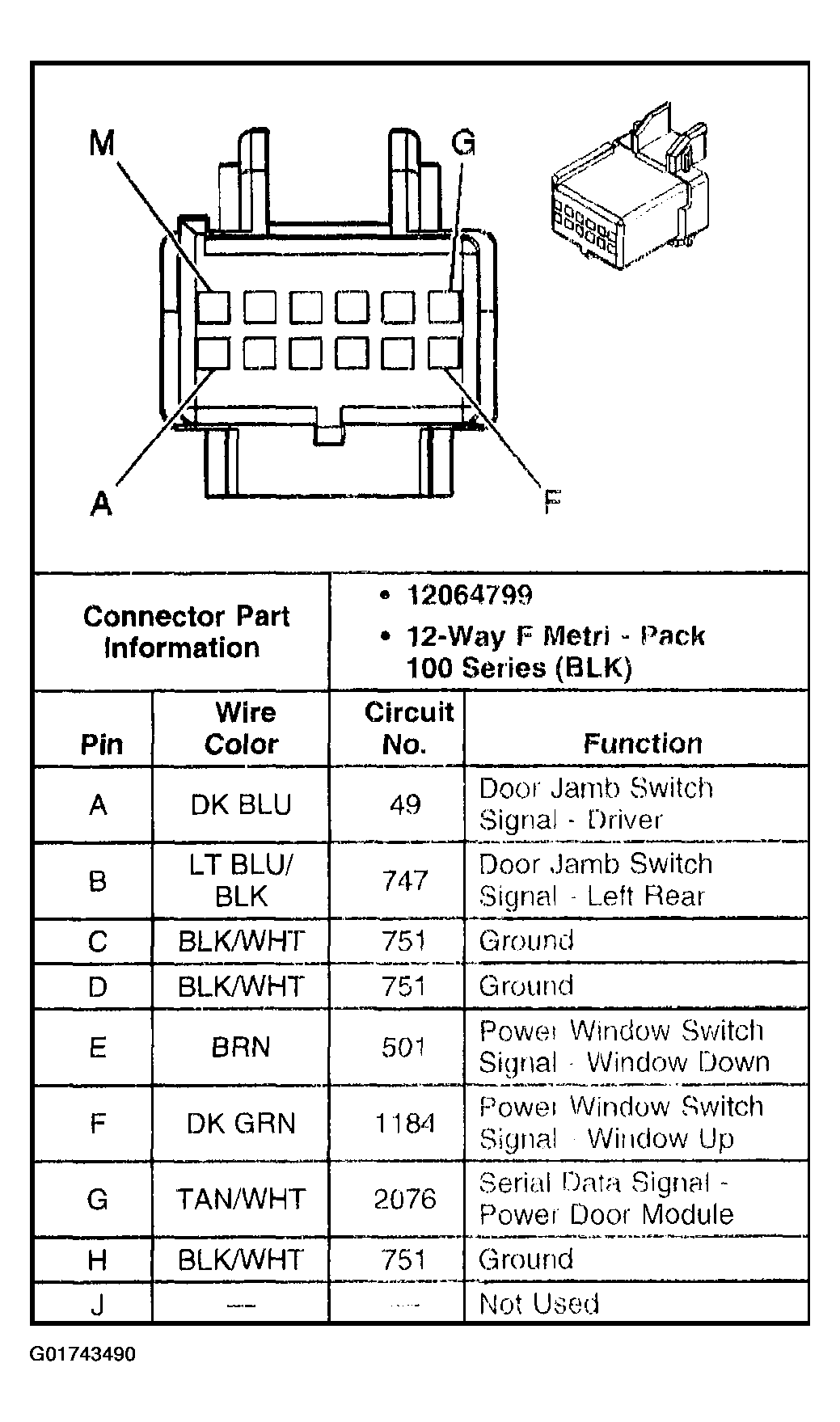

Fig 19: Door Module - LR C1 (1 Of 2)

G01743490

Courtesy of GENERAL MOTORS CORP.

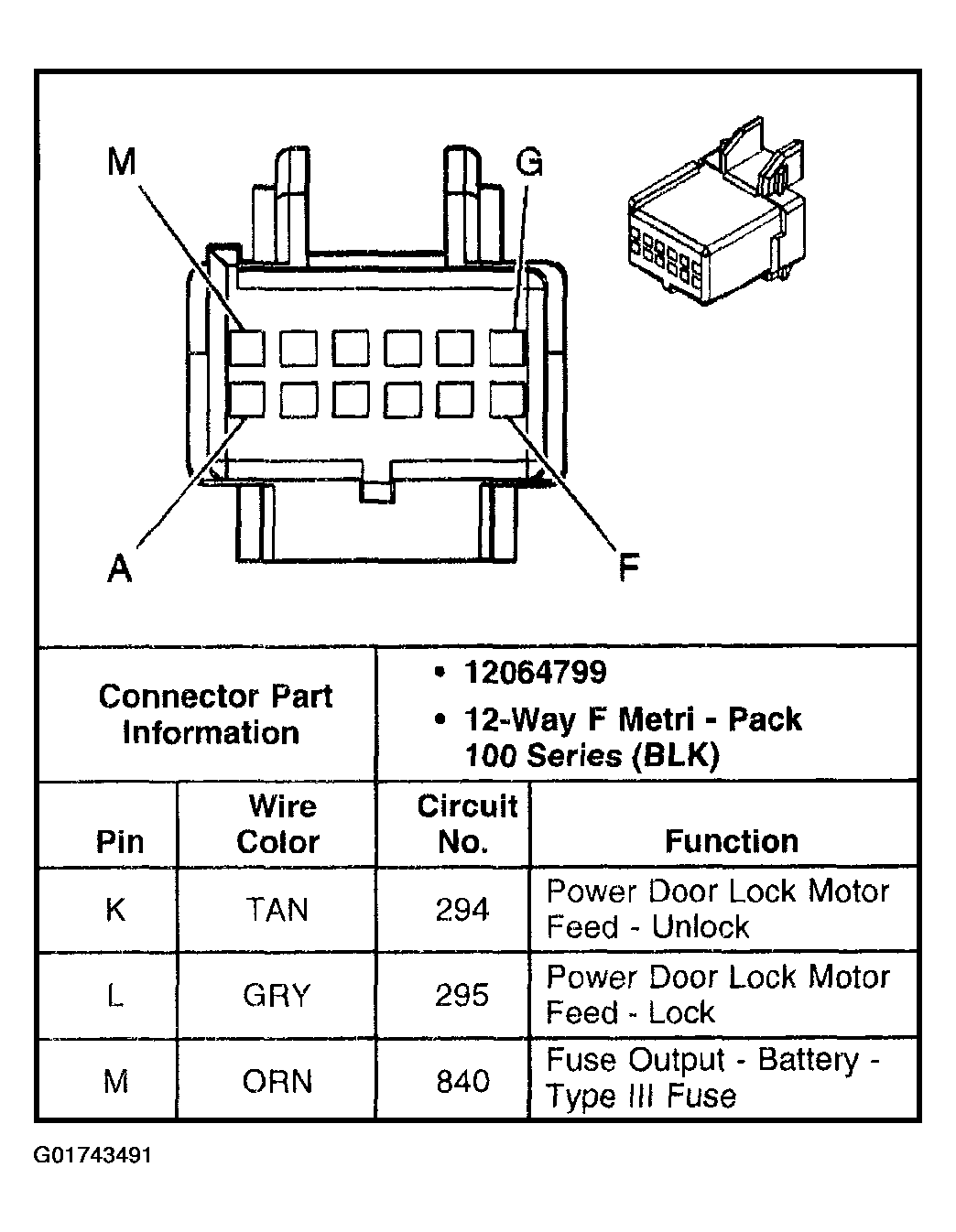

Fig 20: Door Module - LR C1 (2 Of 2)

G01743491

Courtesy of GENERAL MOTORS CORP.

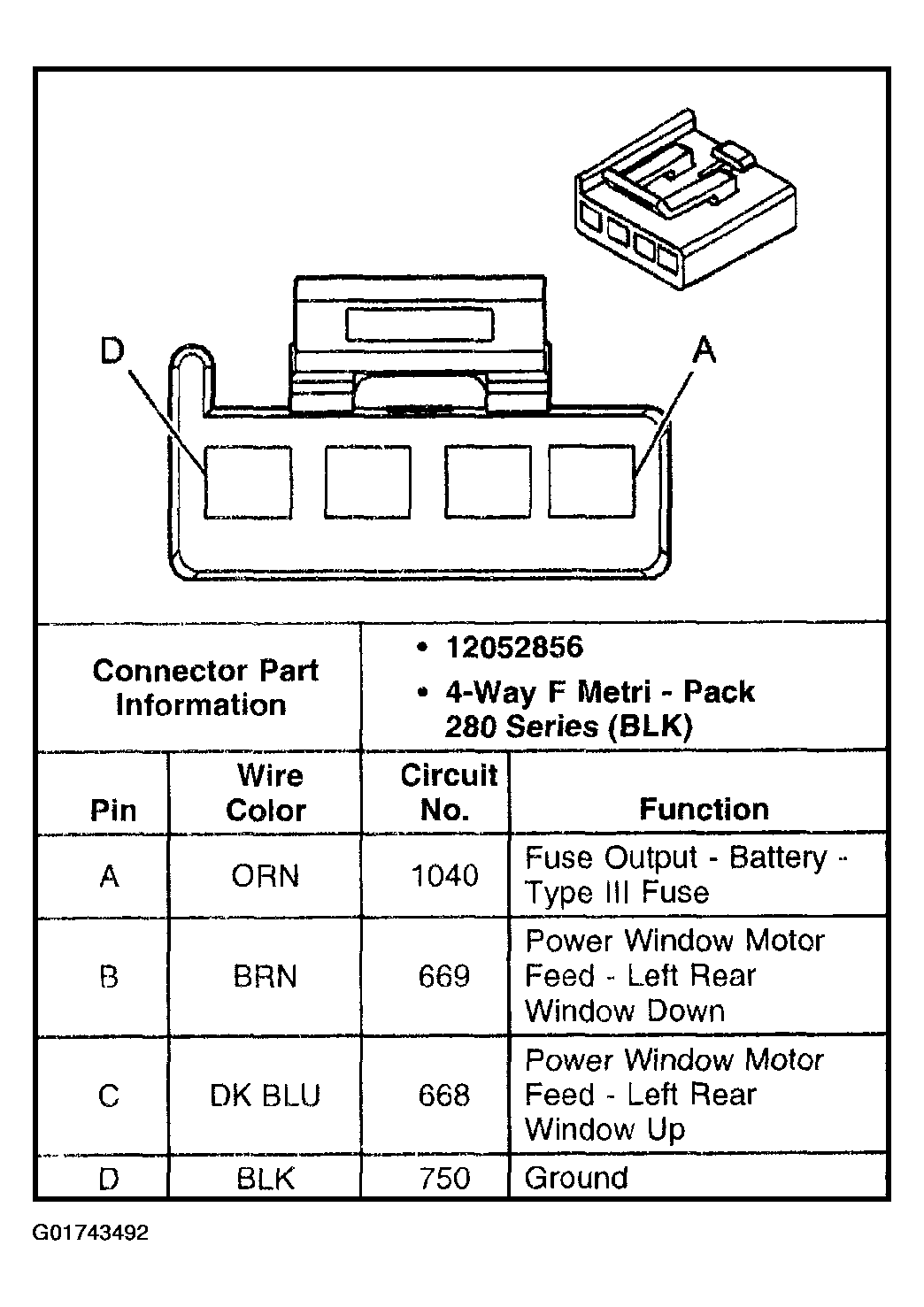

Fig 21: Door Module - LR C2

G01743492

Courtesy of GENERAL MOTORS CORP.

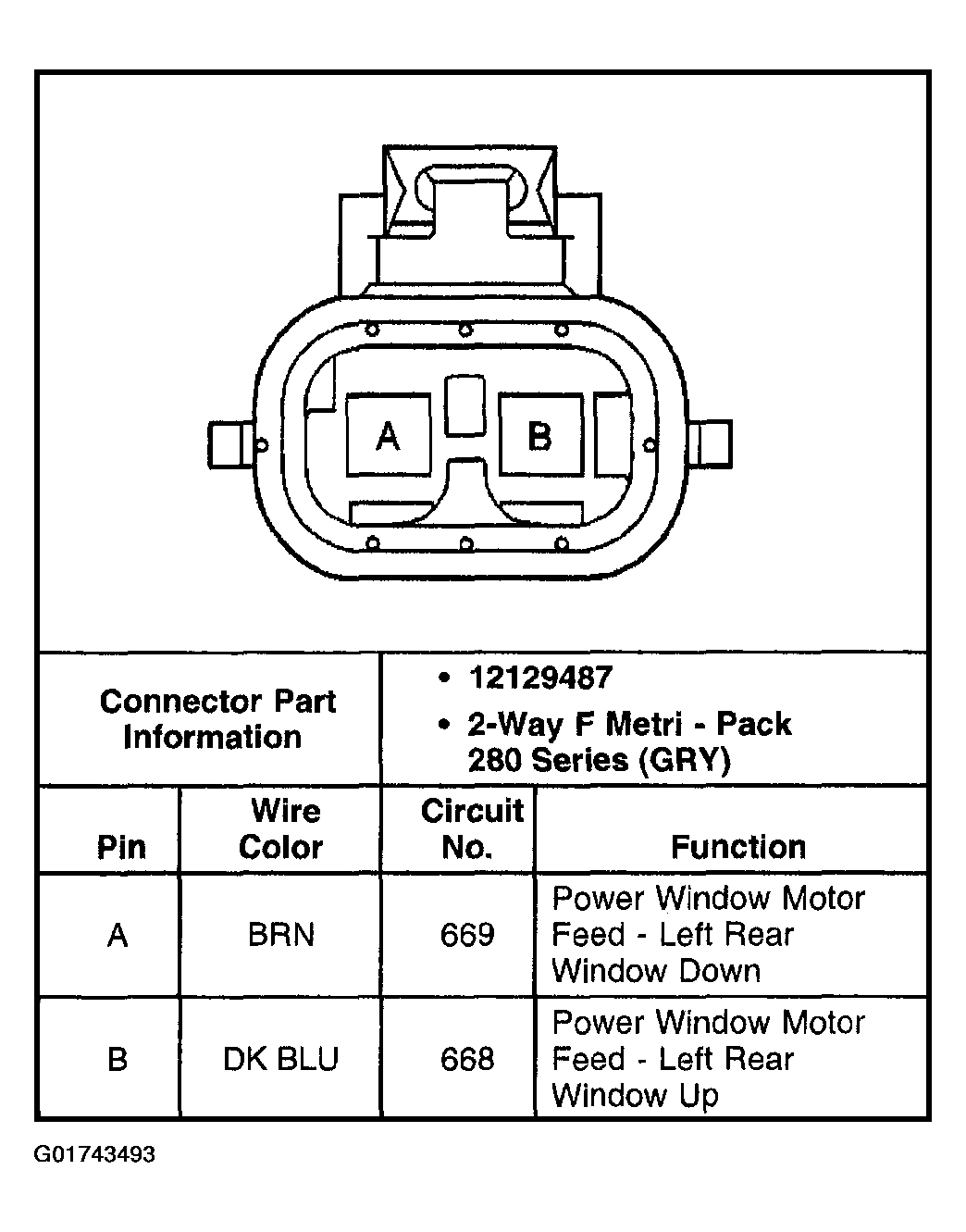

Fig 22: Window Motor - LR

G01743493

Courtesy of GENERAL MOTORS CORP.

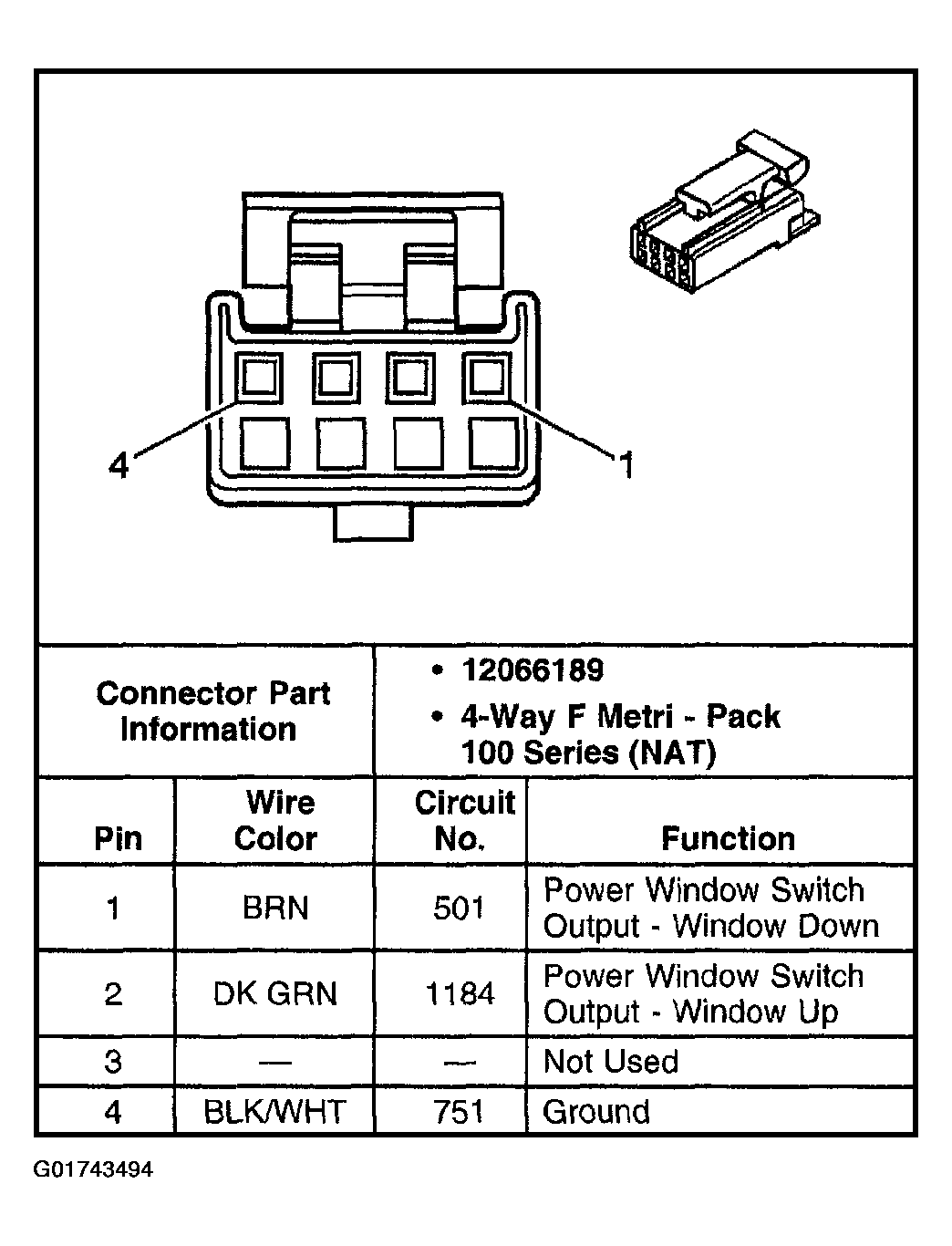

Fig 23: Window Switch - LR

G01743494

Courtesy of GENERAL MOTORS CORP.

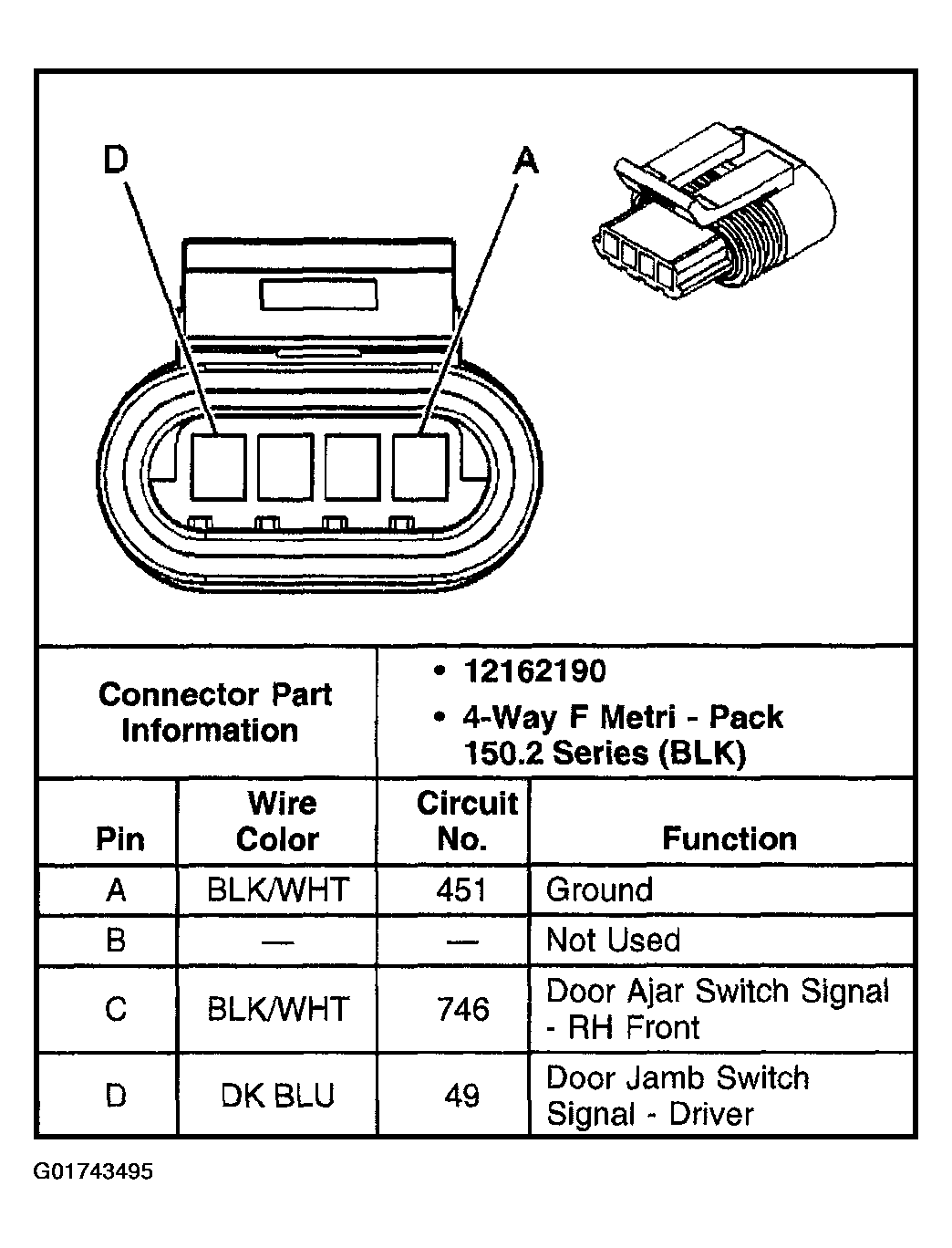

Fig 24: Door Lock Actuator - Front Passenger C1

G01743495

Courtesy of GENERAL MOTORS CORP.

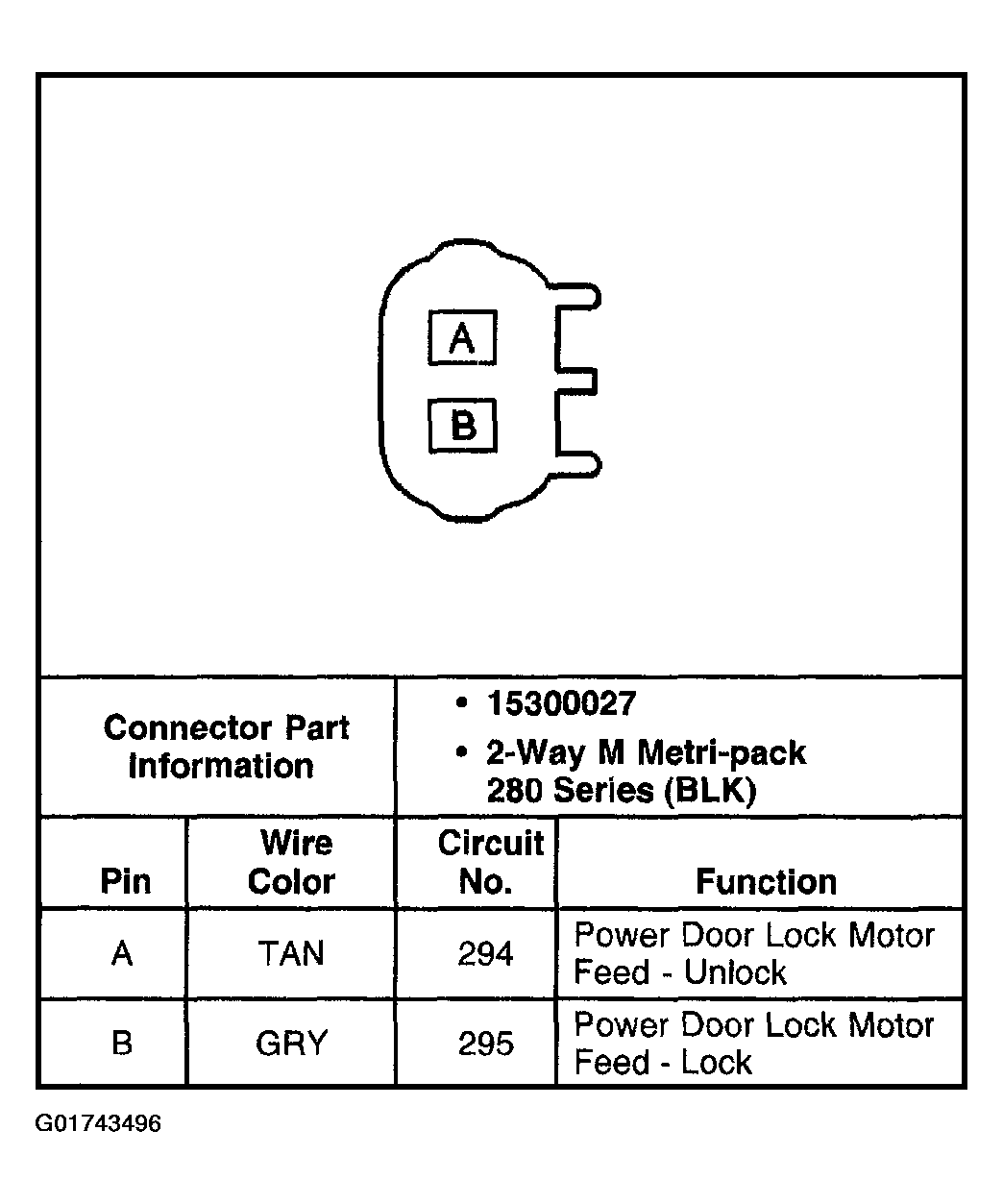

Fig 25: Door Lock Actuator - Front Passenger C2

G01743496

Courtesy of GENERAL MOTORS CORP.

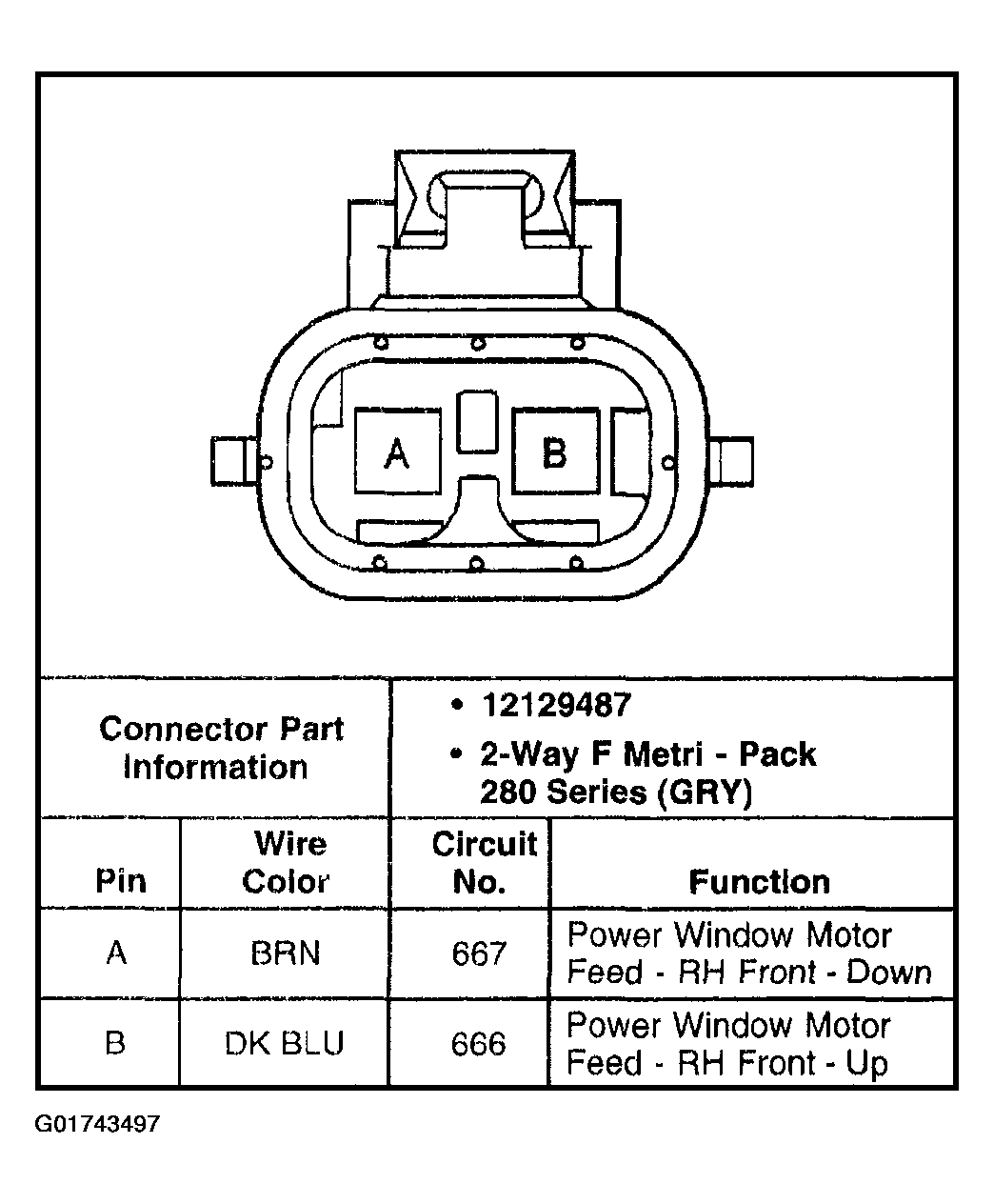

Fig 26: Window Motor - Front Passenger

G01743497

Courtesy of GENERAL MOTORS CORP.

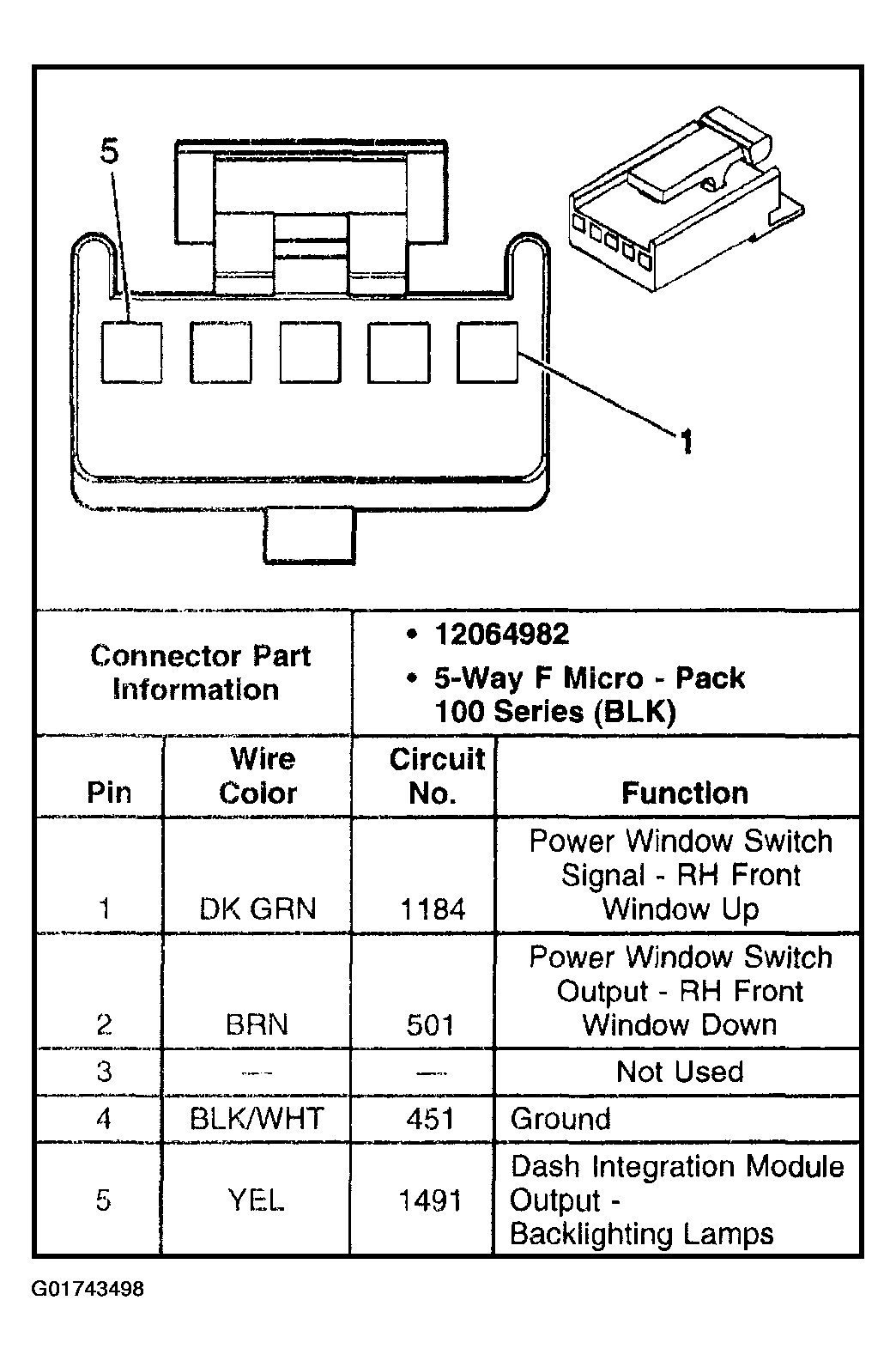

Fig 27: Window Switch - Front Passenger

G01743498

Courtesy of GENERAL MOTORS CORP.

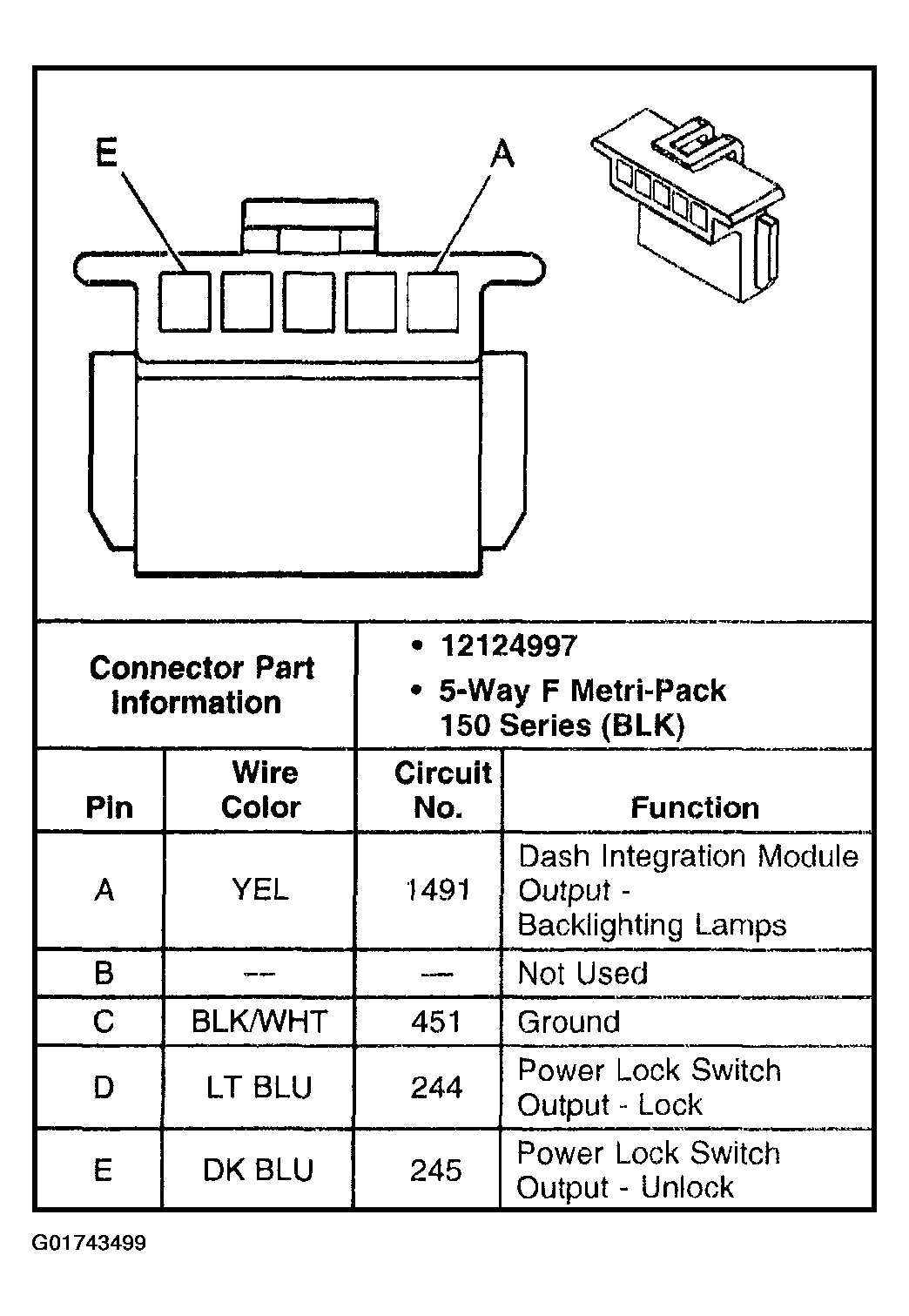

Fig 28: Door Lock Switch - Front Passenger

G01743499

Courtesy of GENERAL MOTORS CORP.

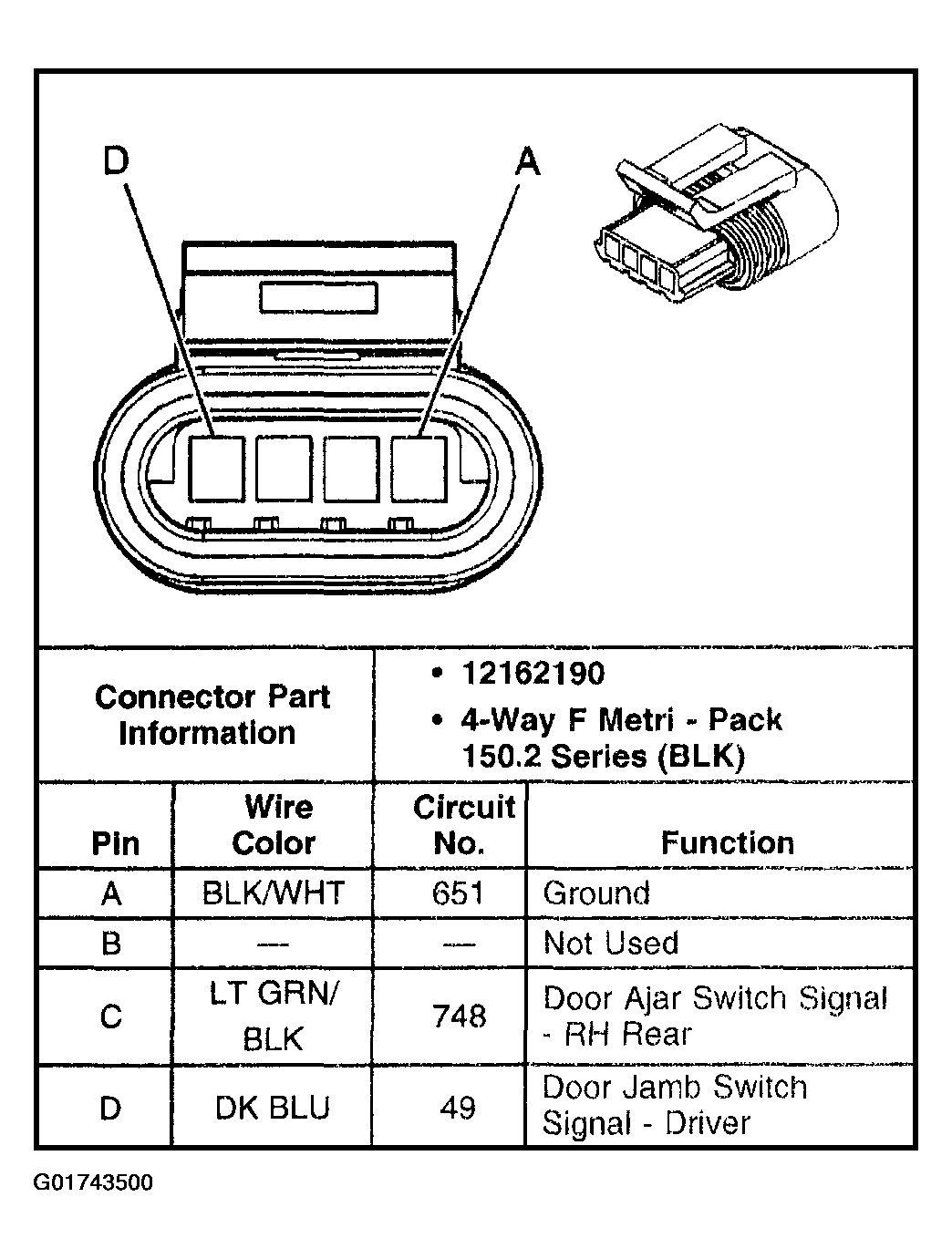

Fig 29: Door Lock Actuator C1 - RR

G01743500

Courtesy of GENERAL MOTORS CORP.

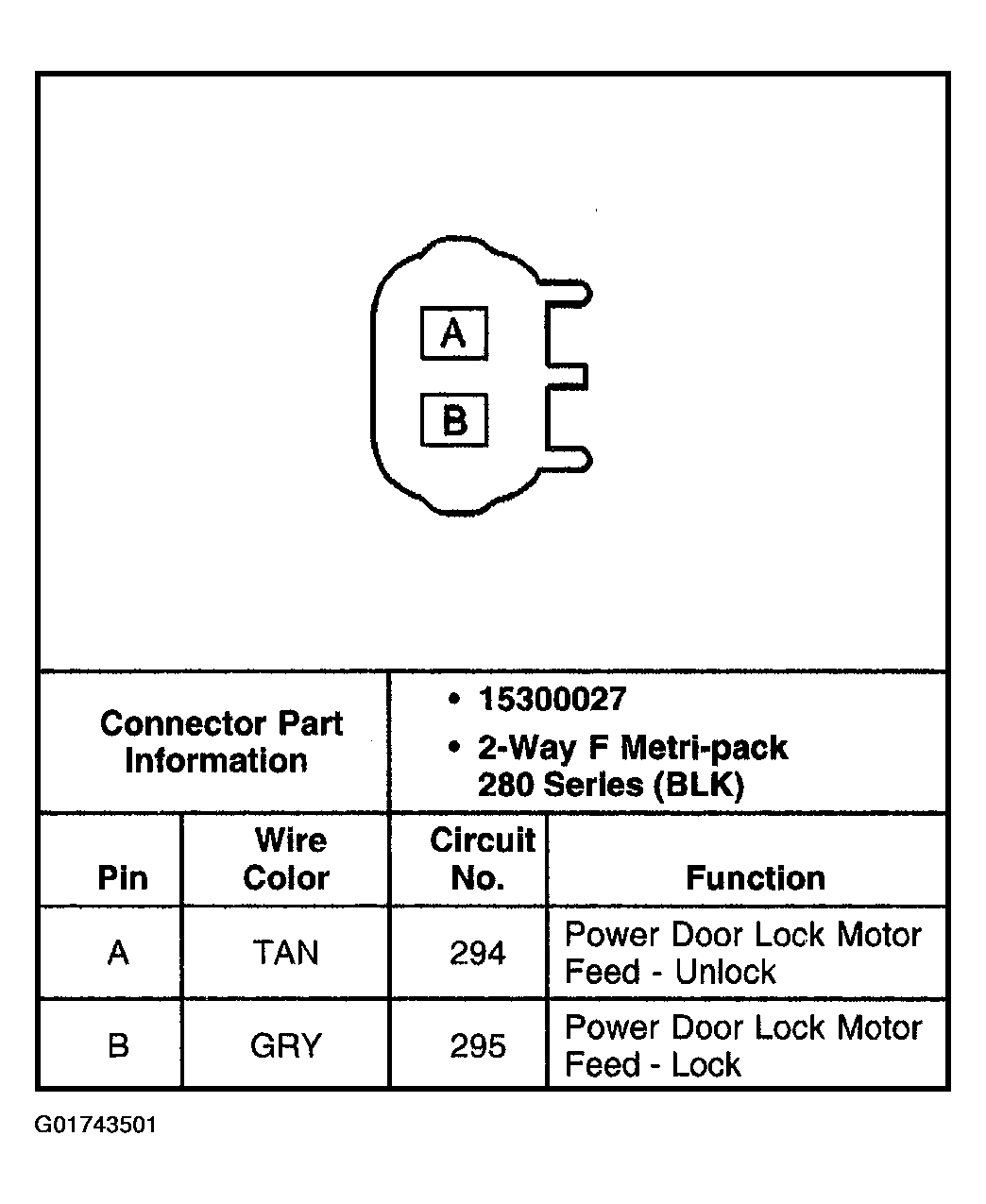

Fig 30: Door Lock Actuator - RR C2

G01743501

Courtesy of GENERAL MOTORS CORP.

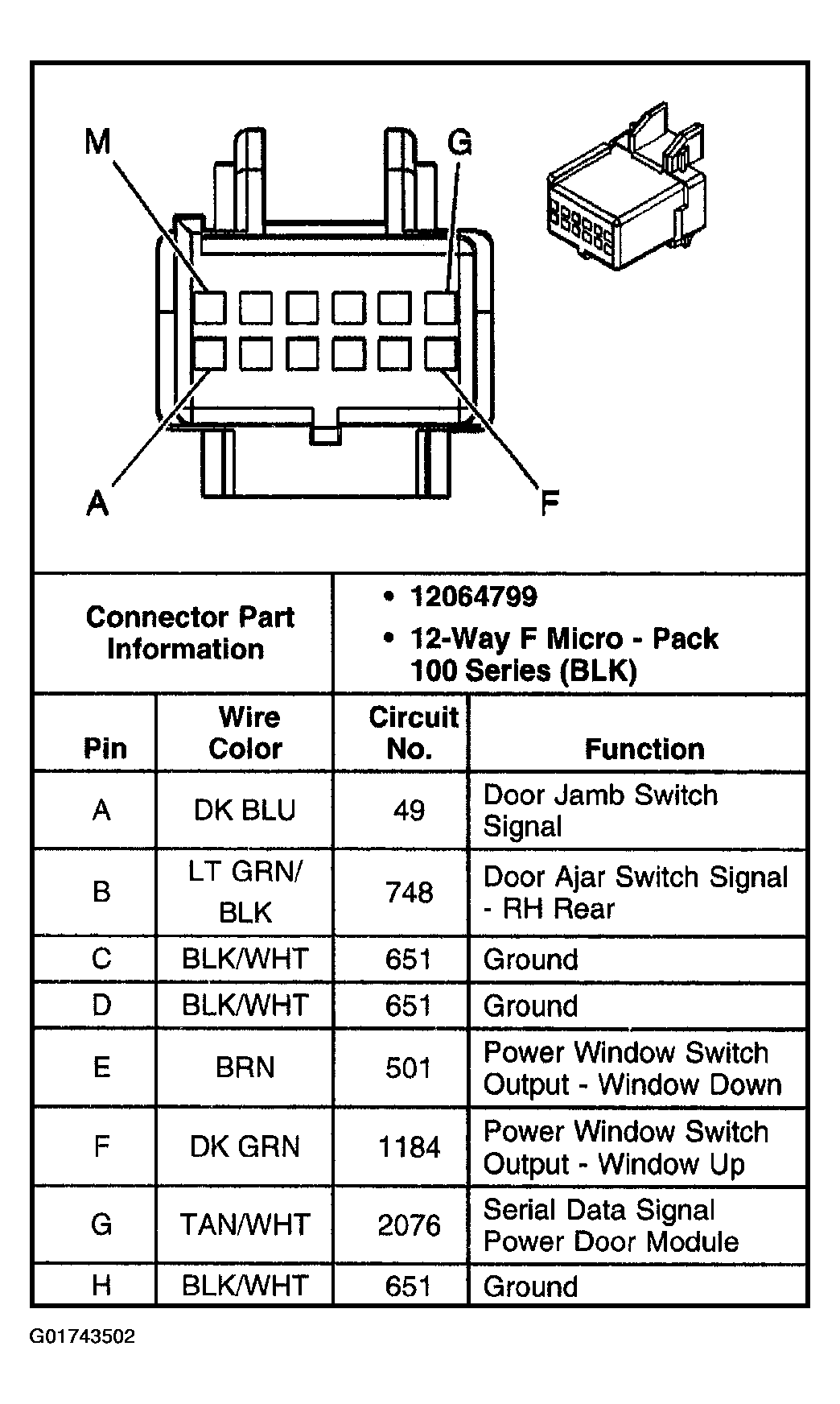

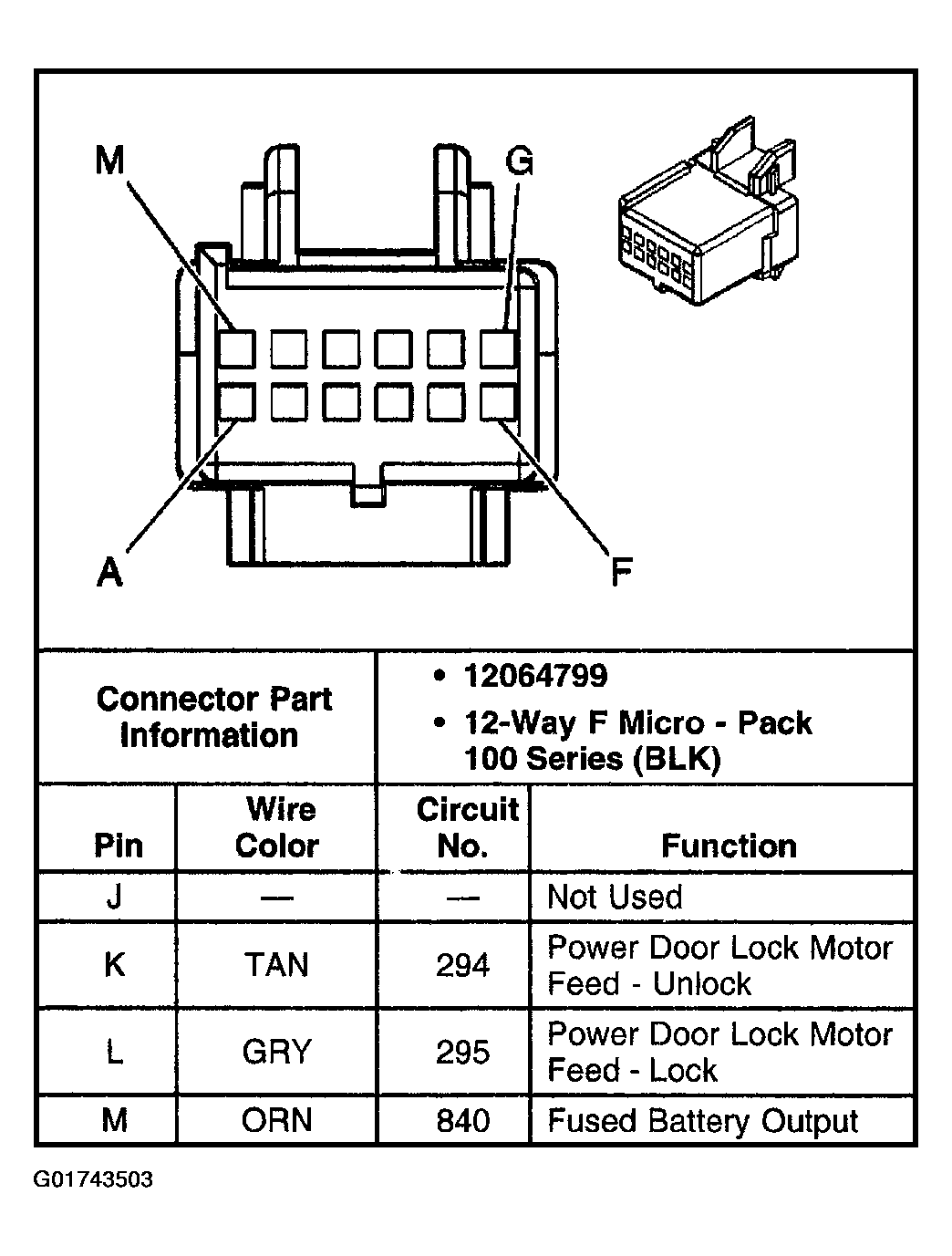

Fig 31: Right Rear Door Module - (RRDM) C1 (1 Of 2)

G01743502

Courtesy of GENERAL MOTORS CORP.

Fig 32: Right Rear Door Module - (RRDM) C1 (2 Of 2)

G01743503

Courtesy of GENERAL MOTORS CORP.

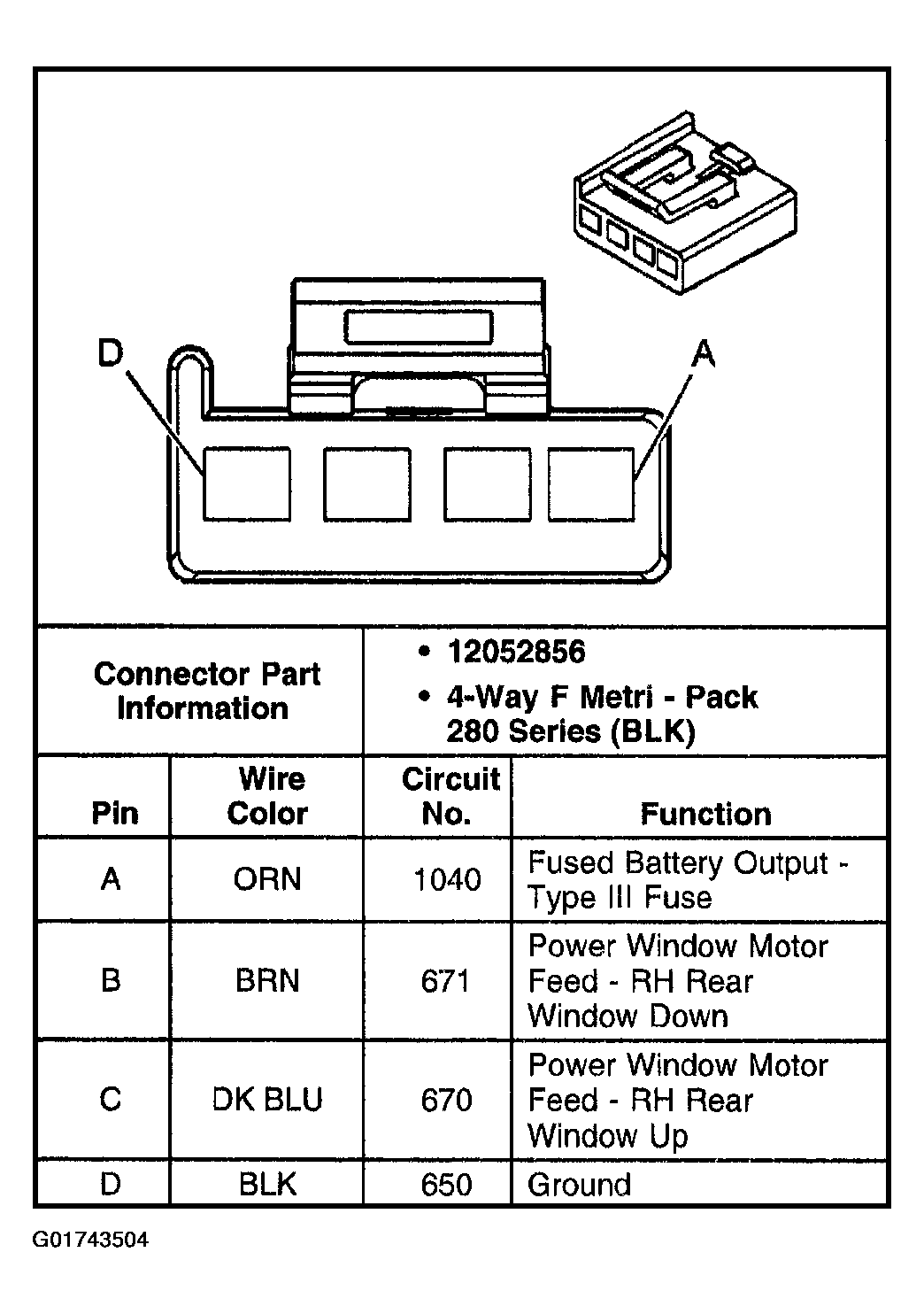

Fig 33: Right Rear Door Module (RRDM) C2

G01743504

Courtesy of GENERAL MOTORS CORP.

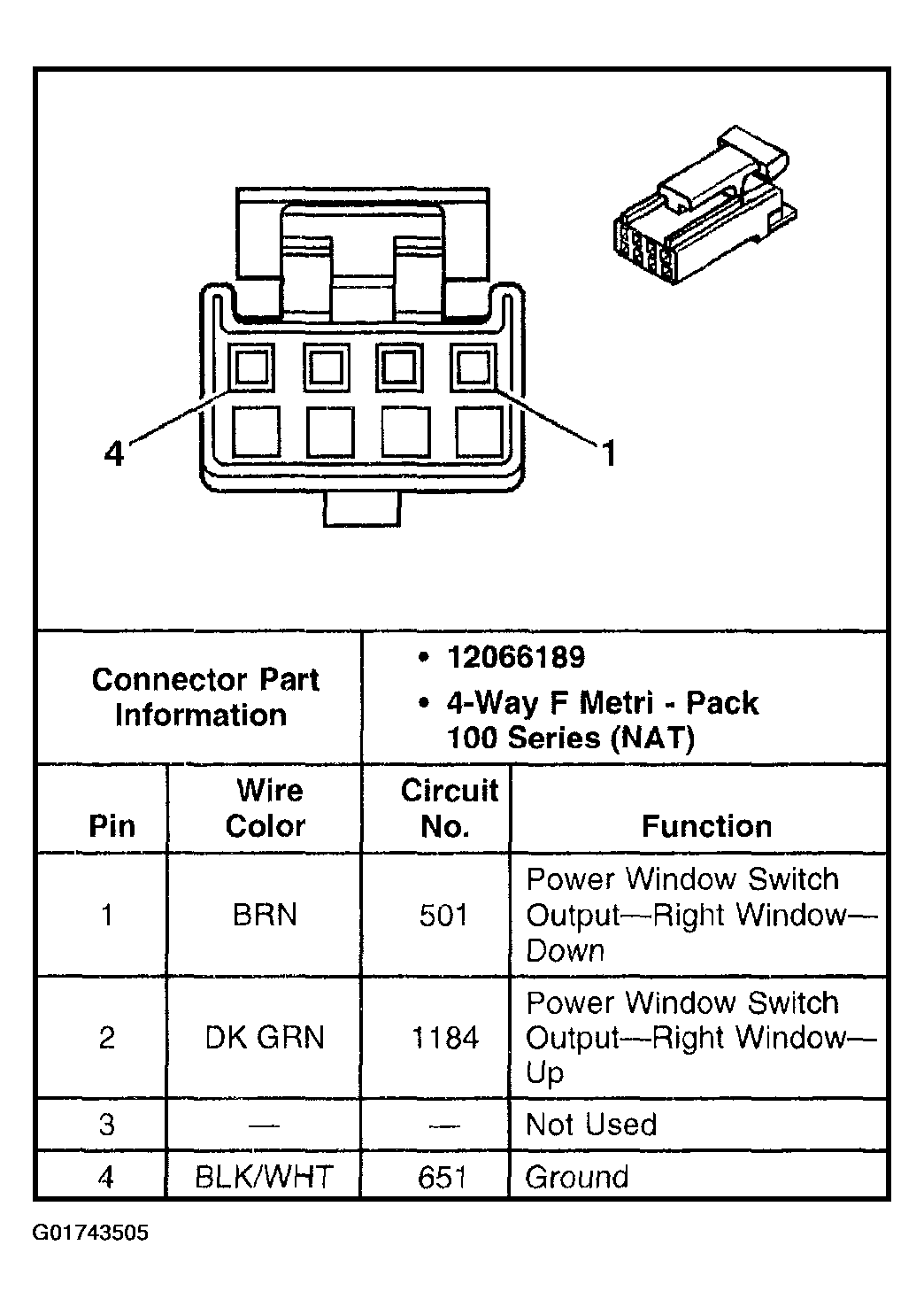

Fig 34: Window Switch - RR

G01743505

Courtesy of GENERAL MOTORS CORP.

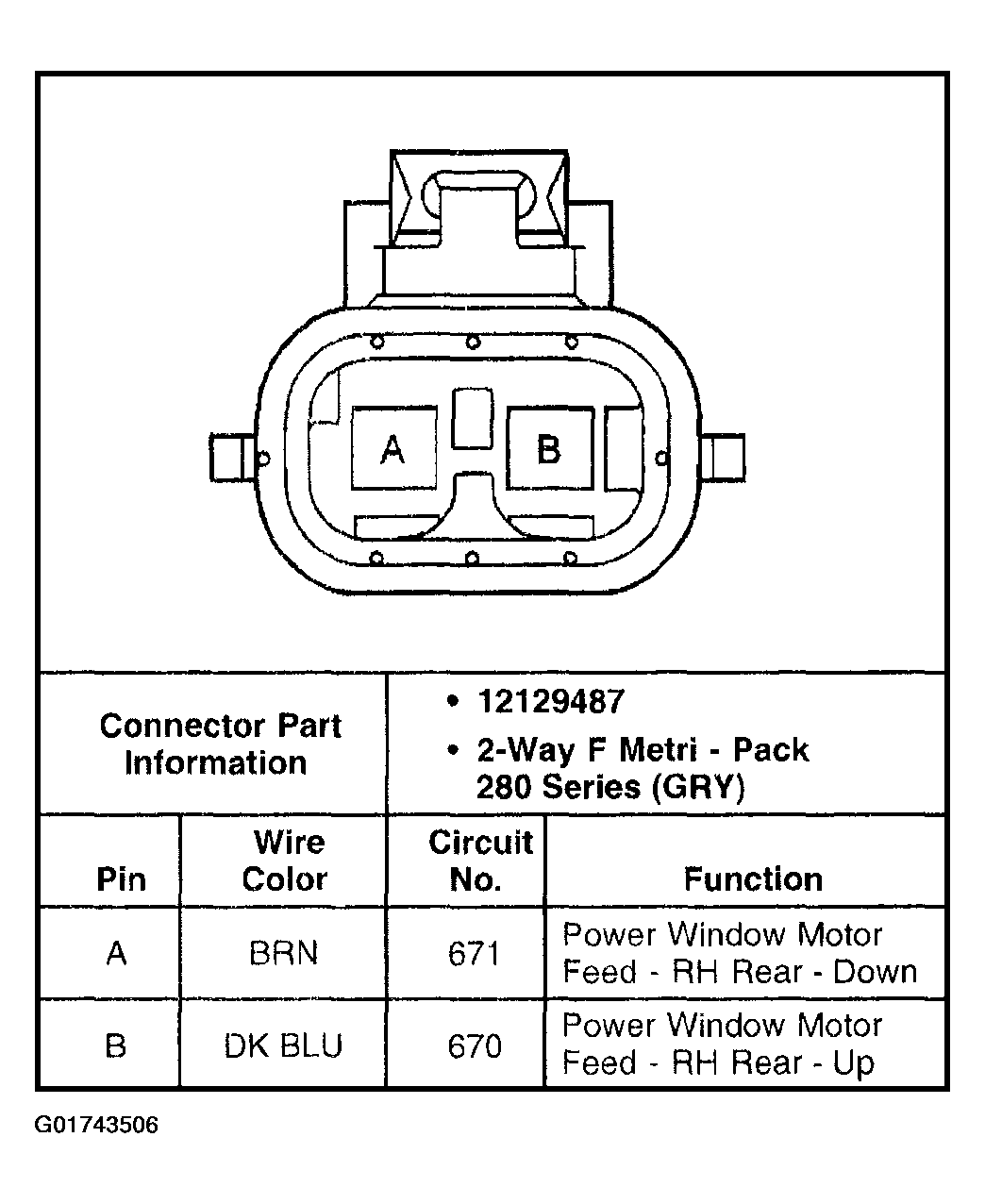

Fig 35: Window Motor - RR

G01743506

Courtesy of GENERAL MOTORS CORP.
