Automatic Transmission Shift Lock Control Connector End Views

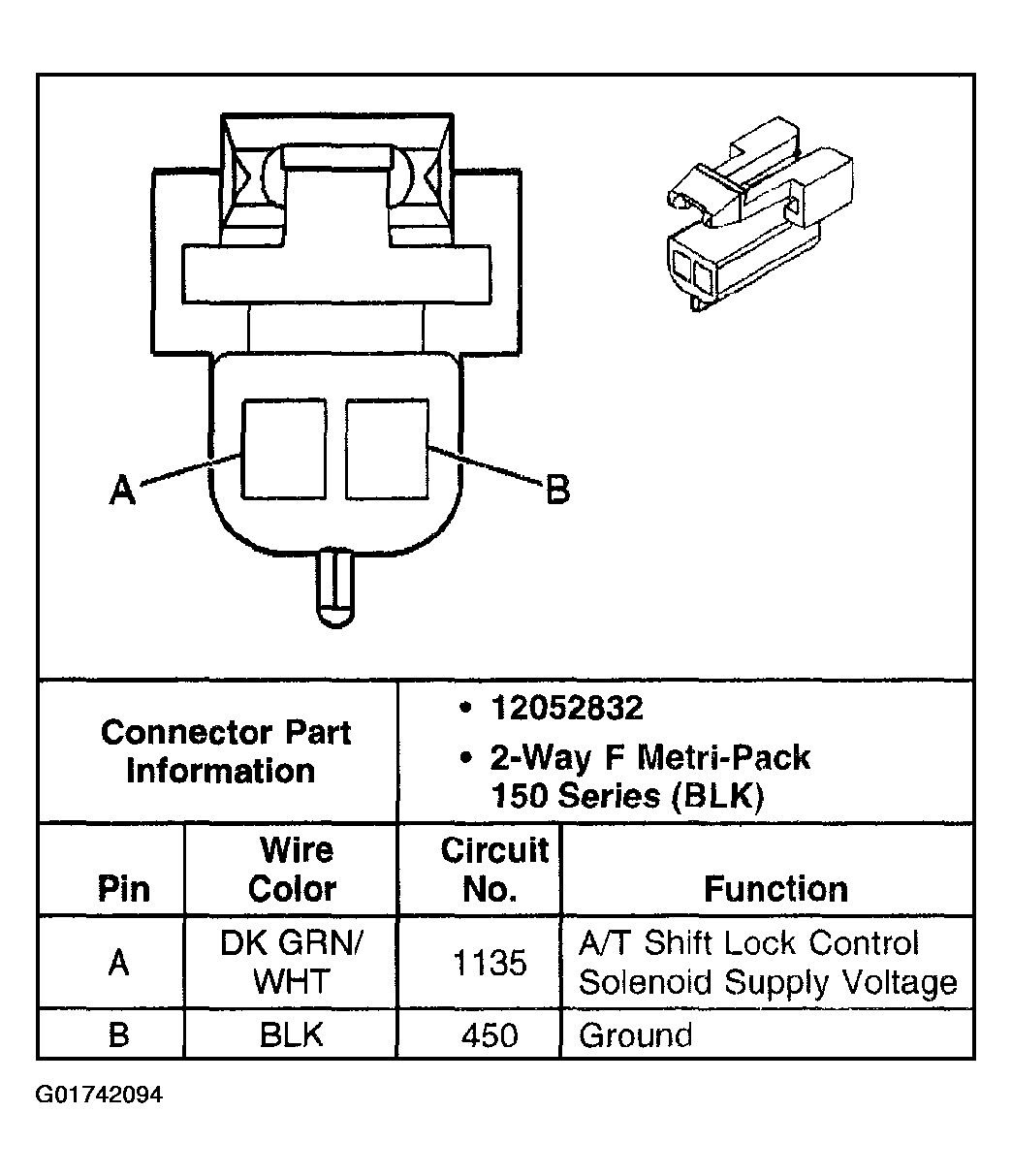

Fig 1: Shift Control Assembly C1

Courtesy of GENERAL MOTORS CORP.

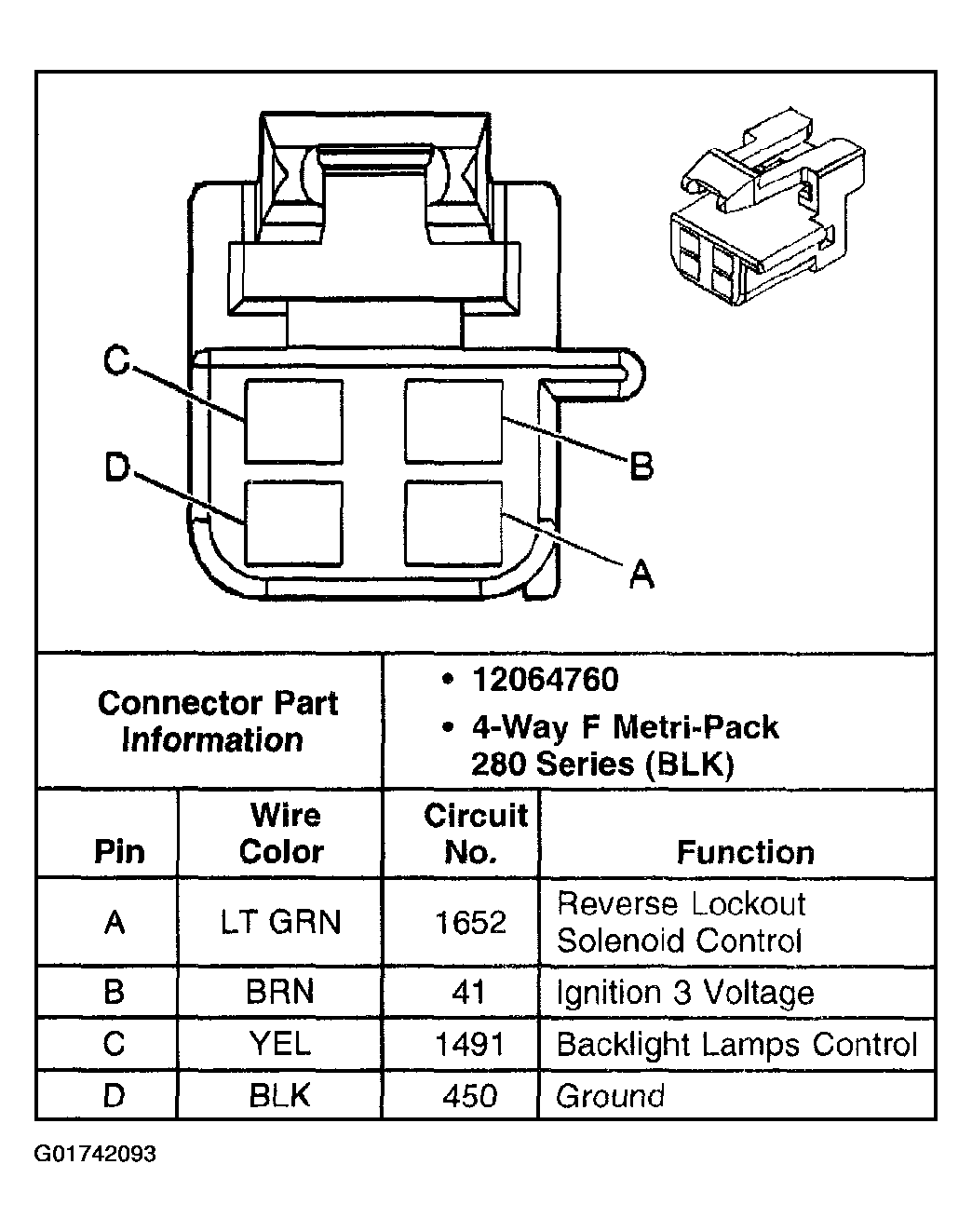

Fig 2: Shift Control Assembly C2

Courtesy of GENERAL MOTORS CORP.

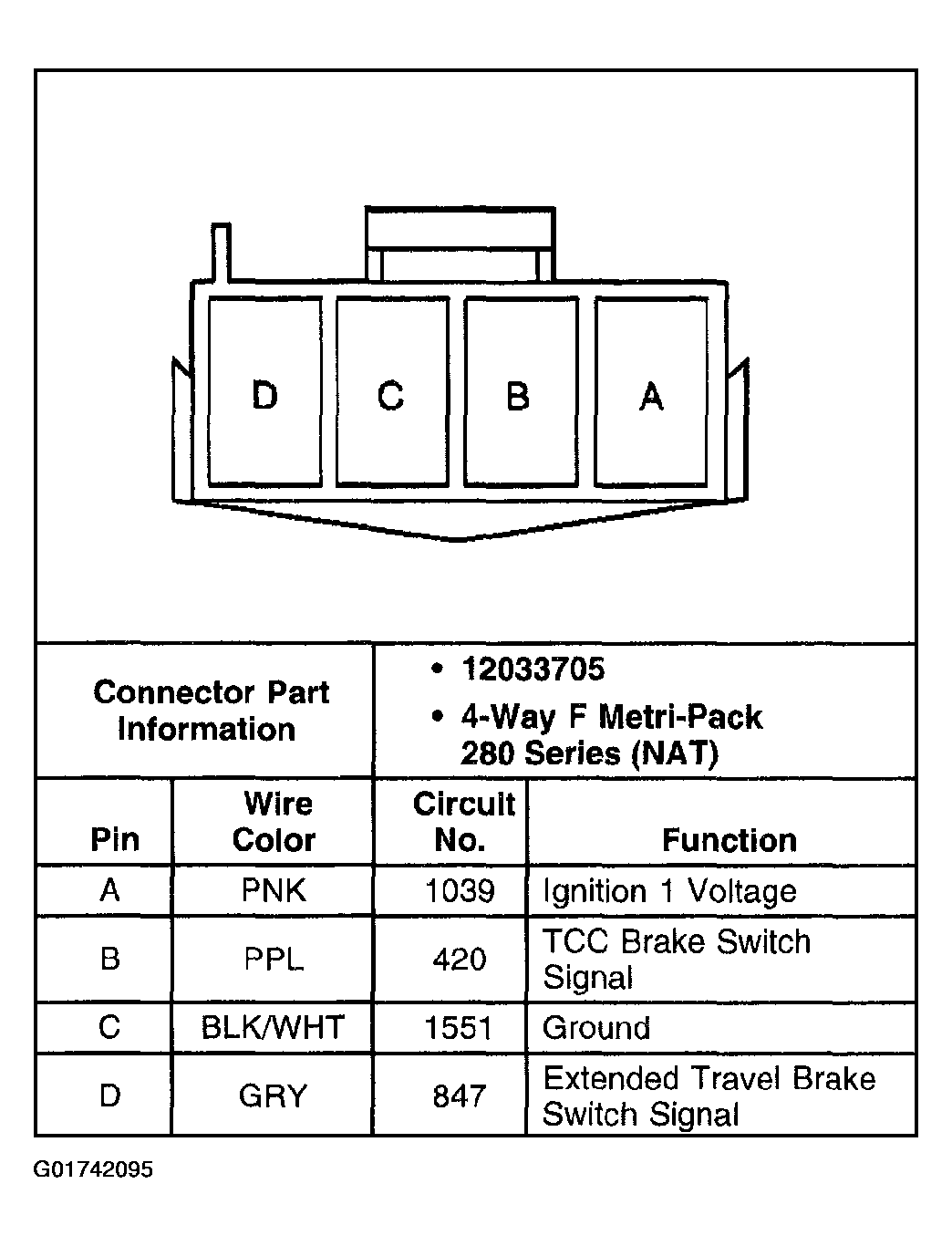

Fig 3: TCC/Cruise Release Switch

Courtesy of GENERAL MOTORS CORP.
