HVAC Control Module Connector End View

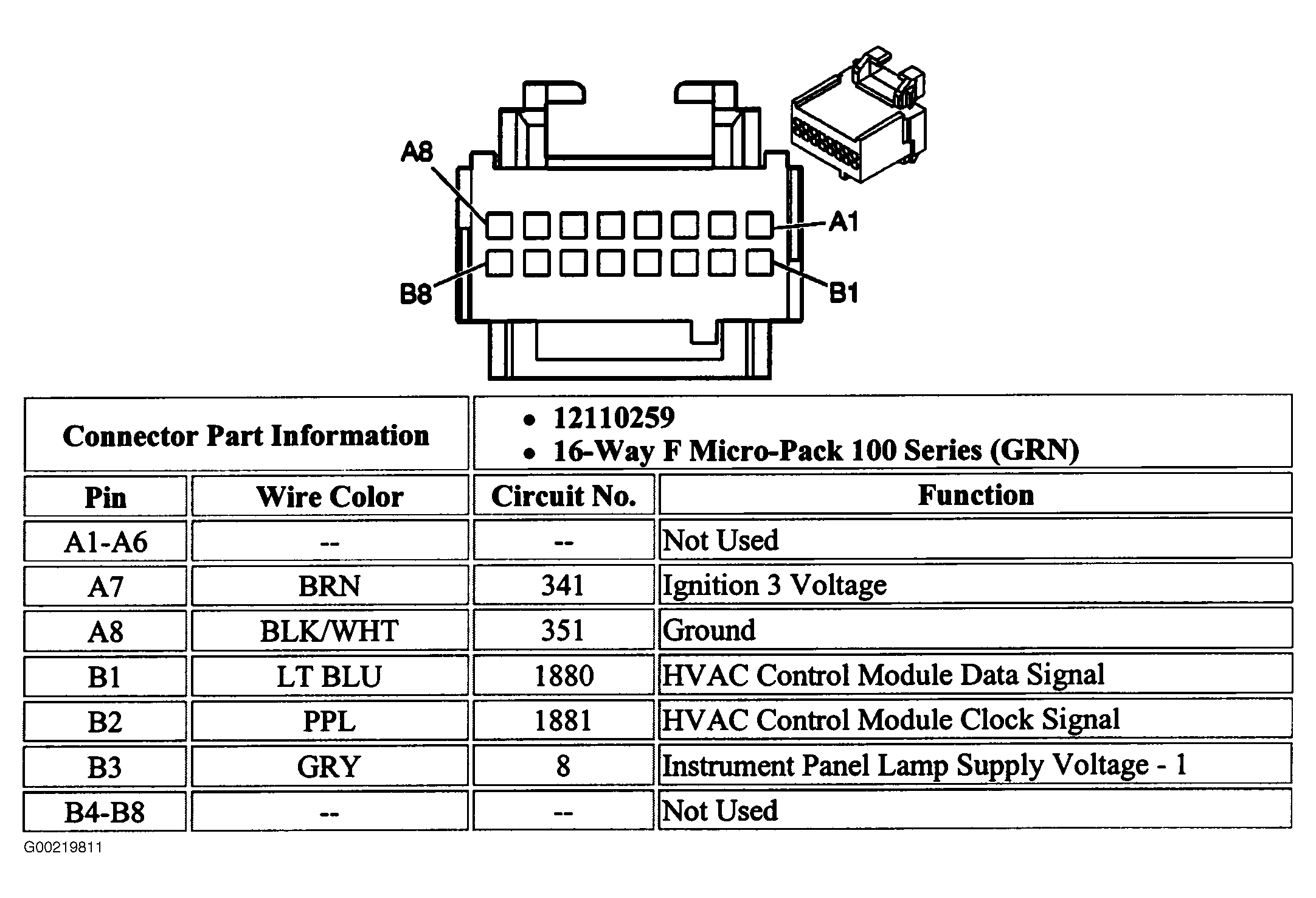

Fig 1: HVAC Control Module Connector End View
Courtesy of GENERAL MOTORS CORP.
