Memory/Personalization Function Switch Connector End View

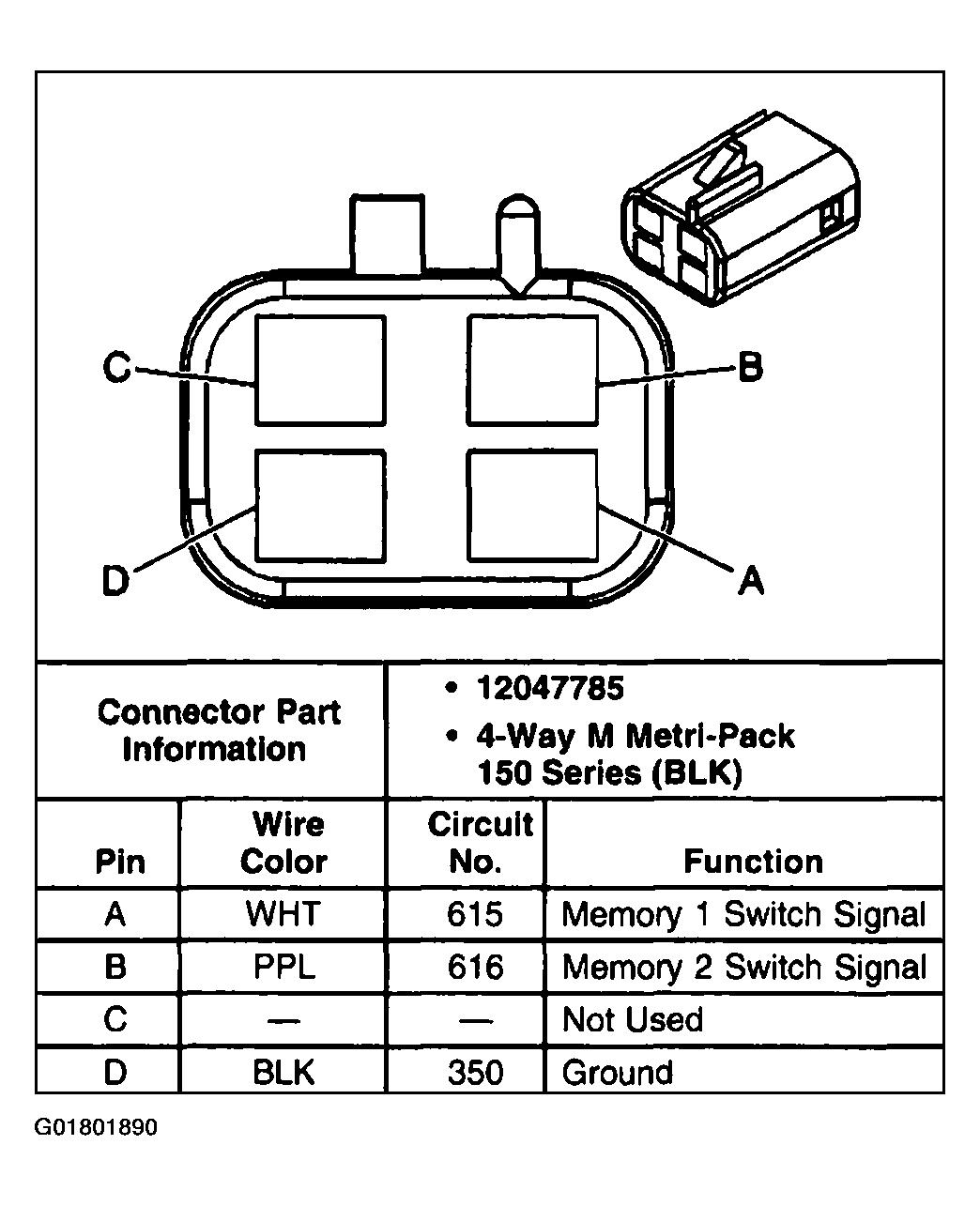

Fig 1: Memory/Personalization Function Switch Connector End View
G01801890Courtesy of GENERAL MOTORS CORP.
