Keyless Entry Component Views

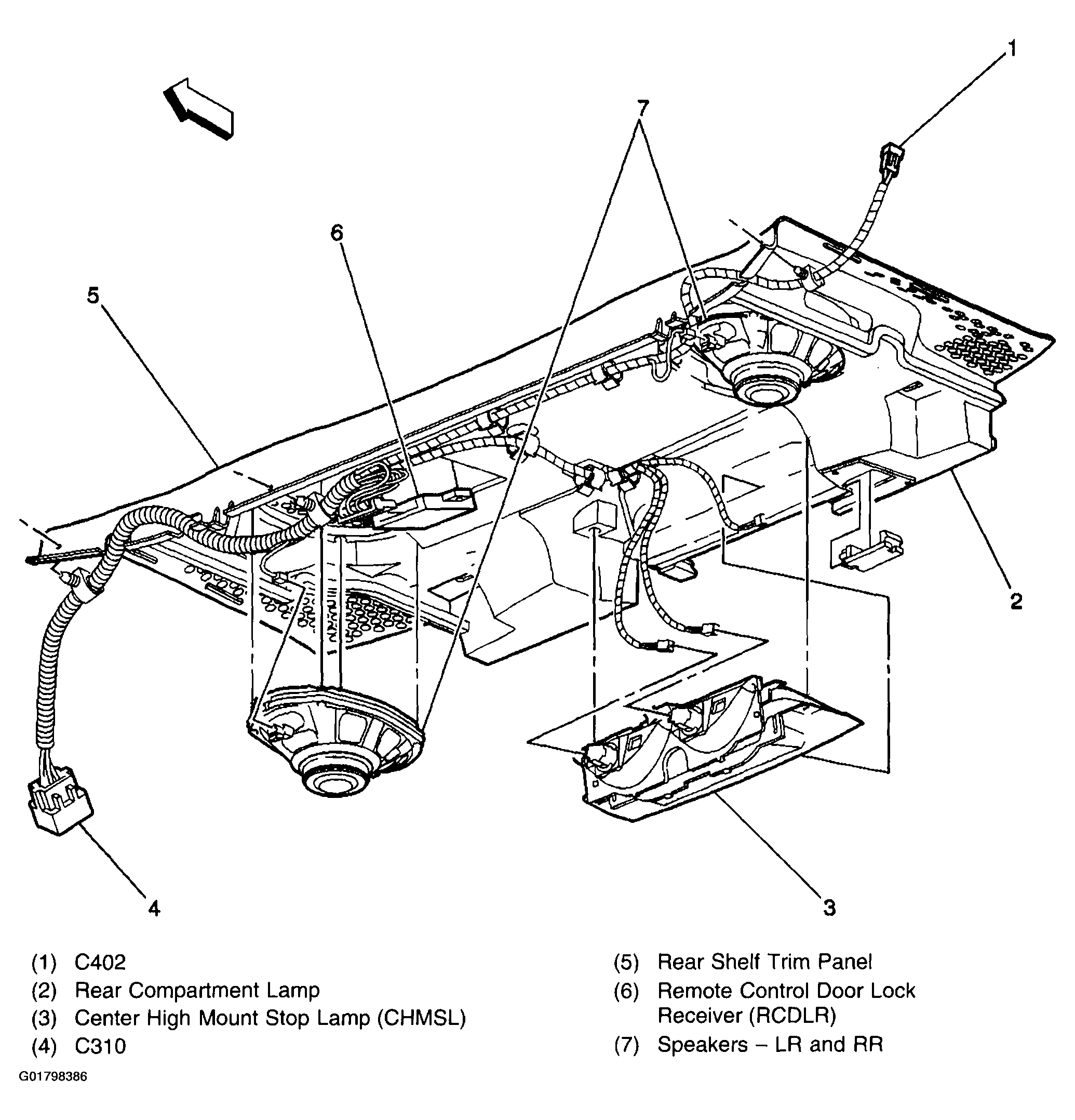

Fig 1: Locating Keyless Entry Components
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
