Removal Procedure

  1. Remove rear shelf trim from inside of rear storage compartment.
  2. Disconnect the electrical connector from the module.
  3. Remove the module retainers (2).
  4. Remove RFA module (1) from the shelf (2).

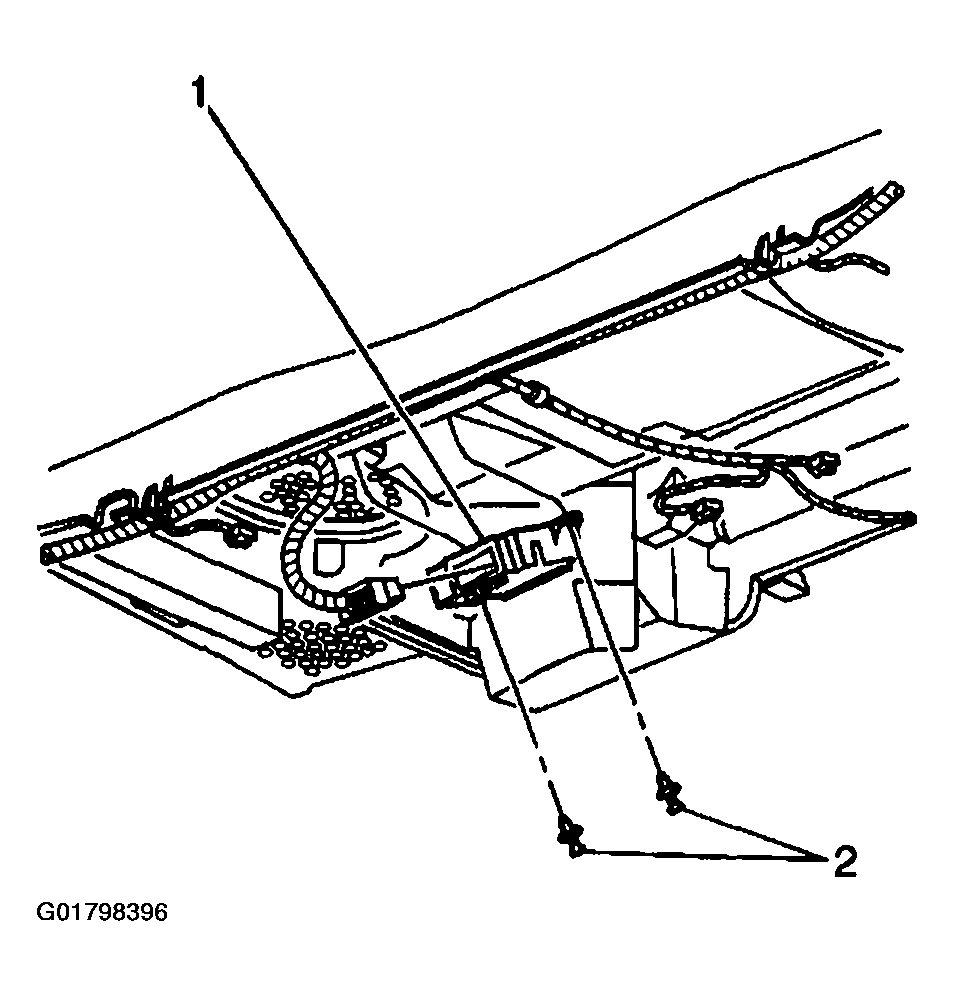

    5. Fig 1: Locating RFA Module
    G01798396Courtesy of GENERAL MOTORS CORP.
