Installation Procedure

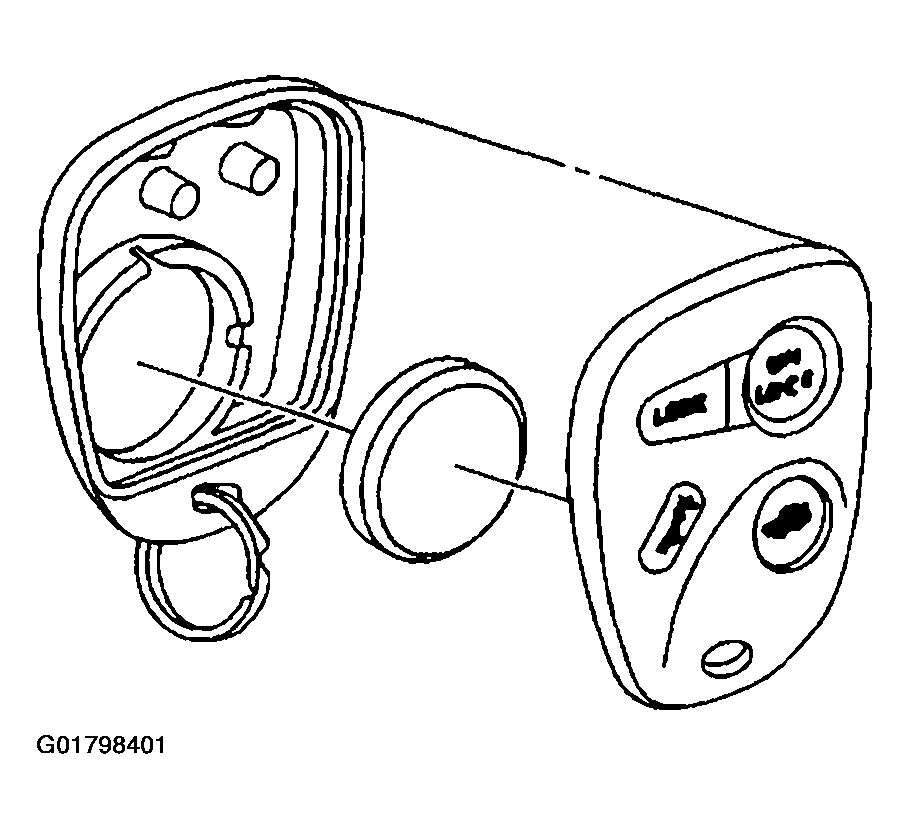

- Install the battery (2) with the positive (+) side up. Use one 3 V CR2032 battery (or the equivalent).
- Close the transmitter case (6, 4).
- Ensure that the seal is in position. Align the 2 halves of the case and snap the 2 halves together.
- Resynchronize the transmitter.
- Replace the batteries when the range of the transmitter decreases to less than 7 m (23 ft).
