Power Door Systems Component Views

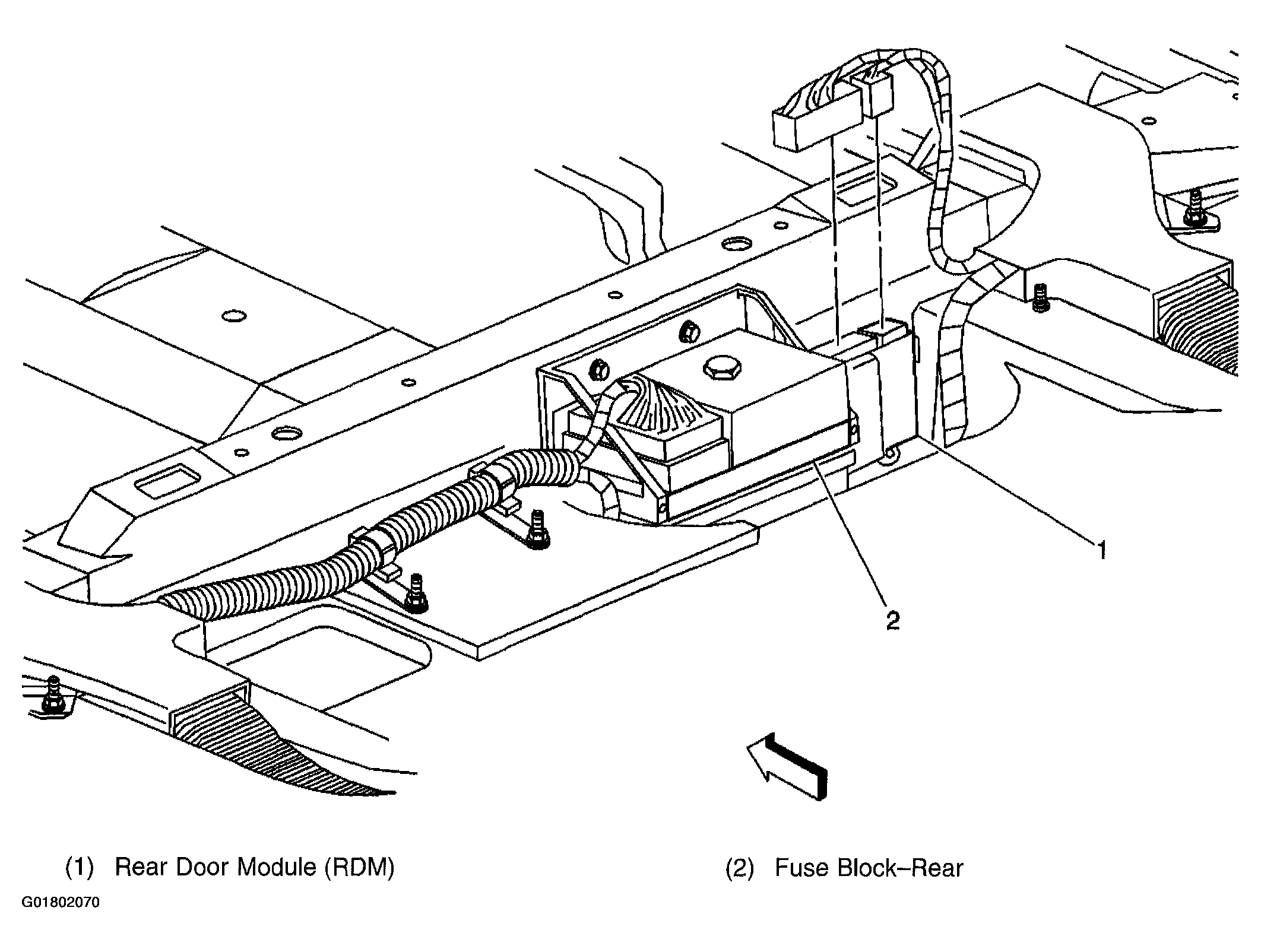

Fig 1: Locating Rear Door Module (Under Rear Seat)

Courtesy of GENERAL MOTORS CORP.

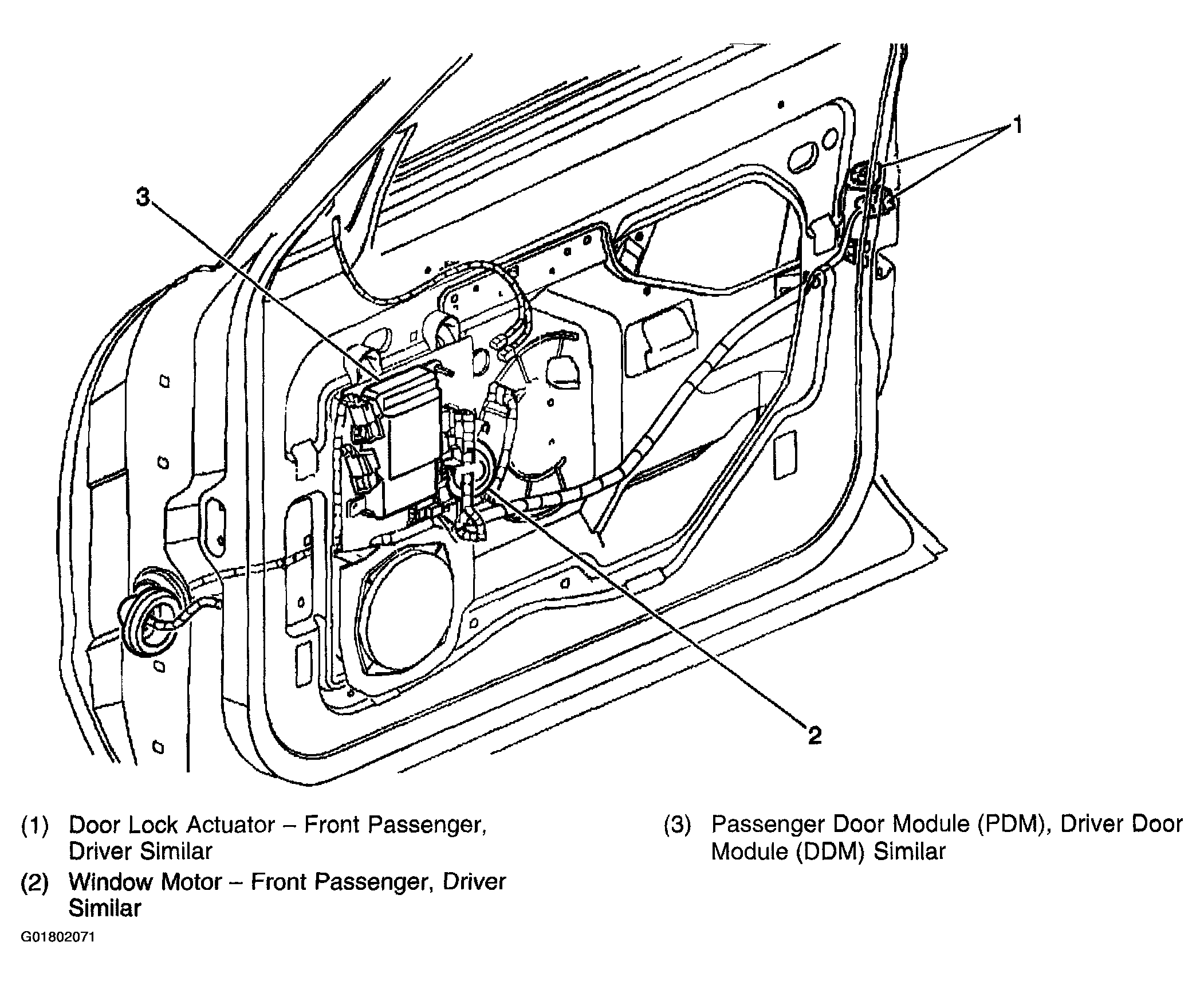

Fig 2: Locating Power Door Lock & Window Components (Right Front Door)

Courtesy of GENERAL MOTORS CORP.

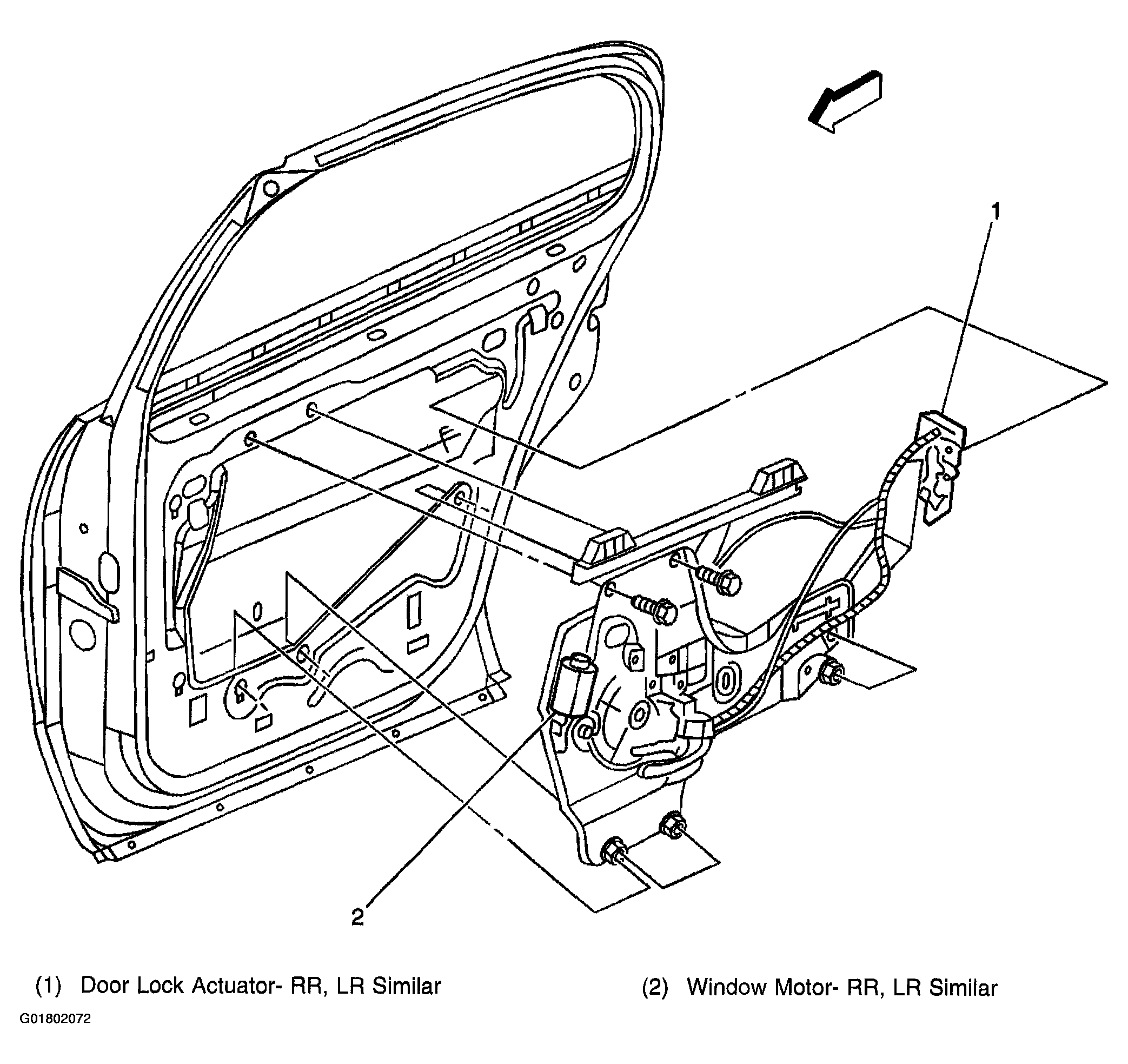

Fig 3: Locating Power Door Lock & Window Components (Right Rear Door)

Courtesy of GENERAL MOTORS CORP.

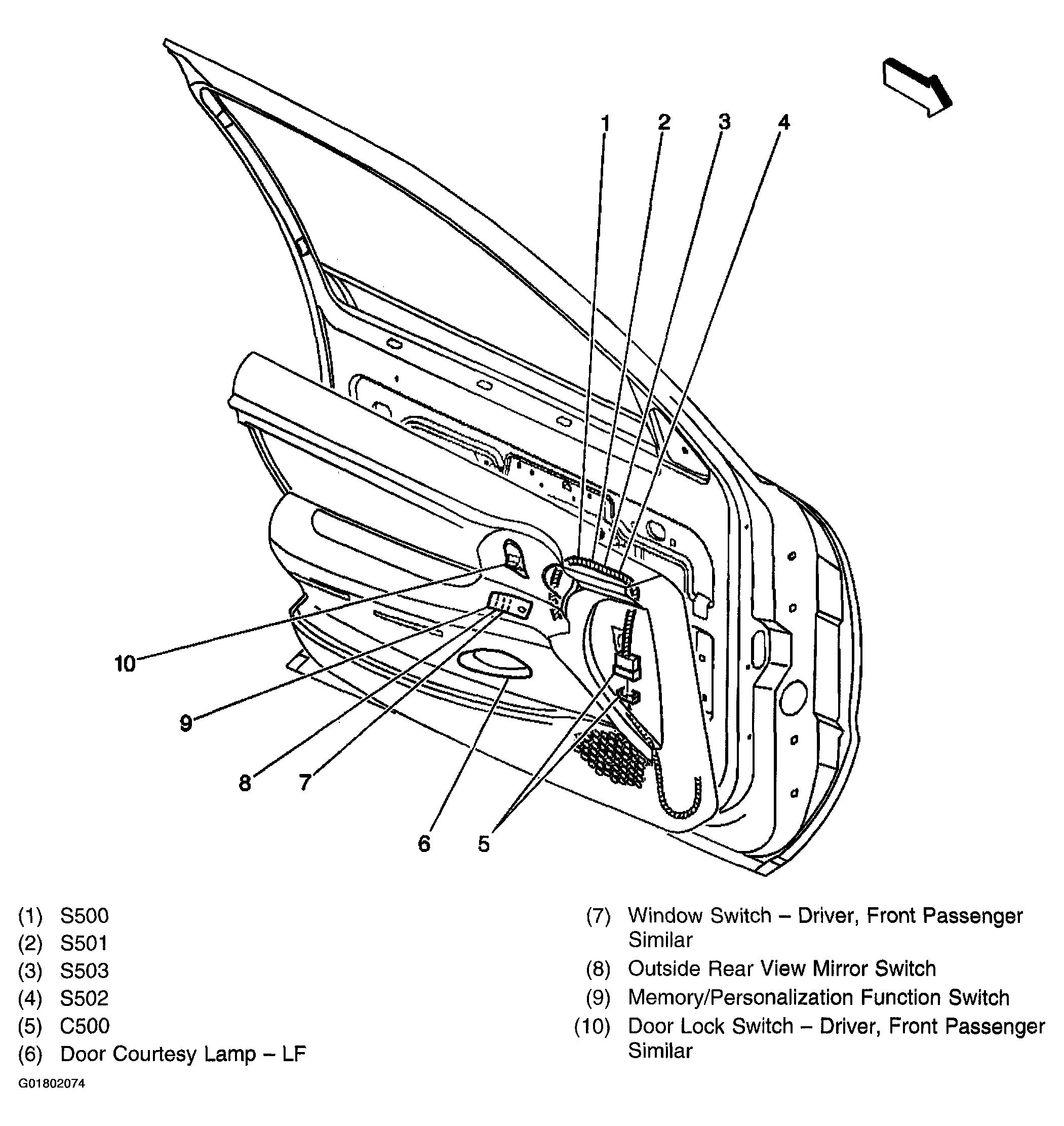

Fig 4: Locating Power Door Lock & Window Components (Left Front Door)

Courtesy of GENERAL MOTORS CORP.
