Removal Procedure

  1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Remove the door control module. Refer to Door Control Module Replacement - Front .
  3. Remove the water deflector. Refer to Water Deflector Replacement - Front Door .
  4. Remove the speaker assembly. Refer to SPEAKER REPLACEMENT - FRONT LOWER .
  5. Remove the window. Refer to Window Replacement - Front Door .
  6. Disconnect the lock rod from the outside door handle.
  7. Disconnect the outside handle rod.
  8. Remove the 3 fasteners from the door latch assembly.

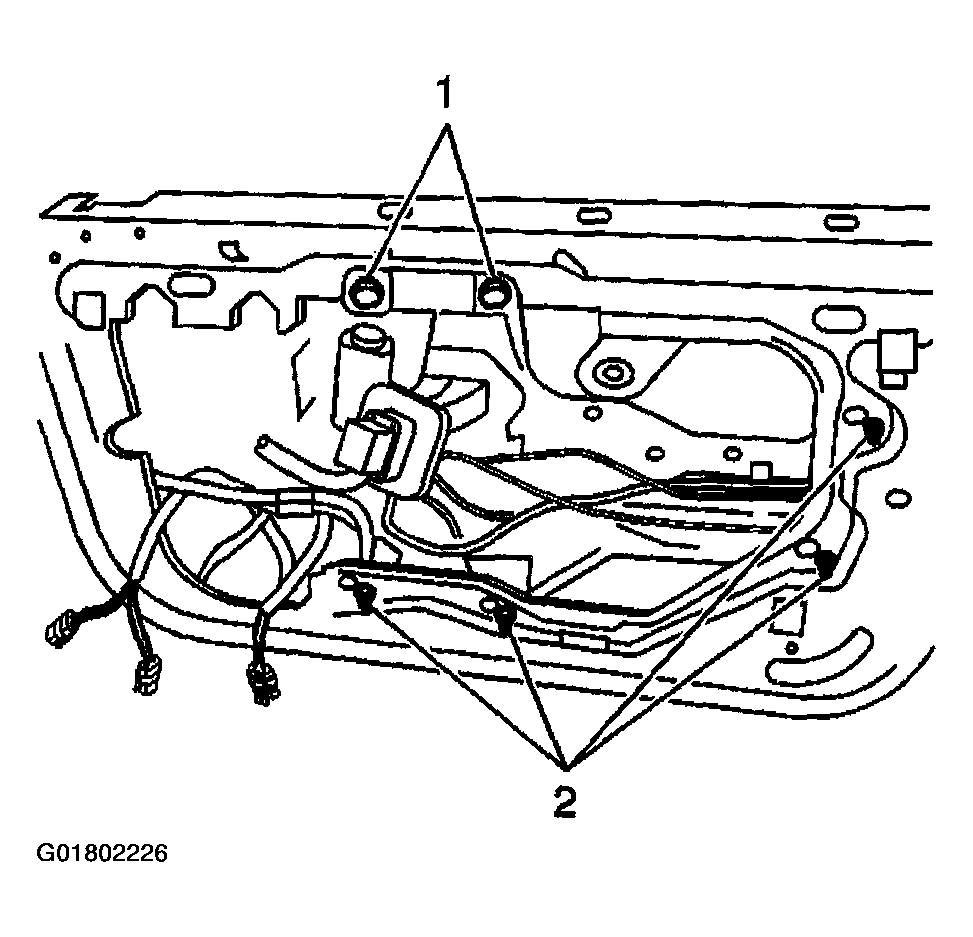

  9. Remove the 2 upper fasteners (1) from the module.
    10. Fig 1: Door Latch & Module Assembly Fasteners
    G01802226Courtesy of GENERAL MOTORS CORP.
  10. Loosen the remaining fasteners (2).

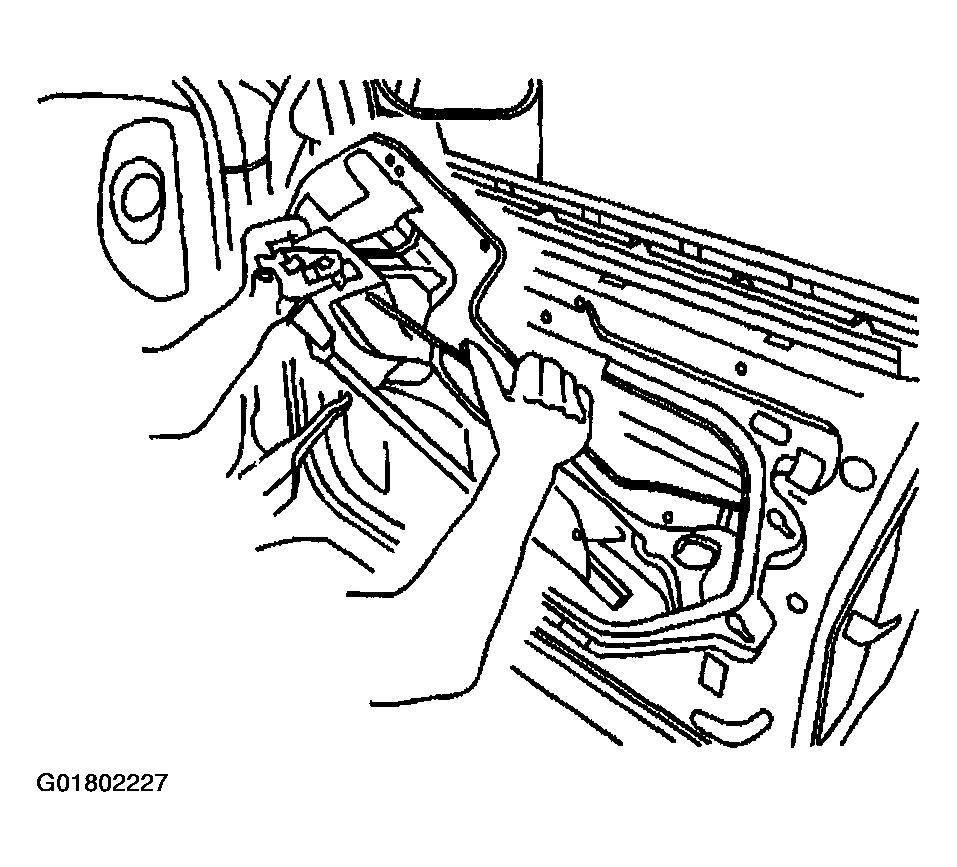

  11. Remove the module assembly.
    Fig 2: Removing Front Power window Module
    G01802227Courtesy of GENERAL MOTORS CORP.

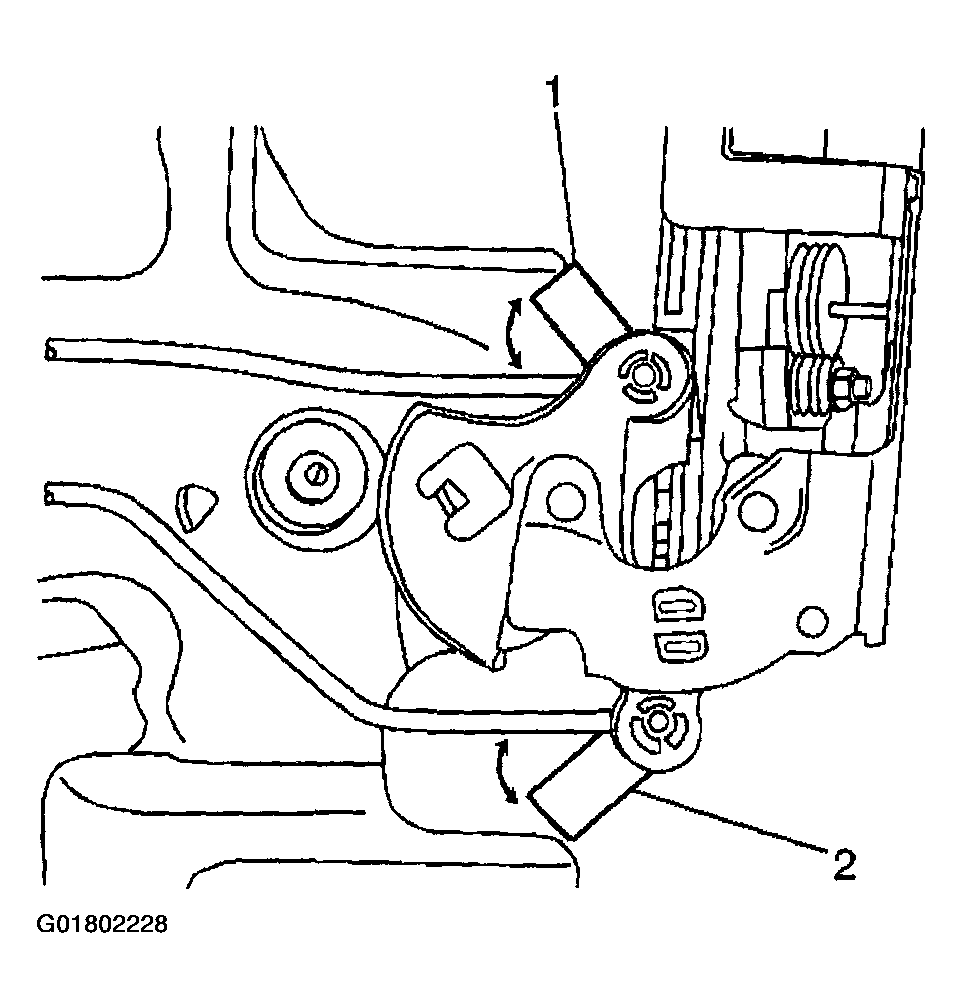

  12. Disconnect the inside door handle and lock rods from the door latch by releasing the retainers (1,2).
    Fig 3: Inside Door Handle & Lock Rods
    G01802228Courtesy of GENERAL MOTORS CORP.

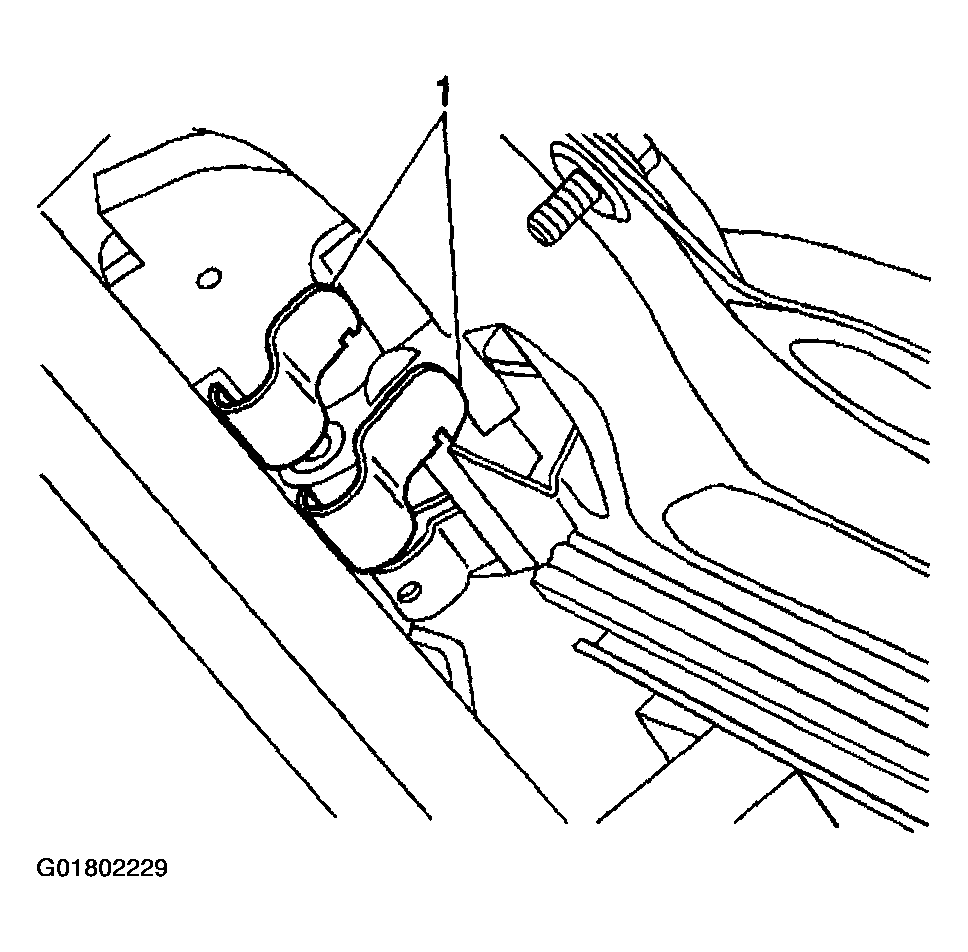

  13. Lift the door latch off the retainer (1).
    Fig 4: Door Latch Retainer
    G01802229Courtesy of GENERAL MOTORS CORP.
