ABS Component Views

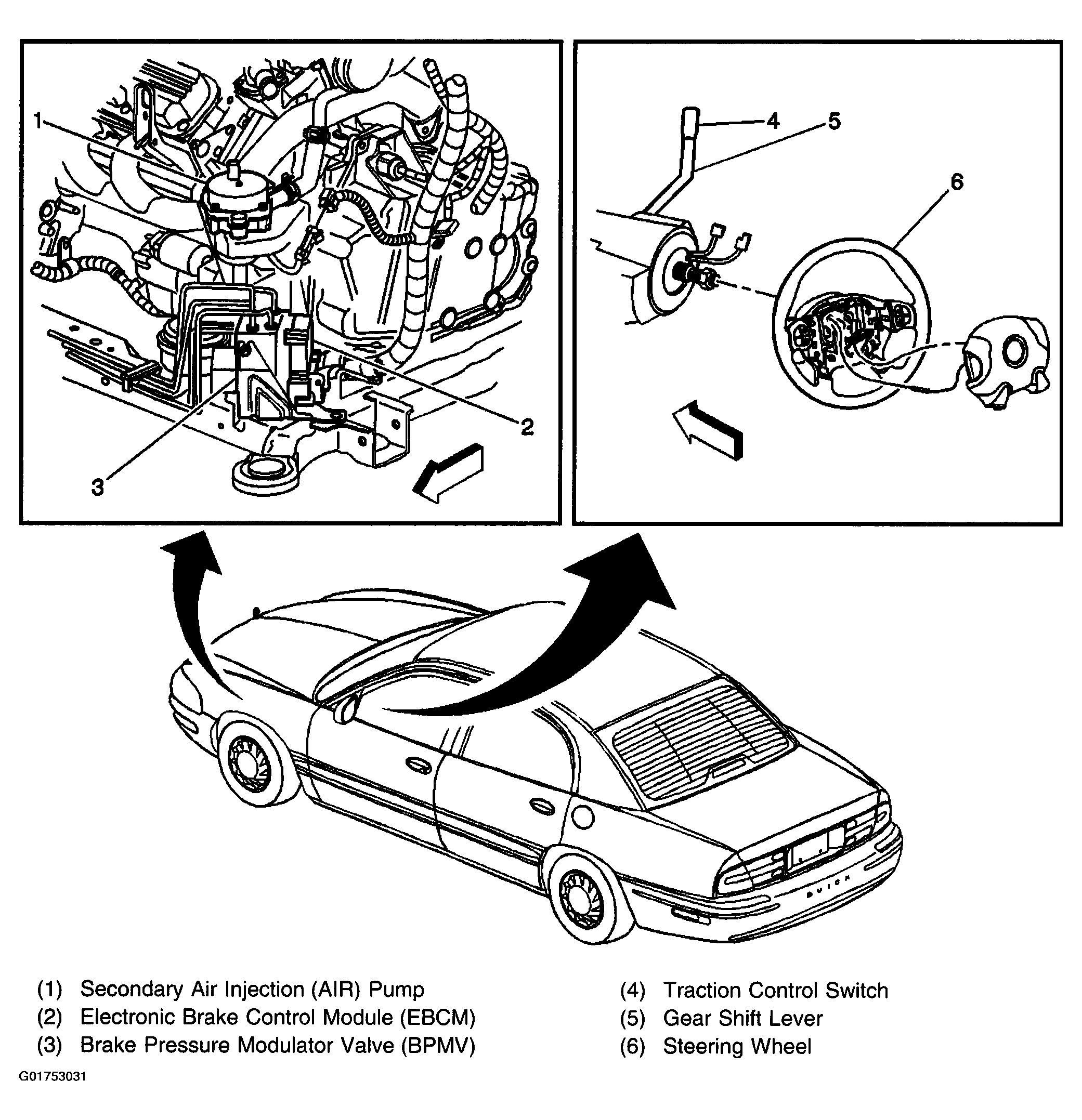

Fig 1: Locating ABS Components (1 Of 2)
G01753031Courtesy of GENERAL MOTORS CORP.

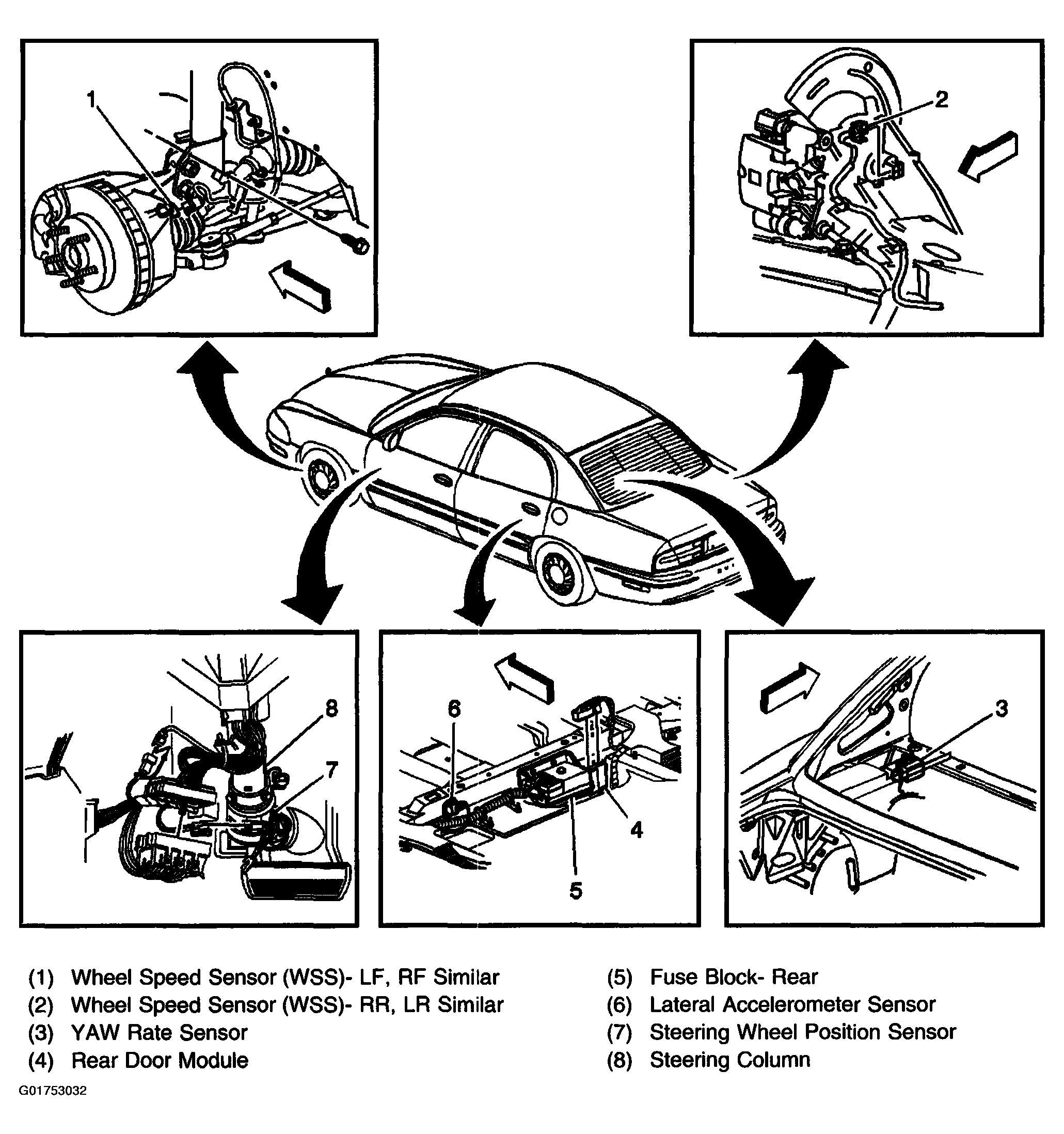

Fig 2: Locating ABS Components (2 Of 2)
G01753032Courtesy of GENERAL MOTORS CORP.
