Scan Tool Output Controls

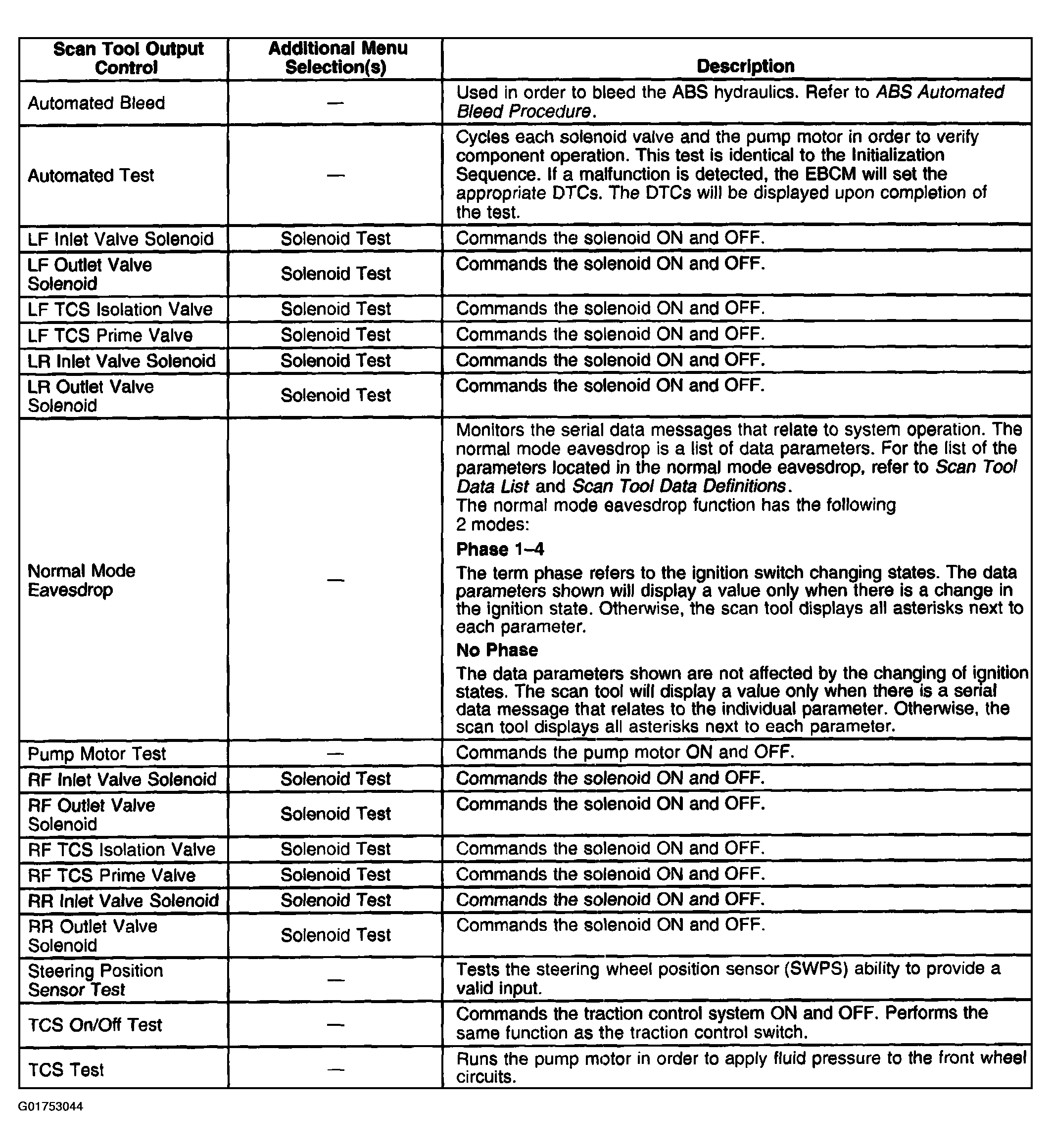

Fig 1: Electronic Brake Control Module (EBCM) Scan Tool Output Controls
G01753044Courtesy of GENERAL MOTORS CORP.
