Removal Procedure

  1. Turn OFF the ignition.
  2. Raise and support the vehicle.
  3. Remove the left front tire and wheel assembly.
  4. Remove the left front fascia extension.

    Important:  The area around the electronic brake control module (EBCM) must be free from loose dirt to prevent contamination of dissembled ABS components.

  5. Thoroughly clean all of the contaminants from and around the EBCM assembly.
  6. Remove the EBCM connector position assurance (2) from the EBCM electrical connector (1).

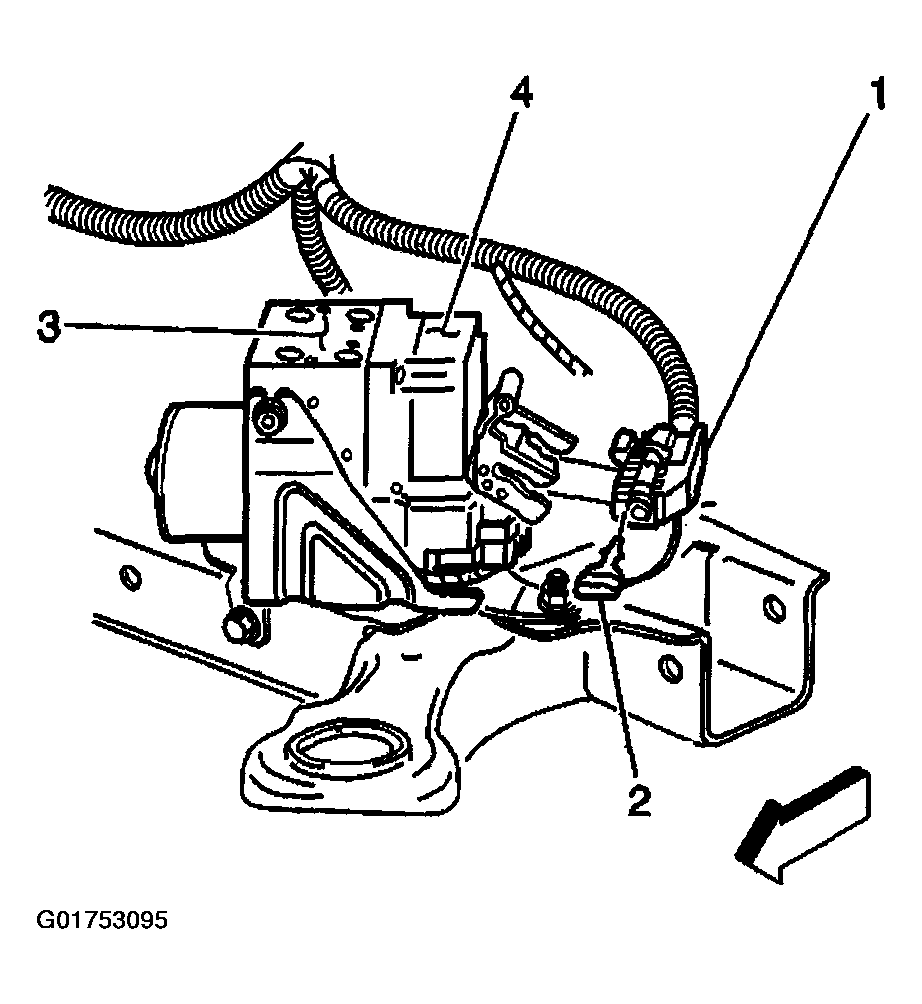

    Fig 1: Locating EBCM Assembly
    G01753095Courtesy of GENERAL MOTORS CORP.
  7. Rotate the EBCM connector tab up to the unlocked position.
    NOTE: To prevent equipment damage, never connect or disconnect the wiring harness connection from the EBCM with the ignition switch in the ON position.
  8. Disconnect the EBCM electrical connector (1) from the EBCM (4).
  9. Disconnect the brake pressure modulator valve (BPMV) electrical connector (2) from the EBCM (3).

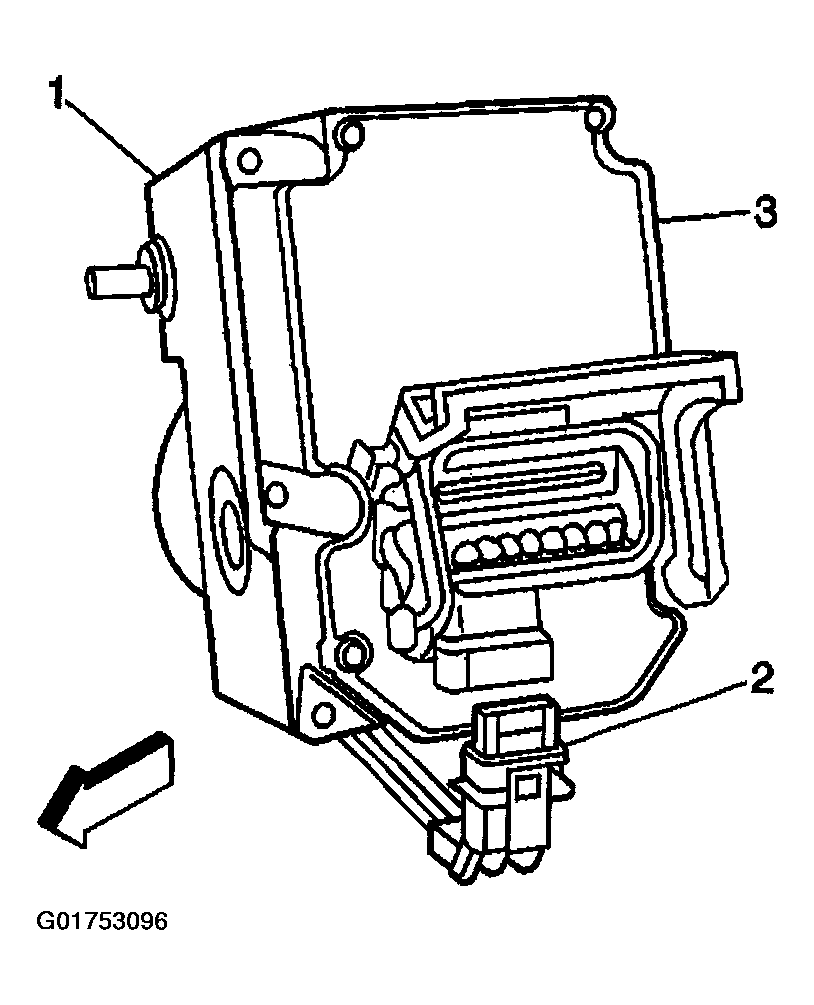

    Fig 2: Brake Pressure Modulator Valve (BPMV)
    G01753096Courtesy of GENERAL MOTORS CORP.
  10. Remove the 6 EBCM to BPMV screws (2).

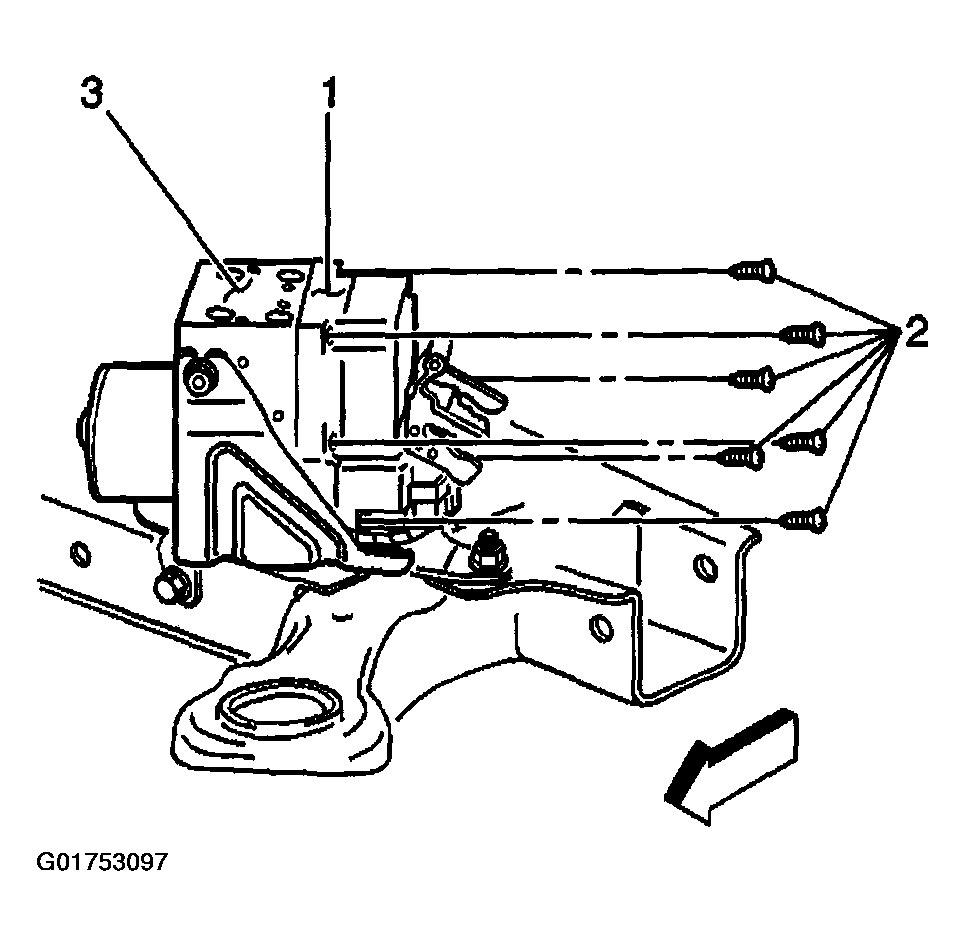

    Fig 3: Removing EBCM-To-BPMV Screws
    G01753097Courtesy of GENERAL MOTORS CORP.
  11. Clean the surface of the EBCM/BPMV assembly.

    Important:  the EBCM cannot be repaired. If faulty, the unit must be replaced.

  12. Separate the EBCM (2) from the BPMV (1).

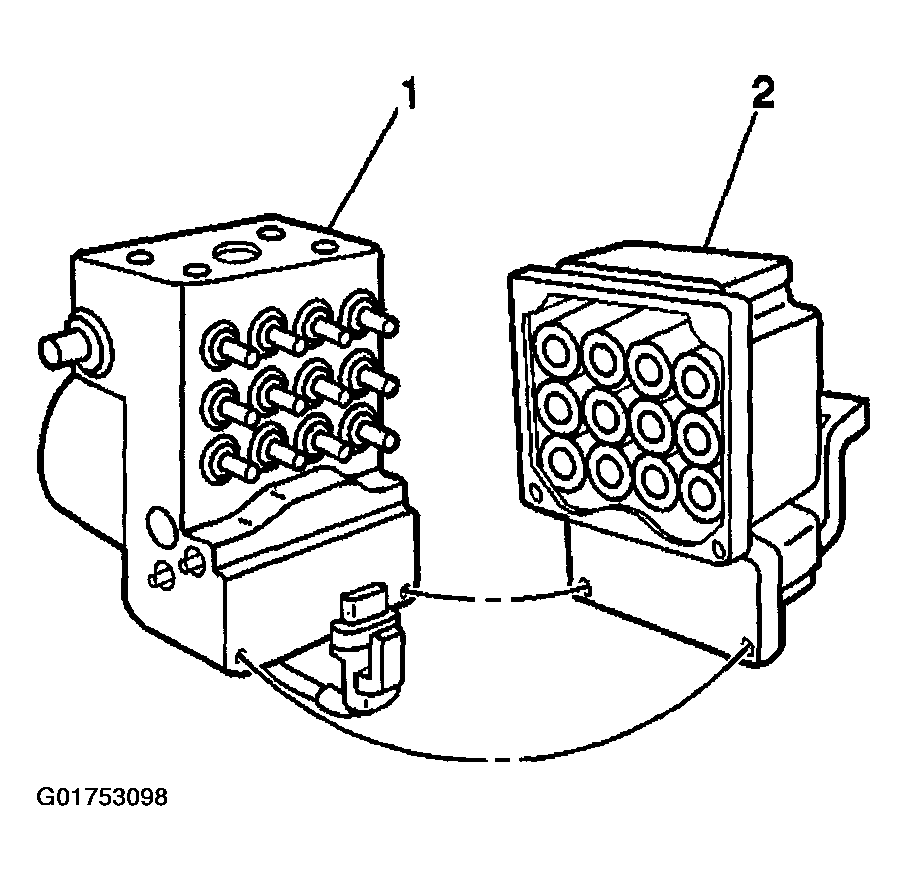

    Fig 4: Separating EBCM From BPMV
    G01753098Courtesy of GENERAL MOTORS CORP.
