Installation Procedure

  1. Position the armrest bracket in place.
    NOTE: Refer to FASTENER NOTICE .

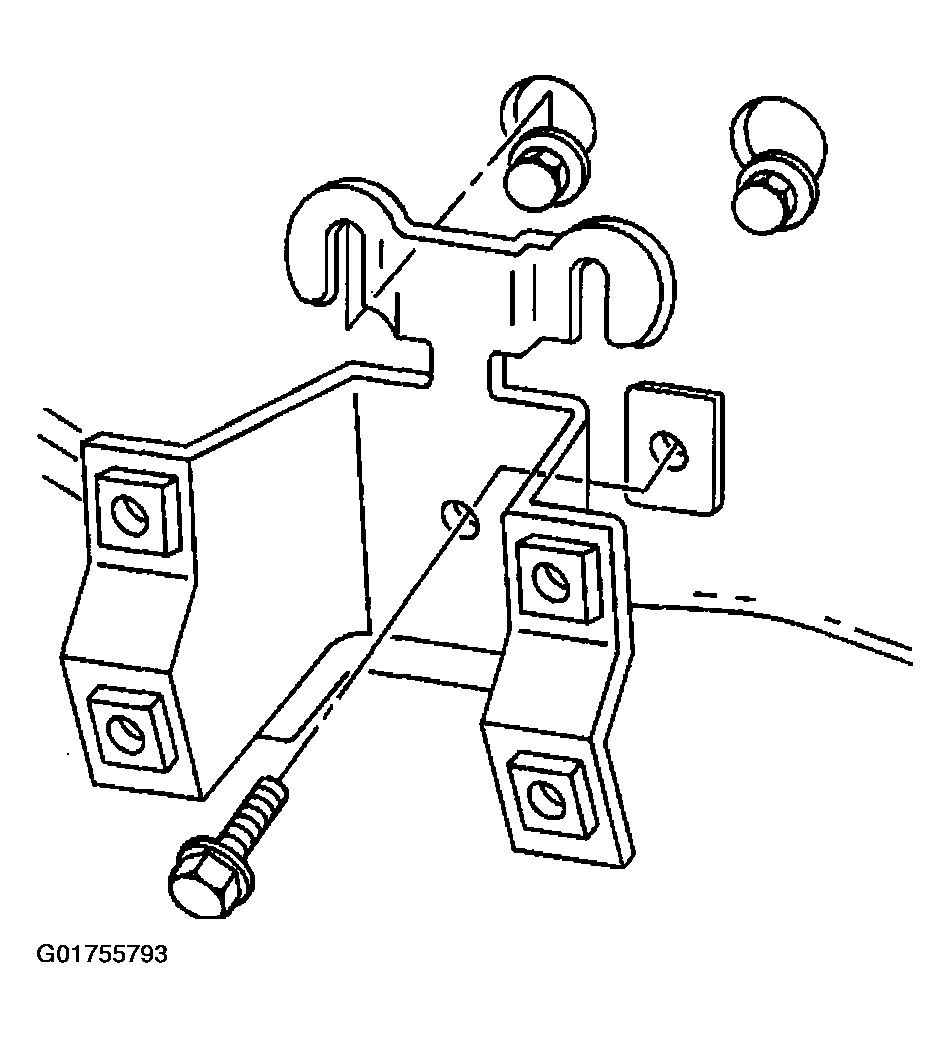

    2. Fig 1: Identifying Armrest Bracket
    G01755793Courtesy of GENERAL MOTORS CORP.
  2. Install the armrest bracket screws. Tighten the screws to 10 N.m (89 in lbs).
  3. Install the water deflector. Refer to Water Deflector Replacement - Rear Door .
  4. Install the trim panel. Refer to Trim Panel Replacement - Side Rear Door .
