Power Door Systems Component Views

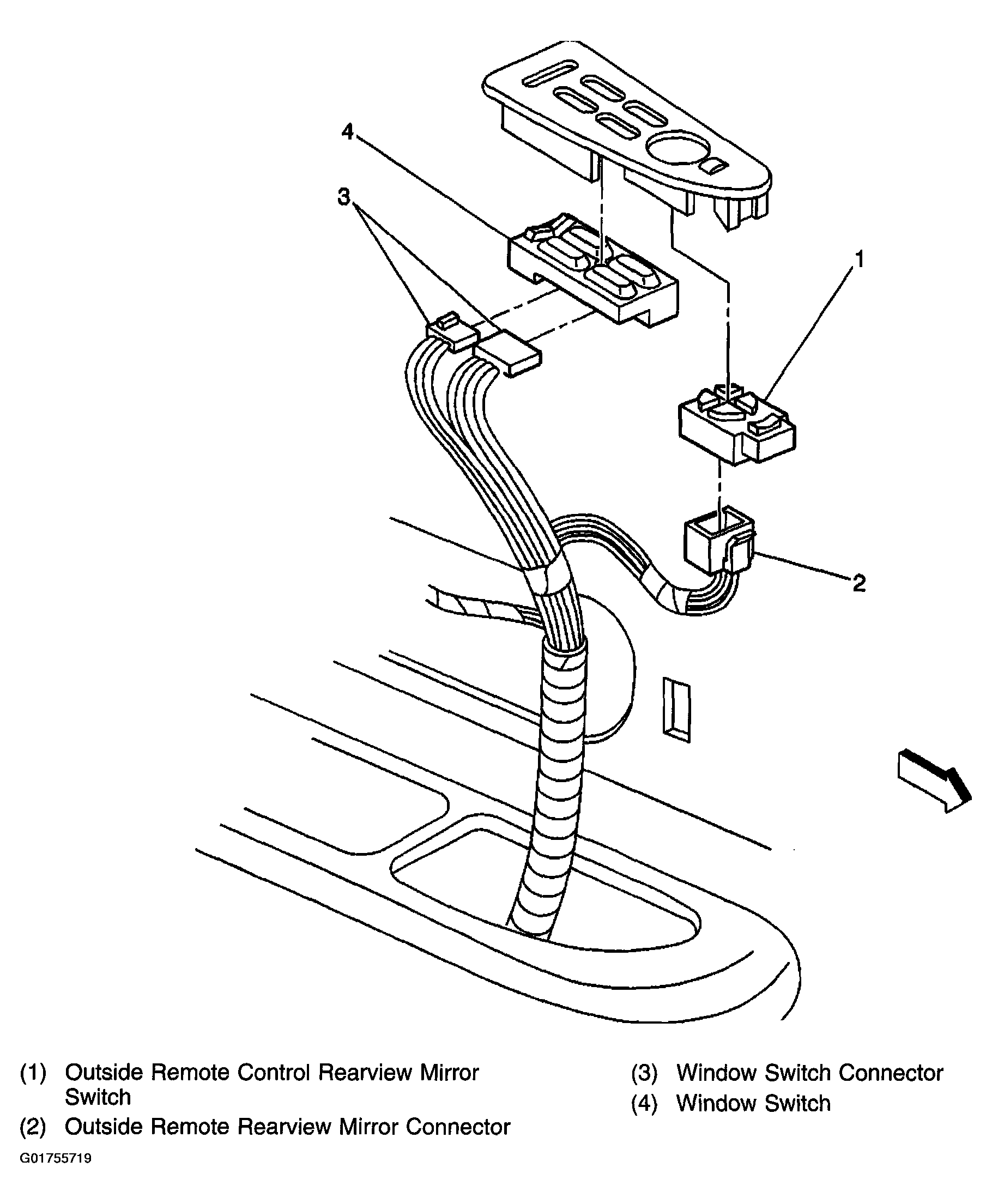

Fig 1: Identifying Center of Left Front Door Trim Panel Component View

Courtesy of GENERAL MOTORS CORP.

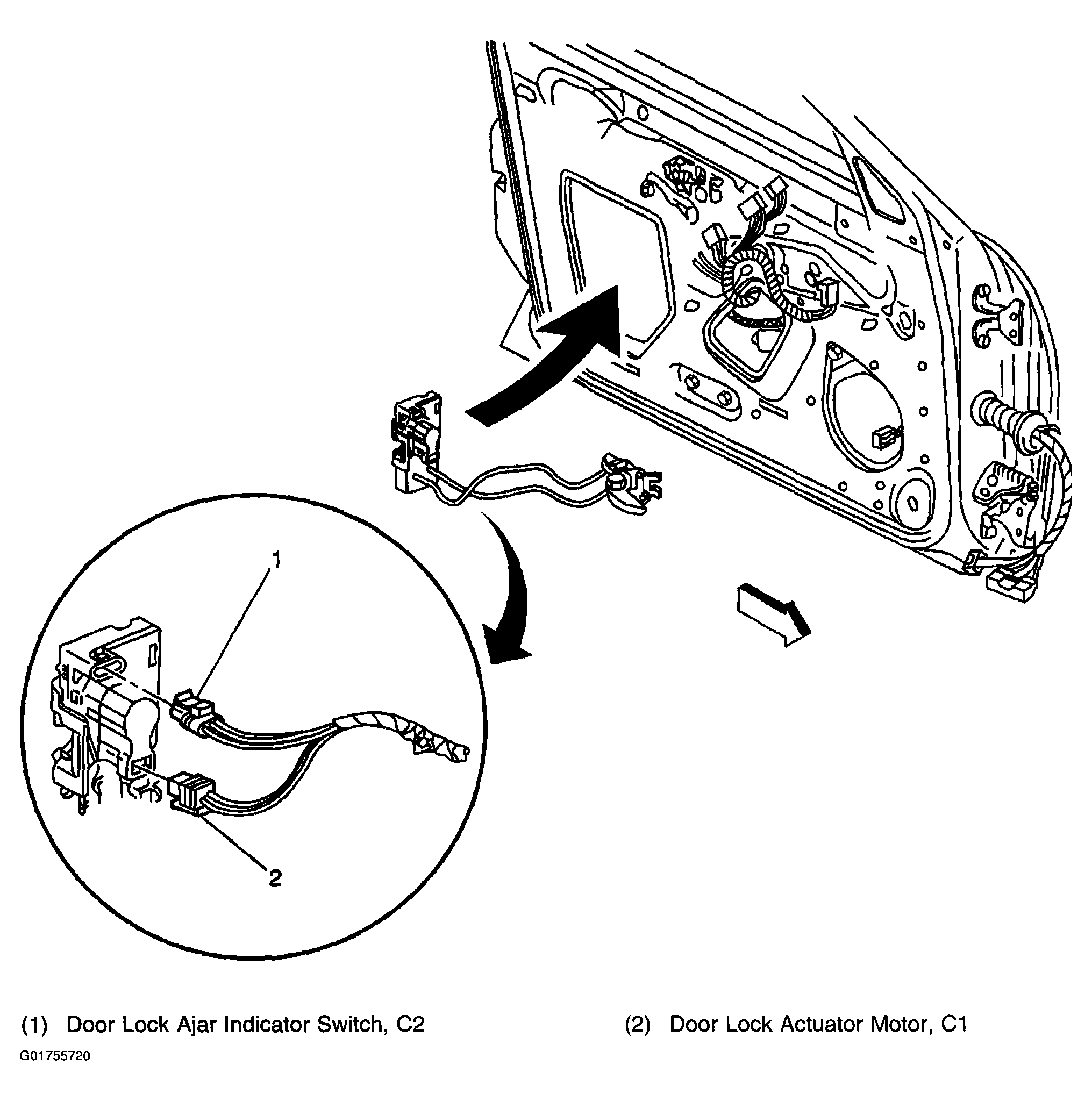

Fig 2: Identifying Inside Left Door Component View (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

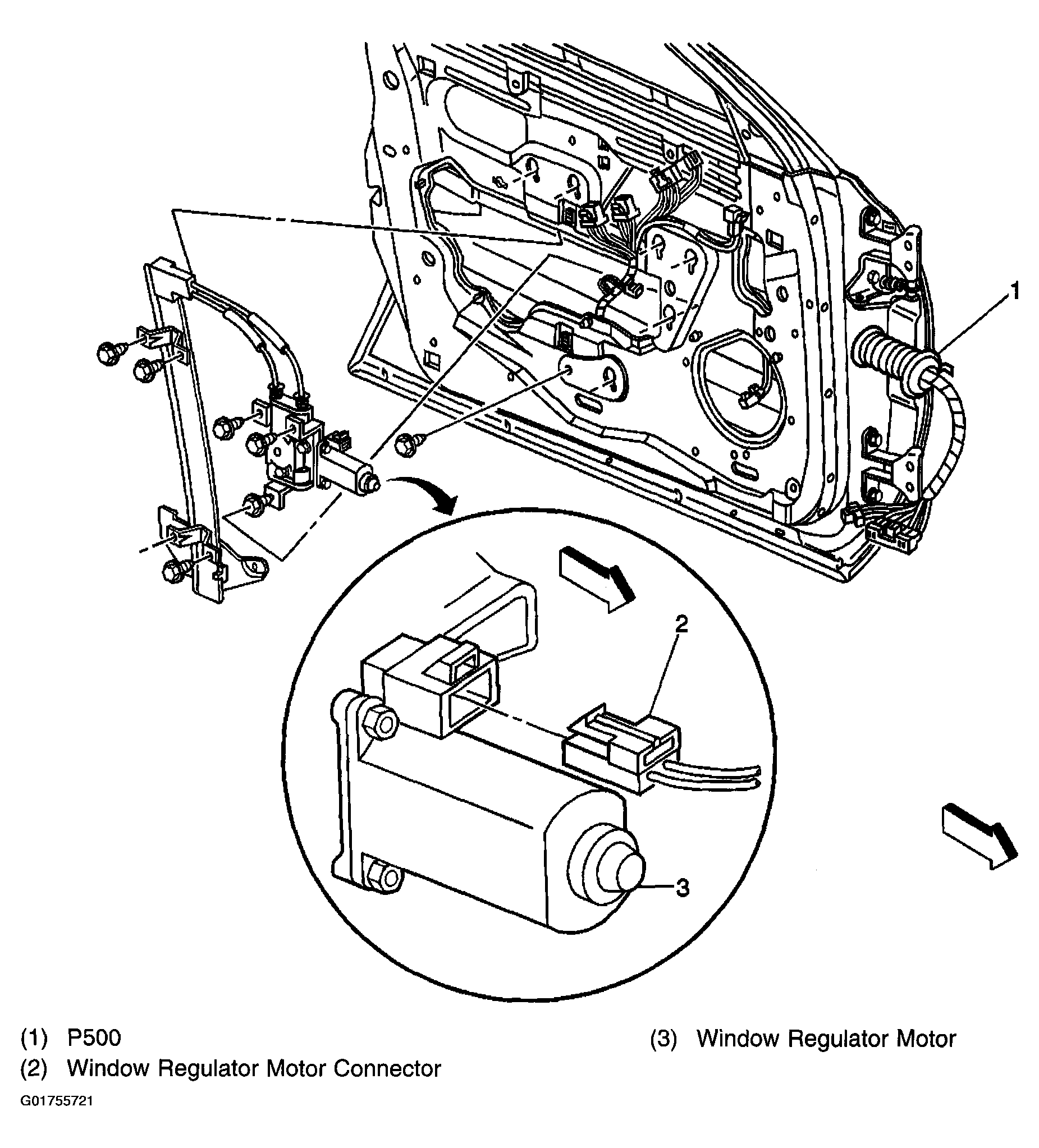

Fig 3: Identifying Inside Left Door Component View (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

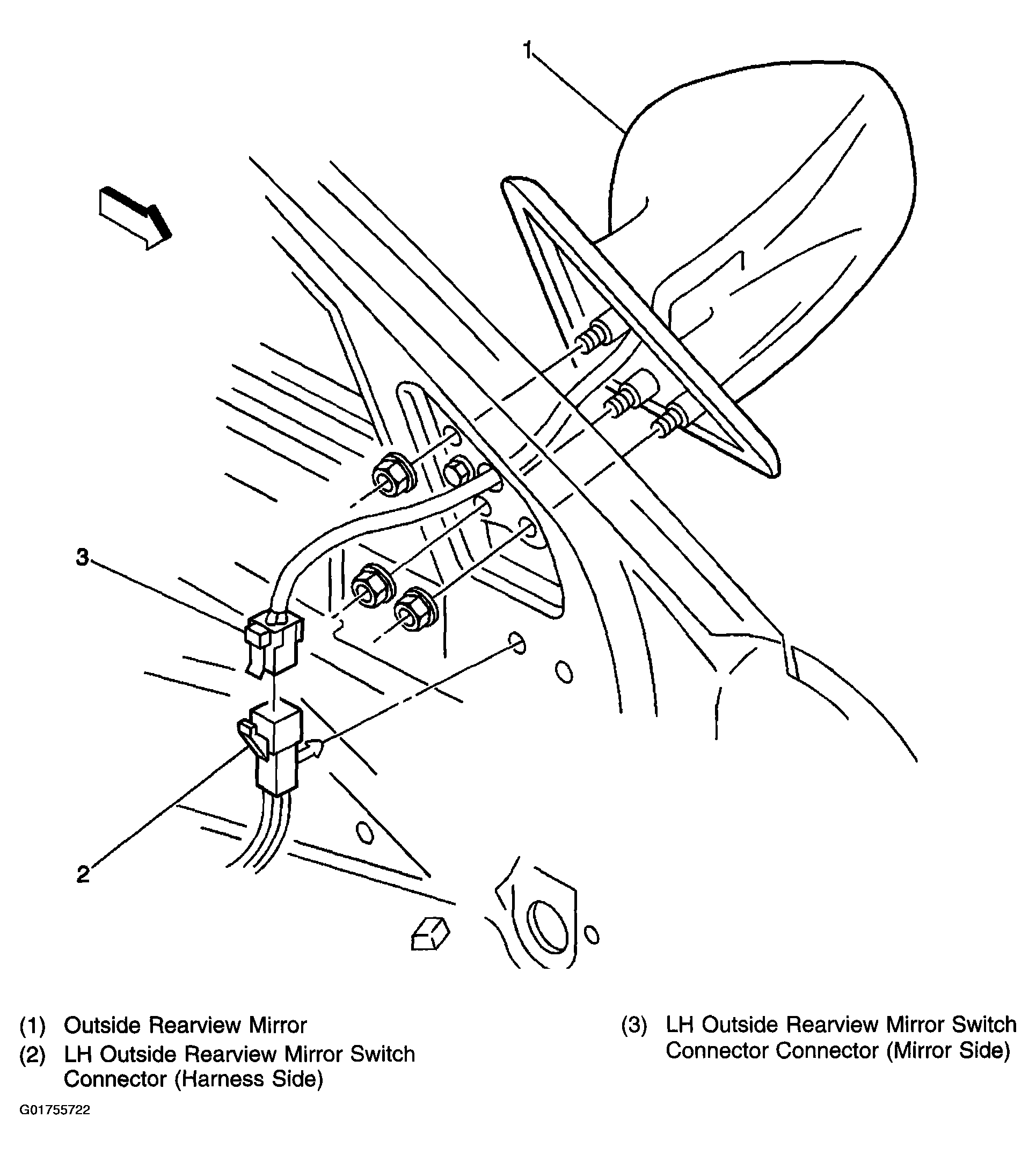

Fig 4: Identifying Front of Drivers Door Component View

Courtesy of GENERAL MOTORS CORP.

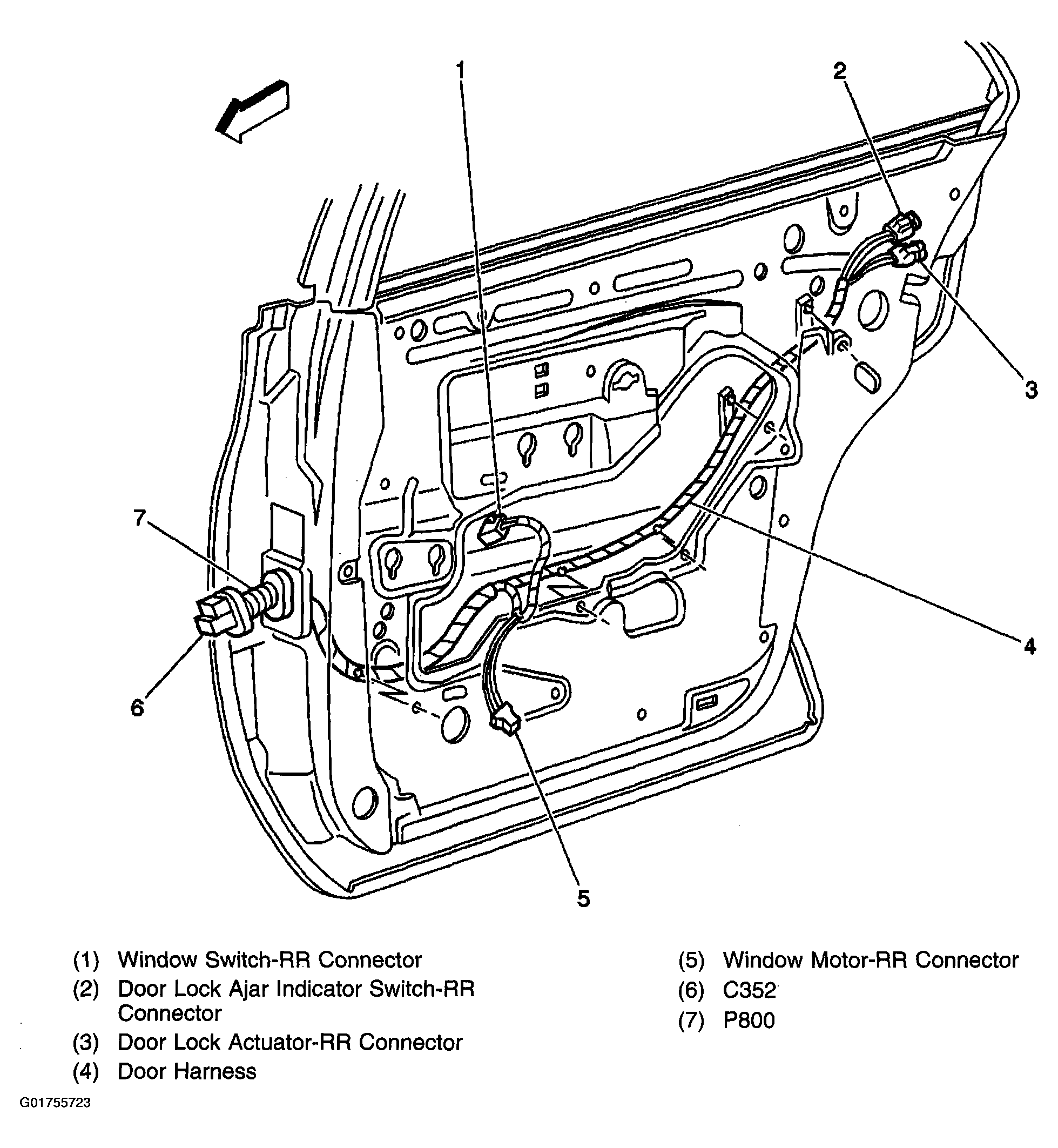

Fig 5: Identifying Right Rear Door Component View

Courtesy of GENERAL MOTORS CORP.

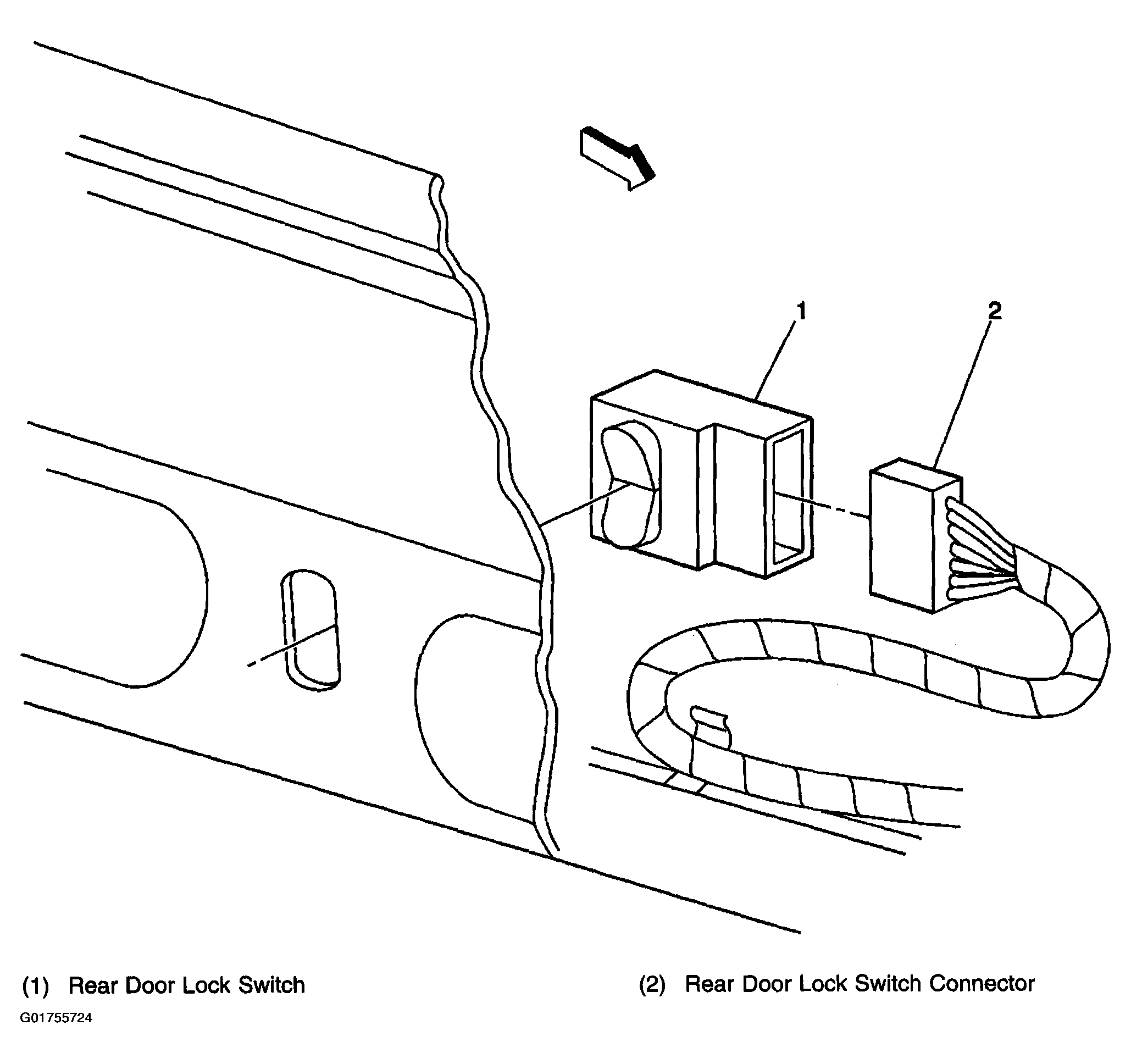

Fig 6: Identifying Rear Door Panel Component View

Courtesy of GENERAL MOTORS CORP.
