Retained Accessory Power (RAP) Component Views

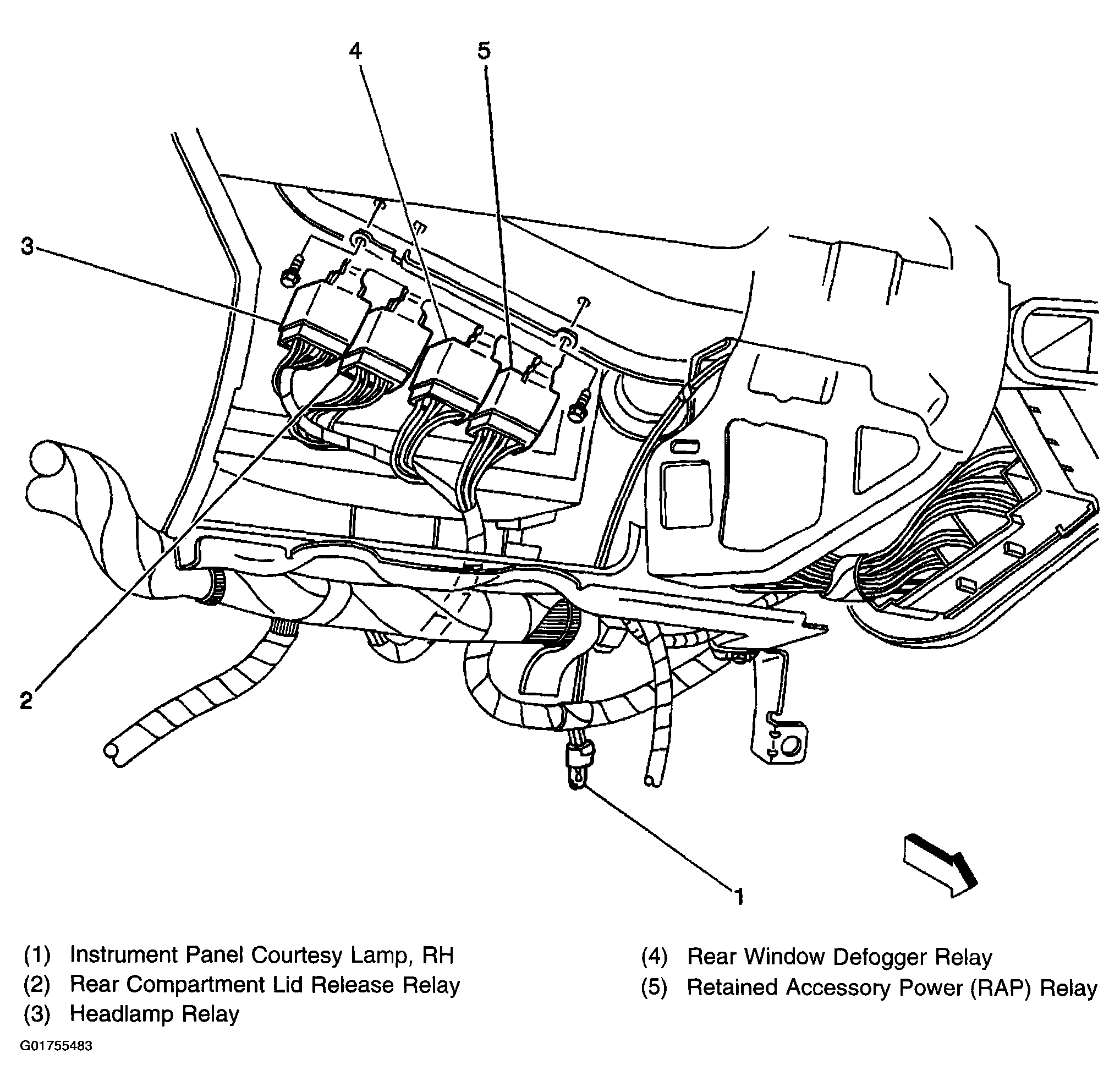

Fig 1: Identifying Retained Accessory Power (RAP) Components Behind Right Side of Instrument Panel
G01755483Courtesy of GENERAL MOTORS CORP.
