Wheel Alignment Specifications & Adjustment Procedures: Specifications

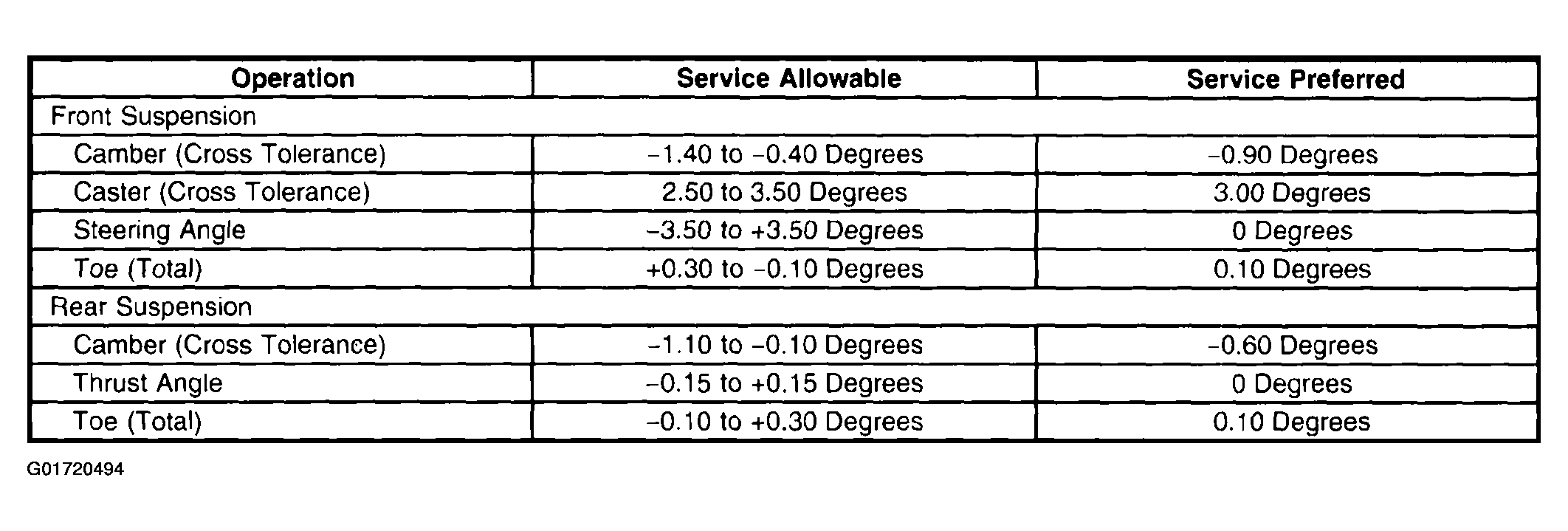

Fig 1: Wheel Alignment Specifications

Courtesy of GENERAL MOTORS CORP.

Fastener Tightening Specifications

Application	Specification
	Metric	English
Spindle Rod Jam Nut - Rear	68 N.m	50 lb ft
Strut to Knuckle Bolts - Front	122 N.m	90 lb ft
Strut to Knuckle Bolts - Rear	112 N.m	82 lb ft
Tie Rod End Jam Nut - Front	68 N.m	50 lb ft
