Manifold Pressure/Vacuum Sensor: Service and Repair

REMOVAL PROCEDURE

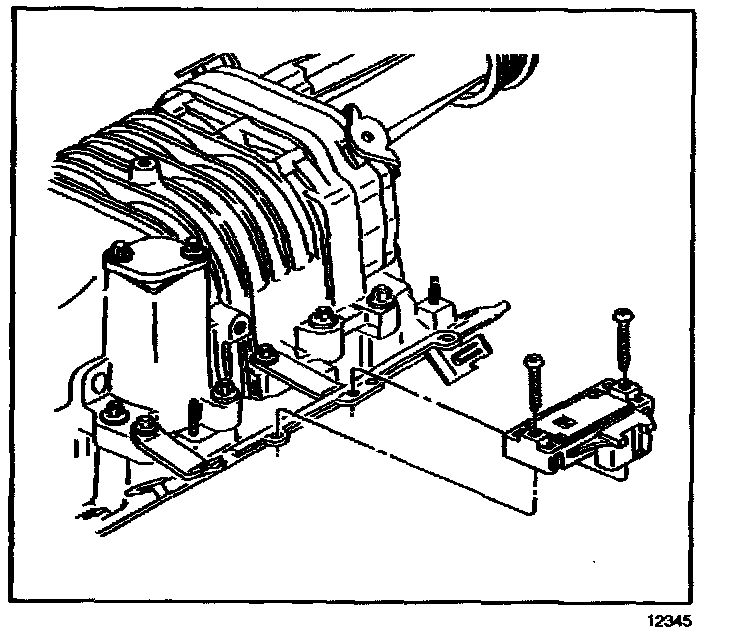

1. Remove the fuel injector sight shield.
2. Disconnect the MAP sensor electrical connector and the vacuum hose.
3. Remove the manifold absolute pressure (MAP) sensor screws.
4. Remove the MAP sensor.

INSTALLATION PROCEDURE




1. Install the MAP sensor.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the MAP sensor screws.

Tighten
Tighten the screws to 5 N.m (44 lb in).

3. Connect the MAP sensor electrical connector and the vacuum hose.
4. Install the fuel injector sight shield.
