Installation Procedure

  1. Position the control module to the sunroof.
  2. Connect both electrical connectors to the ends of the control module.
    3. Fig 1: Installing Control Module To Sunroof
    G01588169Courtesy of GENERAL MOTORS CORP.
  3. Install the control module to the sunroof module by sliding it to the right to engage the retainers.
  4. Install the nylon tie straps at both ends of the control module (2)

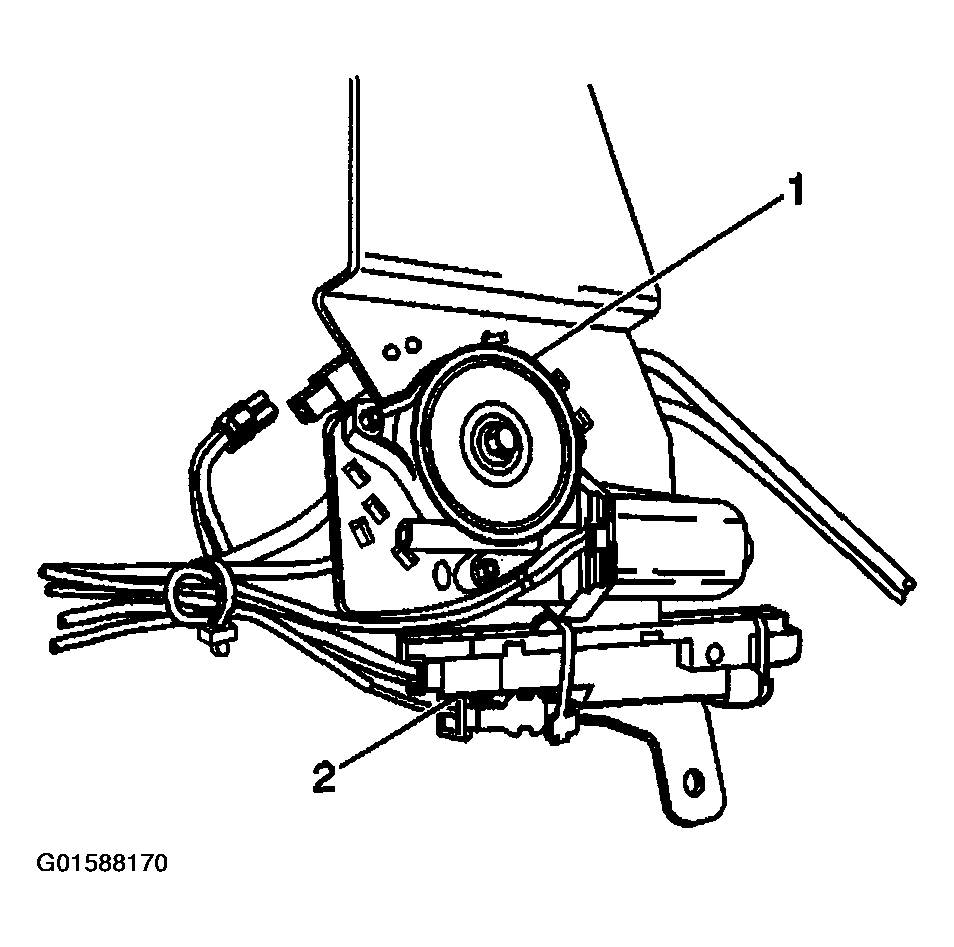

    5. Fig 2: Installing Electric Connectors At Both Ends Of Control Module
    G01588170Courtesy of GENERAL MOTORS CORP.
  5. Check the operation of the sunroof to all positions.
  6. Install the headliner. Refer to HEADLINER REPLACEMENT in Interior Trim.
