Fuel Level Sensor

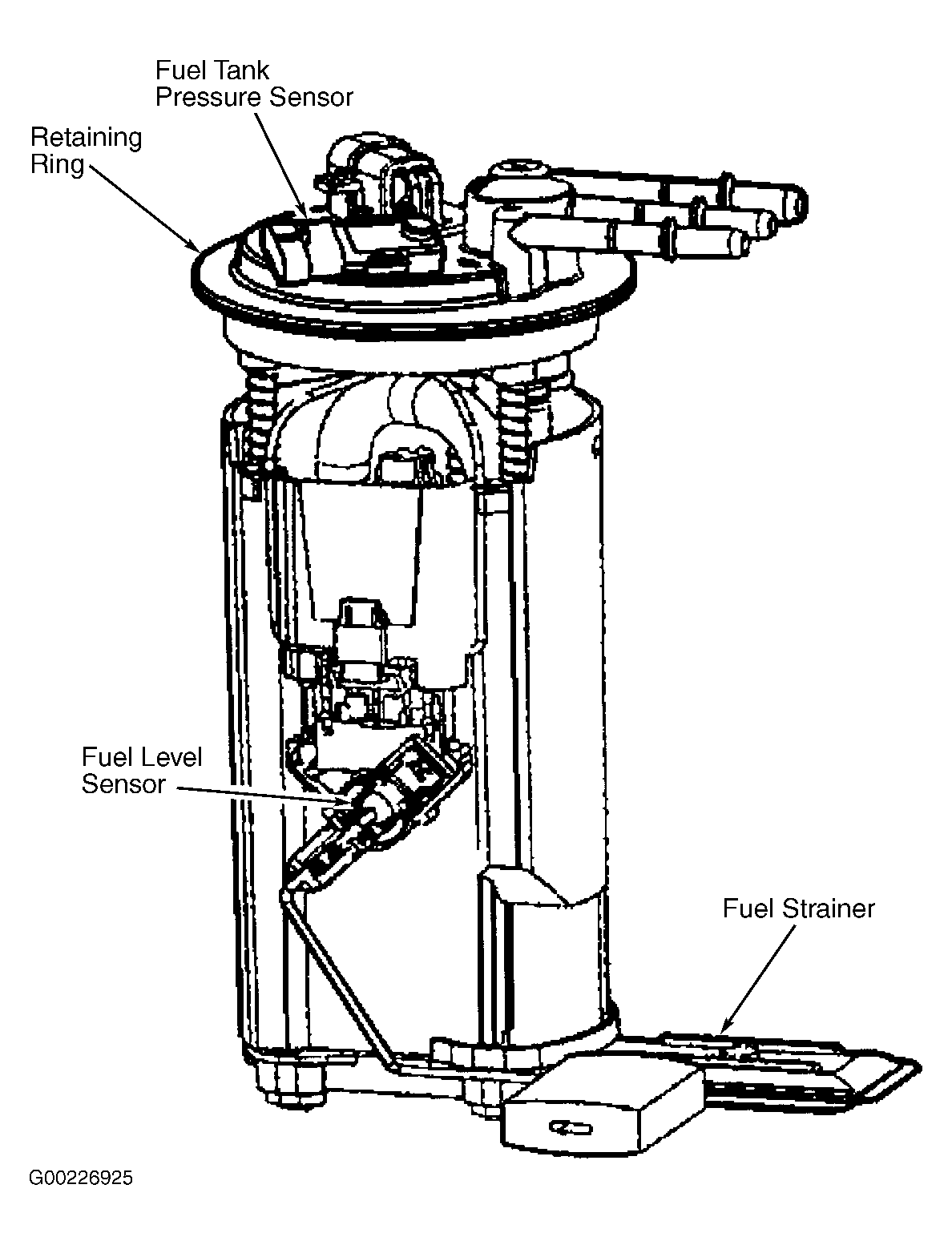

The fuel level sensor is part of the fuel sender assembly consisting of the fuel level sensor, Fuel Tank Pressure (FTP) sensor, fuel pump and fuel strainer. See Fig 1 . The fuel level sensor consists of a float, a wire float arm, and a ceramic resistor card. The position of the float arm indicates the fuel level. The fuel level sensor contains a variable resistor which changes resistance in correspondence with the amount of fuel in the fuel tank. The PCM sends the fuel level information via the Class II circuit to the Instrument Panel (IP) cluster. This information is used for the IP fuel gauge and the low fuel warning indicator, if applicable. The PCM also monitors the fuel level input for various diagnostics.
