Data Link Communications Component Views

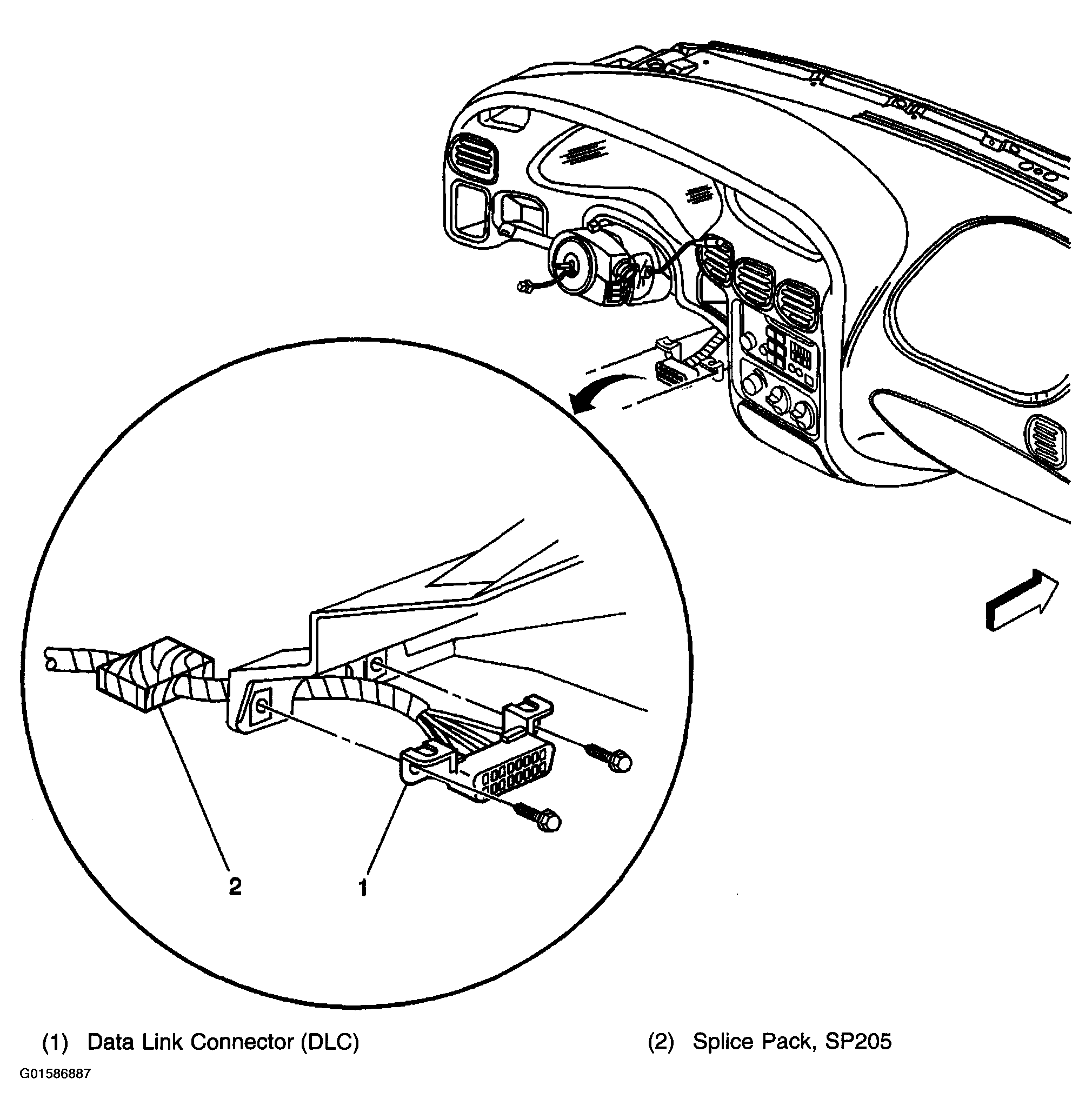

Fig 1: Data Link Connector & Splice Pack Component View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
