Cruise Control Component Views

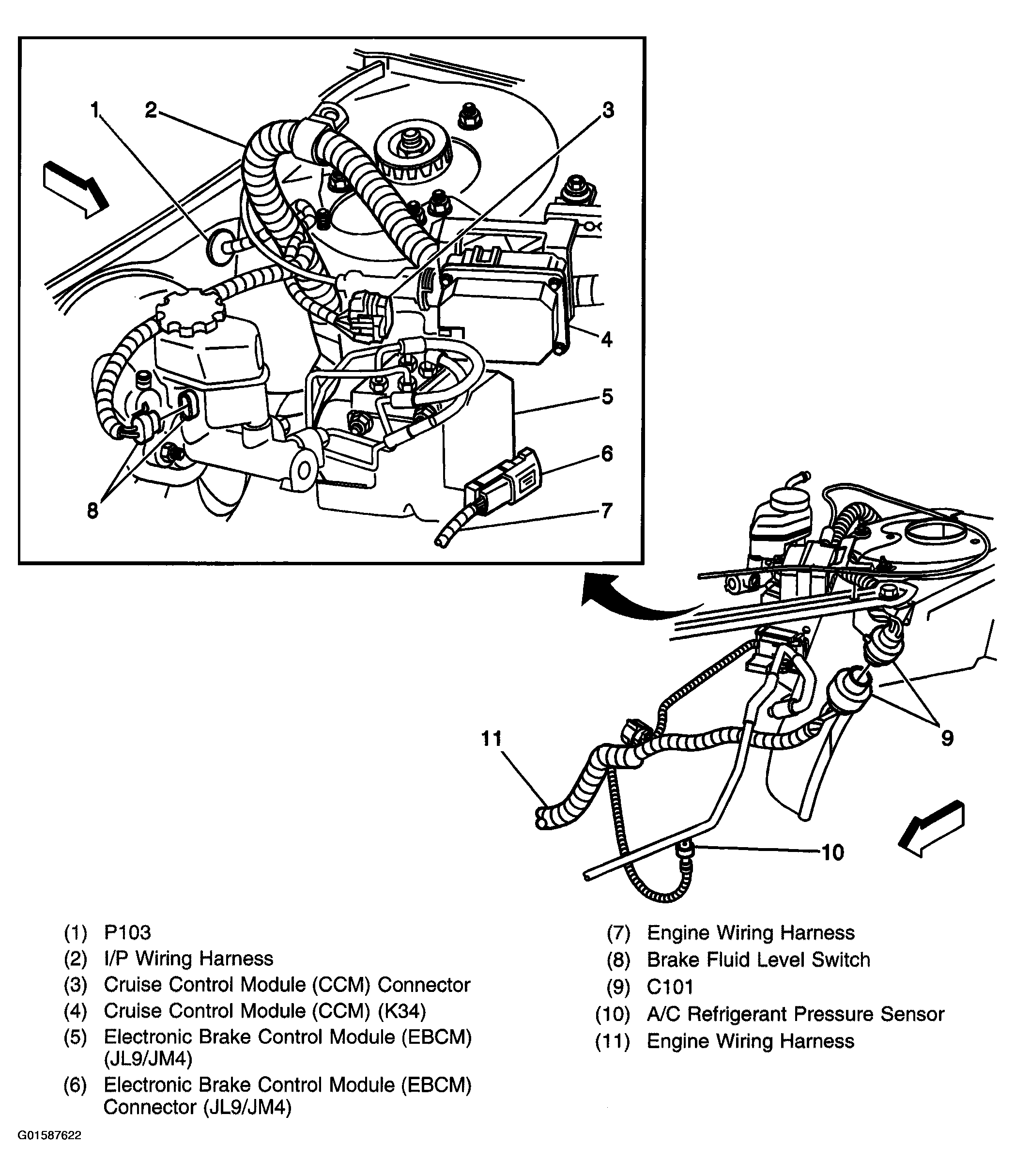

Fig 1: Brake Fluid Level Switch Component View
G01587622Courtesy of GENERAL MOTORS CORP.

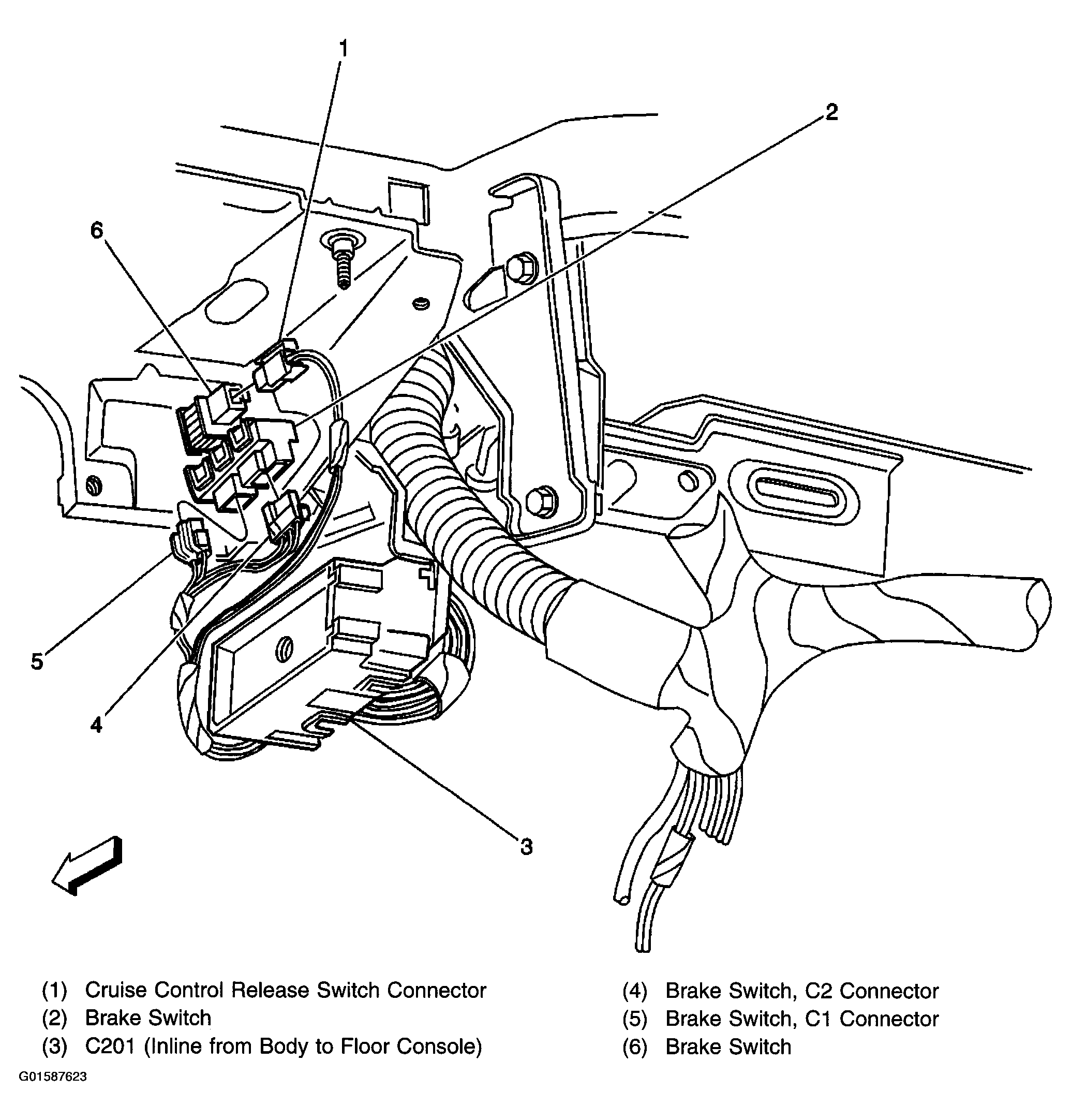

Fig 2: Cruise Control Release Switch Connector And Brake Switch C1, C2 Connector Component View
G01587623Courtesy of GENERAL MOTORS CORP.
