Removal Procedure

IMPORTANT: The cruise control module is mounted to the left strut tower. Service the cruise control module as a complete unit.
  1. Remove the cruise control cable from the cruise control module. Refer to CRUISE CONTROL CABLE REPLACEMENT (3.1L)  or CRUISE CONTROL CABLE REPLACEMENT (3.8L)  .
  2. Disconnect the electrical connector from the cruise control module.
    3. Fig 1: Removing Cruise Control Cable From Cruise Control Module
    G01587652Courtesy of GENERAL MOTORS CORP.
  3. Remove the cruise control module retaining nuts from the shock tower.

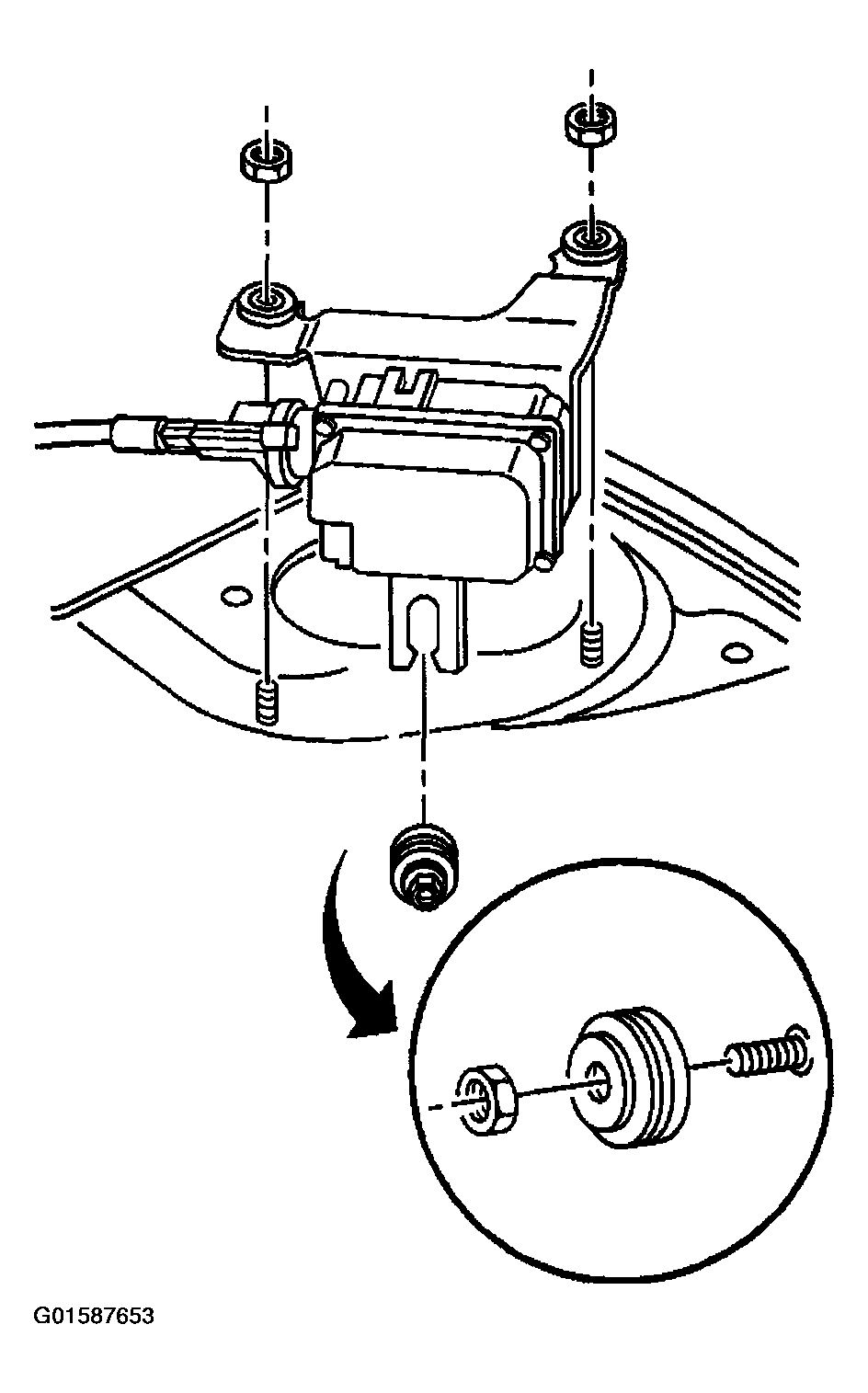

    4. Fig 2: Removing Cruise Control Module Retaining Nuts From Shock Tower
    G01587653Courtesy of GENERAL MOTORS CORP.
