Entertainment Component Views

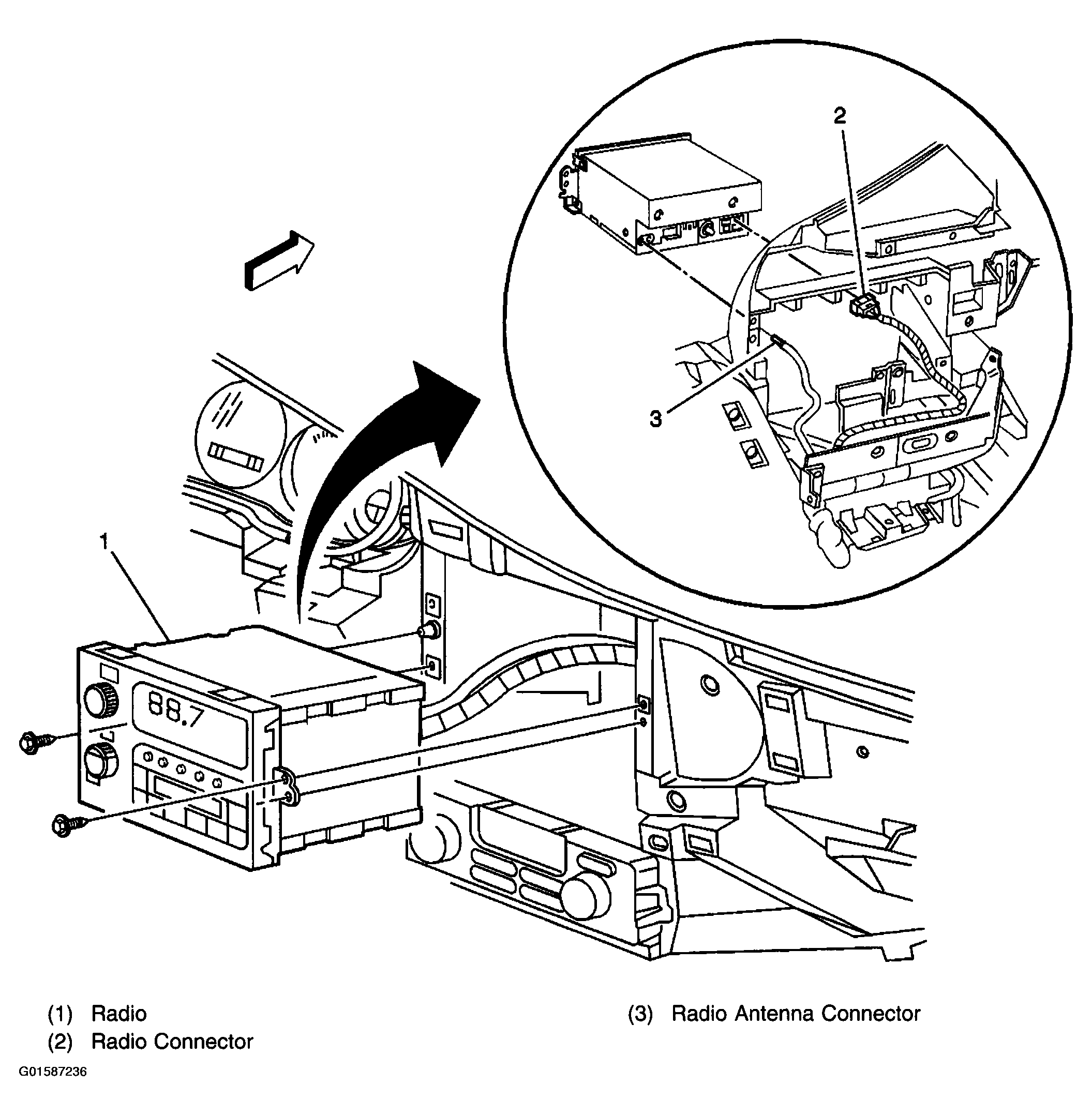

Fig 1: Center Of Instrument Panel Component View
G01587236Courtesy of GENERAL MOTORS CORP.

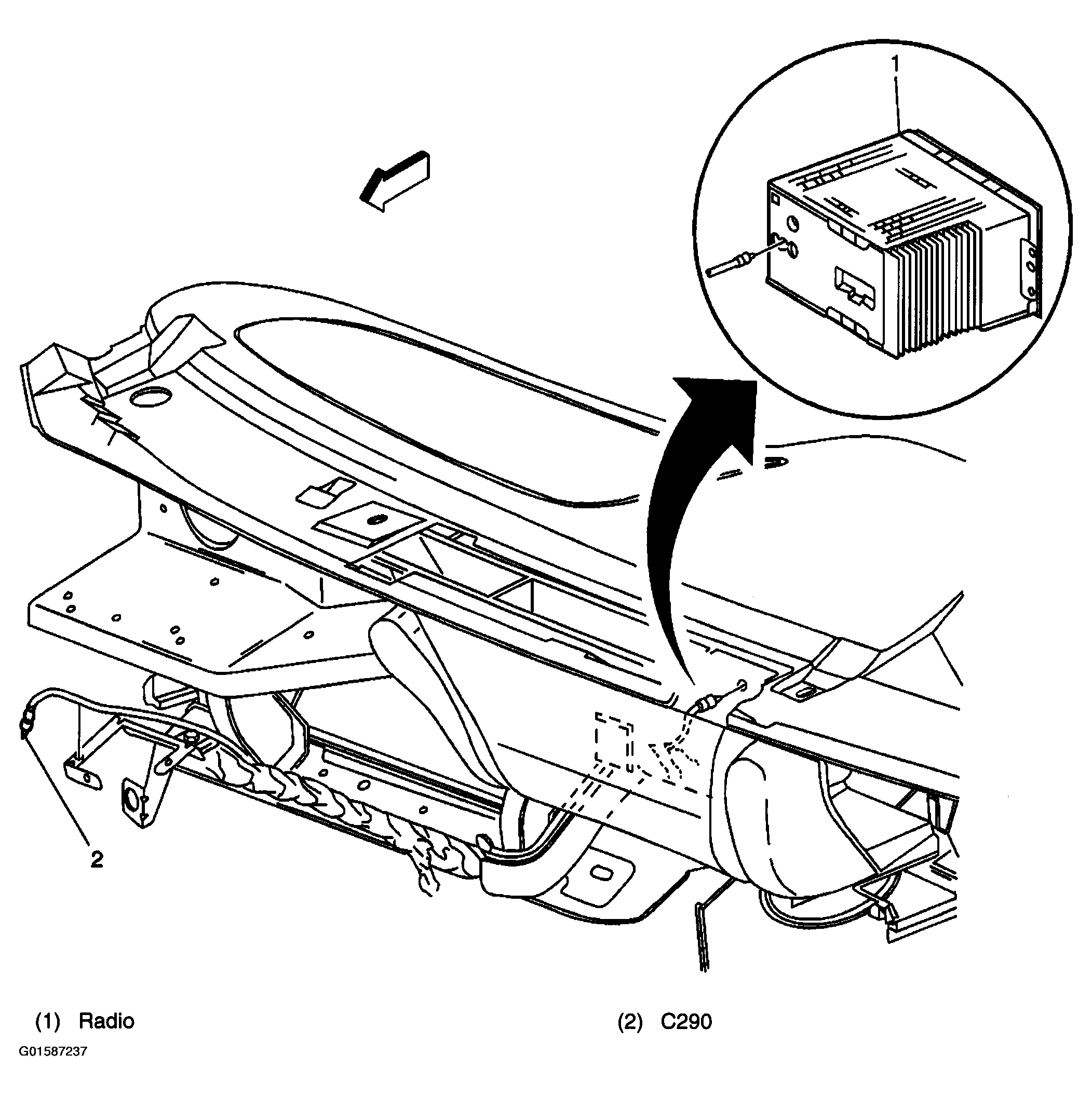

Fig 2: Antenna Cable Component View
G01587237Courtesy of GENERAL MOTORS CORP.

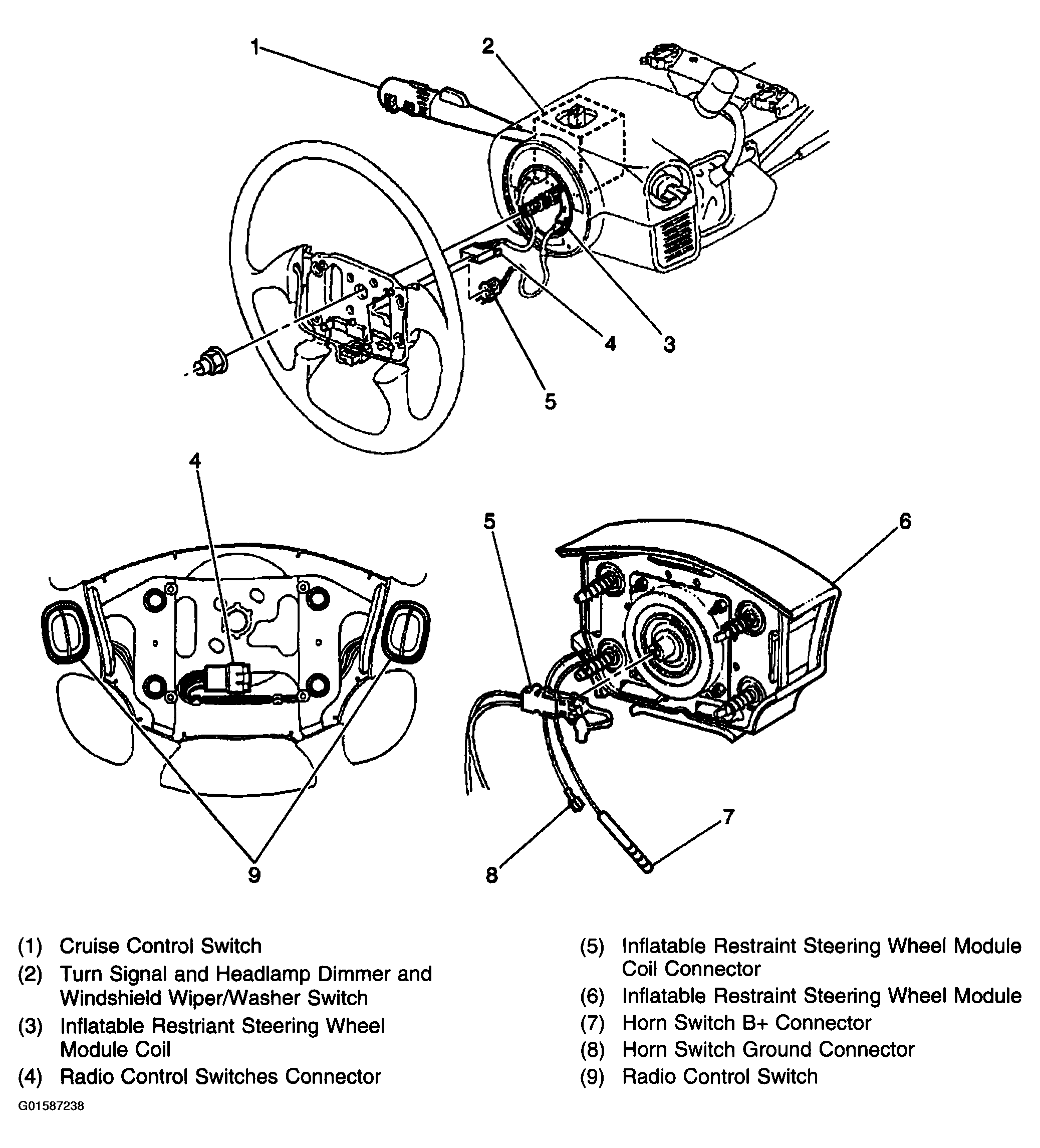

Fig 3: Steering Wheel Component View
G01587238Courtesy of GENERAL MOTORS CORP.

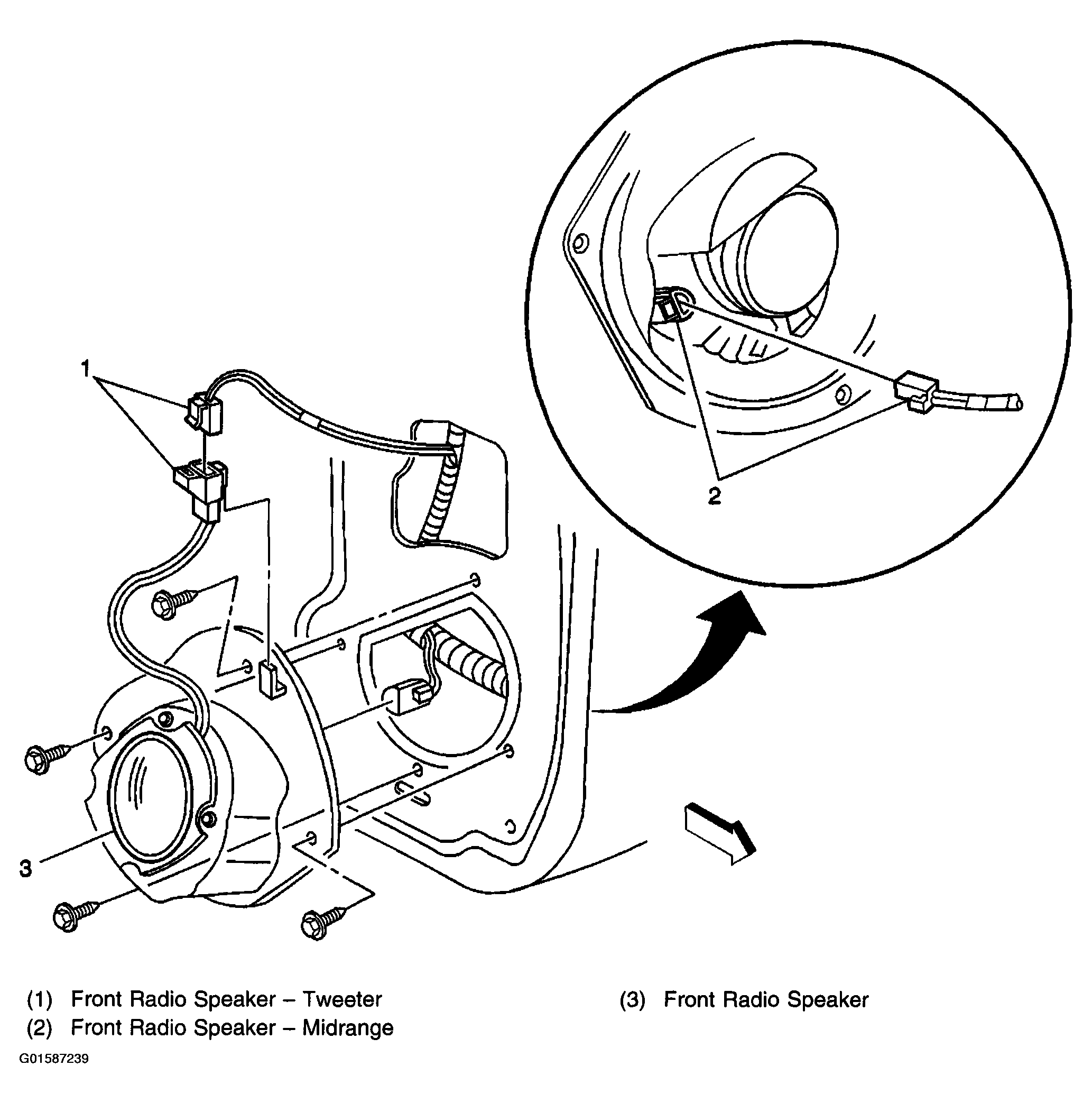

Fig 4: Lower Leading Edge Of Front Door Component View (RPO UQ3)
G01587239Courtesy of GENERAL MOTORS CORP.

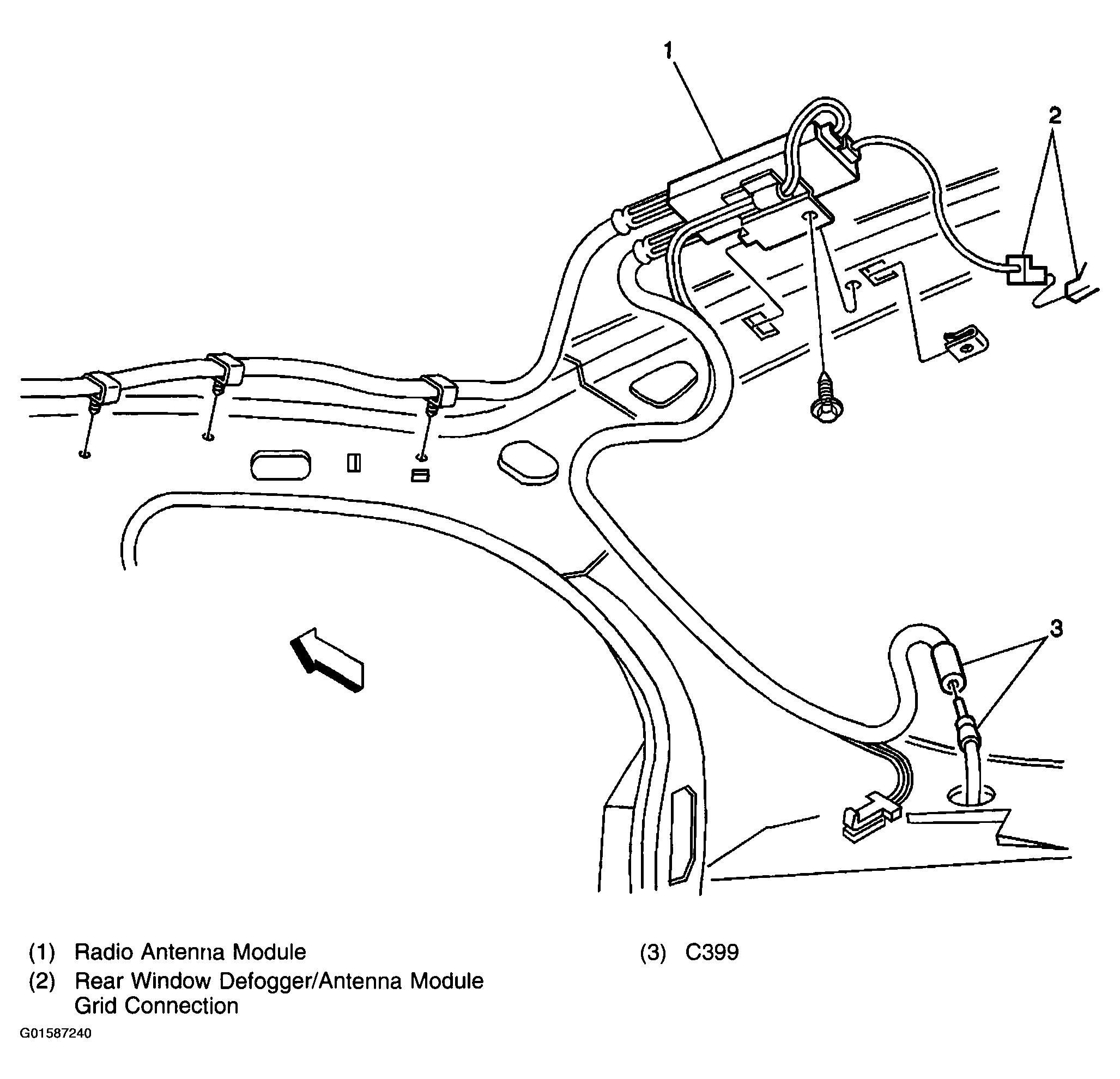

Fig 5: Top Right Side of Rear Window Component View (RPO U85)
G01587240Courtesy of GENERAL MOTORS CORP.

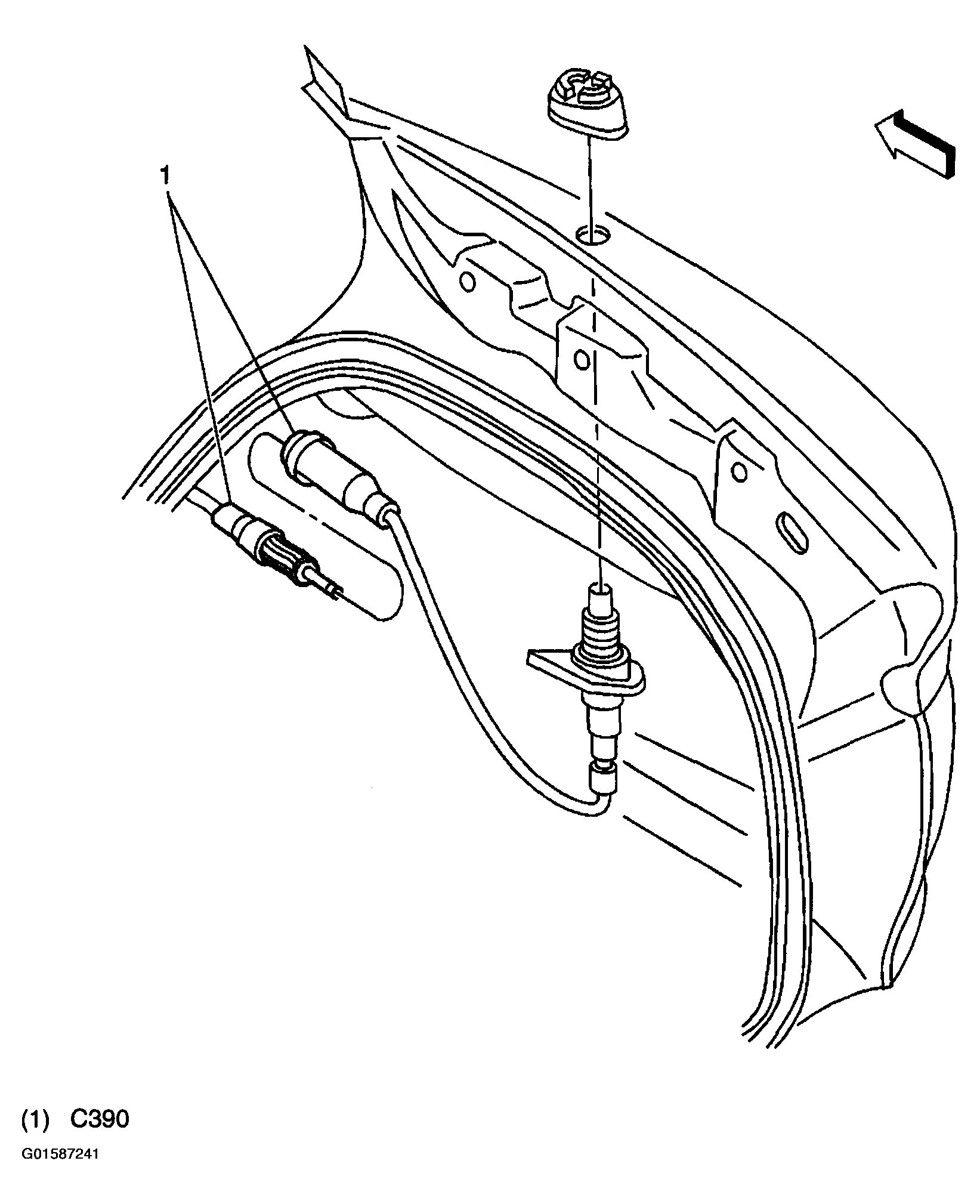

Fig 6: Rear Compartment Antenna Cable Component View
G01587241Courtesy of GENERAL MOTORS CORP.

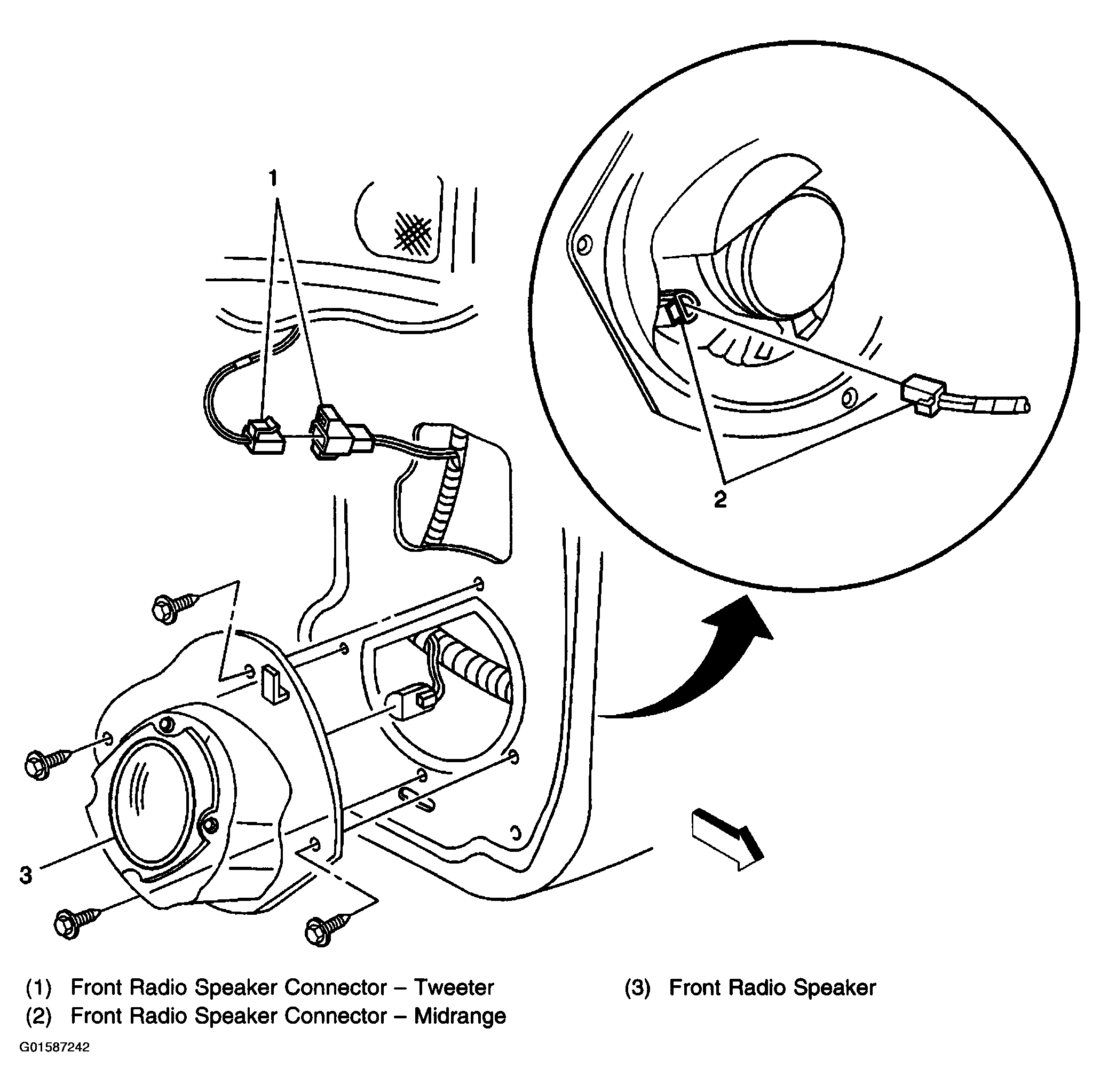

Fig 7: Lower Leading Edge Of Front Door Component View (RPO U85)
G01587242Courtesy of GENERAL MOTORS CORP.
Fig 8: Rear Compartment Below Rear Deck Component View (RPO U85
G01587243Courtesy of GENERAL MOTORS CORP.

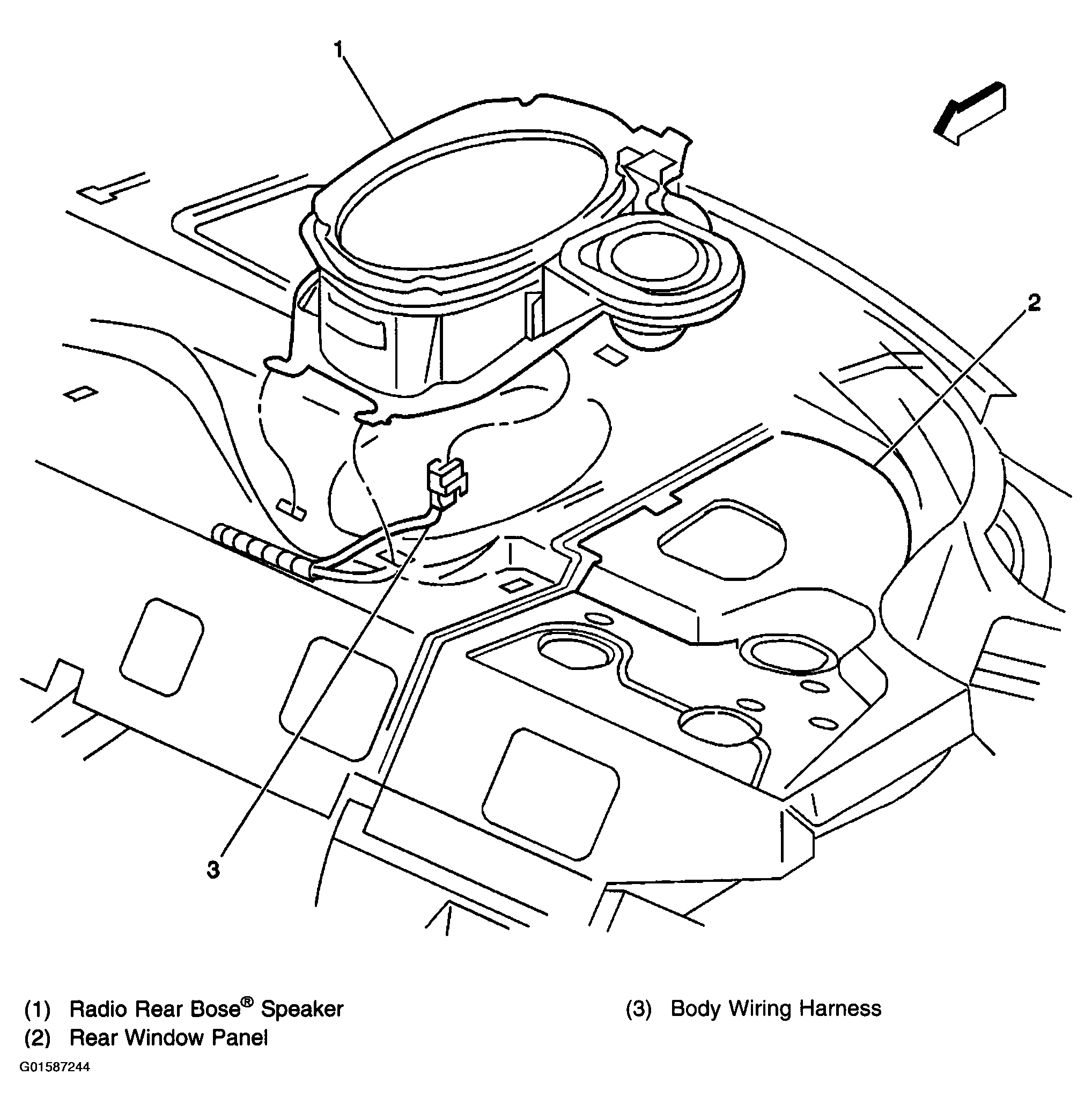

Fig 9: Bose® Speaker Component View (w/RPO U85 Only) - LH Side Of Rear Window Panel (RH Side Similar)
G01587244Courtesy of GENERAL MOTORS CORP.

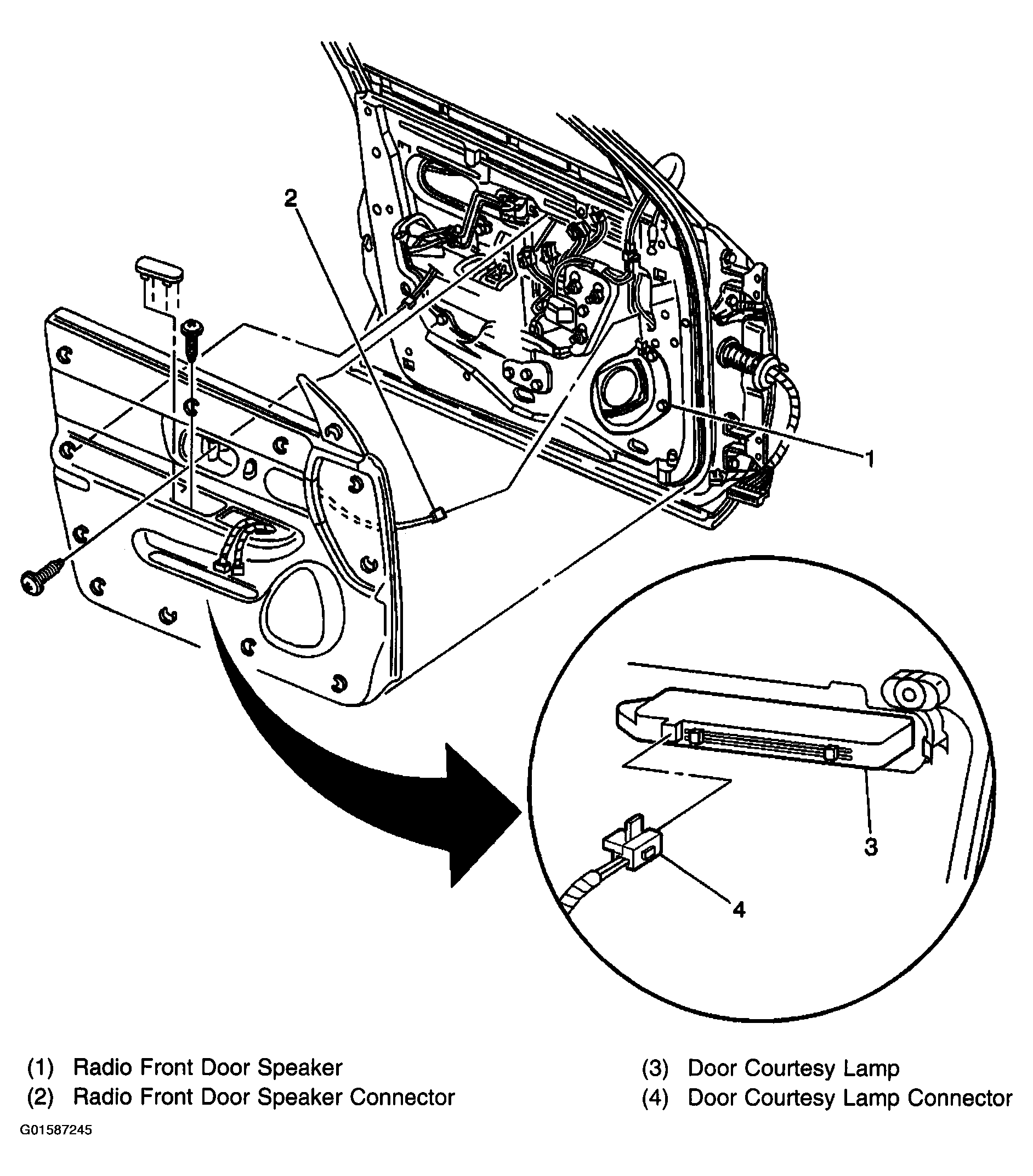

Fig 10: Left Front Door Component View
G01587245Courtesy of GENERAL MOTORS CORP.
