Installation Procedure

  1. Position the heater module to the front seat.

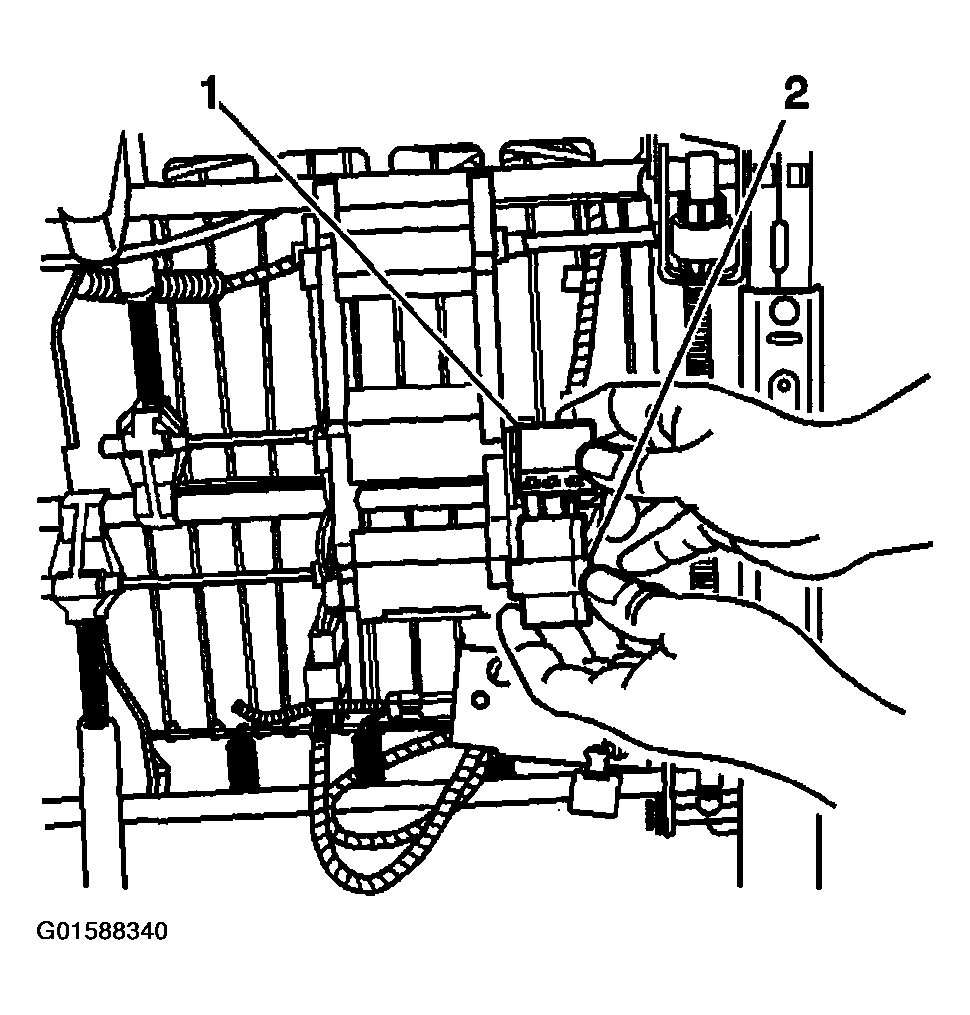

    2. Fig 1: Connecting Electrical Harness Connector
    G01588340Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical harness connector (1) to the heater module (2).

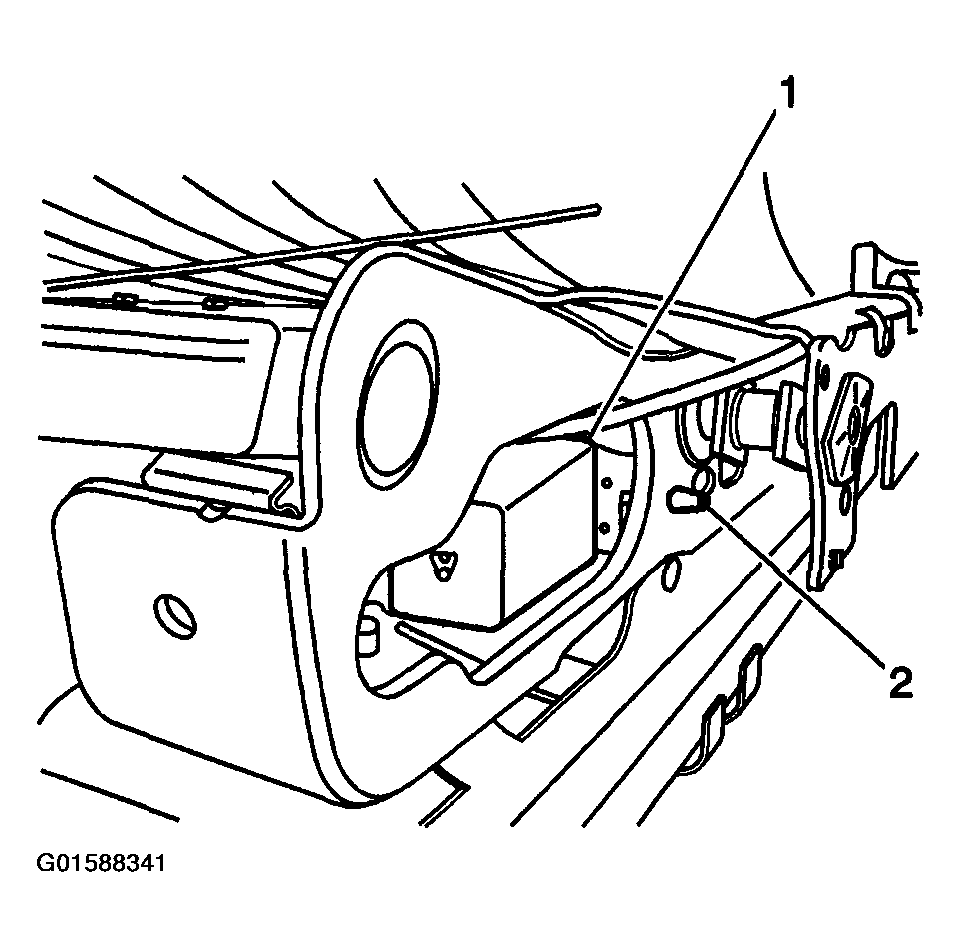

  3. Position the module (1) on the frame and push in to attach the retaining pin (2)
  4. Lower the seat.
  5. Connect the seat electrical harness connector.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  6. Install the bolts that secure the front bucket seat adjuster to the floor pan.

    Tighten

    Tighten the bolts to 42 N.m (31 lb ft).

    7. Fig 2: Installing Bolts That Secure Front Bucket Seat Adjuster To Floor Pan
    G01588341Courtesy of GENERAL MOTORS CORP.
  7. Reposition the front seat to the original position.
