Power Door Systems Connector End Views

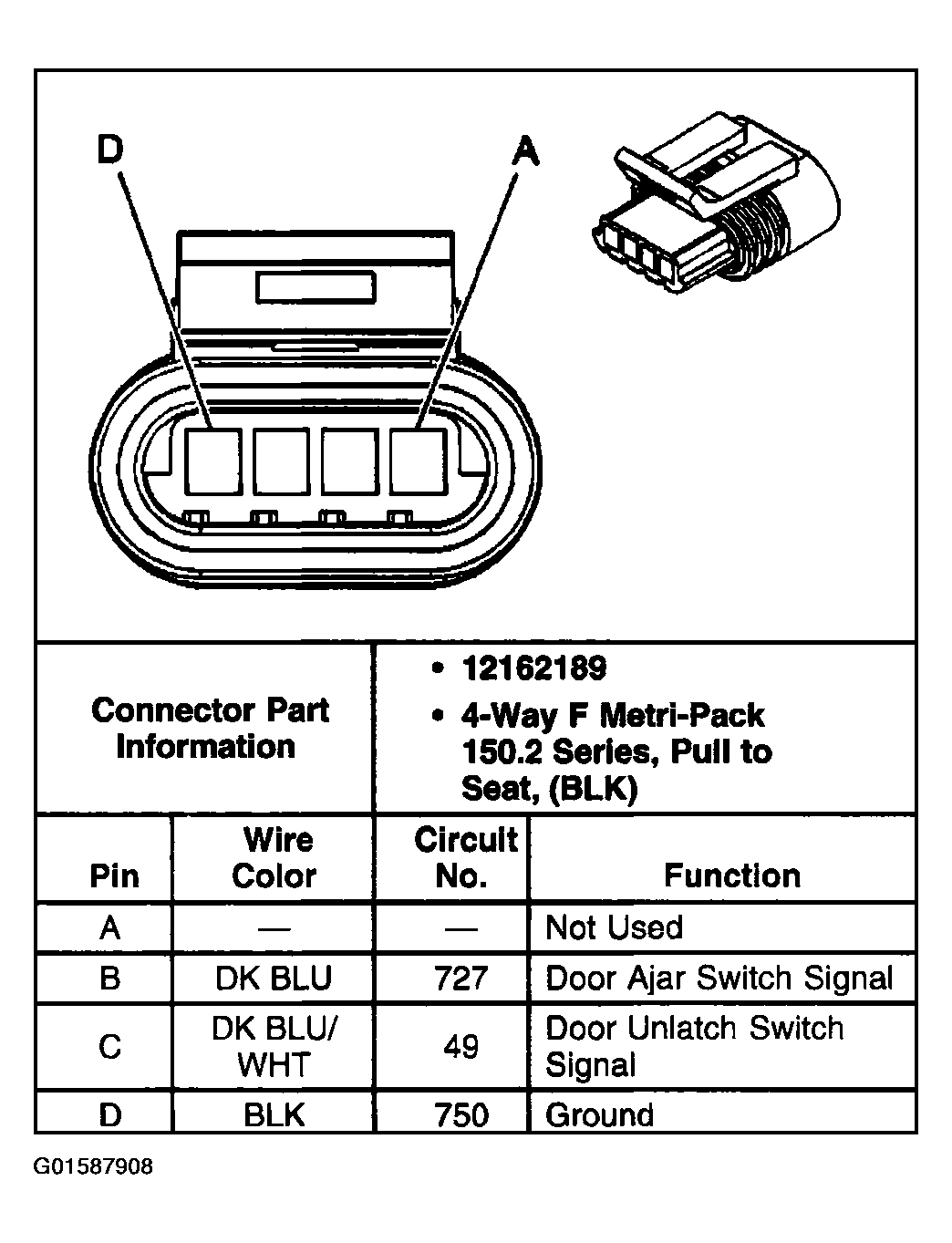

Fig 1: Door Lock - Driver, C1 Connector End View
G01587908Courtesy of GENERAL MOTORS CORP.

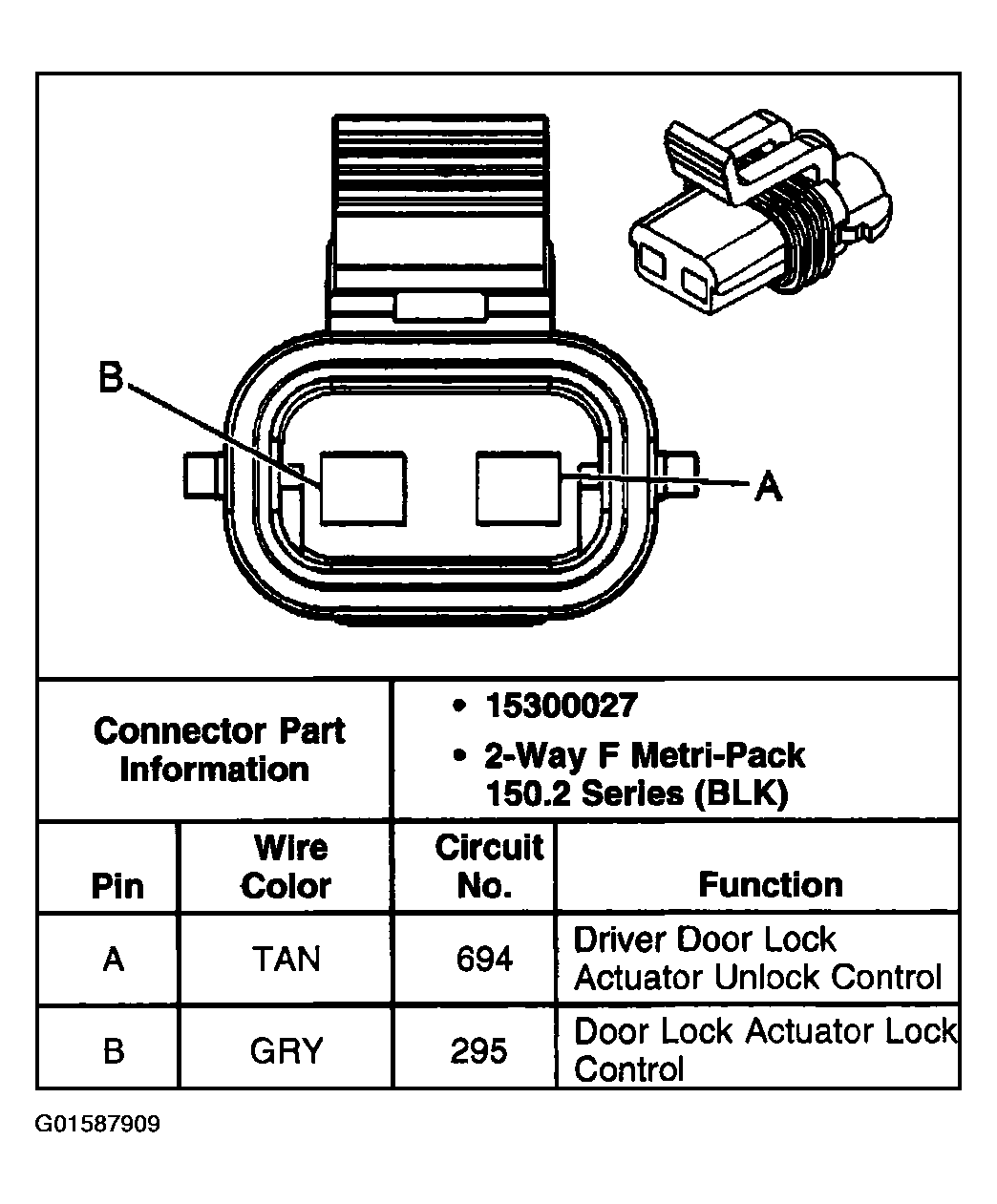

Fig 2: Door Lock - Driver, C2 Connector End View
G01587909Courtesy of GENERAL MOTORS CORP.

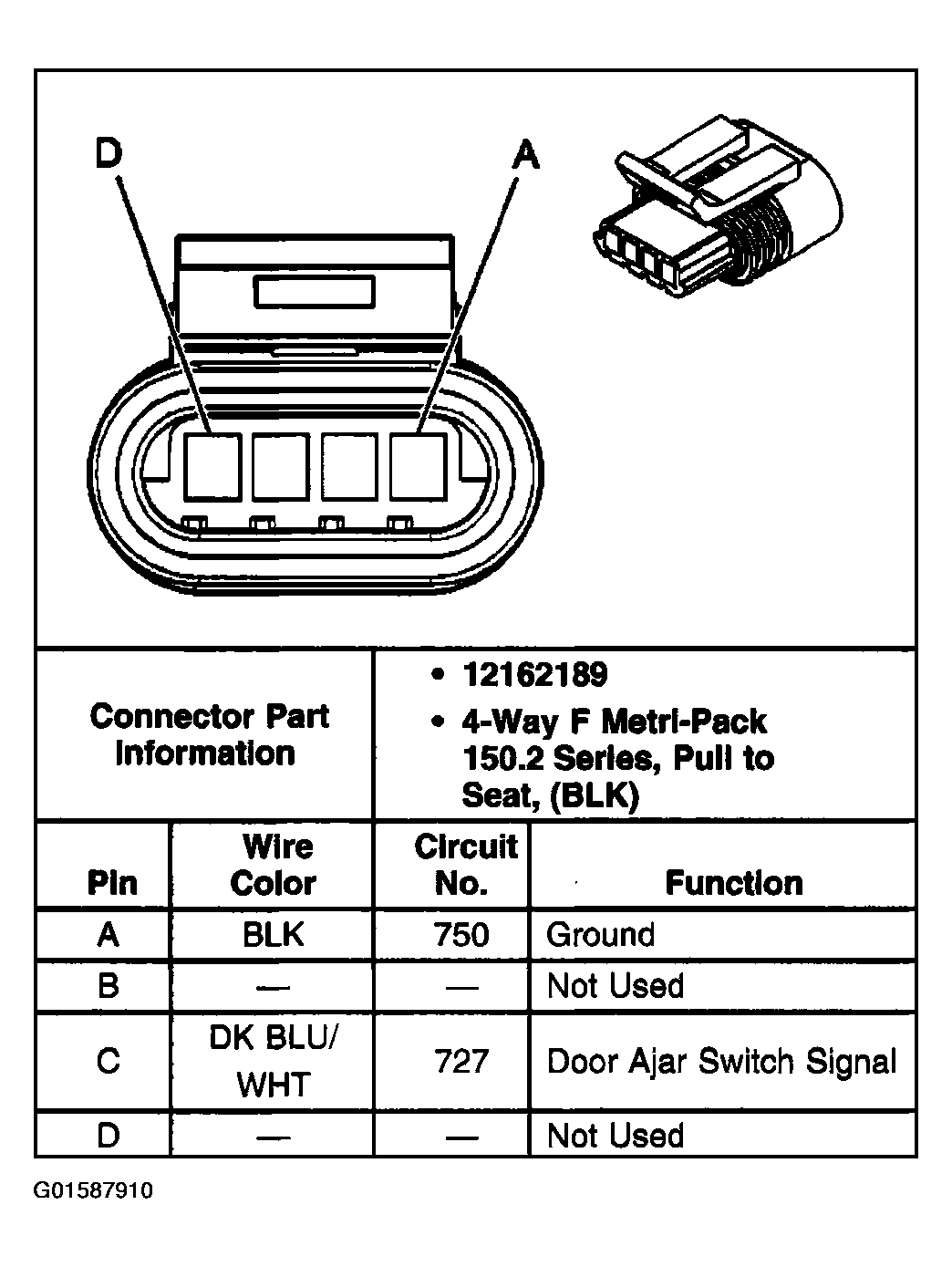

Fig 3: Door Lock - Front Passenger, C1 Connector End View
G01587910Courtesy of GENERAL MOTORS CORP.

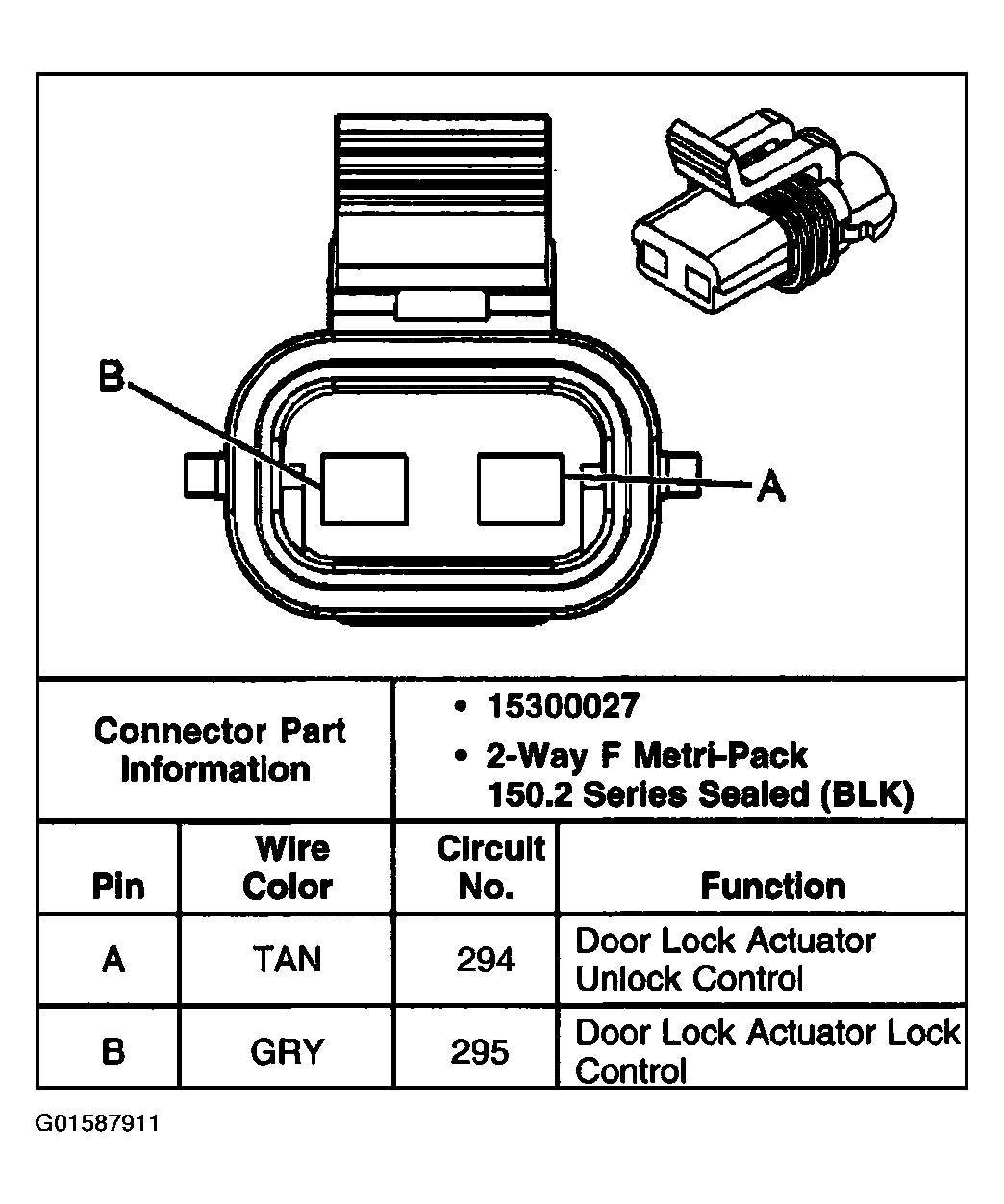

Fig 4: Door Lock - Front Passenger, C2 Connector End View
G01587911Courtesy of GENERAL MOTORS CORP.

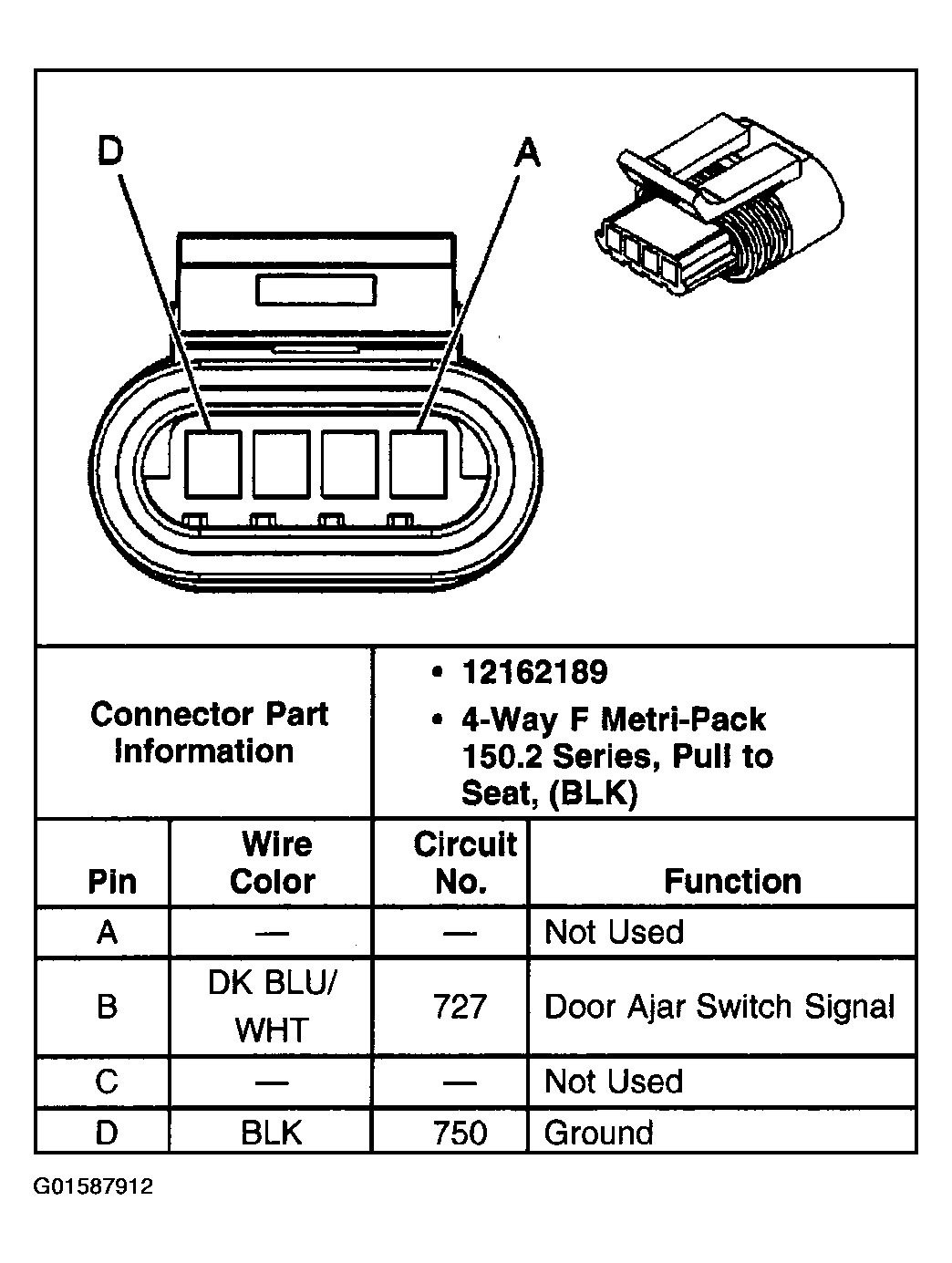

Fig 5: Door Lock - LR, C1 Connector End View
G01587912Courtesy of GENERAL MOTORS CORP.
Fig 6: Door Lock - LR, C2 Connector End View
G01587913Courtesy of GENERAL MOTORS CORP.

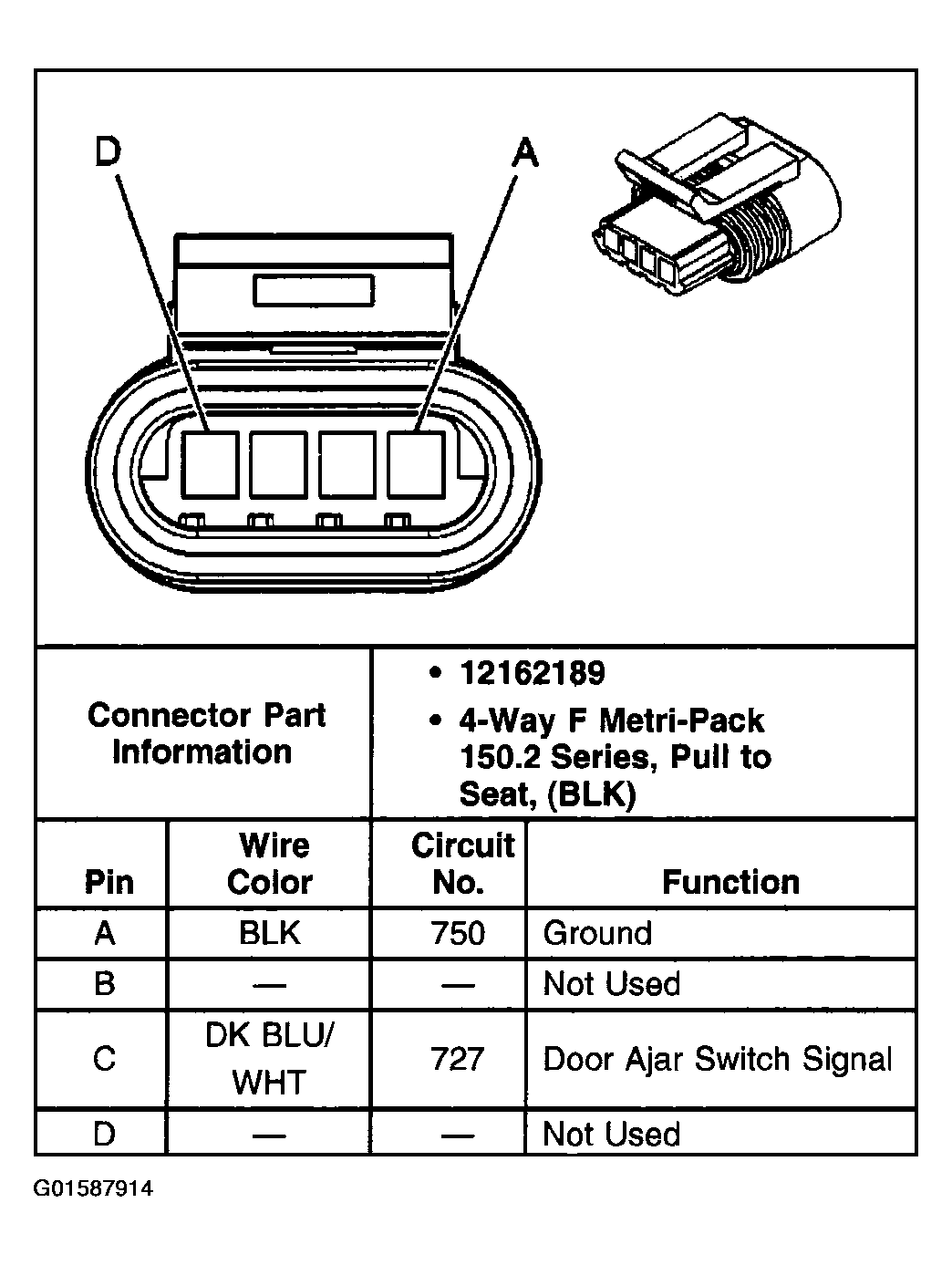

Fig 7: Door Lock - RR, C1 Connector End View
G01587914Courtesy of GENERAL MOTORS CORP.

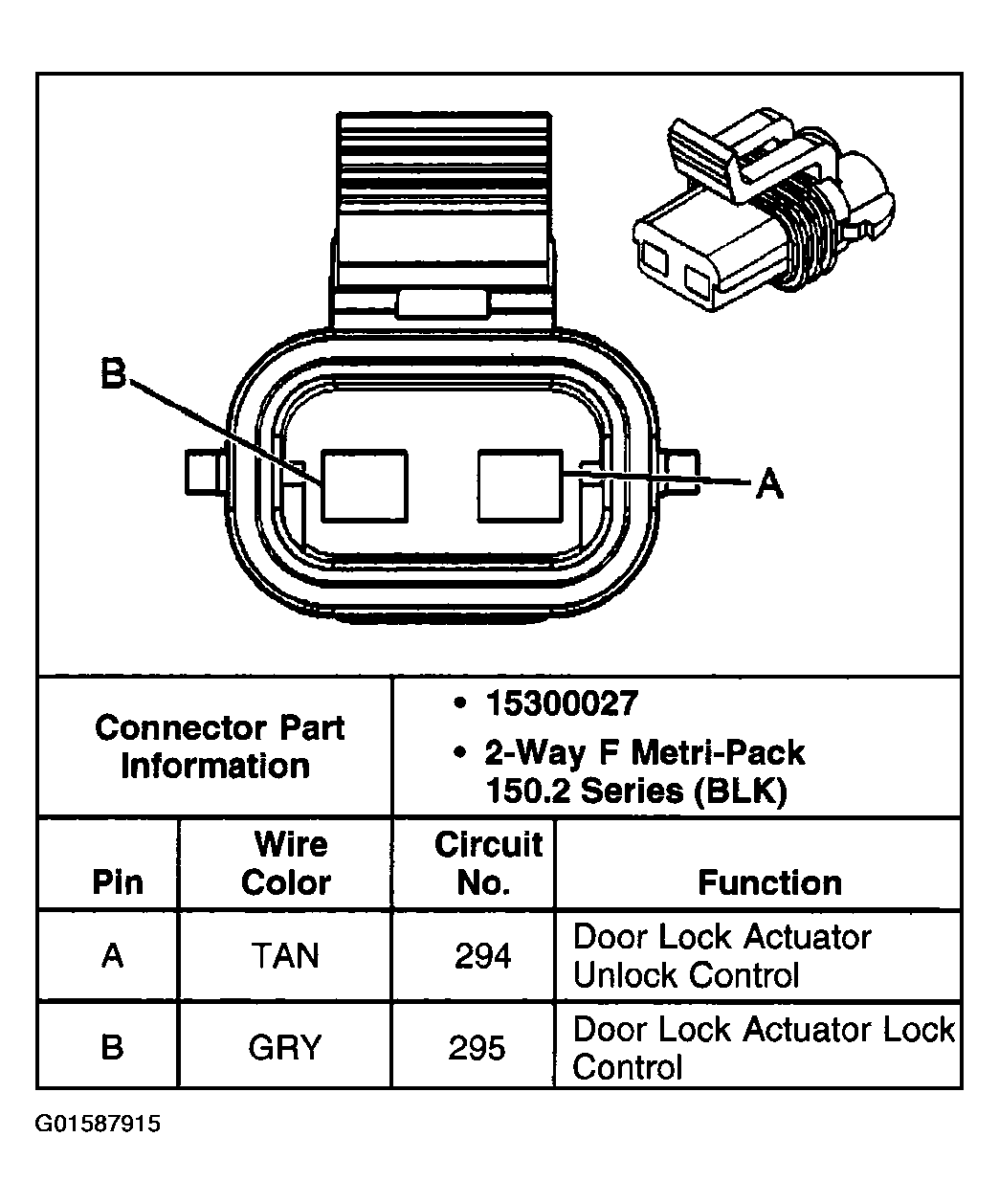

Fig 8: Door Lock - RR, C2 Connector End View
G01587915Courtesy of GENERAL MOTORS CORP.

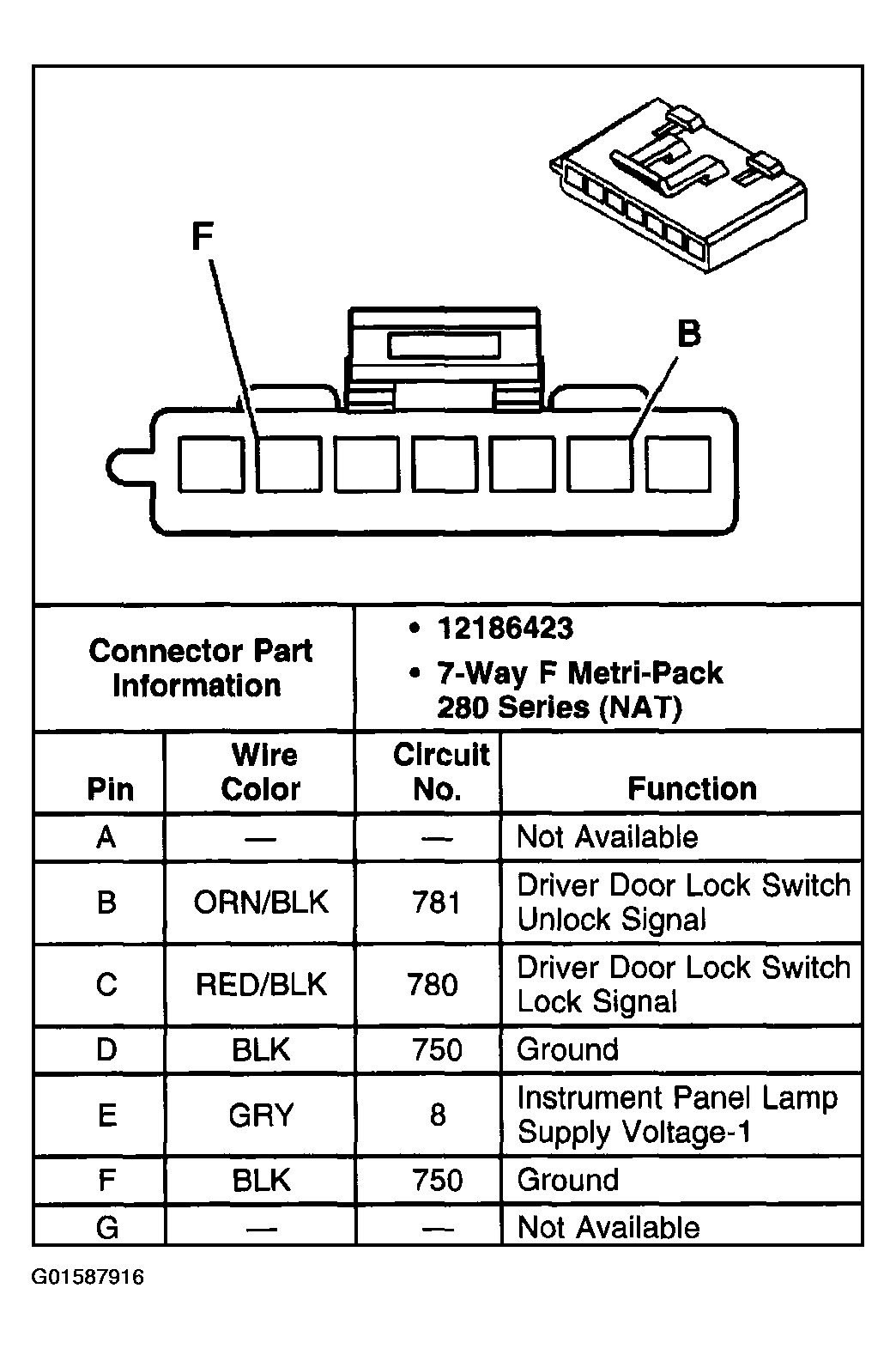

Fig 9: Door Lock Switch - Driver Connector End View
G01587916Courtesy of GENERAL MOTORS CORP.

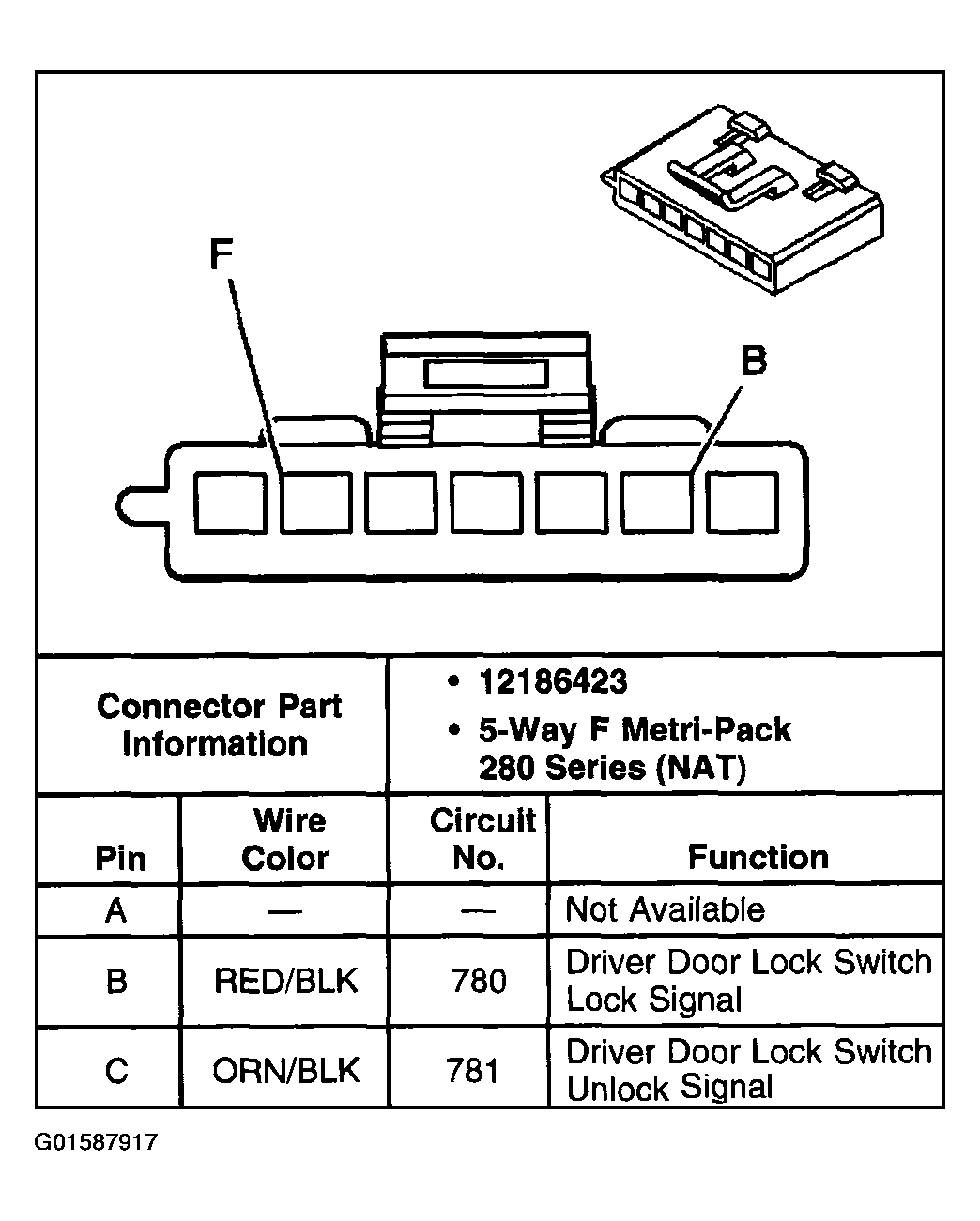

Fig 10: Door Lock Switch - Front Passenger Connector End View (1 Of 2)
G01587917Courtesy of GENERAL MOTORS CORP.

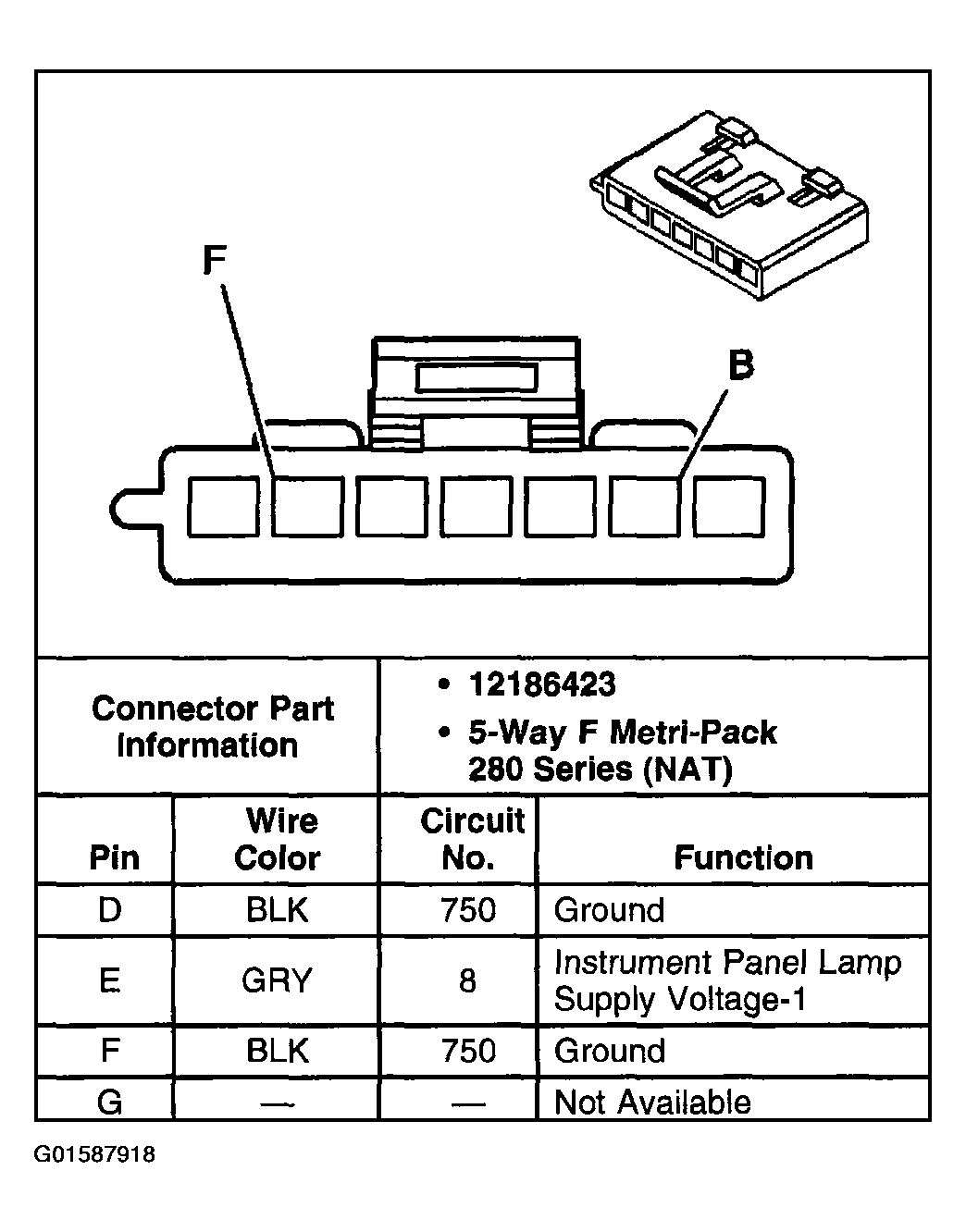

Fig 11: Door Lock Switch - Front Passenger Connector End View (2 Of 2)
G01587918Courtesy of GENERAL MOTORS CORP.

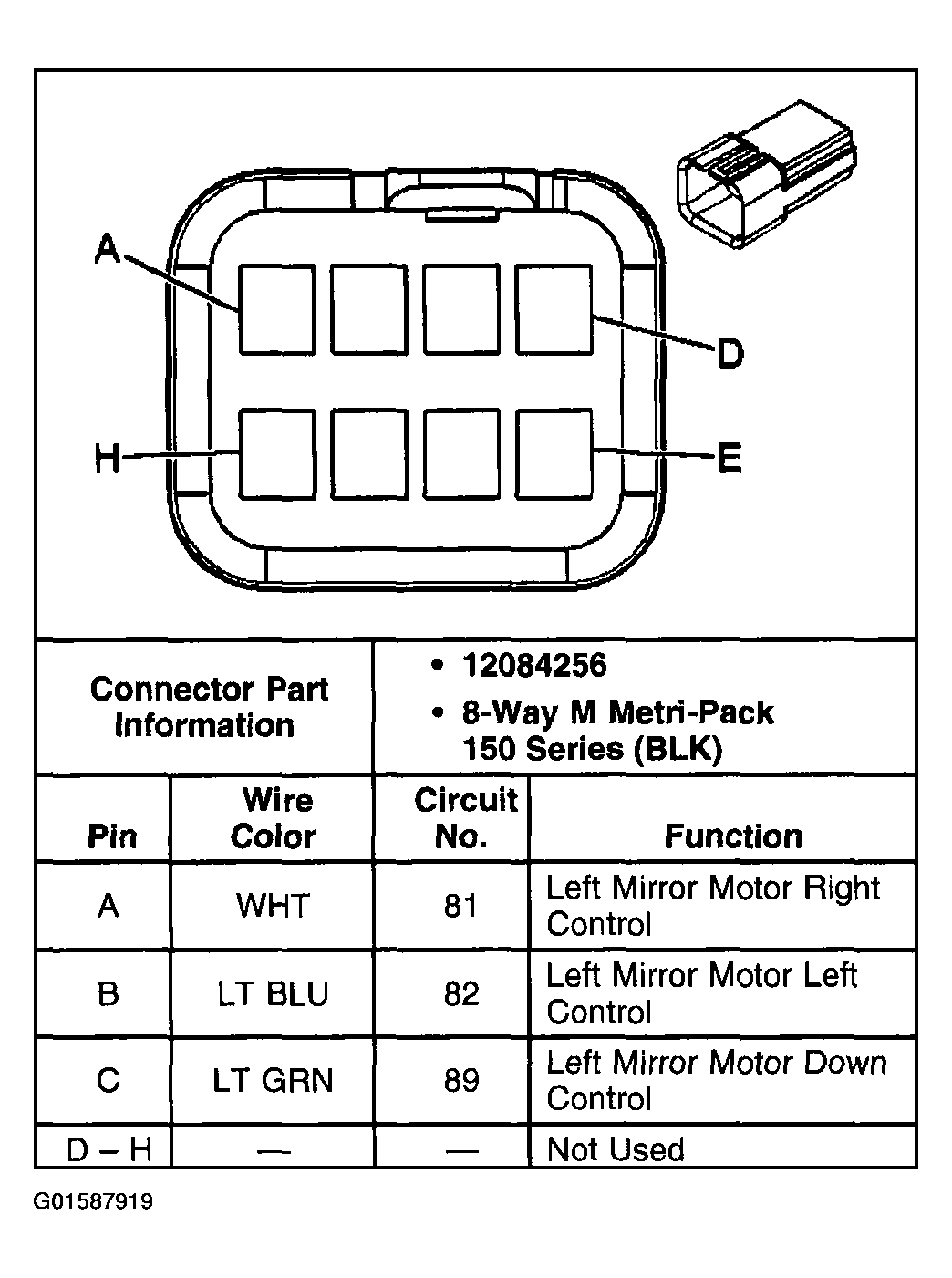

Fig 12: Outside Rearview Mirror - Driver Connector End View
G01587919Courtesy of GENERAL MOTORS CORP.

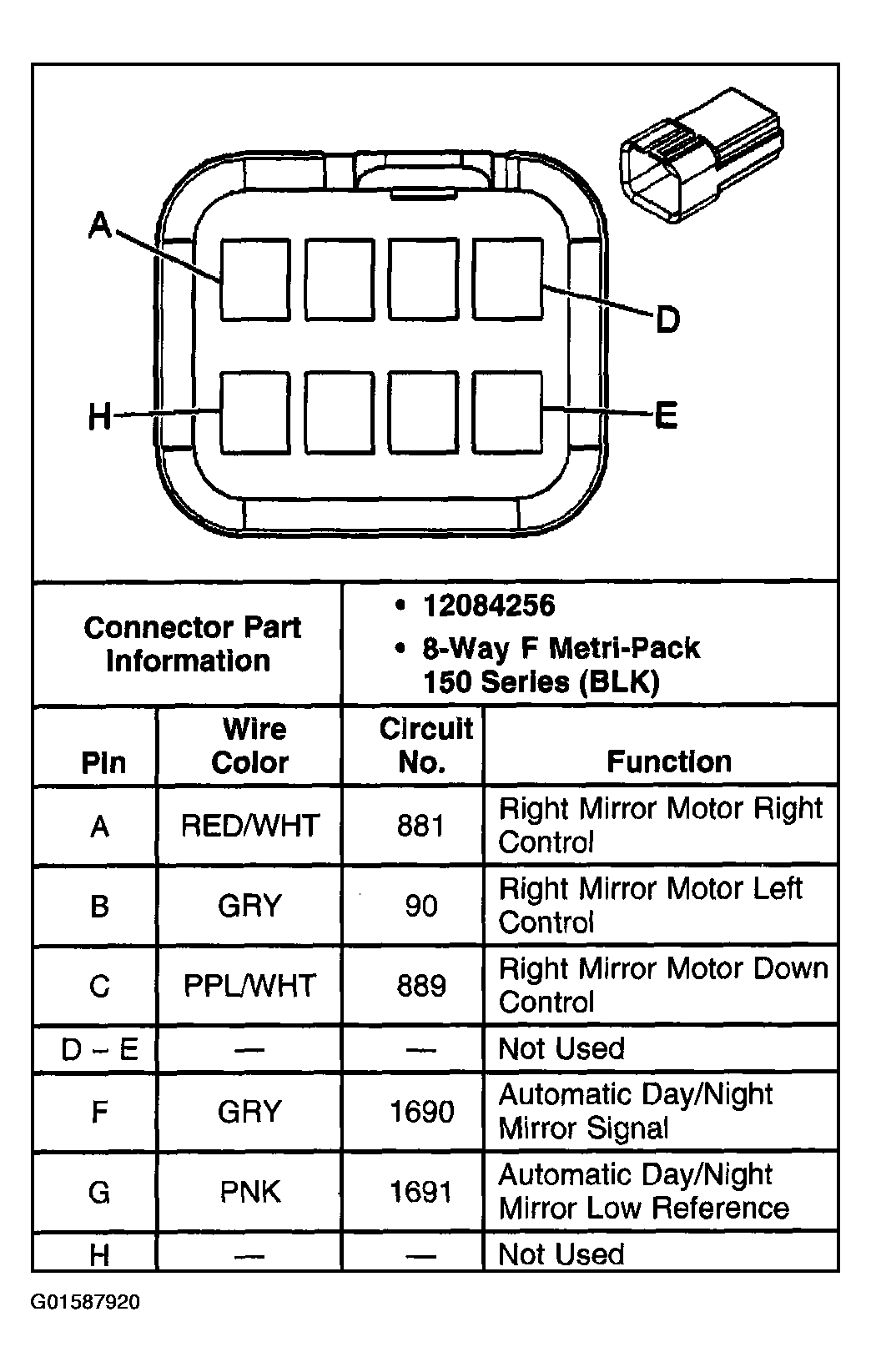

Fig 13: Outside Rearview Mirror - Passenger Connector End View
G01587920Courtesy of GENERAL MOTORS CORP.

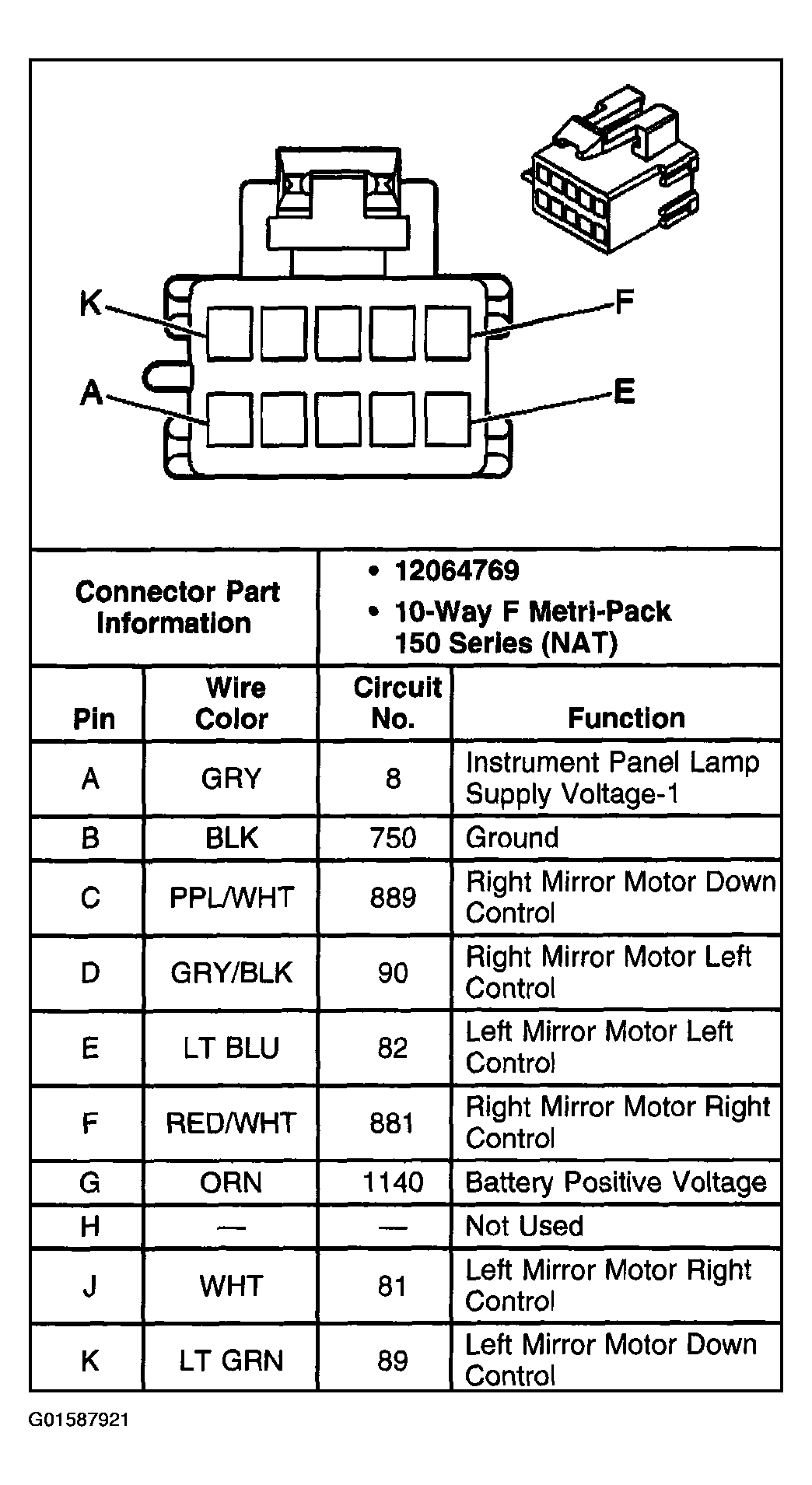

Fig 14: Outside Rearview Mirror Switch Connector End View
G01587921Courtesy of GENERAL MOTORS CORP.

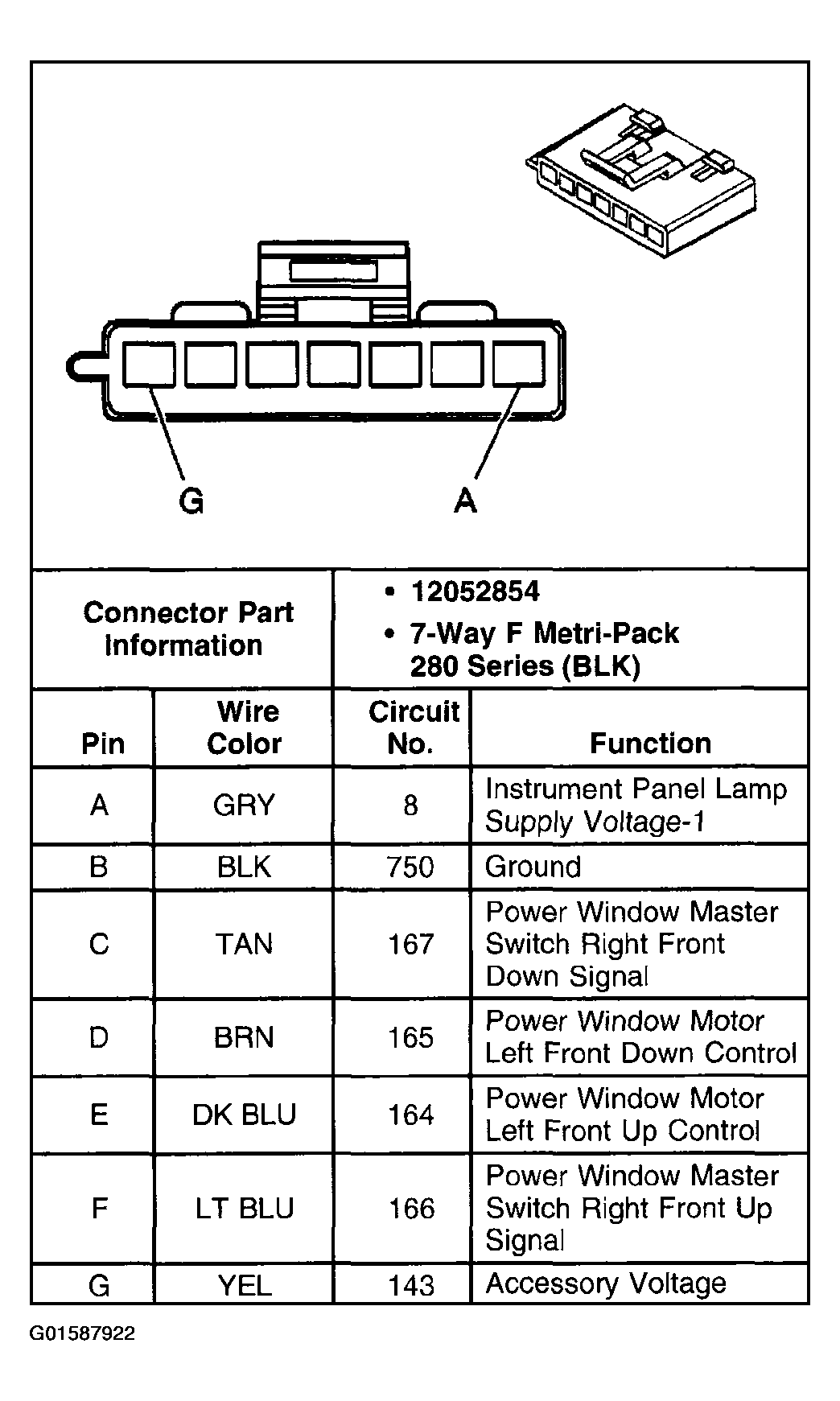

Fig 15: Window Master Switch - Driver, C1 Connector End View
G01587922Courtesy of GENERAL MOTORS CORP.

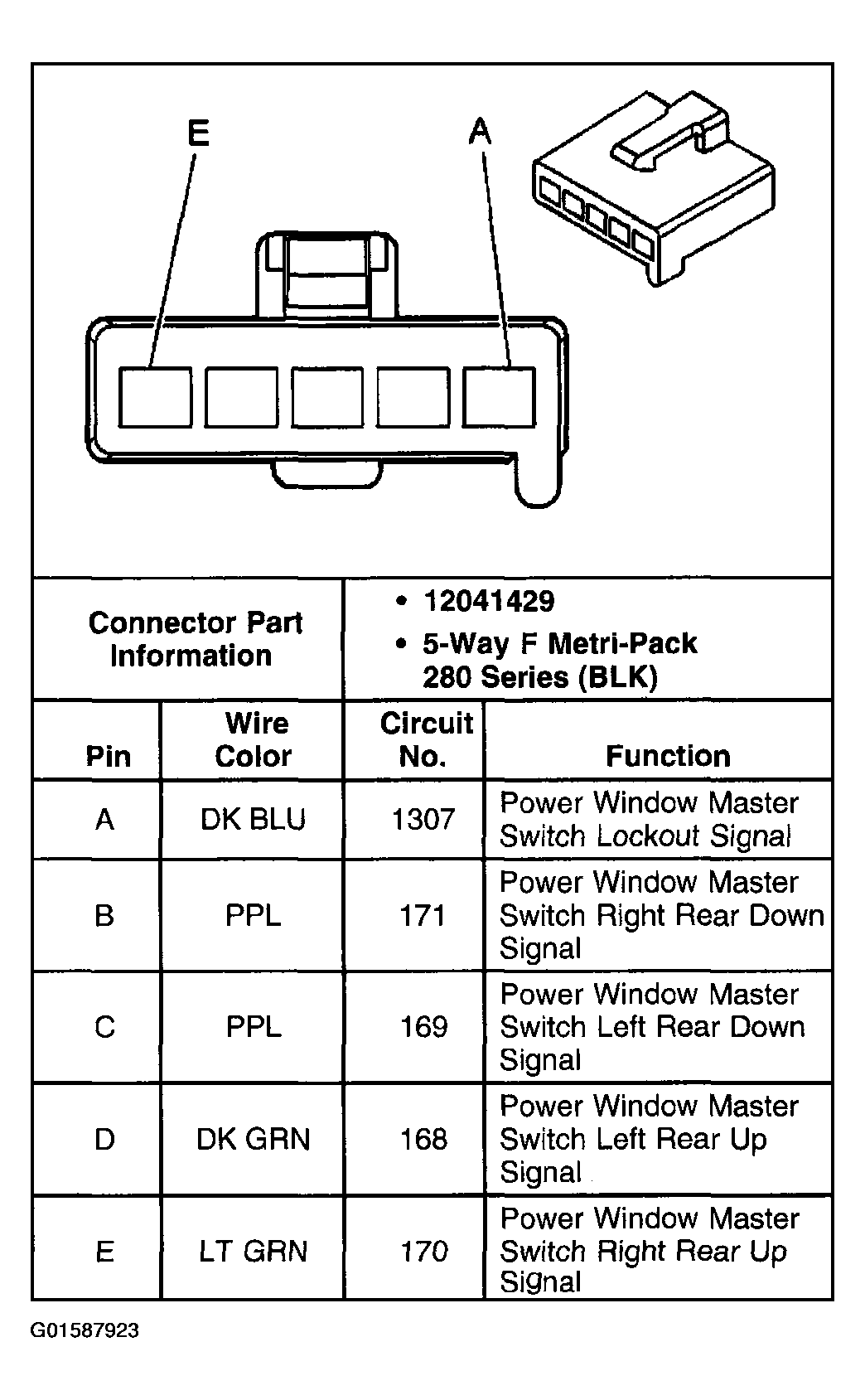

Fig 16: Window Master Switch - Driver, C2 Connector End View
G01587923Courtesy of GENERAL MOTORS CORP.

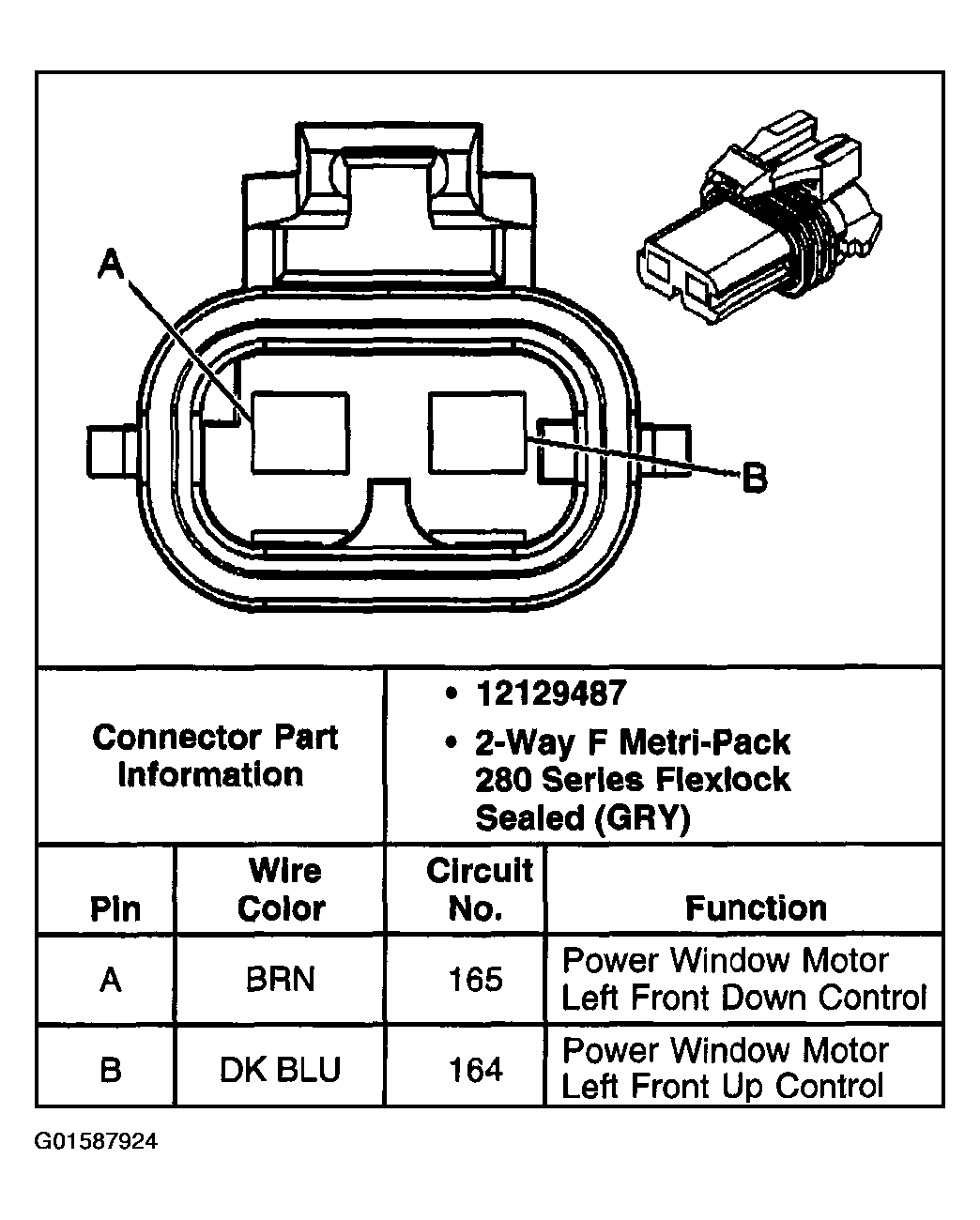

Fig 17: Window Motor - Driver Connector End View
G01587924Courtesy of GENERAL MOTORS CORP.

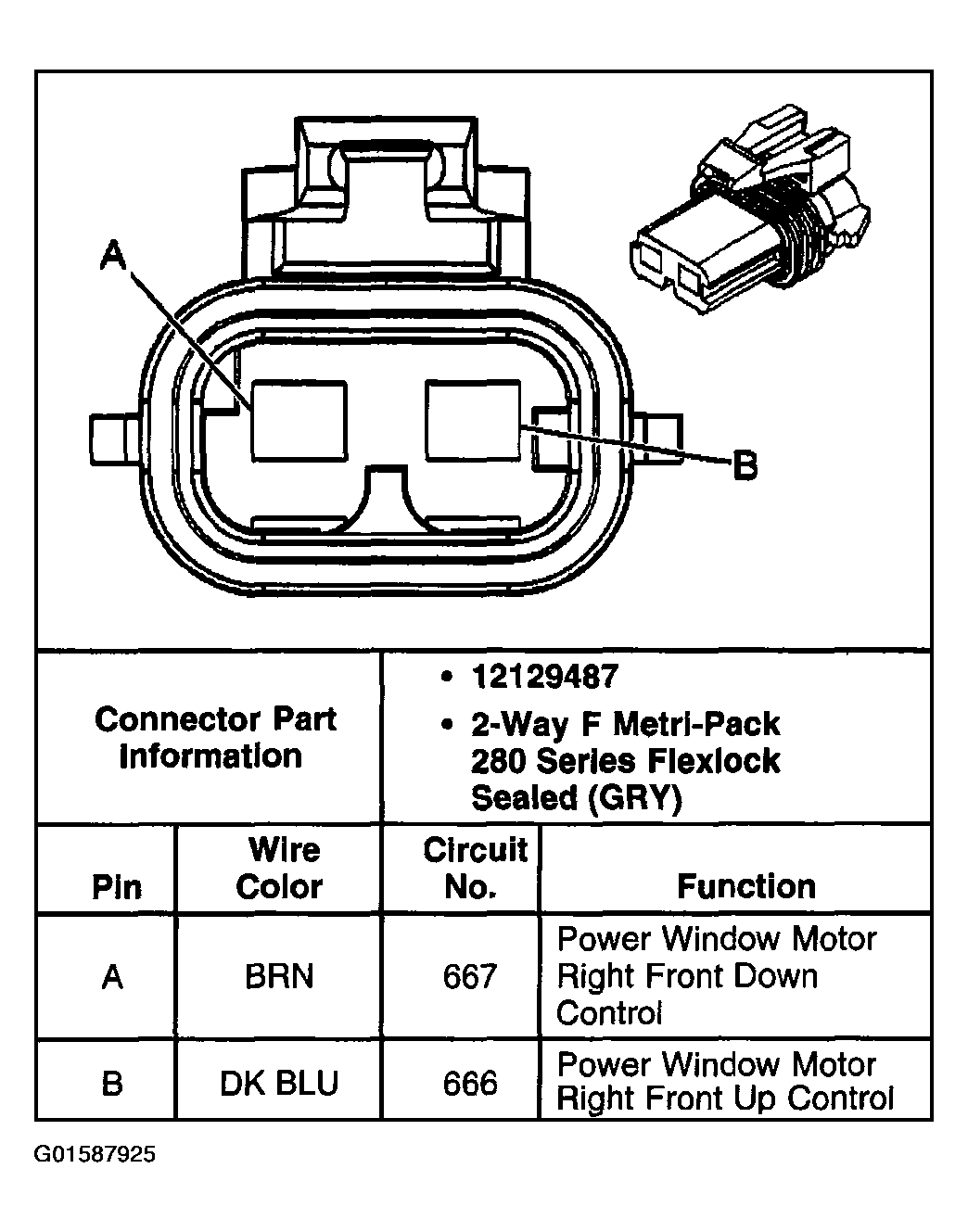

Fig 18: Window Motor - Front Passenger Connector End View
G01587925Courtesy of GENERAL MOTORS CORP.

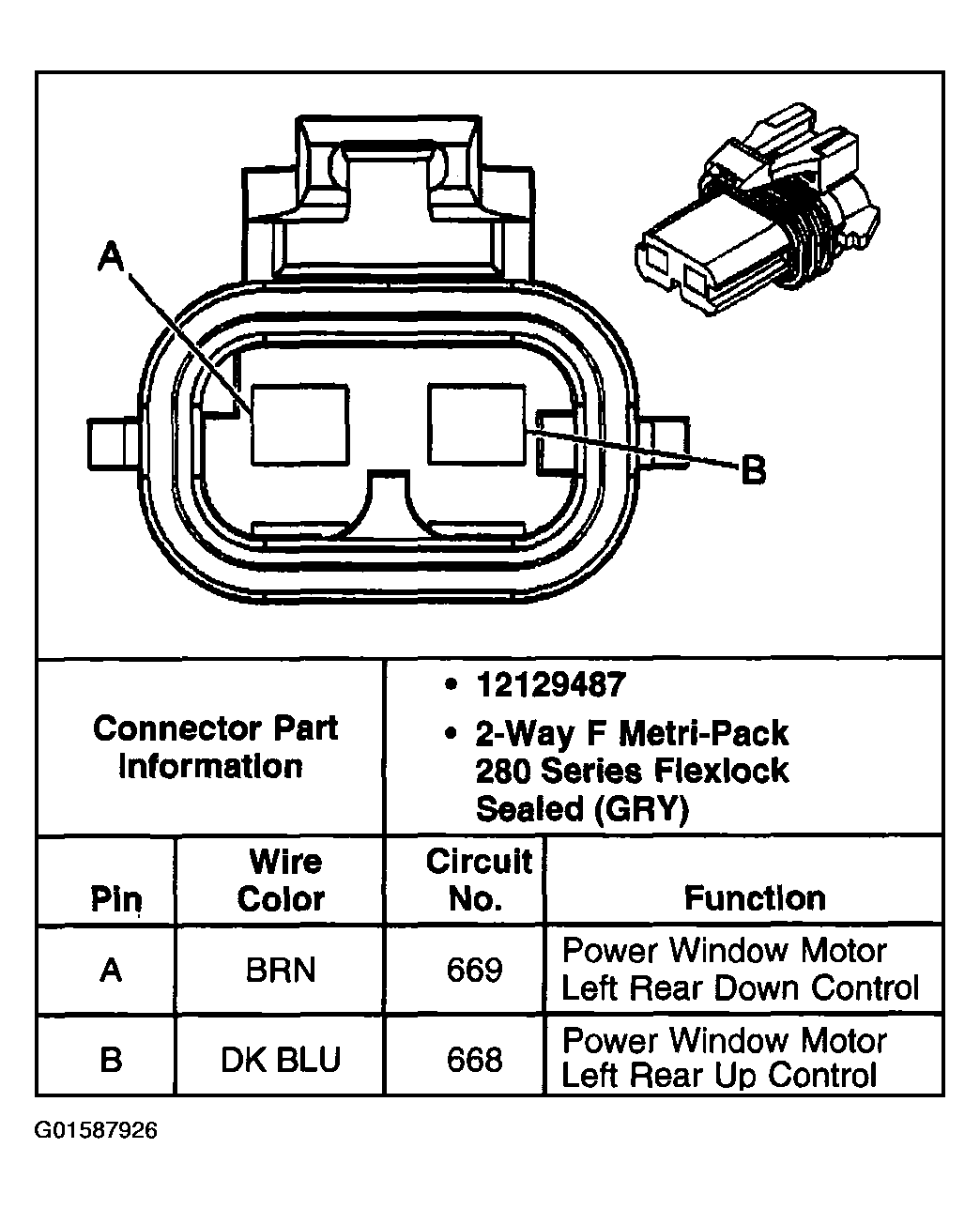

Fig 19: Window Motor - LR Connector End View
G01587926Courtesy of GENERAL MOTORS CORP.

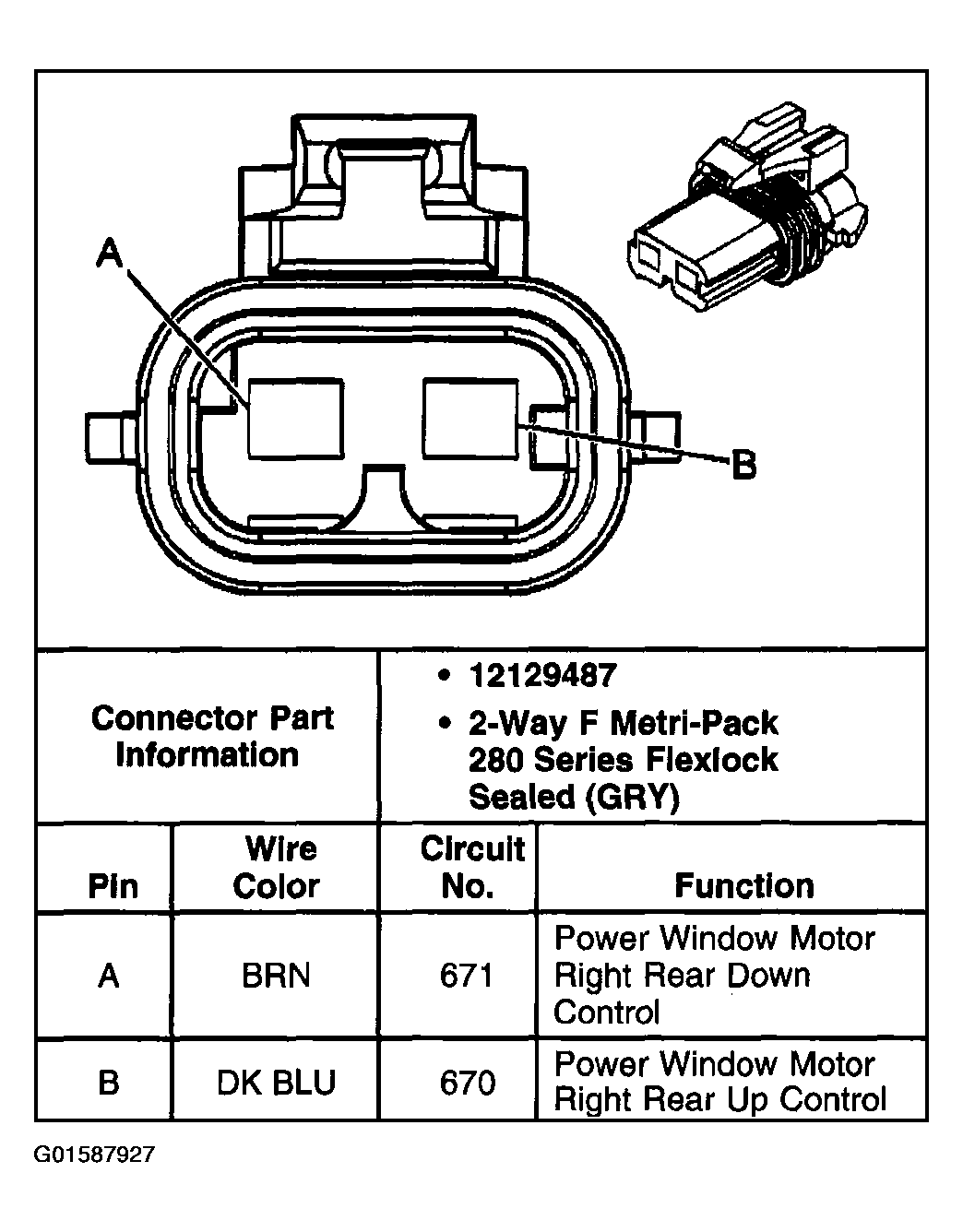

Fig 20: Window Motor - RR Connector End View
G01587927Courtesy of GENERAL MOTORS CORP.

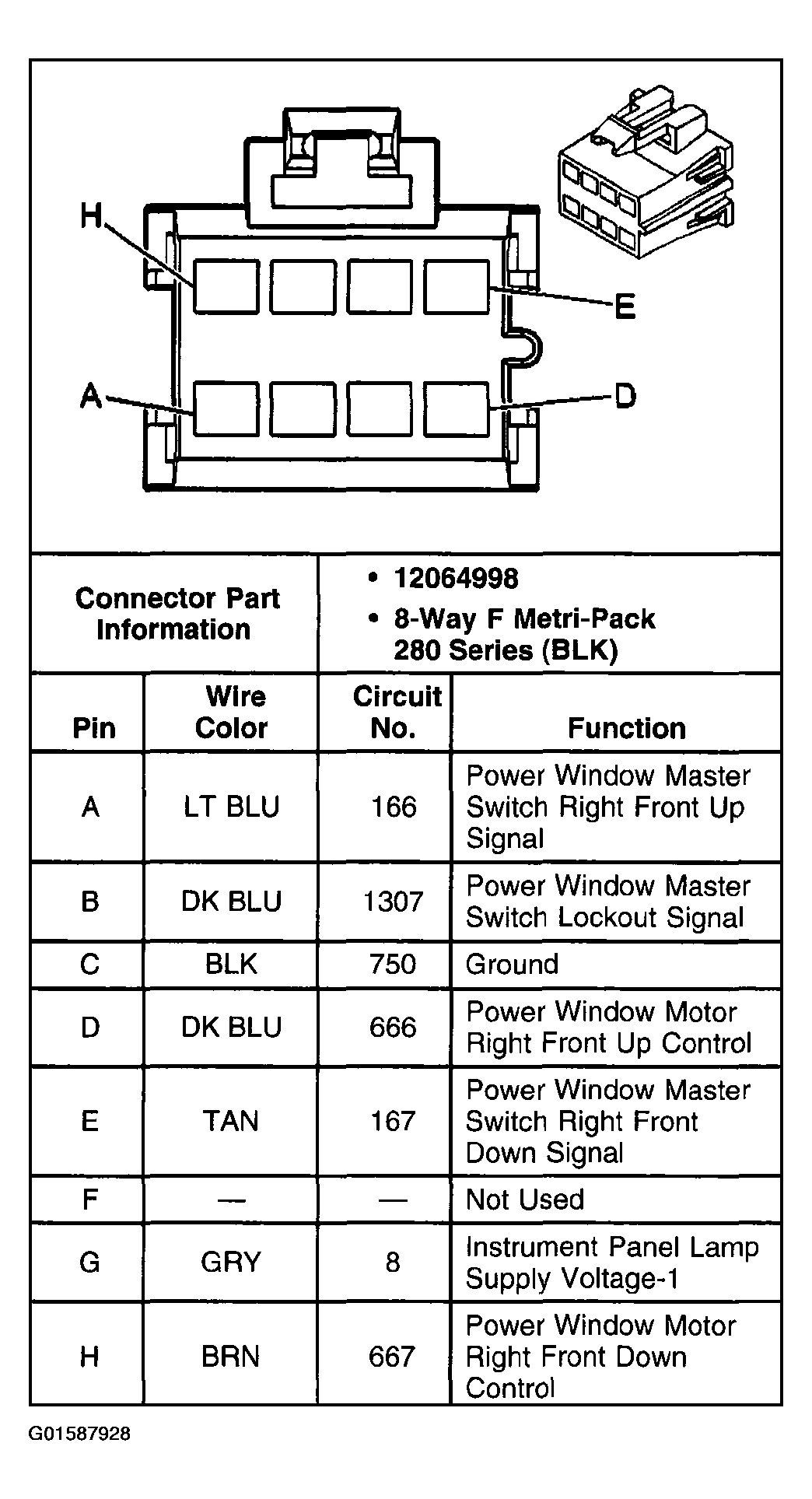

Fig 21: Window Switch - Front Passenger Connector End View
G01587928Courtesy of GENERAL MOTORS CORP.

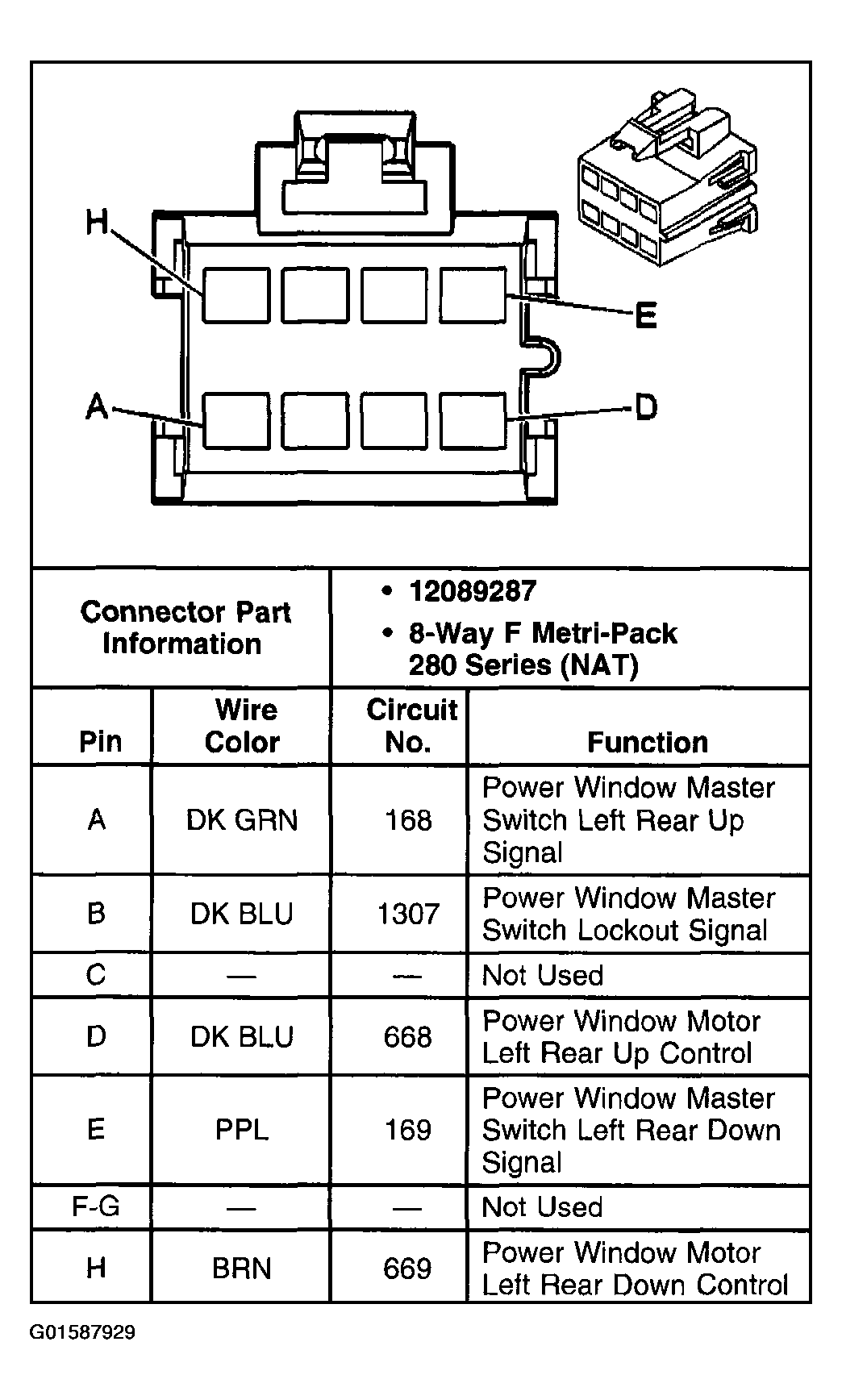

Fig 22: Window Switch - LR Connector End View
G01587929Courtesy of GENERAL MOTORS CORP.

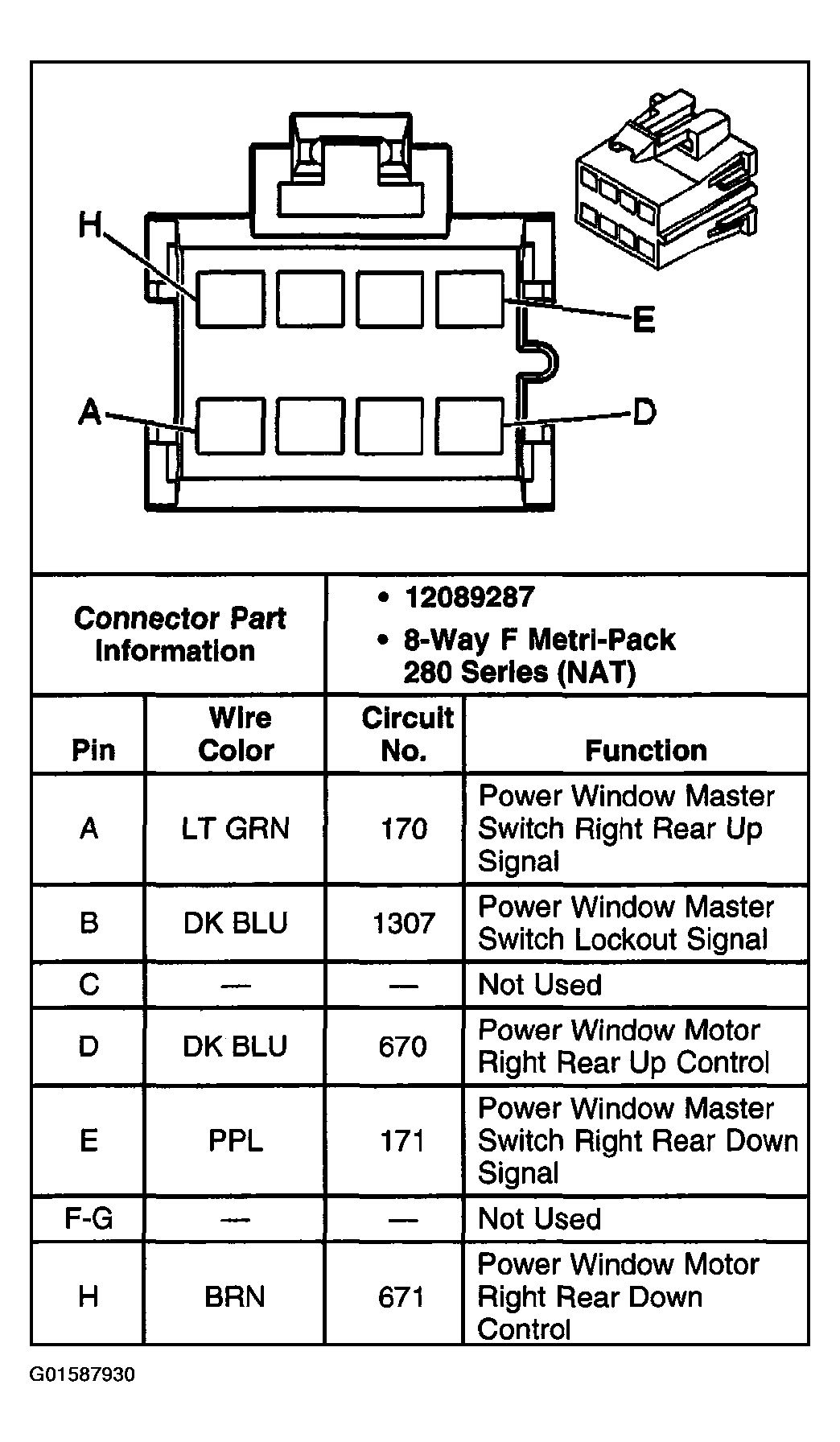

Fig 23: Window Switch - RR Connector End View
G01587930Courtesy of GENERAL MOTORS CORP.
