Removal Procedure

  1. This procedure covers the removal and installation of the front and rear door.

    Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  or Remove the rear door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR  .

  2. Remove the retaining guide block (1).

    Pull the rod (2) upward until it releases from the retaining guide block.

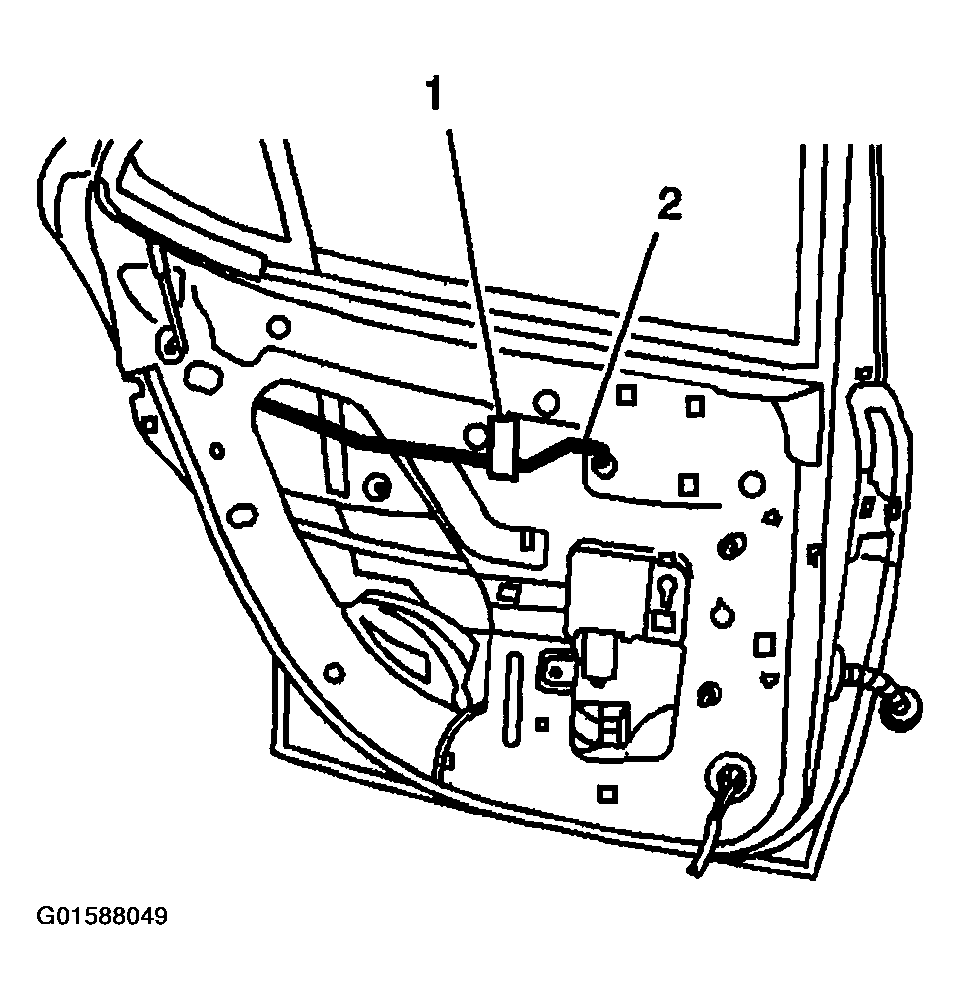

    3. Fig 1: Removing Handle Lock Rod Guide Block
    G01588049Courtesy of GENERAL MOTORS CORP.
