ABS Component Views

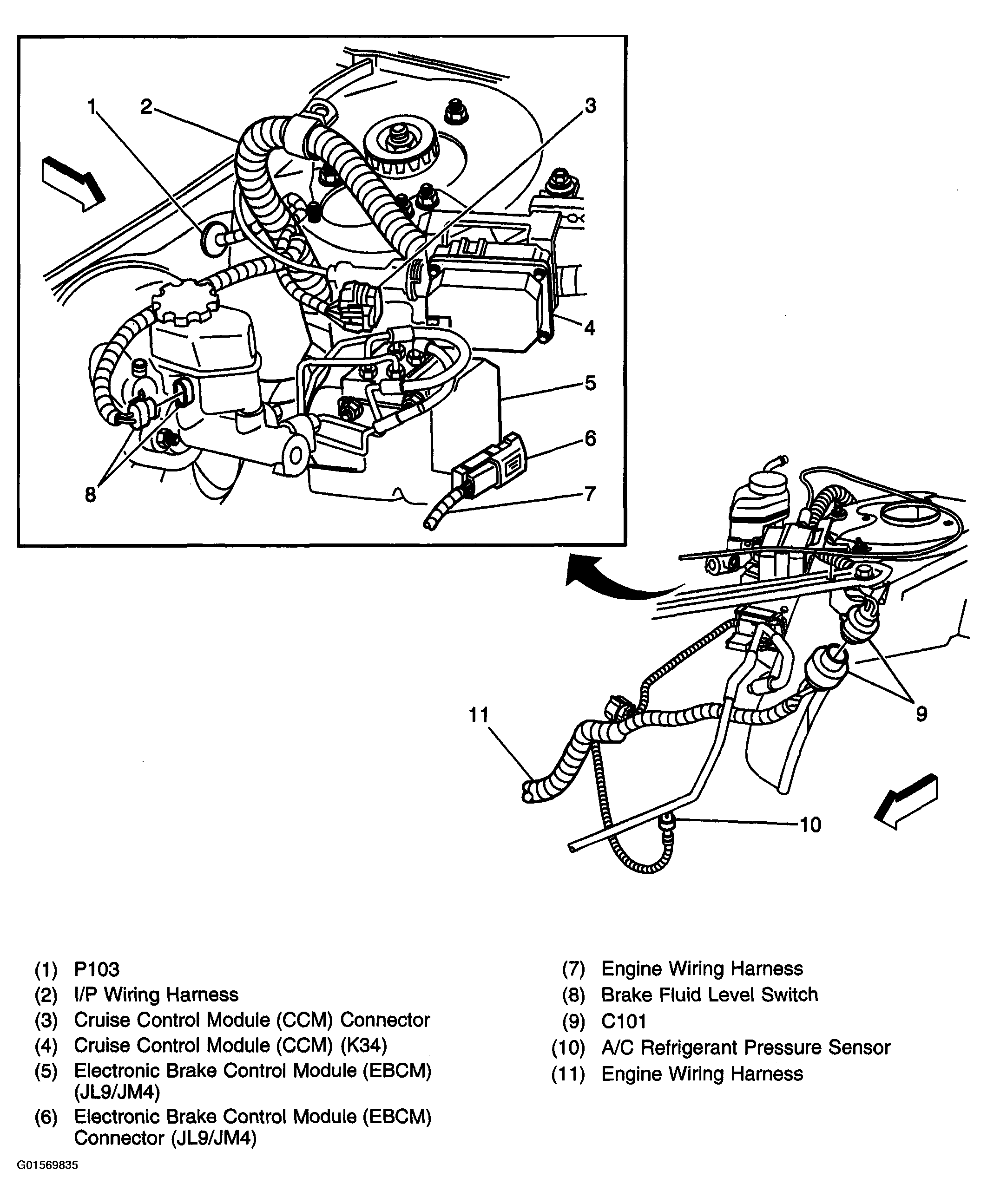

Fig 1: LR Of Engine Compartment Component View
G01569835Courtesy of GENERAL MOTORS CORP.

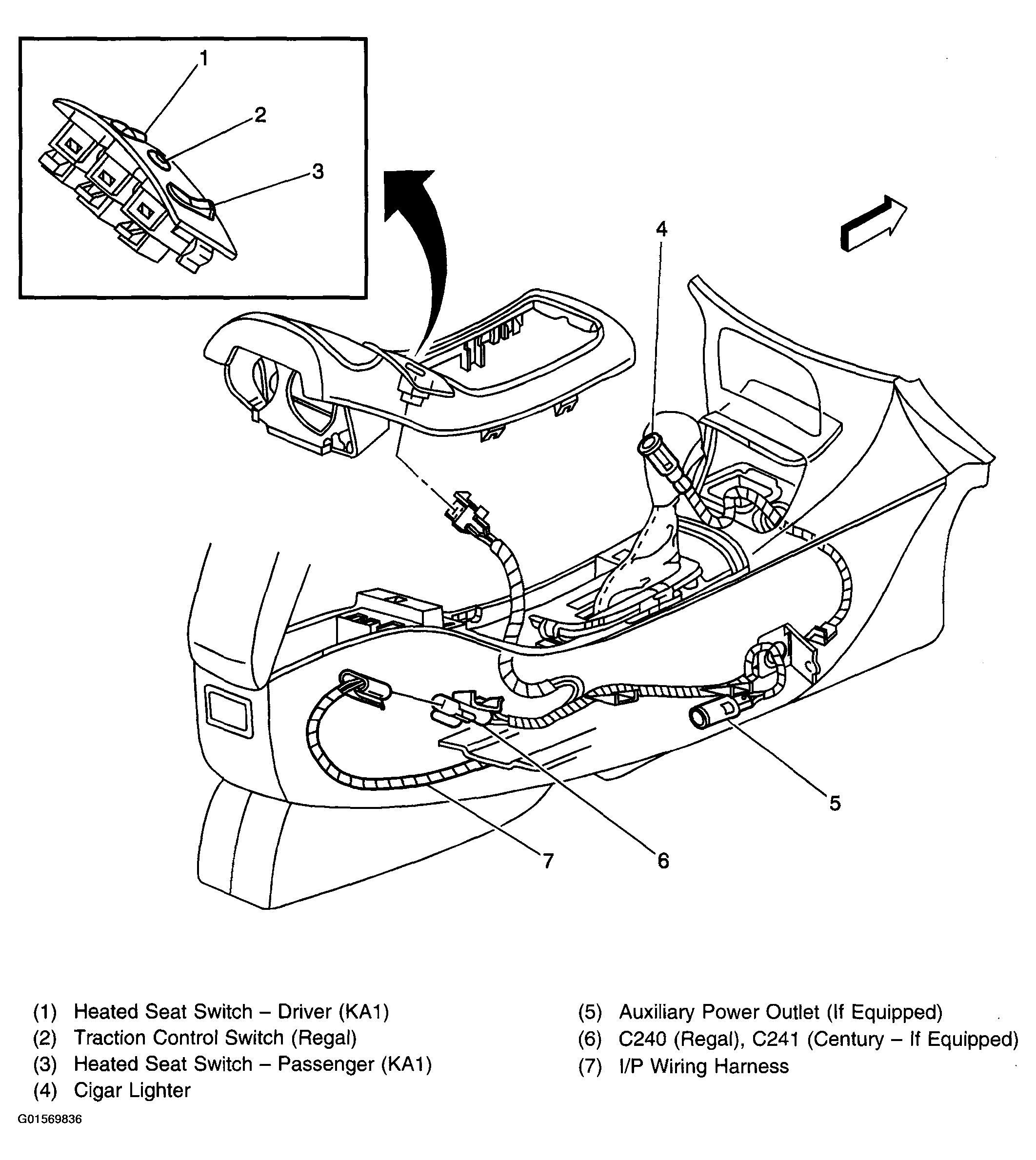

Fig 2: Center Console Component View (D06, D55 - If Equipped)
G01569836Courtesy of GENERAL MOTORS CORP.

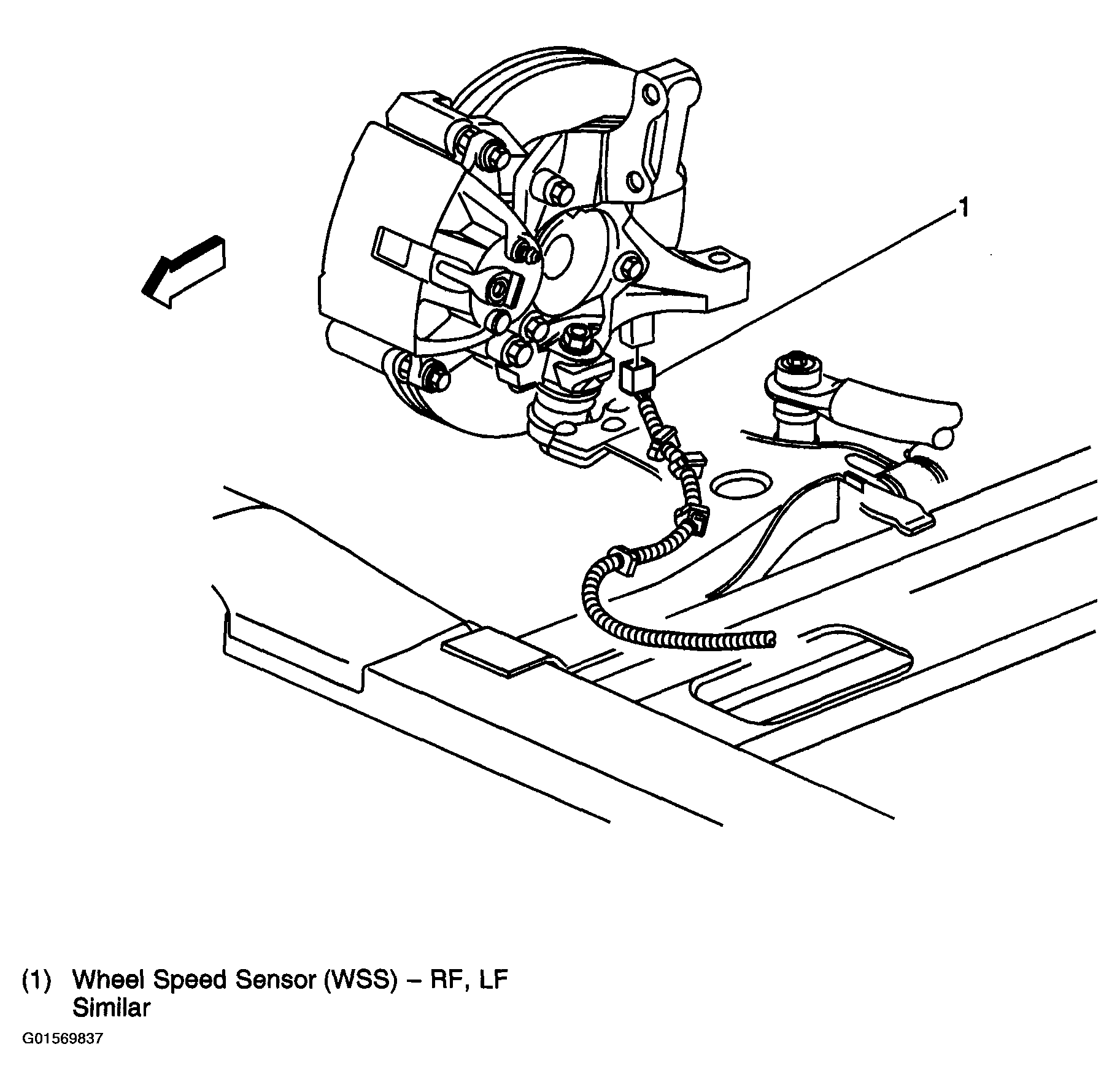

Fig 3: Wheel Speed Sensor Component View - RF, LF Similar
G01569837Courtesy of GENERAL MOTORS CORP.
