Installation Procedure

  1. Install the EBCM to the BPMV.

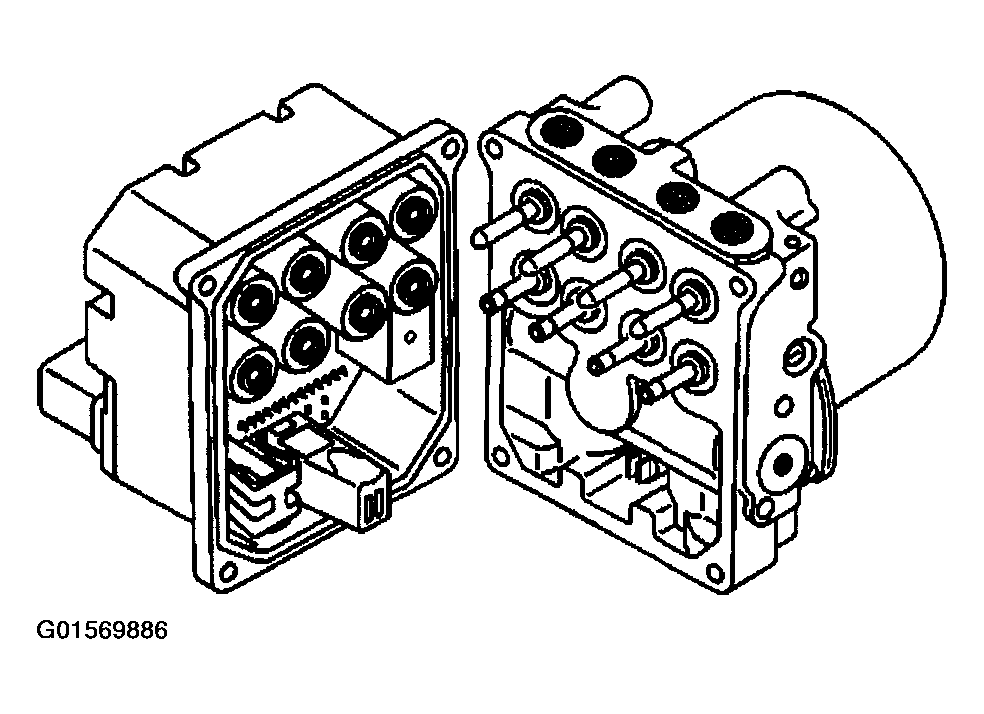

    Fig 1: Installing EBCM To BPMV
    G01569886Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the four retainers that attach the EBCM to BPMV.

    Tighten

    Tighten the retainers to 5 N.m (44 lb in).

  3. Connect the EBCM harness connector.
  4. Push down lock tab (1) and then move sliding connector cover (2) back in the home position to lock.
  5. Reengage the red locking tab (1) to the connected lock tab.

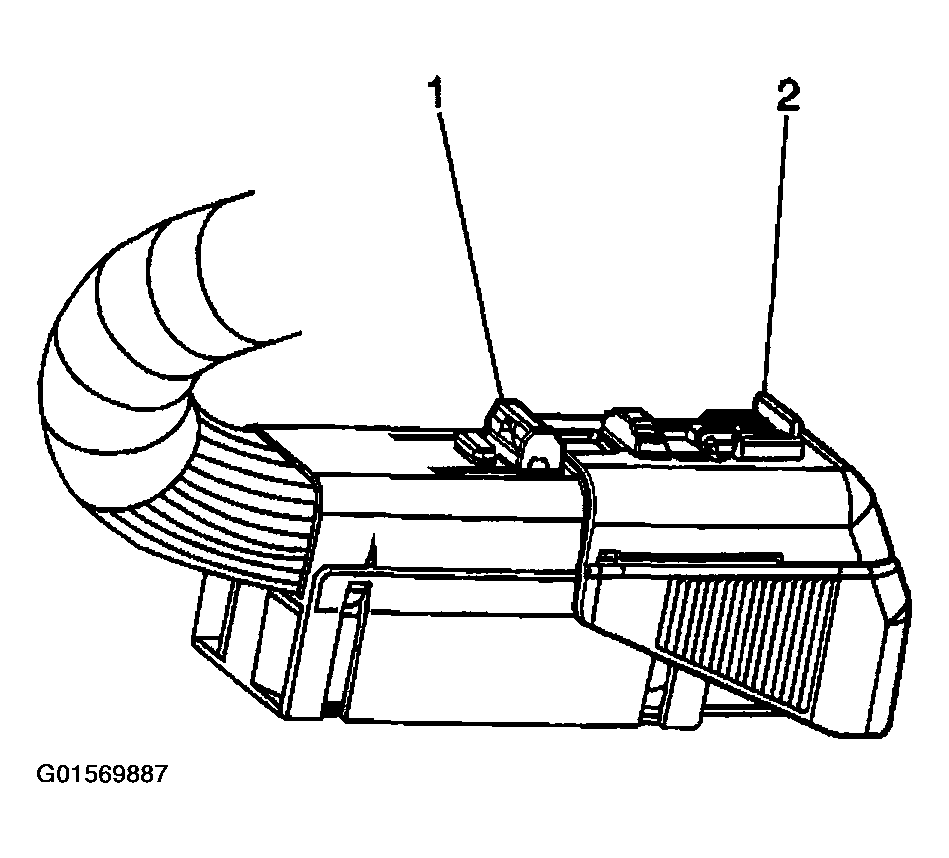

    Fig 2: Reengaging Red Locking Tab To Connected Lock Tab
    G01569887Courtesy of GENERAL MOTORS CORP.
  6. Install the air cleaner intake duct. Refer to AIR CLEANER INTAKE DUCT in Removal & Installation - A/T. .
  7. Reposition the module and cables. Connect the cruise control module to the left strut tower. Refer to CRUISE CONTROL MODULE REPLACEMENT in Cruise Control.
  8. Connect the accelerator and cruise control cable to the accelerator control cable bracket.
  9. Install the front fender upper diagonal brace. Refer to BRACE REPLACEMENT - FRONT FENDER UPPER DIAGONAL in Body Front End.
  10. Install the fuel injector sight shield (3.8 L engine only). Refer to FUEL INJECTOR SIGHT SHIELD REPLACEMENT (L36) or FUEL INJECTOR SIGHT SHIELD REPLACEMENT (L67) .
  11. Turn the ignition switch to the RUN position, do not start engine.
  12. Perform the DIAGNOSTIC SYSTEM CHECK - ABS  .
