Removal Procedure

  1. Depress the retainers on each side of the traction control/heated seat switch using a small flat-bladed tool.
  2. Lift the traction control/heated seat switch from the front of the floor console trim plate.
  3. Disconnect the electrical connector from the traction control switch.
  4. Disconnect the electrical connectors from the heater seat switches.

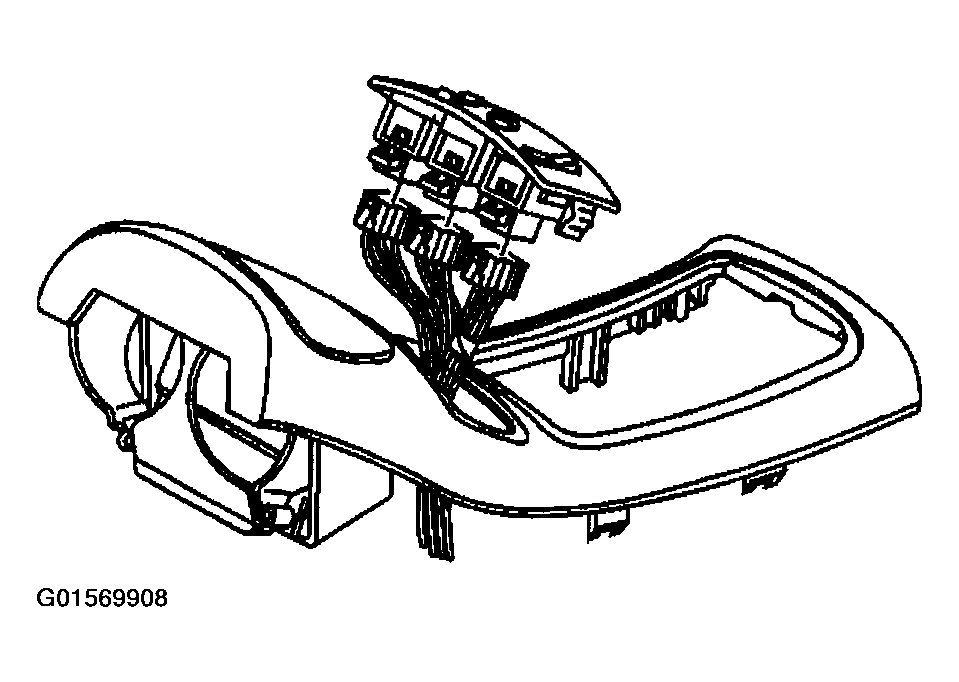

    Fig 1: Disconnecting Traction Control/Heated Seat Switch Electrical Connectors
    G01569908Courtesy of GENERAL MOTORS CORP.
