Engine Electrical Component Views

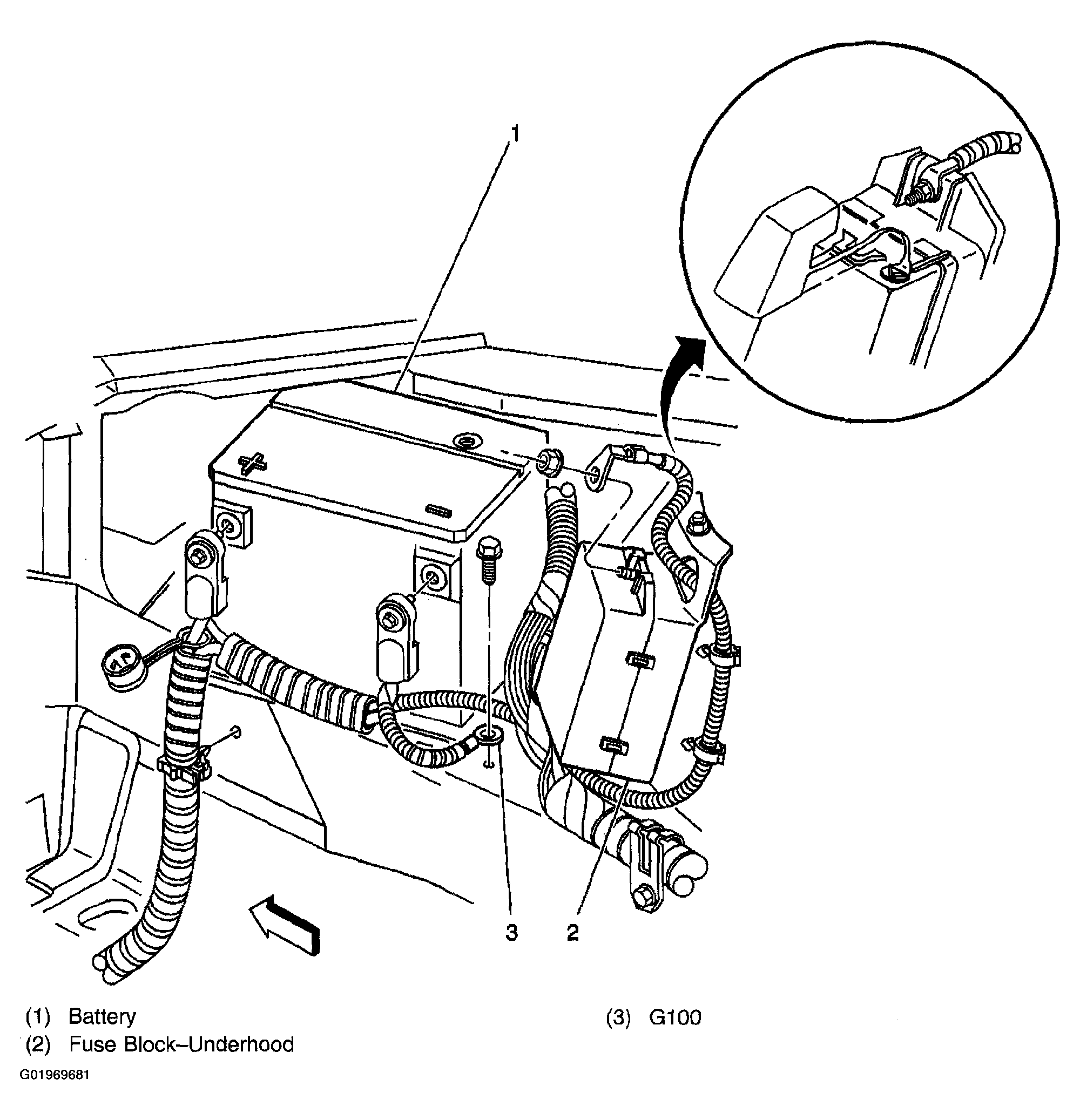

Fig 1: Battery Cable & Grounding Point Component View
G01969681Courtesy of GENERAL MOTORS CORP.
Fig 2: Lower Front Of Engine Component View
G01969685Courtesy of GENERAL MOTORS CORP.

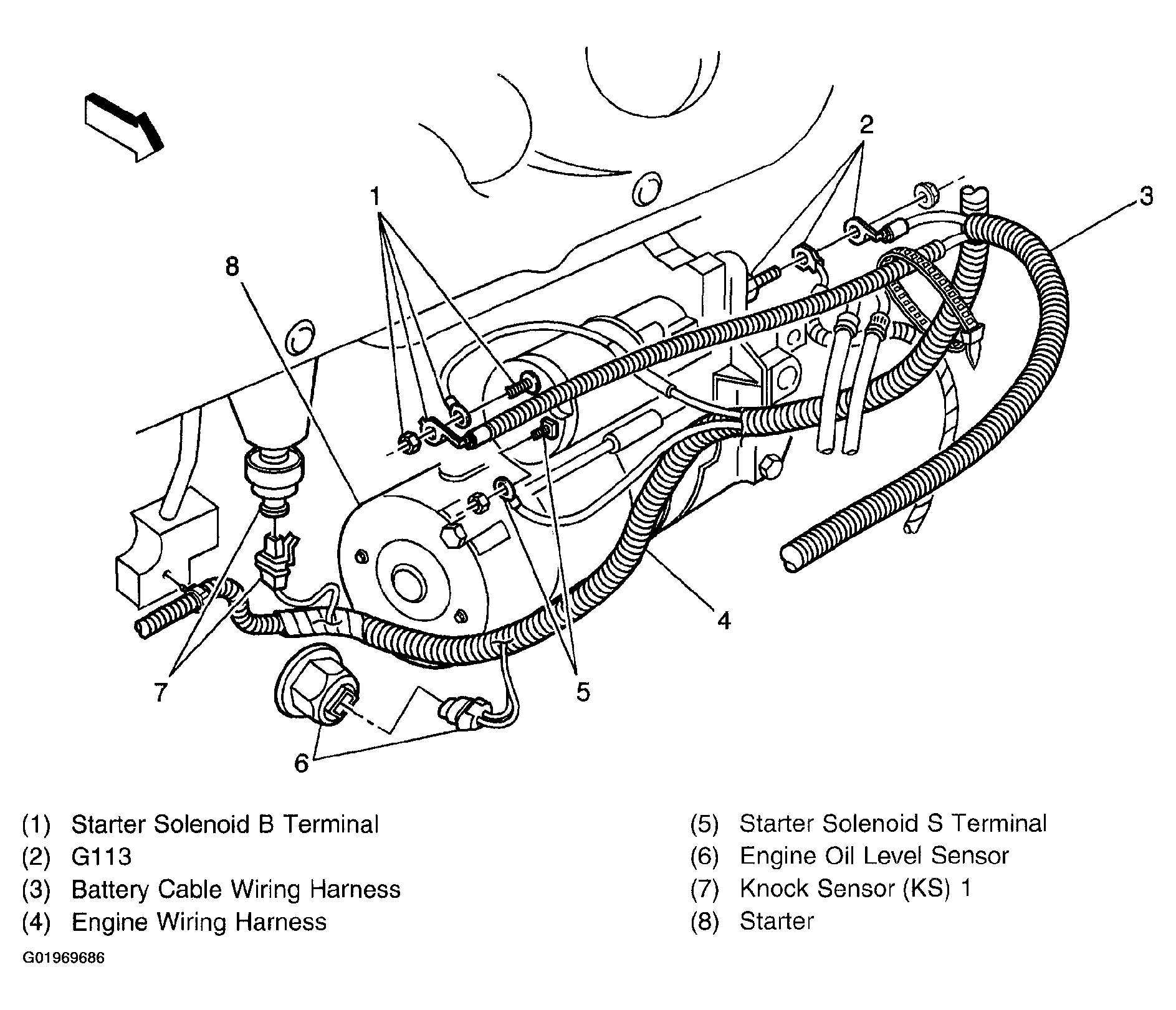

Fig 3: Lower Front Of Engine Component View (L36)
G01969686Courtesy of GENERAL MOTORS CORP.
Fig 4: Lower Front Of Engine Component View (L67)
G01969687Courtesy of GENERAL MOTORS CORP.
