Removal & Installation

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Pull instrument panel radio trim plate to rear and disengage clips and remove trim plate. See Fig 1. Pinch tabs in and remove control head from instrument panel. See Fig 2.
To install, reverse removal procedure. HVAC control head must be reprogrammed. See appropriate BODY CONTROL MODULES article in ACCESSORIES & EQUIPMENT.

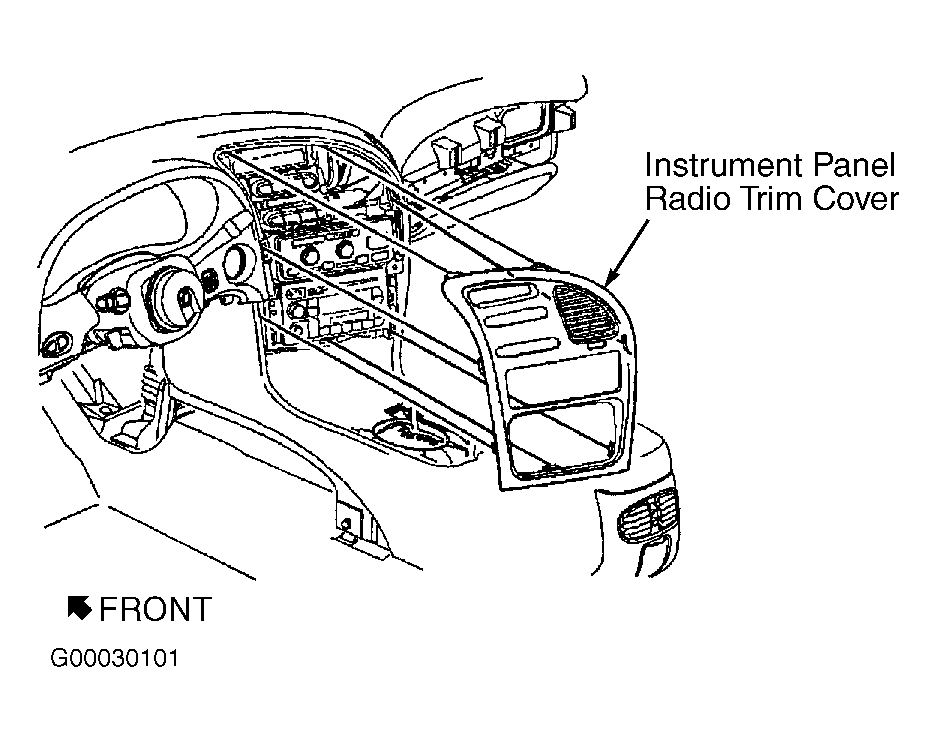

Fig 1: Identifying Instrument Panel Radio Trim Cover

Courtesy of GENERAL MOTORS CORP.

Fig 2: Removing & Installing HVAC Control Module

Courtesy of GENERAL MOTORS CORP.
