Power Seat Systems Component Views
WARNING: This page is about a different car, the 2004 Buick Regal and 2004 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

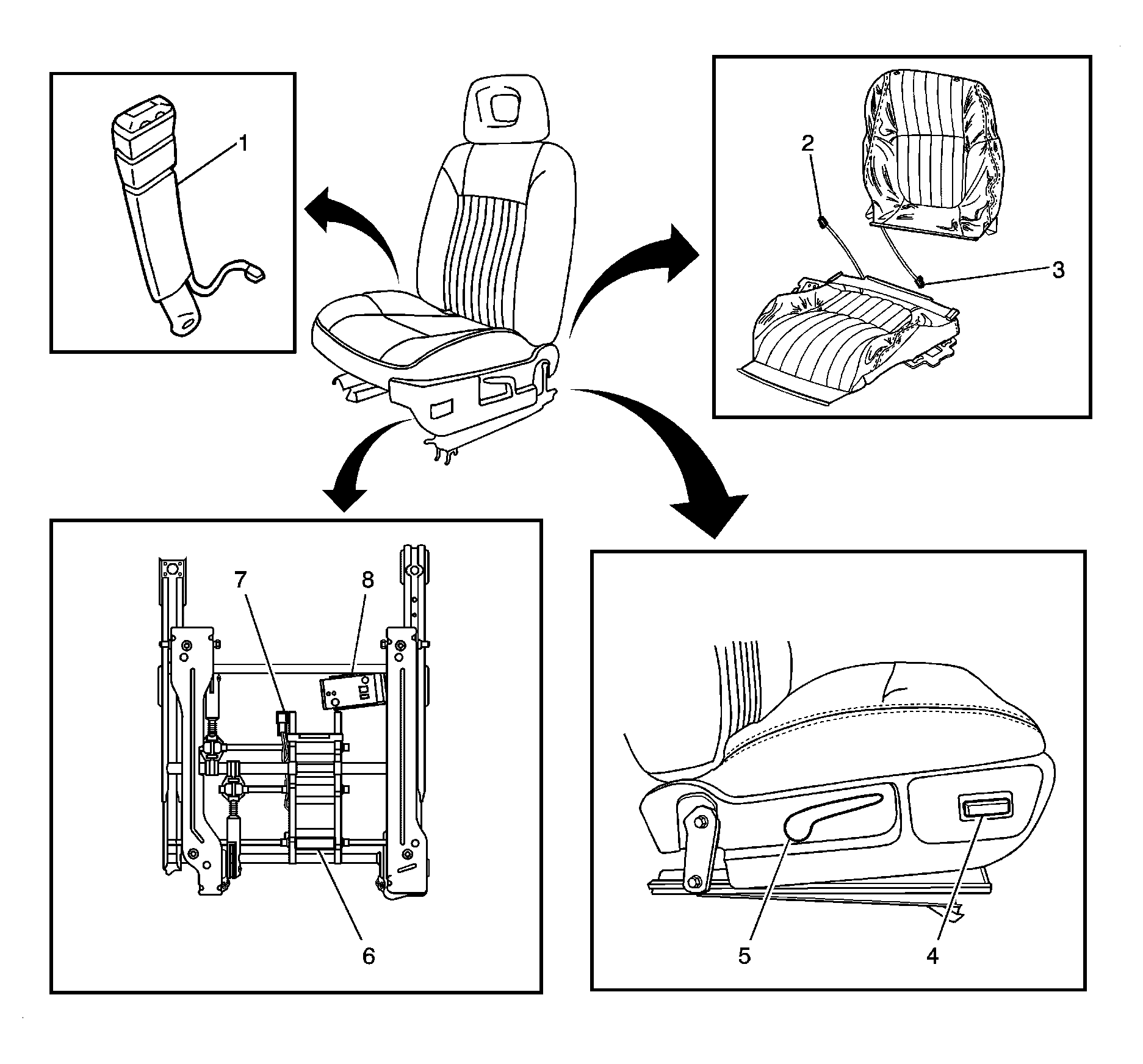

| Callout | Component Name |
|---|---|
| 1 | Seat Belt Switch |
| 2 | Heated Seat Element - Cushion Cover Connector (KA1) |
| 3 | Heated Seat Back Element Connector (KA1) |
| 4 | Seat Adjuster Switch (AG1/AG2) |
| 5 | Manual Seat Recliner Lever |
| 6 | Seat Adjuster Motor Assembly |
| 7 | C311 Shown, C312 Similar |
| 8 | Heated Seat Control Module (KA1) |
| Callout | Component Name |
|---|---|
| 1 | Heated Seat Switch - Driver (KA1) |
| 2 | Traction Control Switch (Regal) |
| 3 | Heated Seat Switch - Passenger (KA1) |
| 4 | Cigar Lighter |
| 5 | Auxiliary Power Outlet (Regal) |
| 6 | C240 (Regal) |
| 7 | I/P Wiring Harness |

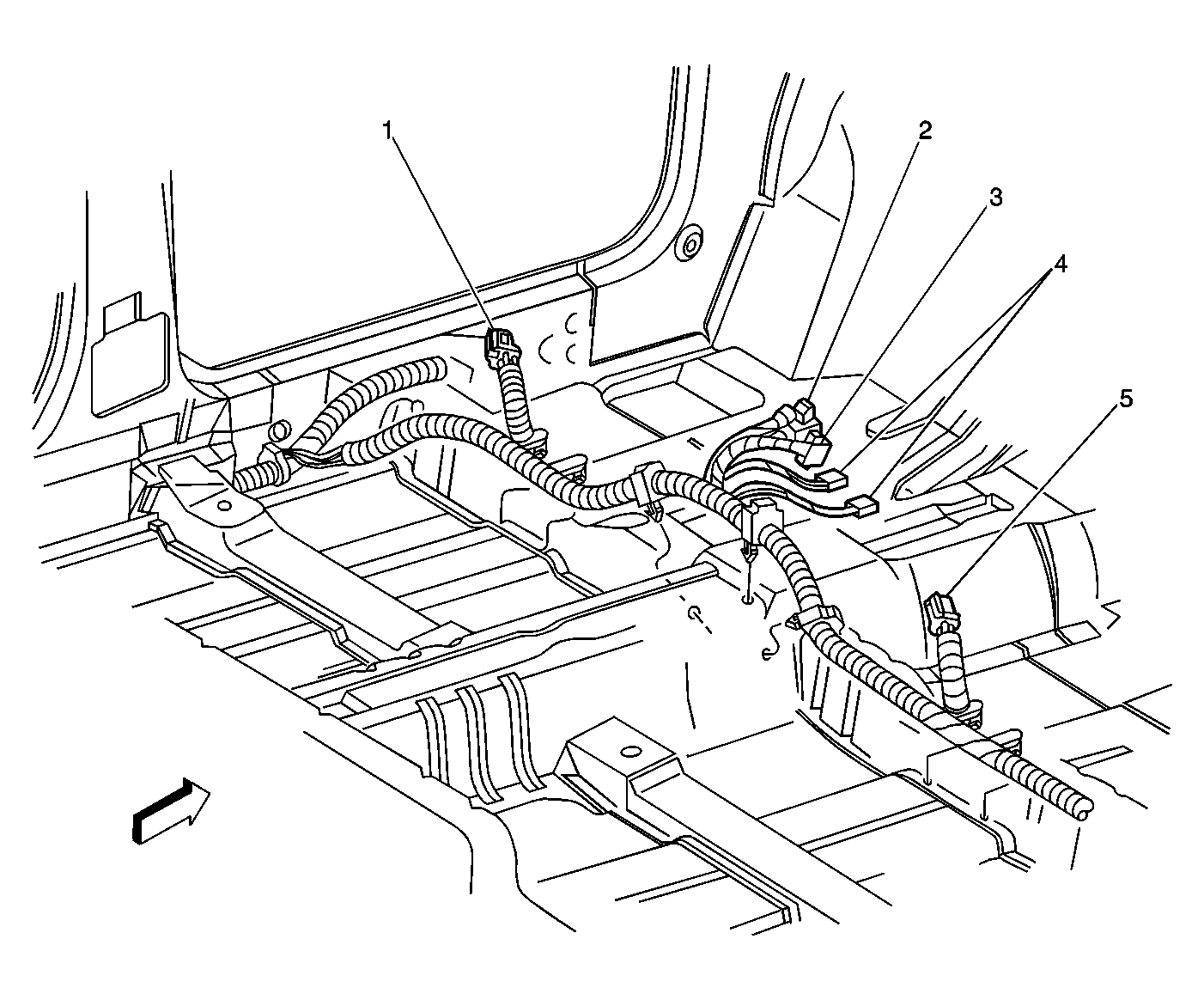

| Callout | Component Name |
|---|---|
| 1 | C311 |
| 2 | Inflatable Restraint Sensing and Diagnostic Module Connector |
| 3 | Heated Seat Switch - Driver |
| 4 | Heated Seat Switch - Passenger |
| 5 | C312 |
