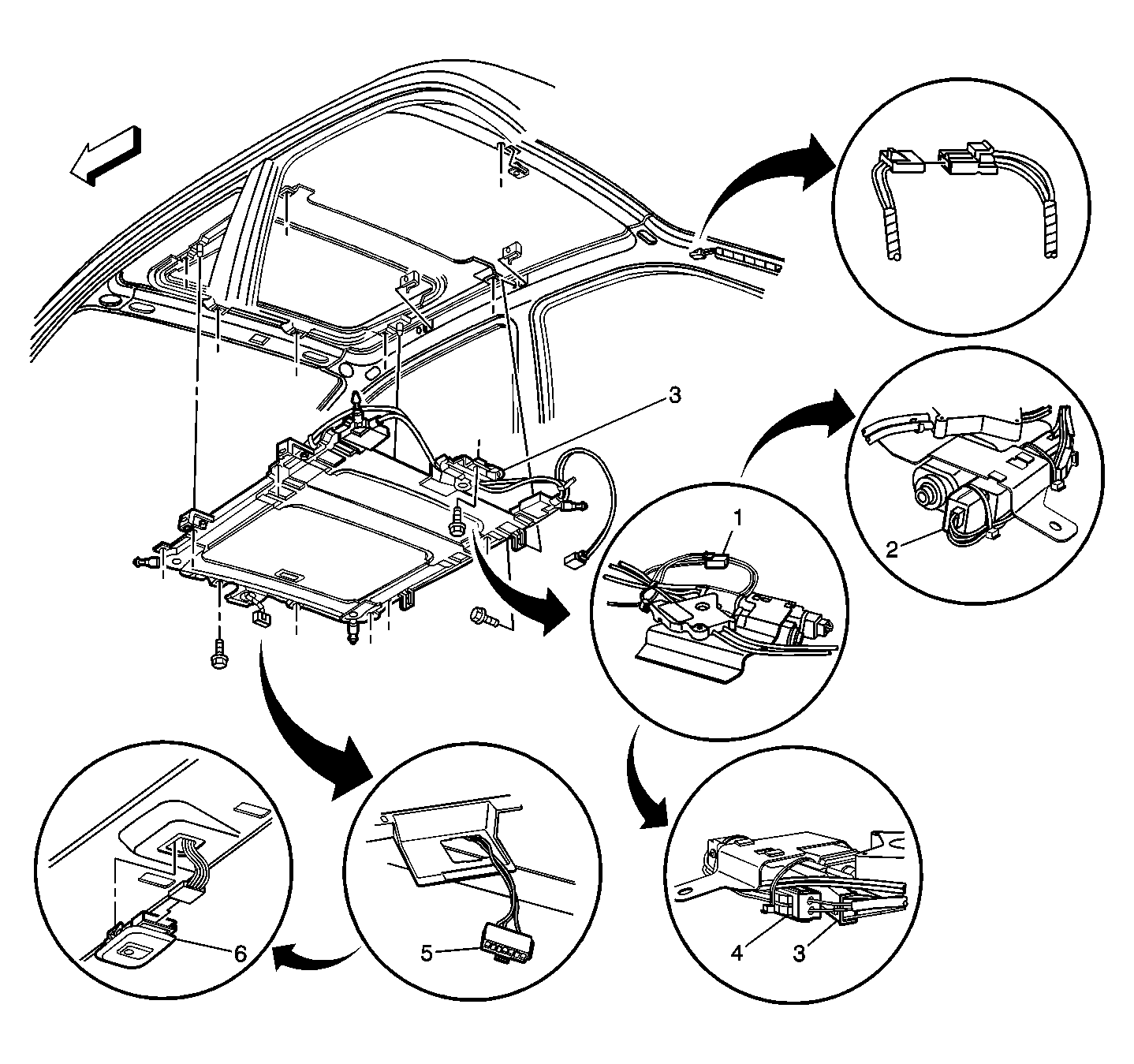

Power Roof Systems Component Views
WARNING: This page is about a different car, the 2004 Buick Regal and 2004 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Sunroof Motor Connector |
| 2 |
Sunroof Module (Express Open) |
| 3 |
Express Open Connector |
| 4 |
Sunroof Opening Position Switch (SOPS) Connector |
| 5 |
Sunroof Switch Connector |
| 6 |
Sunroof Switch |
