Blower Motor Control Processor Connector End View Terminal

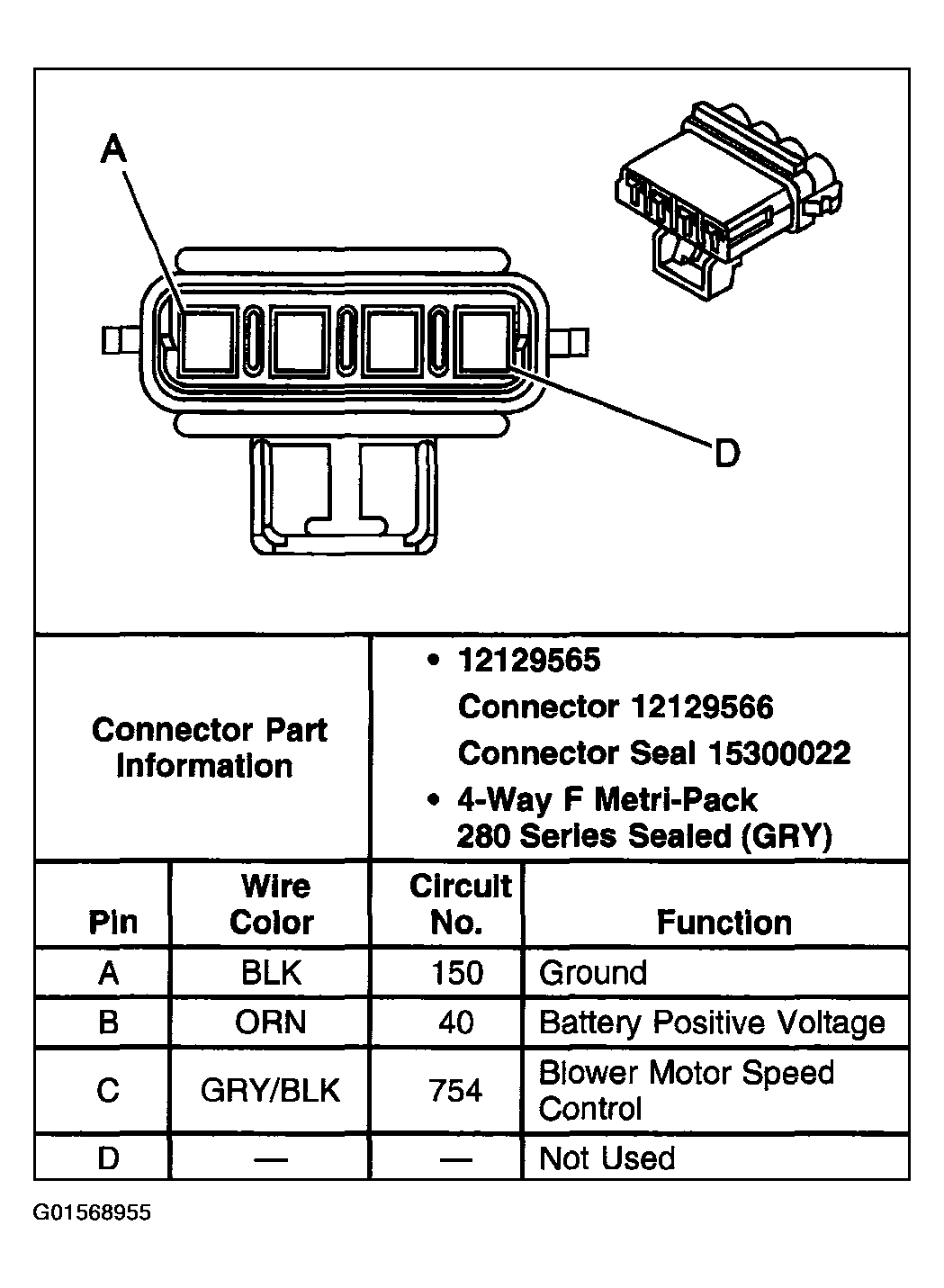

Fig 1: Blower Motor Control Processor Connector End View Terminal
G01568955Courtesy of GENERAL MOTORS CORP.
