Cruise Control Release Switch Connector End View

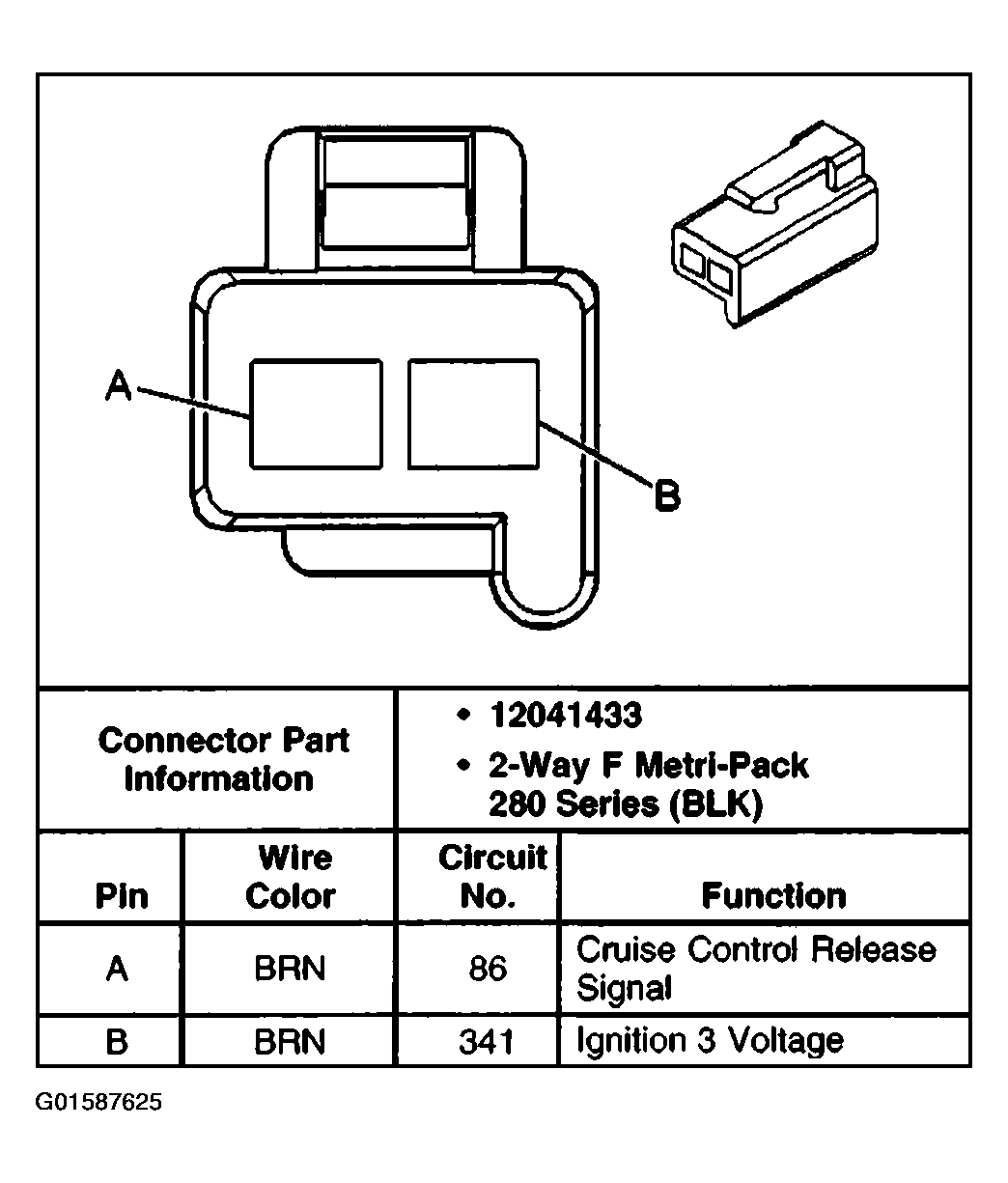

Fig 1: Cruise Control Release Switch Connector End View
G01587625Courtesy of GENERAL MOTORS CORP.
