Sunload Sensor Connector End View Terminal

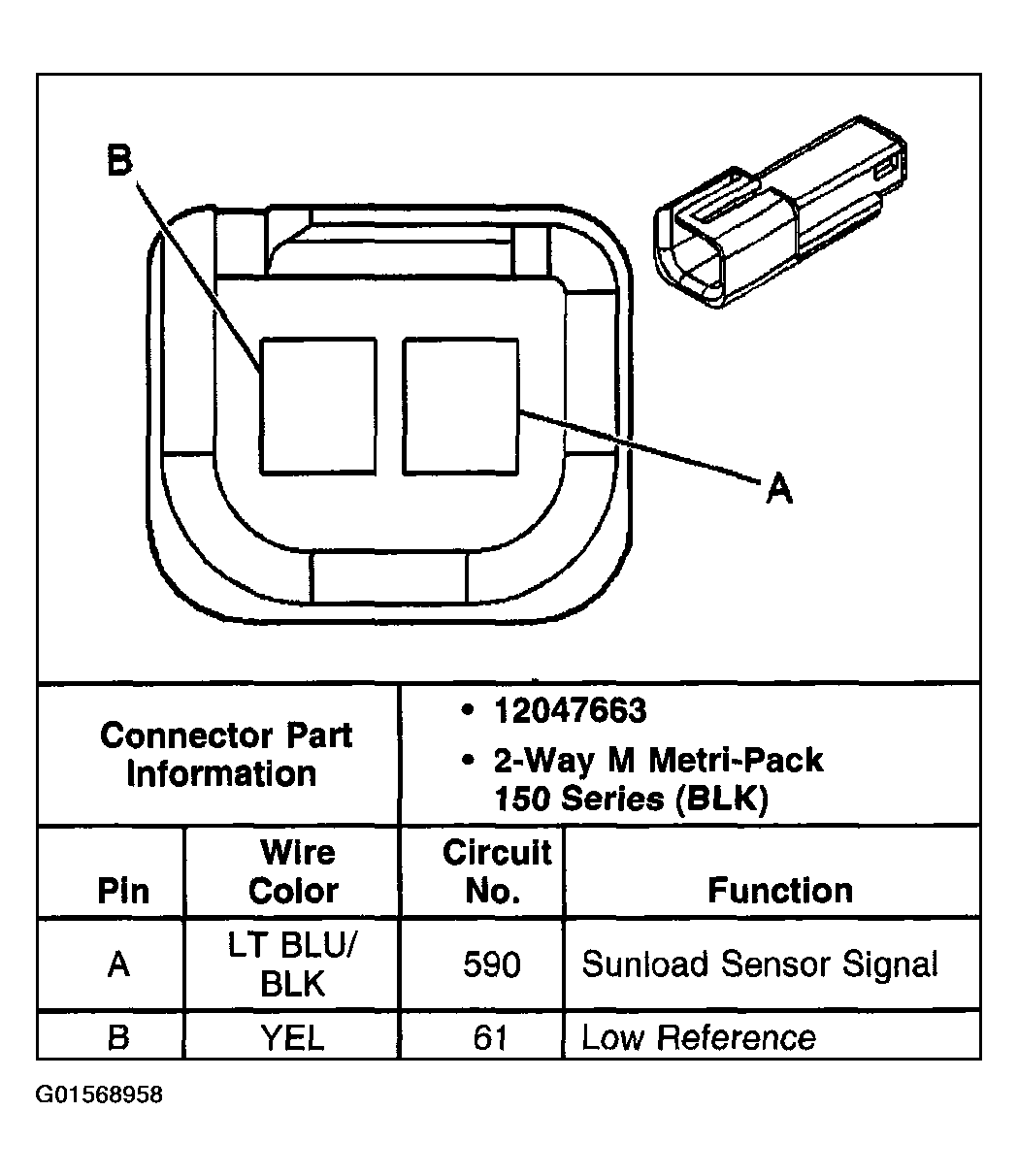

Fig 1: Sunload Sensor Connector End View Terminal
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
